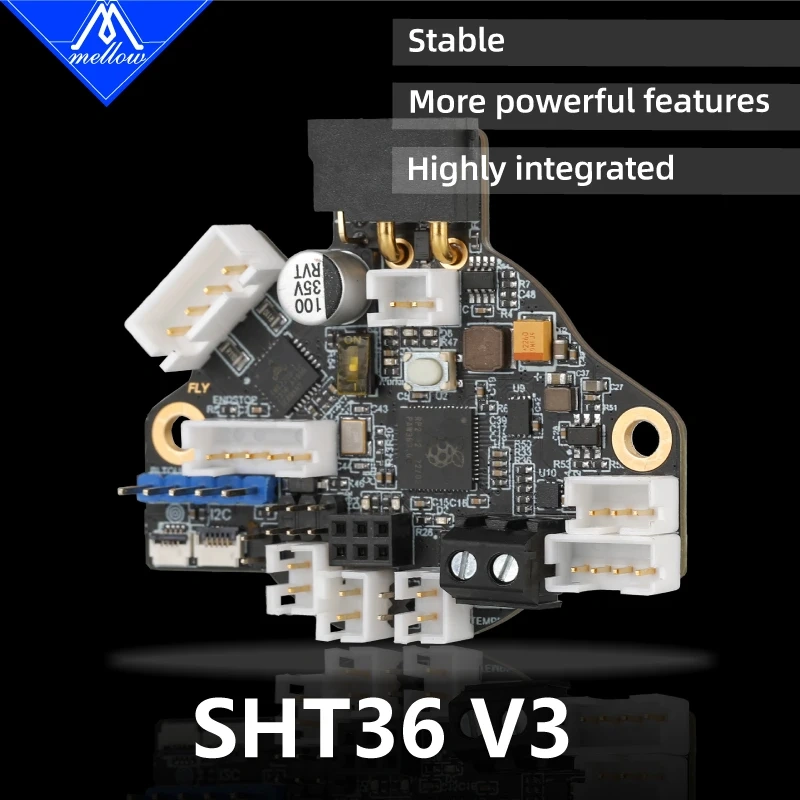

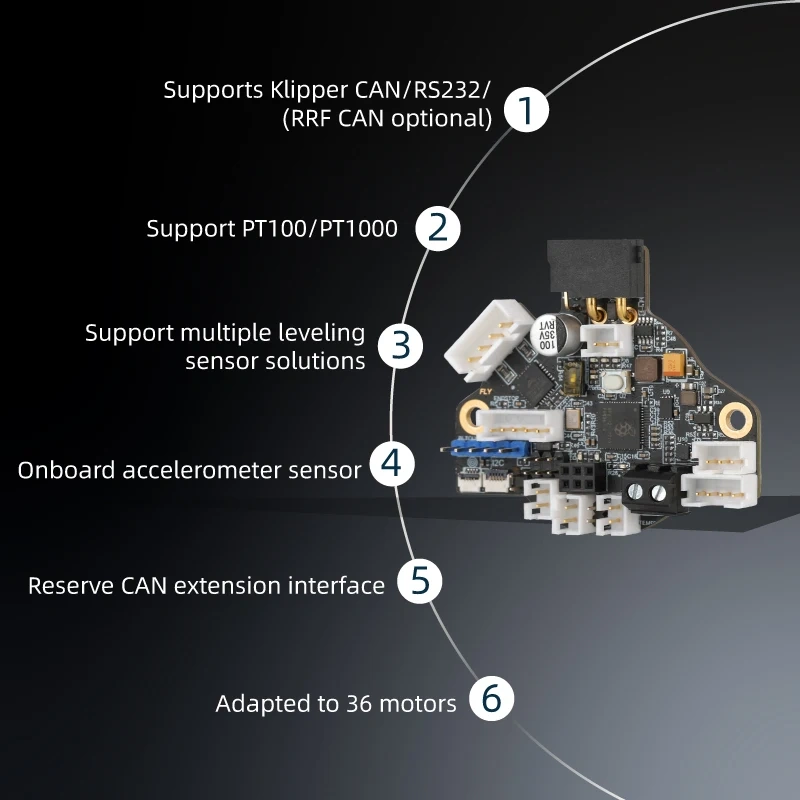

The FLY-SHT36 V3 is a tool board specifically designed by the FLY team for 3D printer extruder heads. With this tool board, you can replace the complex wiring between the mainboard and the print head with just four wires, optimizing the layout. The FLY-SHT36 V3 is suitable for 36-step motors and integrates a CAN & RSR232 transceiver, USB port, TMC2209 driver, LIS2DW accelerometer, two controllable fans, and other functionalities. This tool board is compatible with Klipper firmware, and the Max version can be used with both RRF & Klipper, supporting Eddy LDC1612.

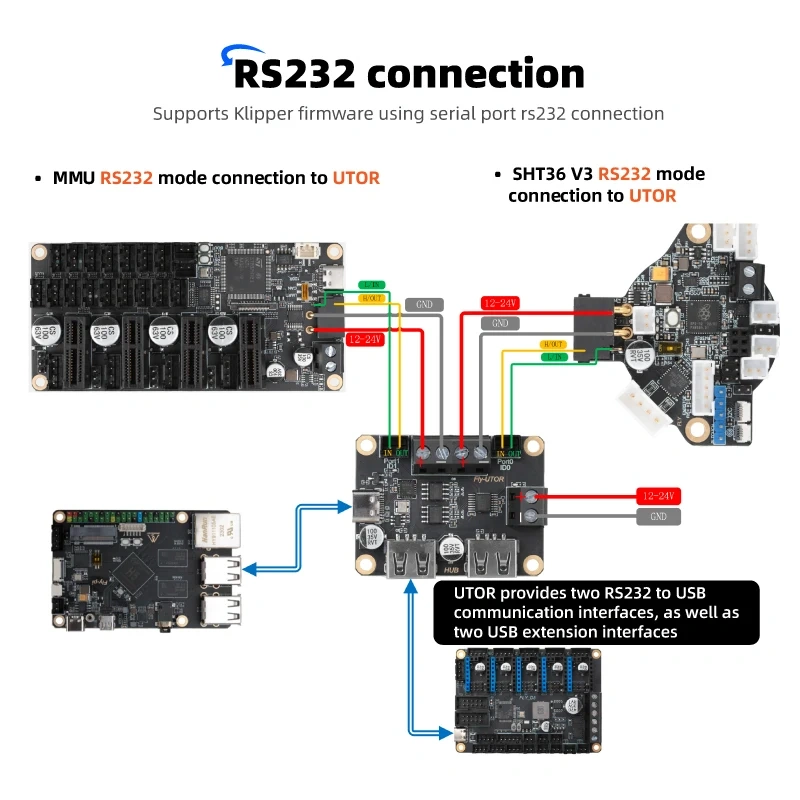

The SHT36 V3 board utilizes CAN/RS232 communication to connect the upper computer to the UTOC/UTOR board, enabling communication with the SHT36 through the UTOC/UTOR
1Technical Specifications:
MCU: Raspberry Pi RP2040, dual-core ARM Cortex-M0+ @ 133MHz
Connection Interface: Uses XT30 (2+2) connector, supporting 15A current, peak 30A
Firmware: Reprap / Klipper
Input Voltage: DC 12V-24V
Logic Voltage: DC 3.3V

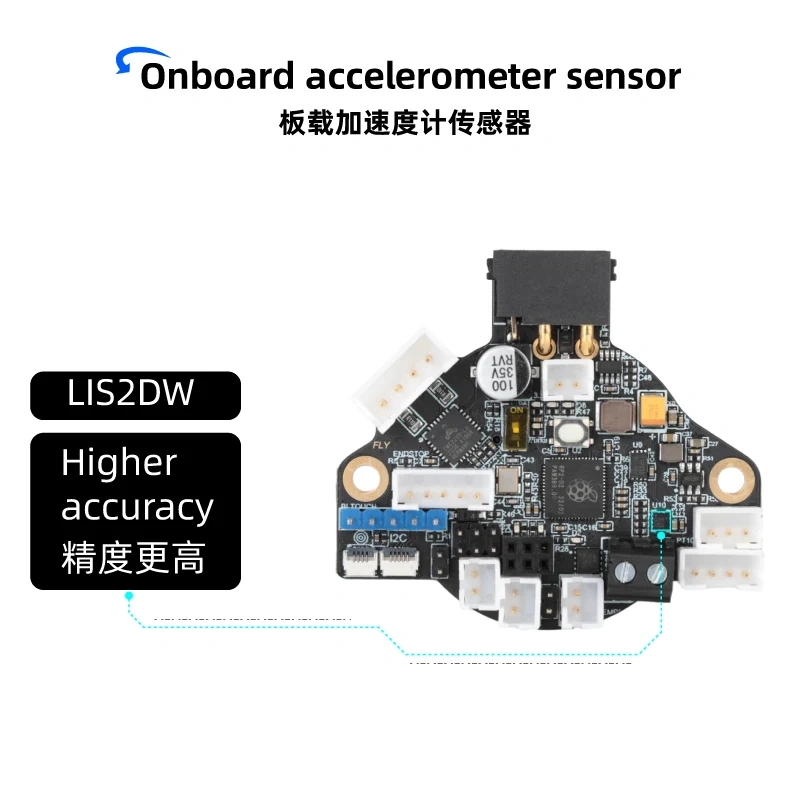

Onboard Sensors: LIS2DW and LDC1612(Max version adds 1612 chip for RRF fast scanning)
Heater Interface: HEAT0, supporting 10A

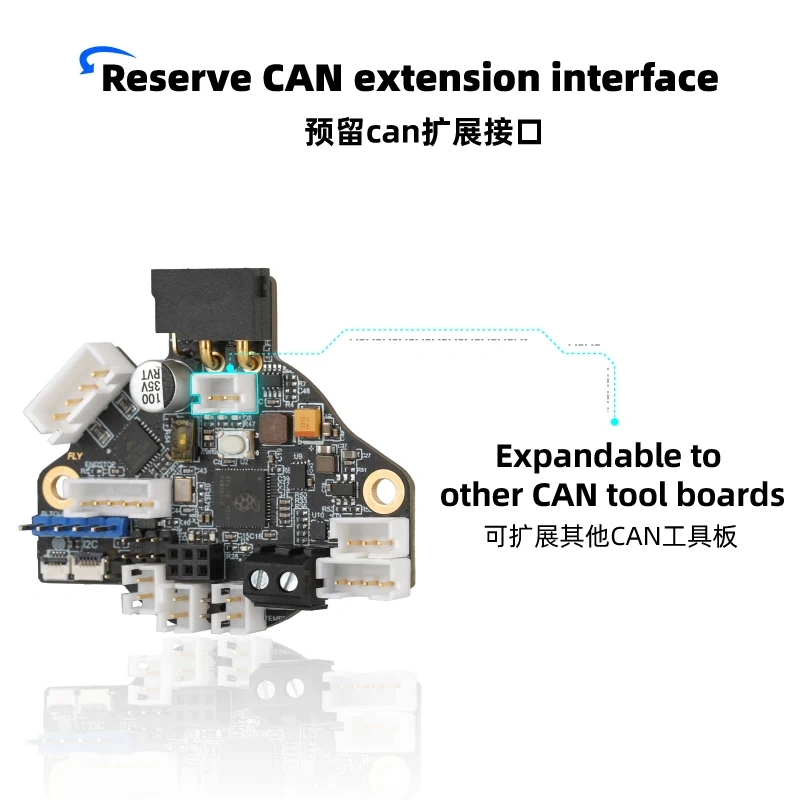

Expansion Interfaces: RGB, EndStop, PT100/PT1000, XH2.54-2P CAN expansion port
Fan Interfaces: Two controllable DC fans (Max)
Motor Driver: Onboard TMC2209

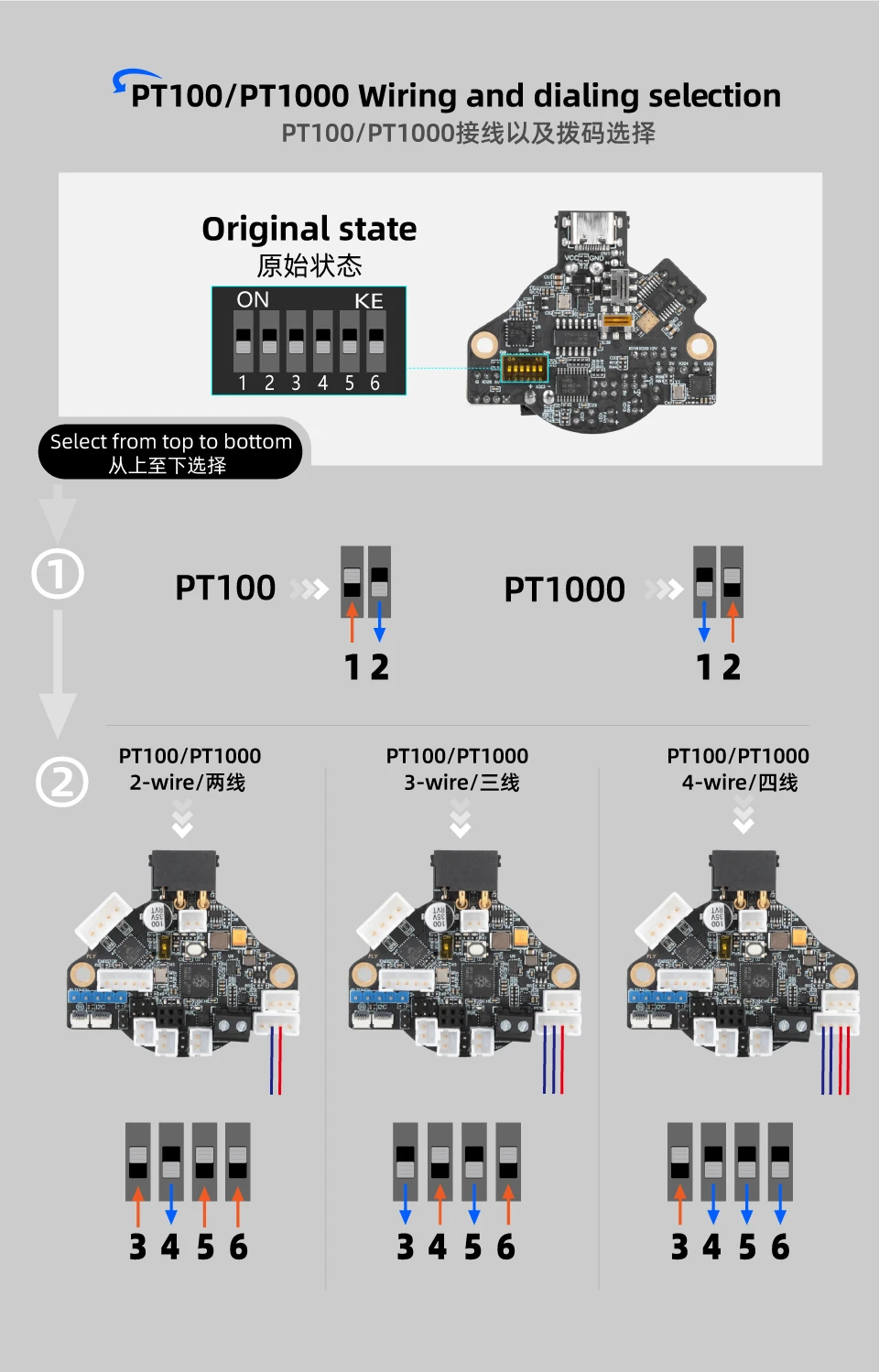

Temperature Sensor: One 100K NTC or PT1000 (TH0), Plus version adds 31865 chip, latest support for PT100/PT1000
Packege included

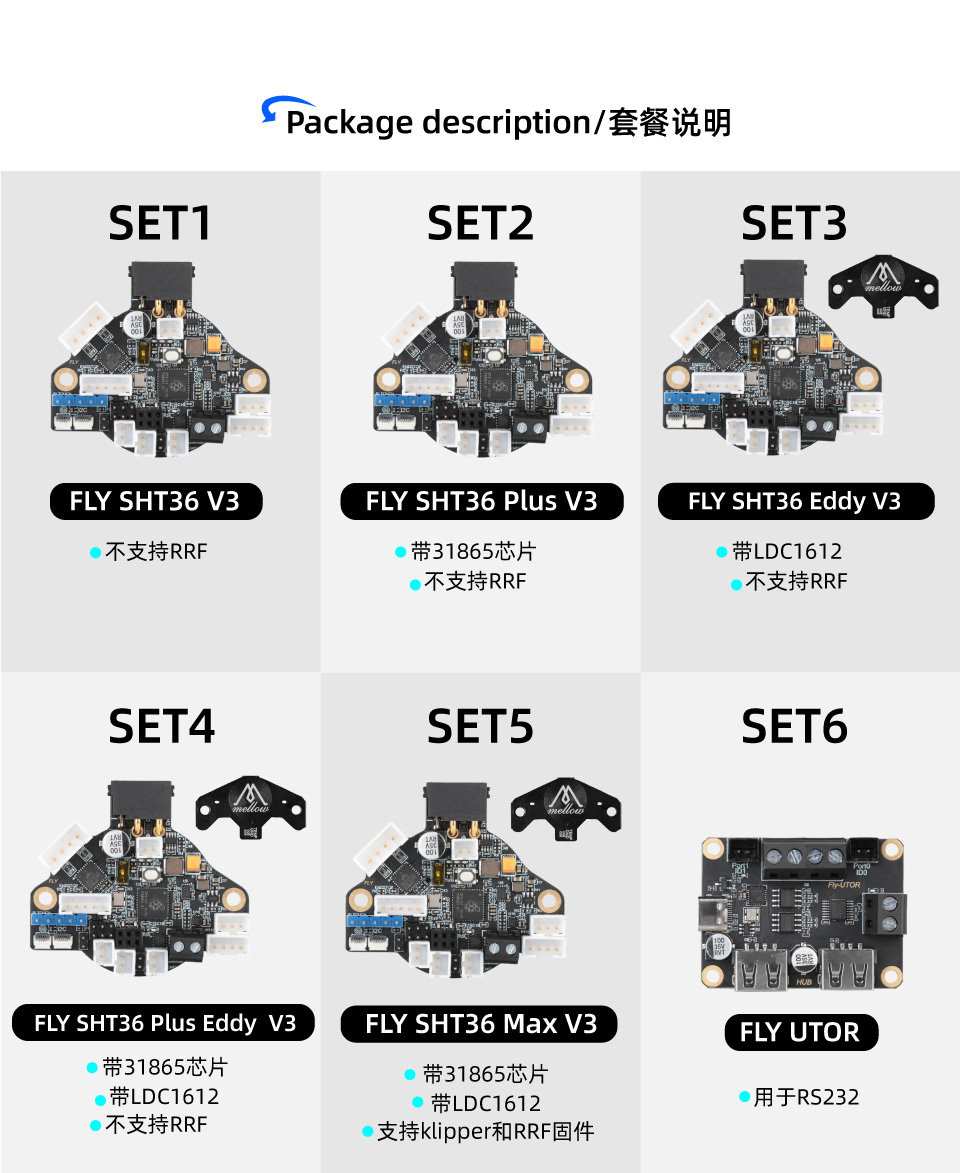

SET1

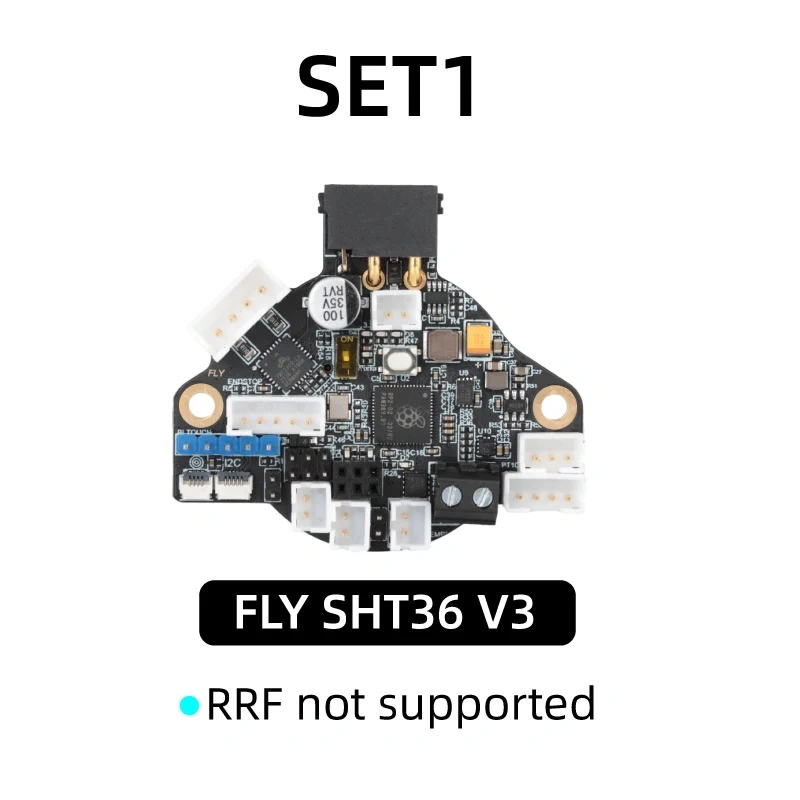

Sht36 V3 Board*1
1.5m Can Connection Cable*1

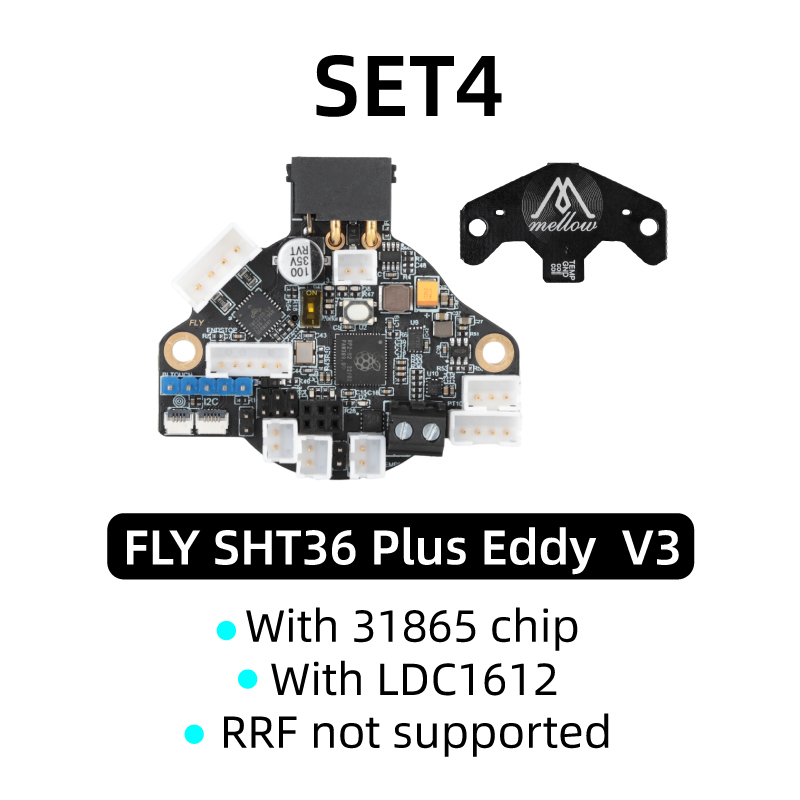

SET2

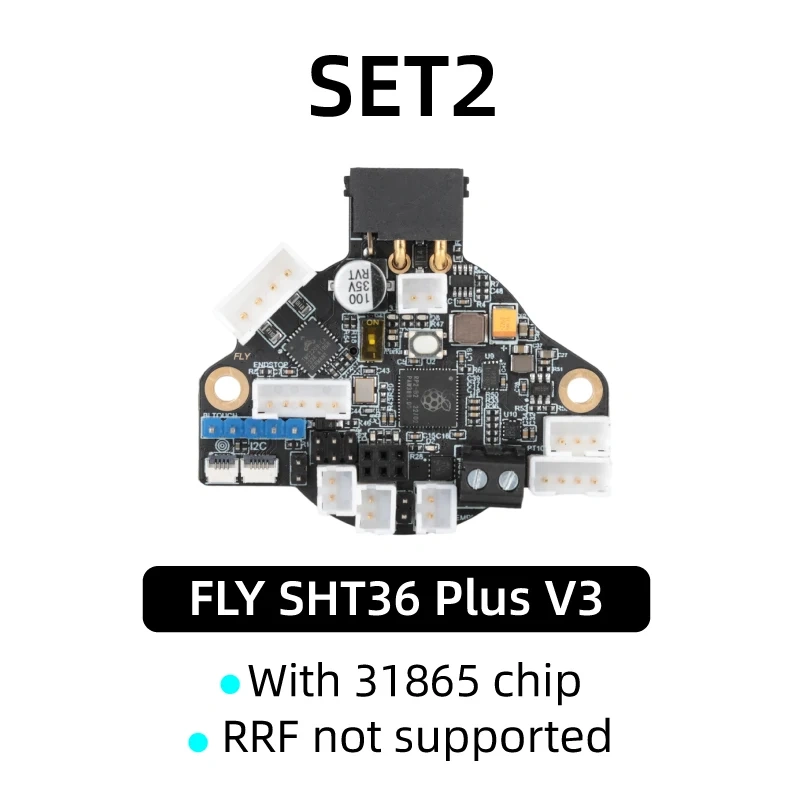

Sht36 Plus V3 Board (Add 31865 for PT100/PT1000)*1
1.5m Can Connection Cable*1
SET3

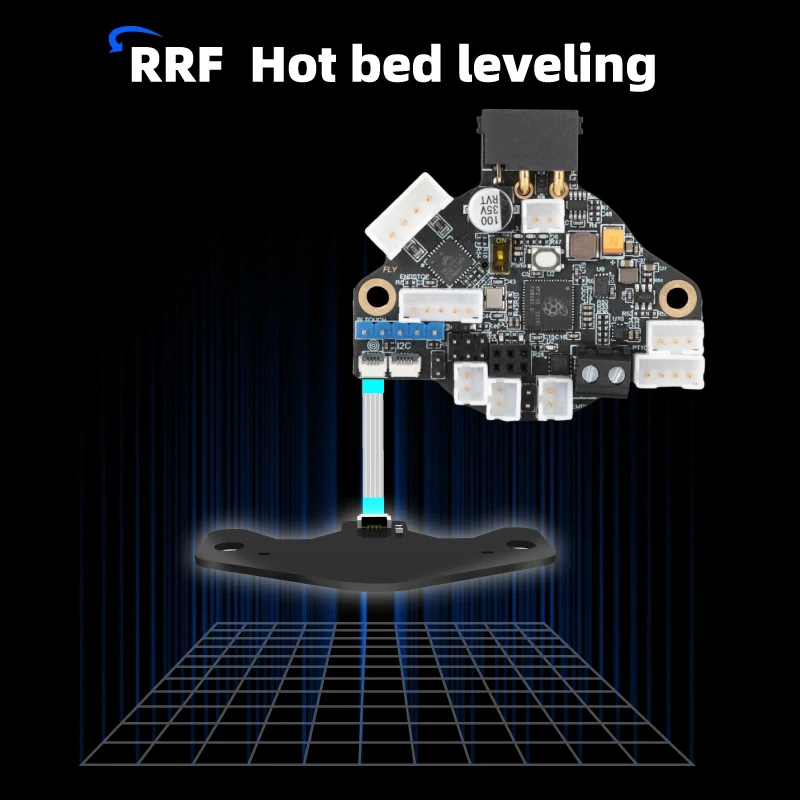

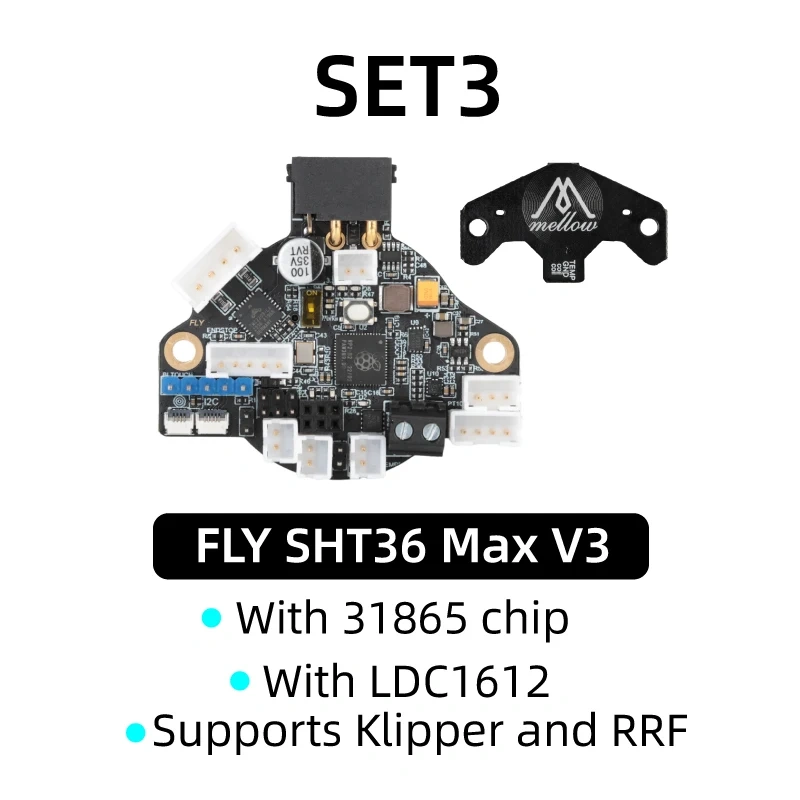

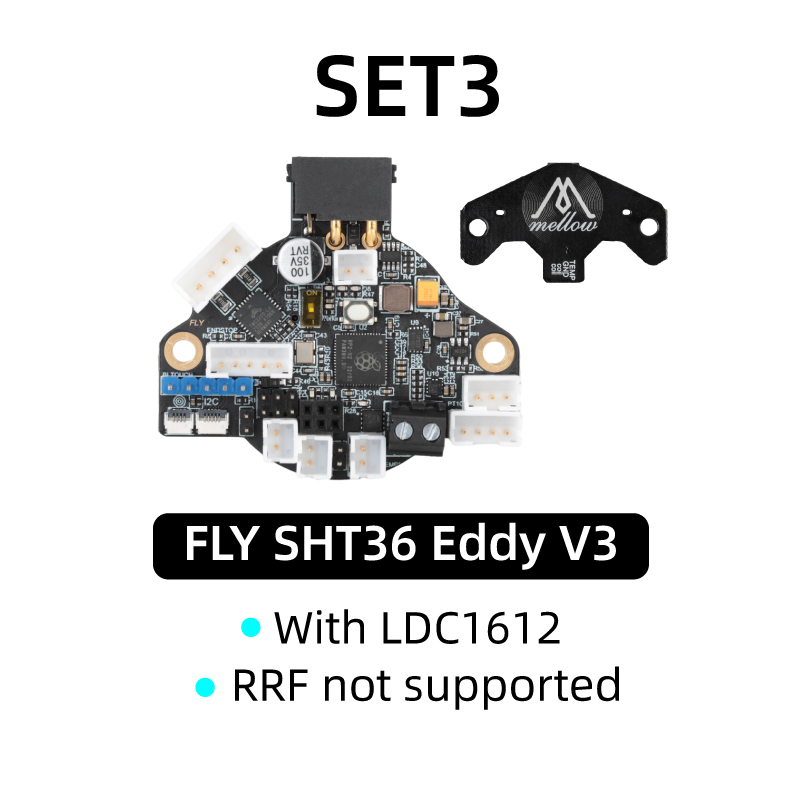

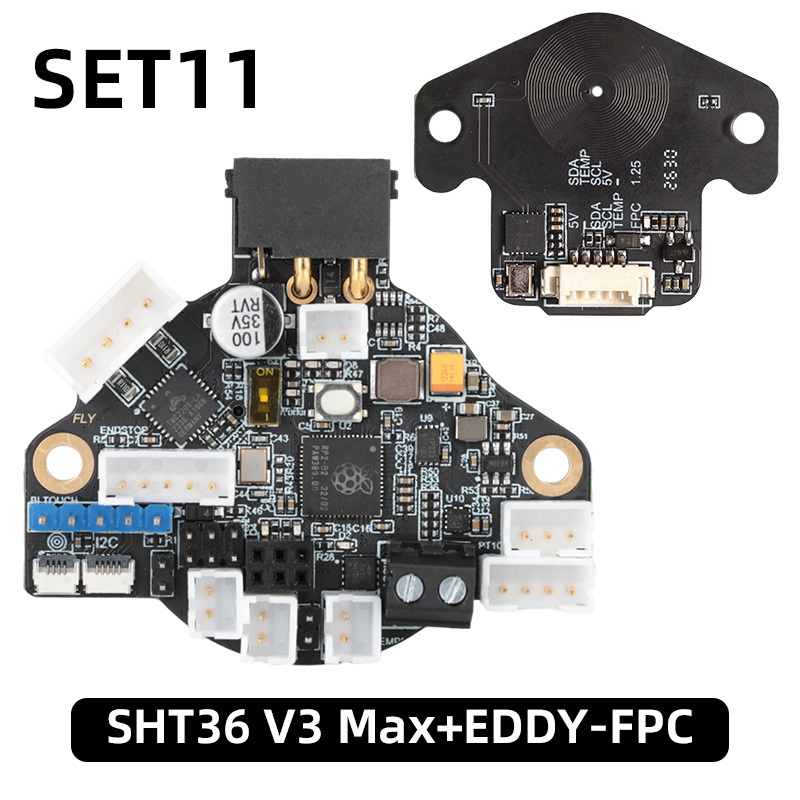

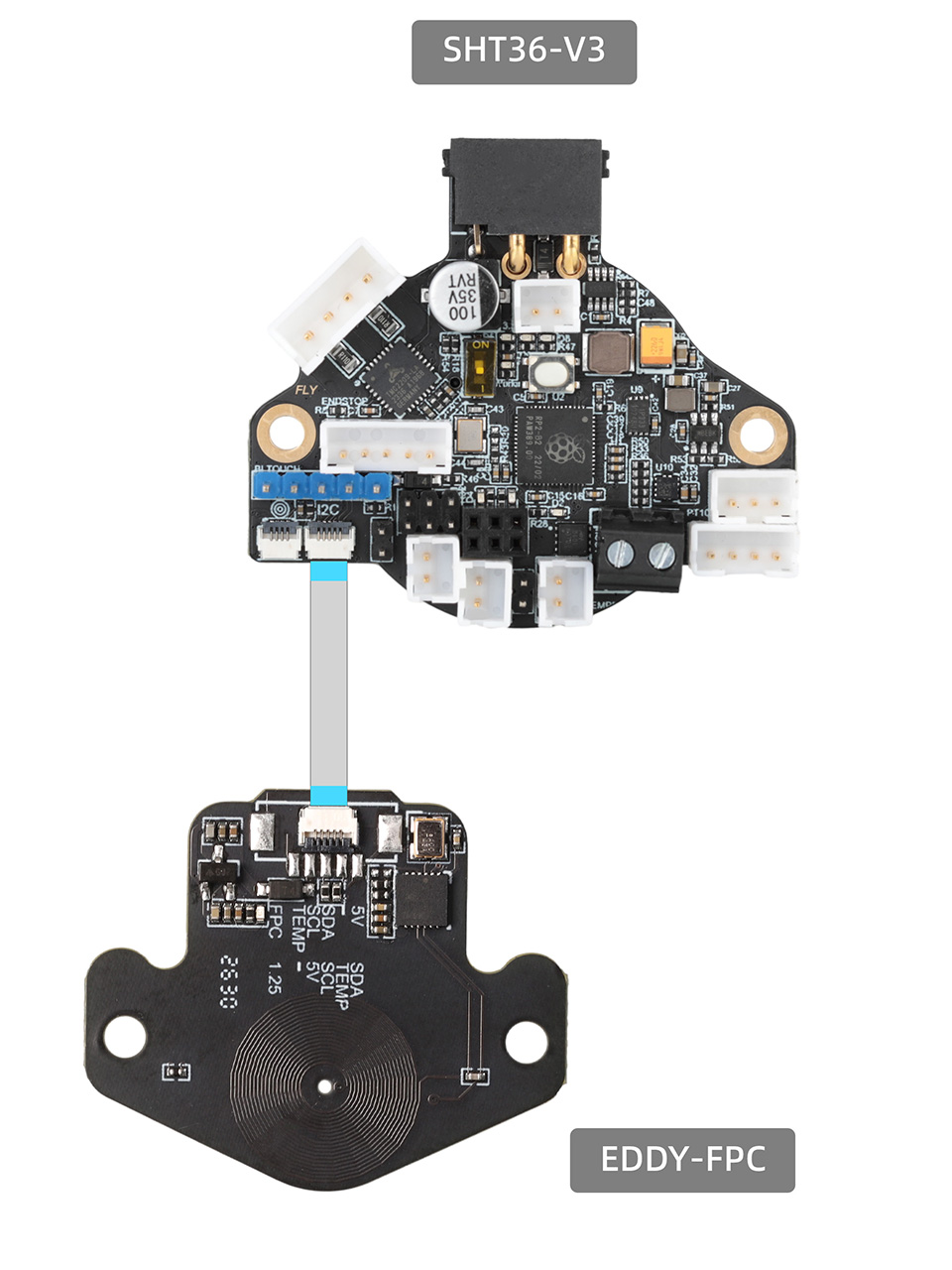

Sht36 Max V3 Board (Add 31865 for PT100/PT1000&Can be used for RRF and Klipper, onboard 1612 chip for RRF mesh bed compensation leveling)*1
1.5m Can Connection Cable*1

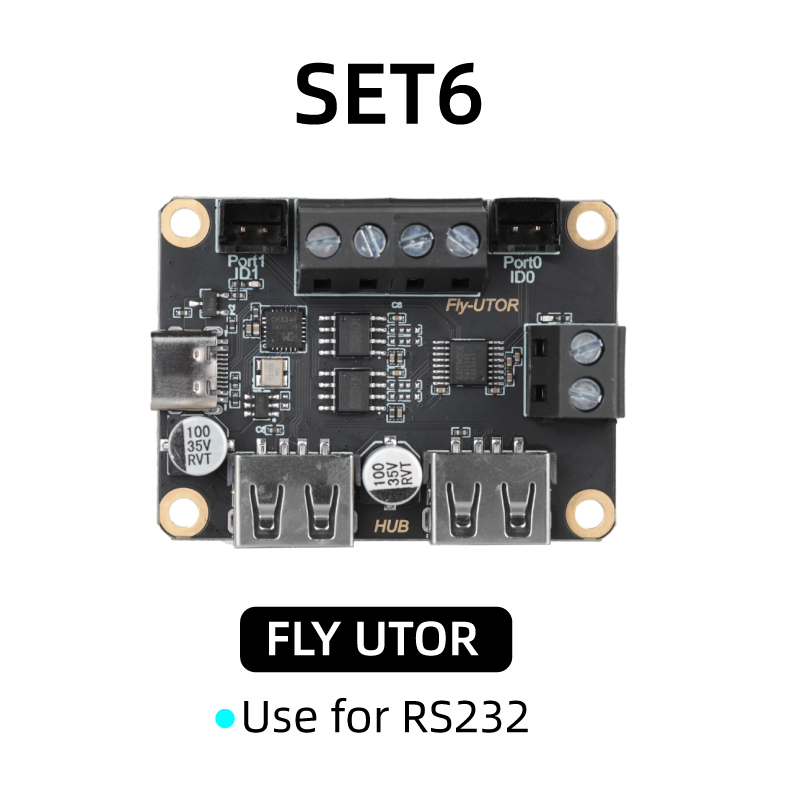

SET4

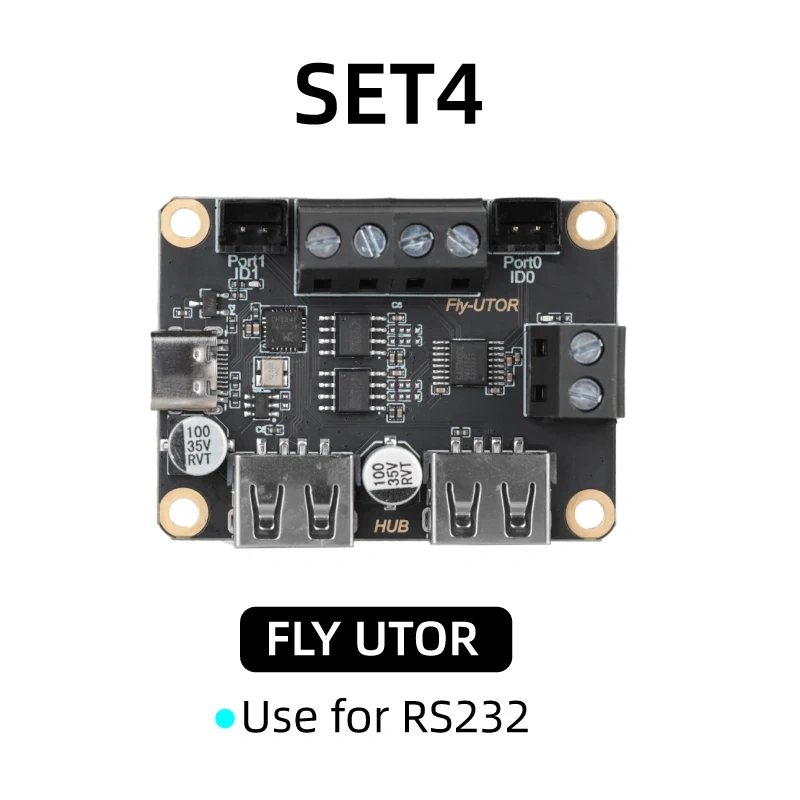

UTOR Board (For RS232)*1

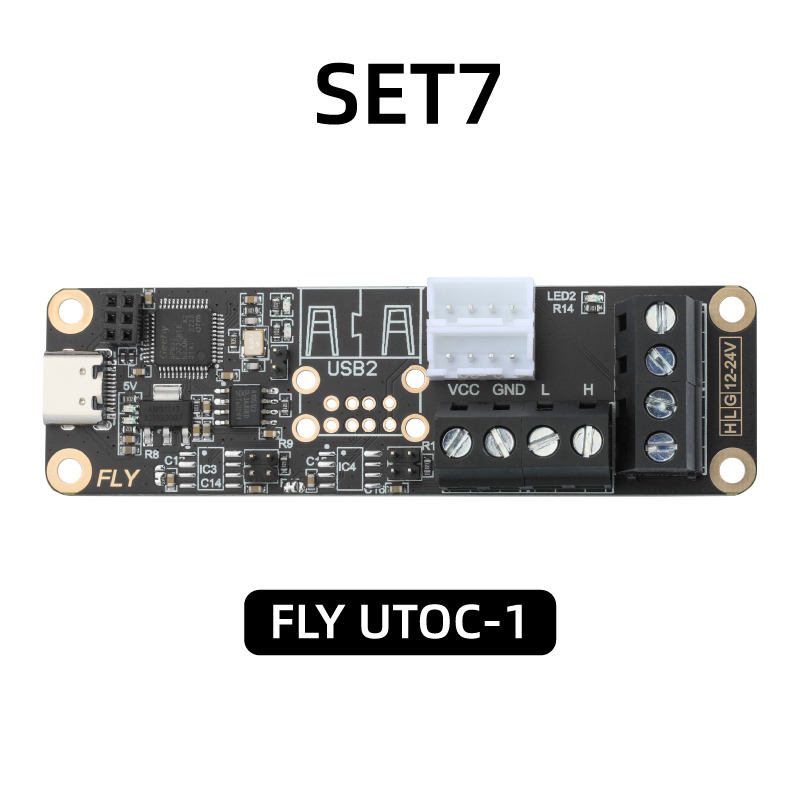

SET5

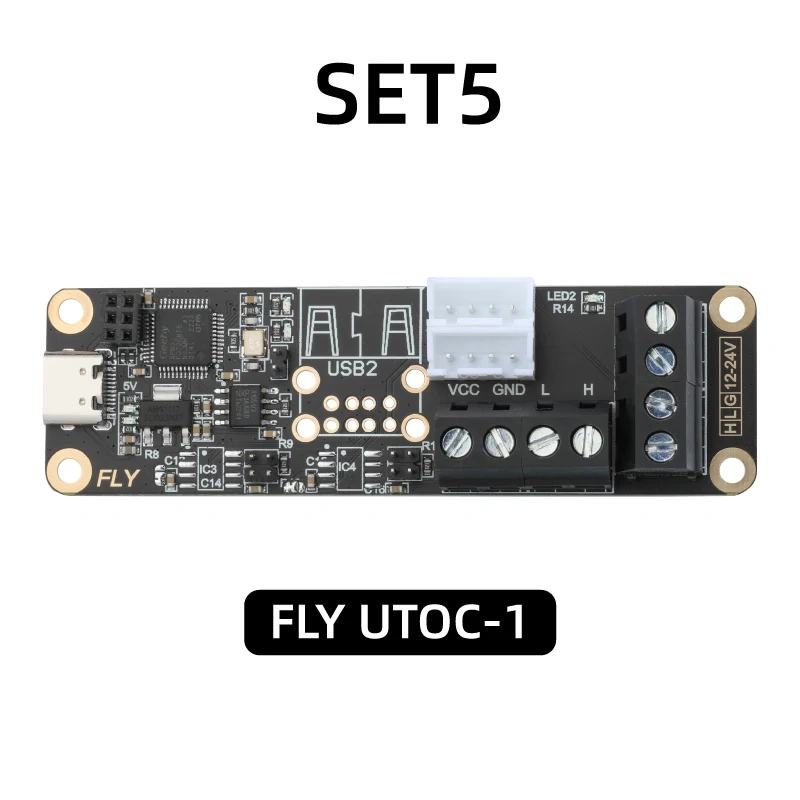

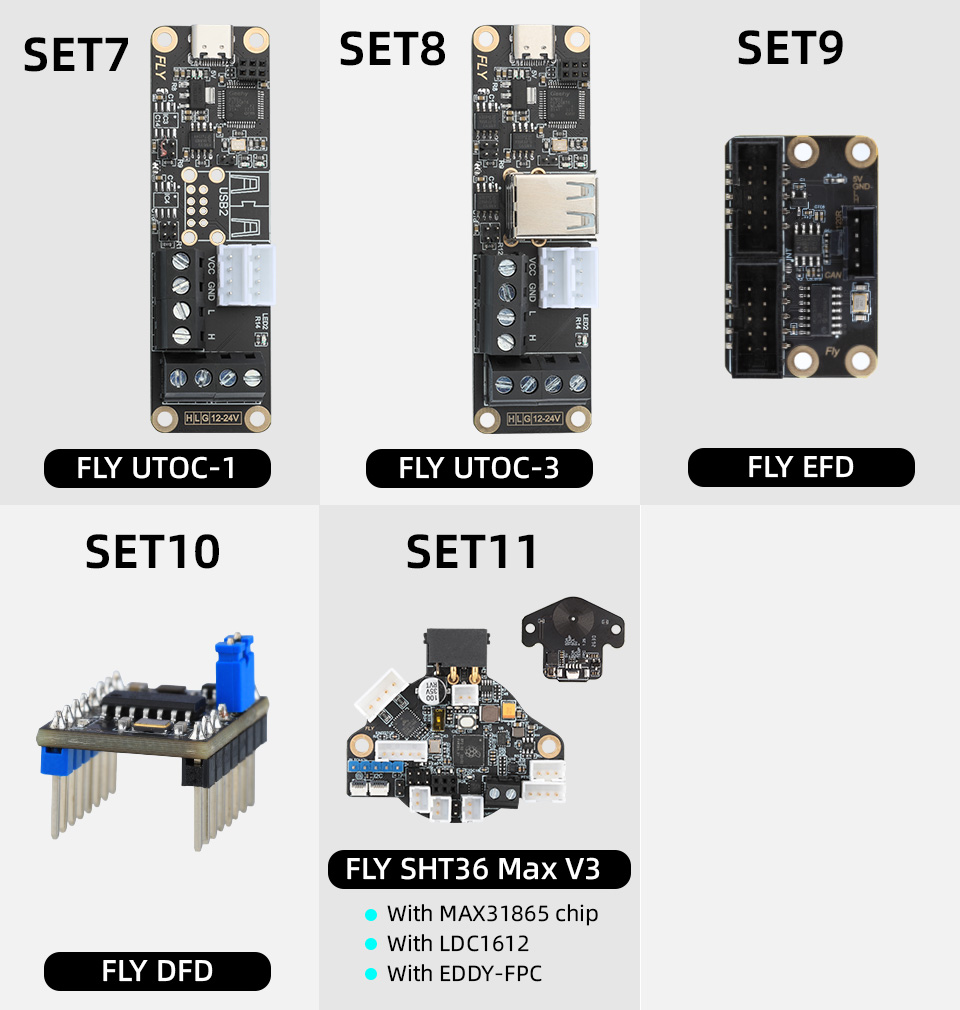

UTOC-1 Board(For Klipper Can)*1
SET6

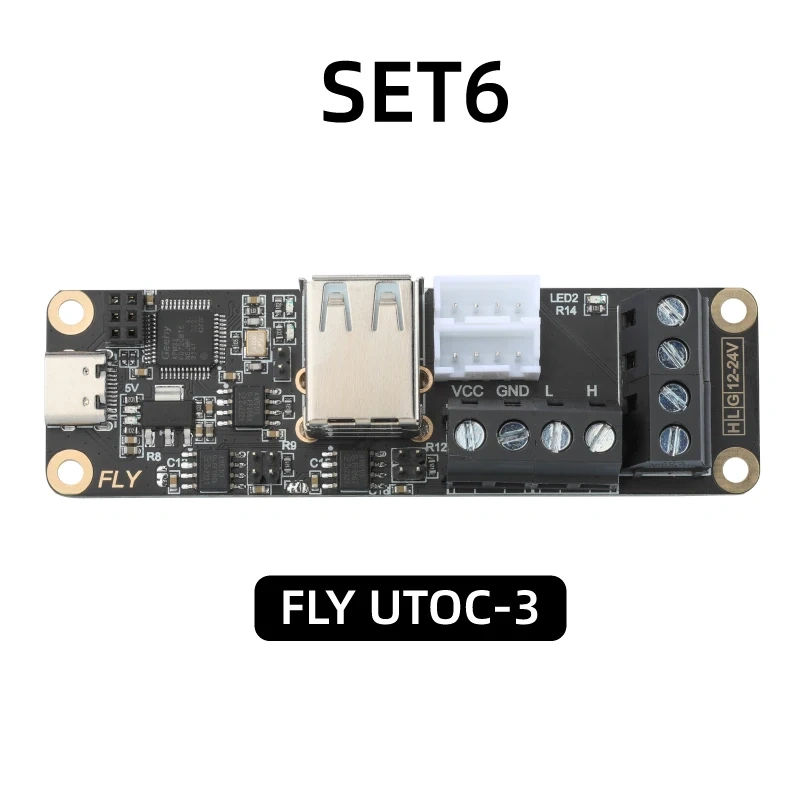

UTOC-3 Board(For Klipper Can)*1
SET7

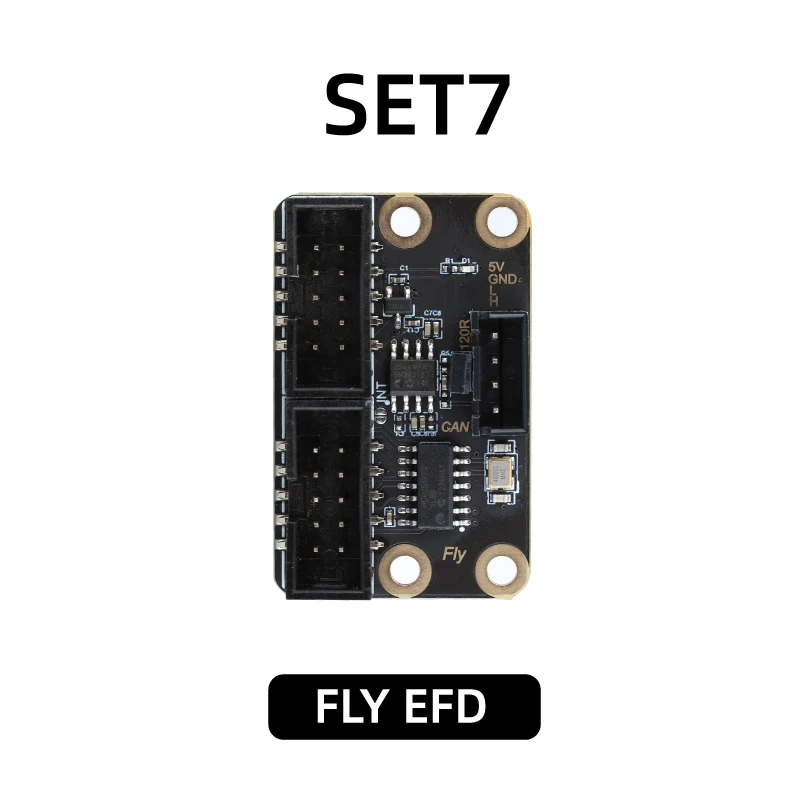

EFD Board(For RRF Can)*1

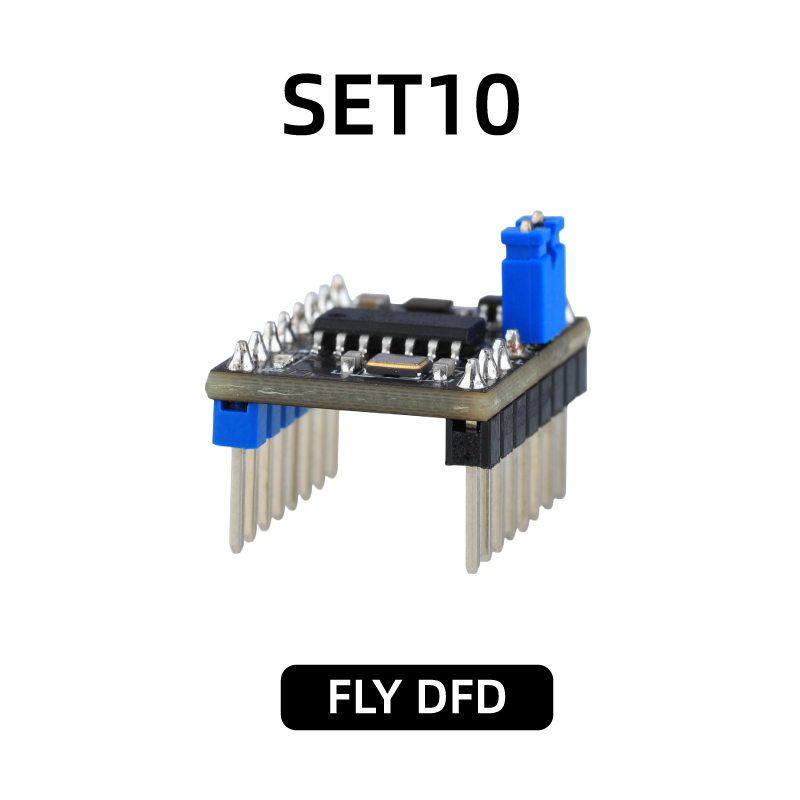

SET8

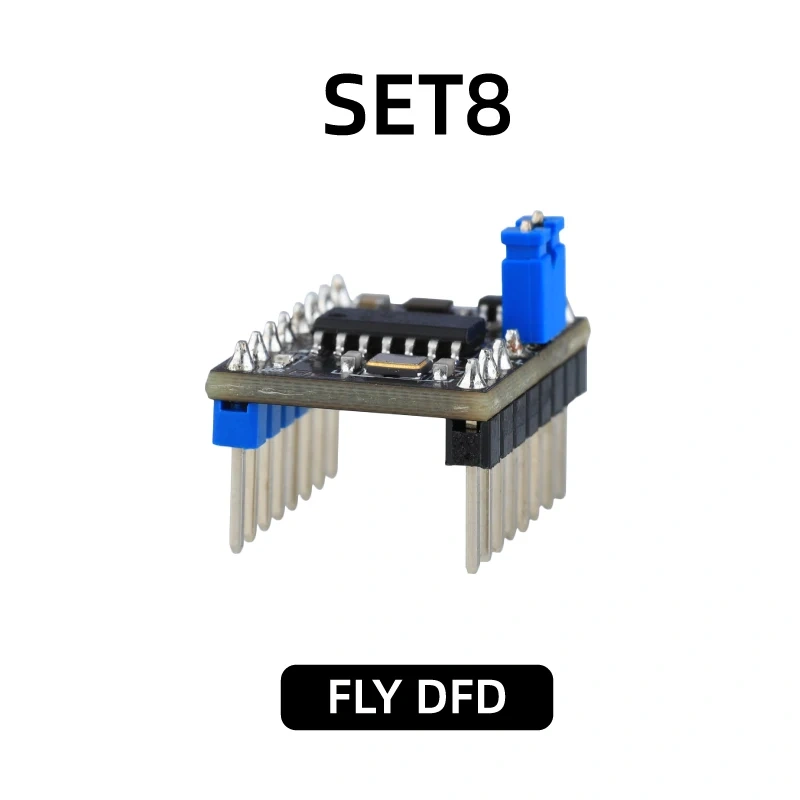

DFD Board (For RRF Can)*1
