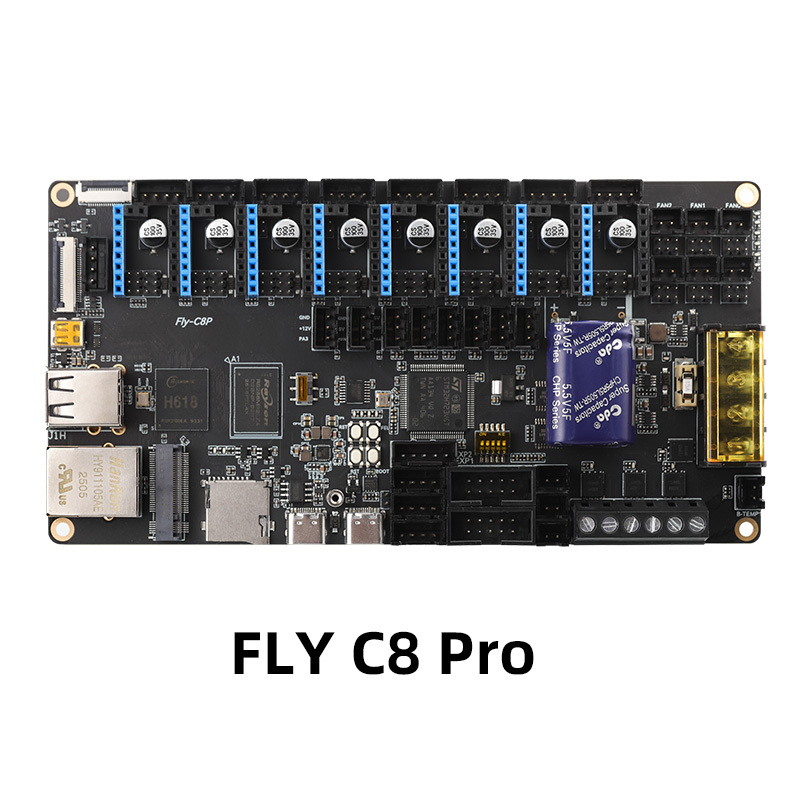

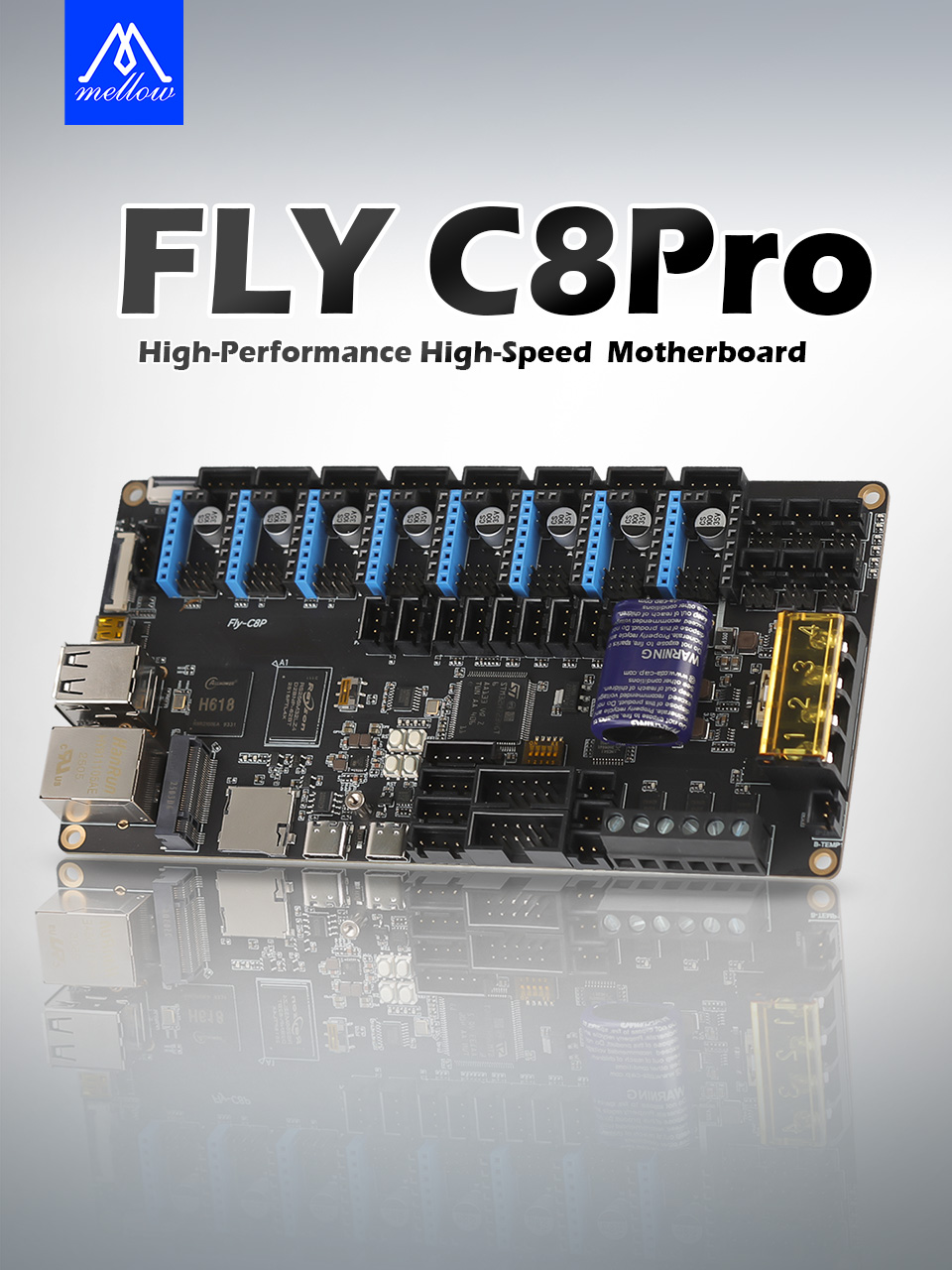

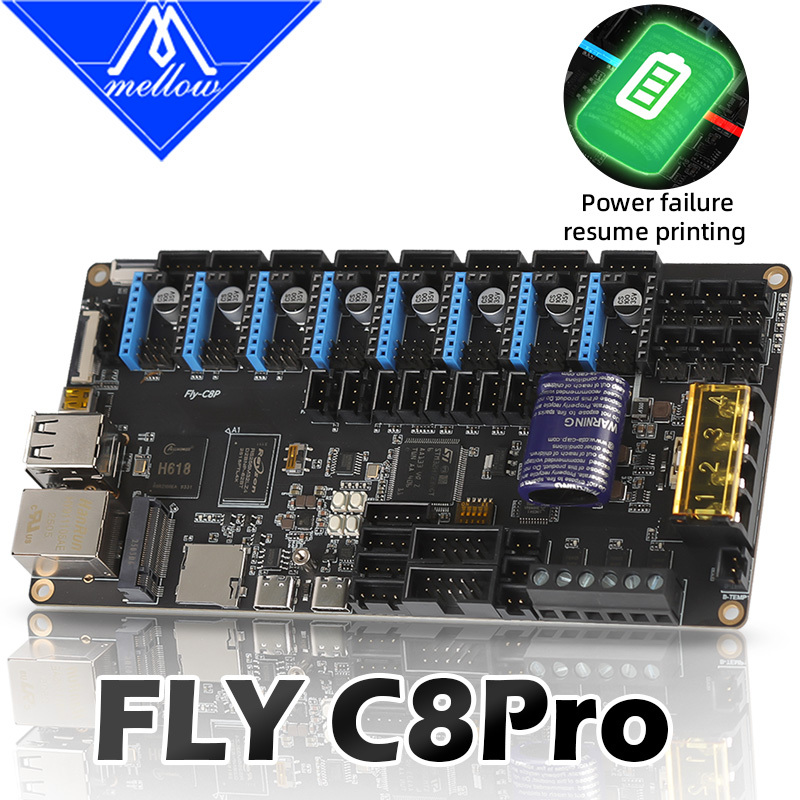

FLY C8 Pro 3D Printer Mainboard
The FLY C8 Pro 3D printer mainboard is a high-performance, feature-rich control board designed for professionals and advanced users. Combining cutting-edge hardware and optimized software, it suits various 3D printer architectures, delivering smooth and efficient printing performance.
Fly Fast System: Simplified and Optimized for Seamless 3D Printing
The Fly Fast System is a cutting-edge solution tailored for 3D printing enthusiasts and manufacturers. With an emphasis on reliability, simplicity, and customization, it elevates the user experience while meeting the diverse needs of different users, from hobbyists to industrial manufacturers.
Key Optimizations
1. Enhanced Firmware Stability
-
Optimized Klipper Firmware: Significant improvements reduce TTC (Time to Close) disconnection issues, ensuring a more stable and uninterrupted printing process.

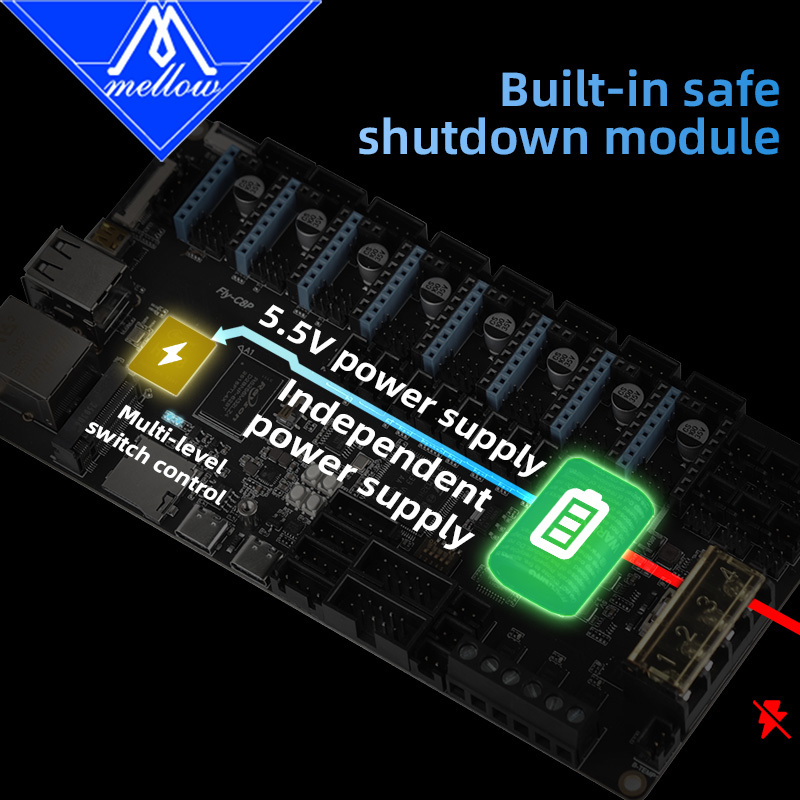

2. Integrated Shutdown Module
-
Onboard Power Management: The mainboard features a built-in shutdown module, allowing:
-
Automatic Power-Off: Ensures energy savings and operational convenience.
-
Crash Protection: Simplifies recovery with a basic power-loss resume function that safeguards the system disk from crashes during sudden power interruptions.
3. Simplified Setup for All Users
-
Beginner-Friendly Design: Perfect for customers unfamiliar with complex electronic systems, minimizing installation complexities while ensuring ease of use.
4. Customizable UI for OEMs
-

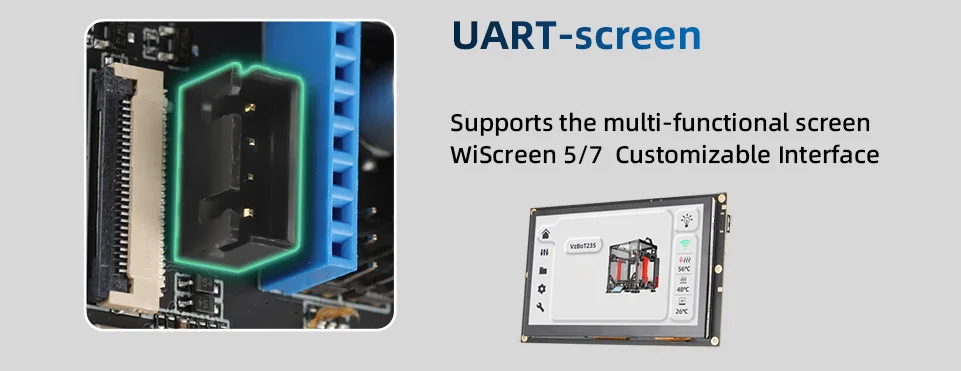

Fly Wiscreen Serial Screen Compatibility:Supports custom UI design services, enabling manufacturers to tailor interfaces to their brand or customer requirements.
5. Tailored Solutions for OEMs
-
Customizable System Services: Offers bespoke system optimizations and configurations for specific machine manufacturers, ensuring seamless integration and enhanced performance.
Key Features
1. Powerful Hardware Performance
-

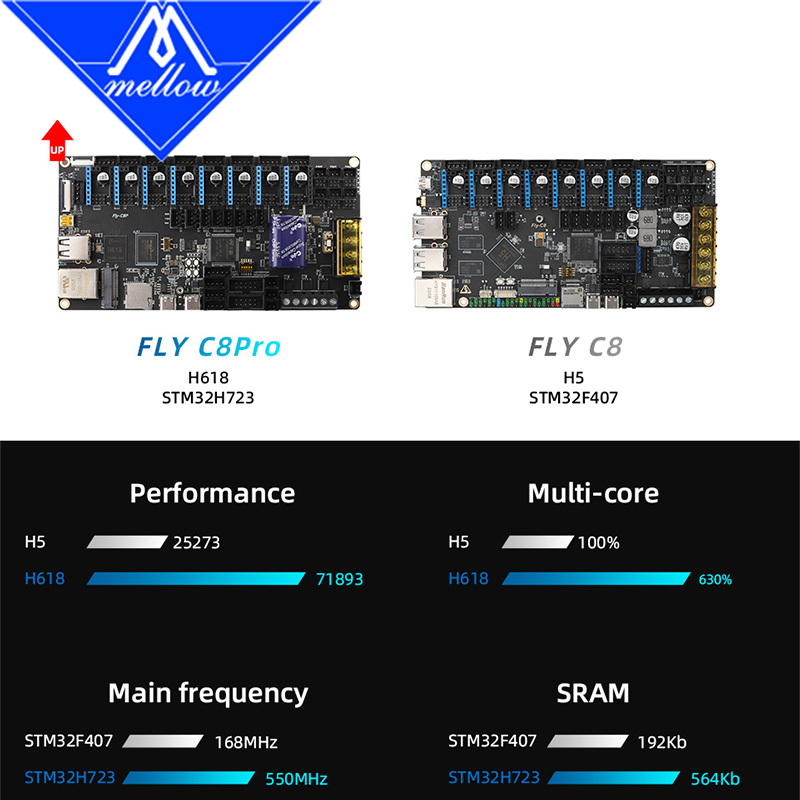

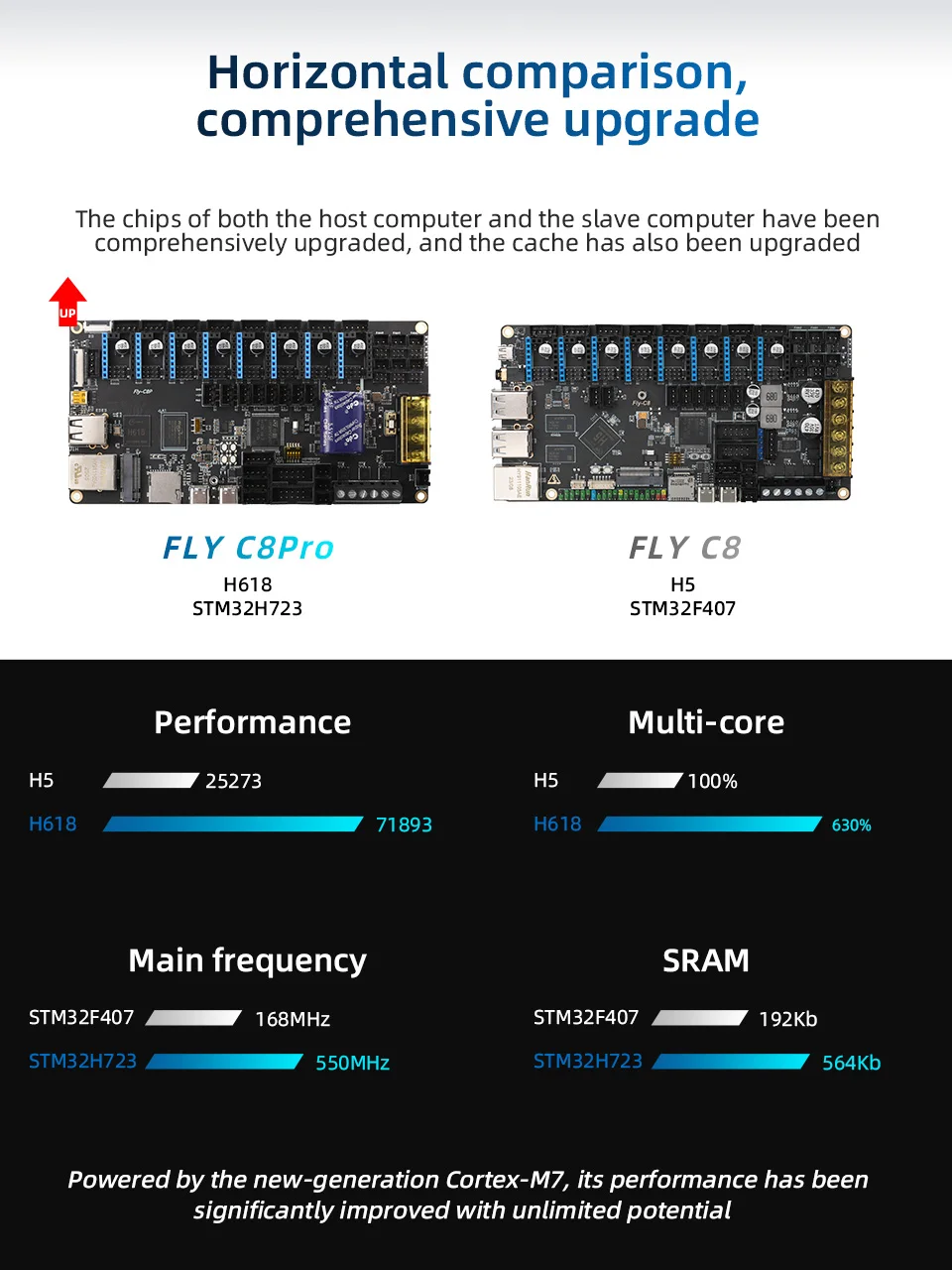

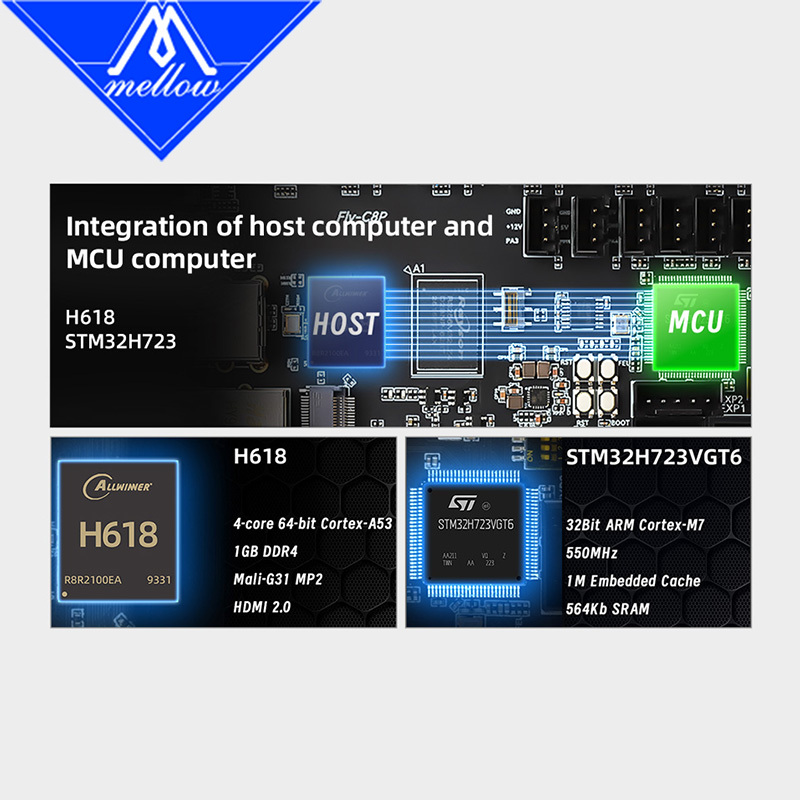

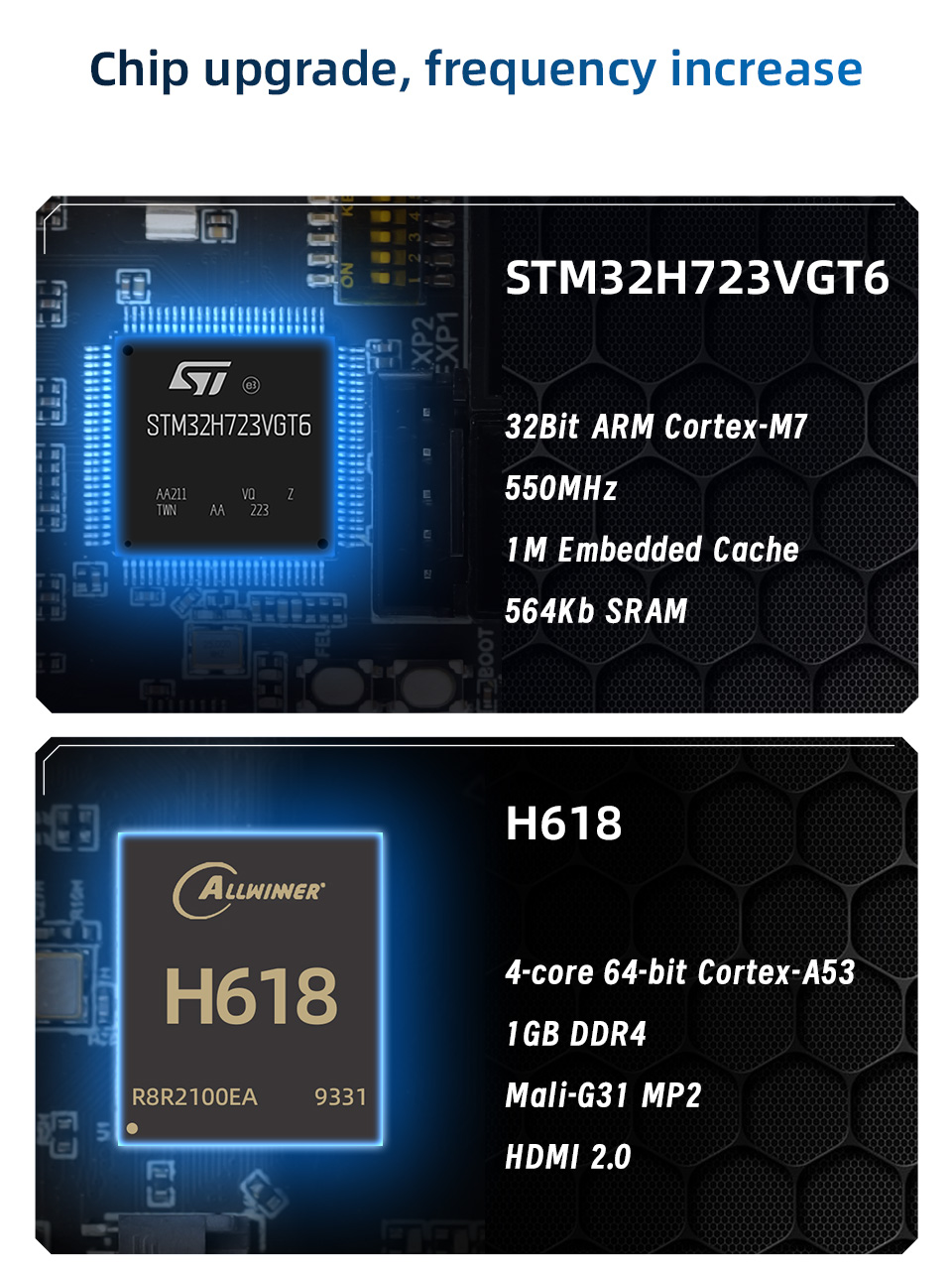

MCU: 32-bit ARM Cortex-M4 STM32H723VGT6 running at 550 MHz, ensuring fast and precise printing task processing.
-

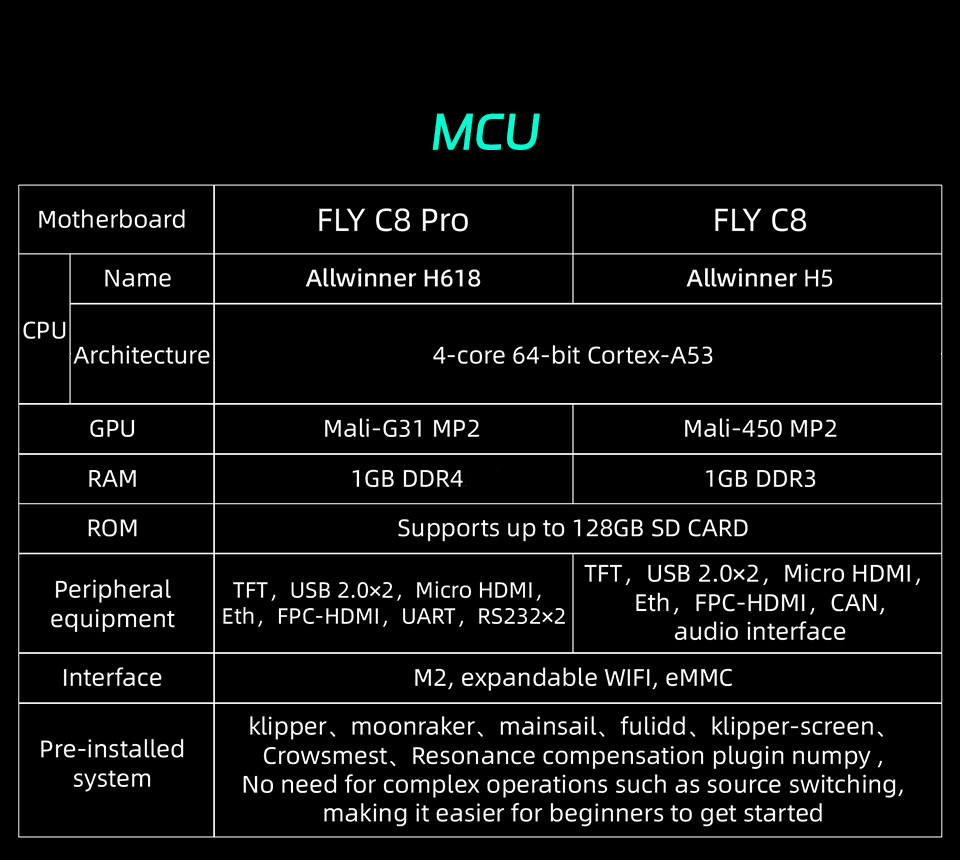

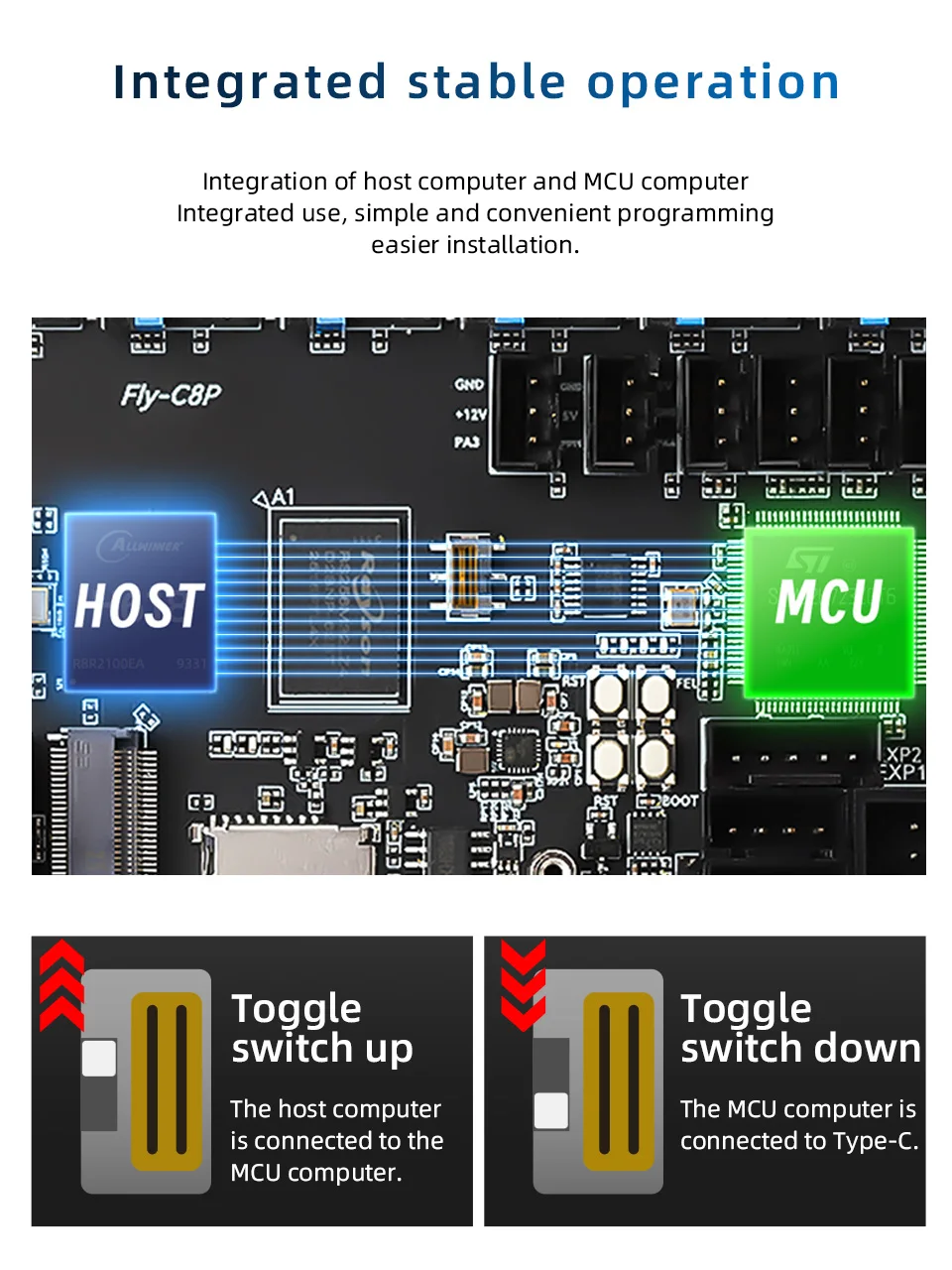

CPU: Allwinner H618 chip with a quad-core 64-bit Cortex-A53 CPU and high-performance Mali-G31 GPU for powerful computing and graphics processing.
-

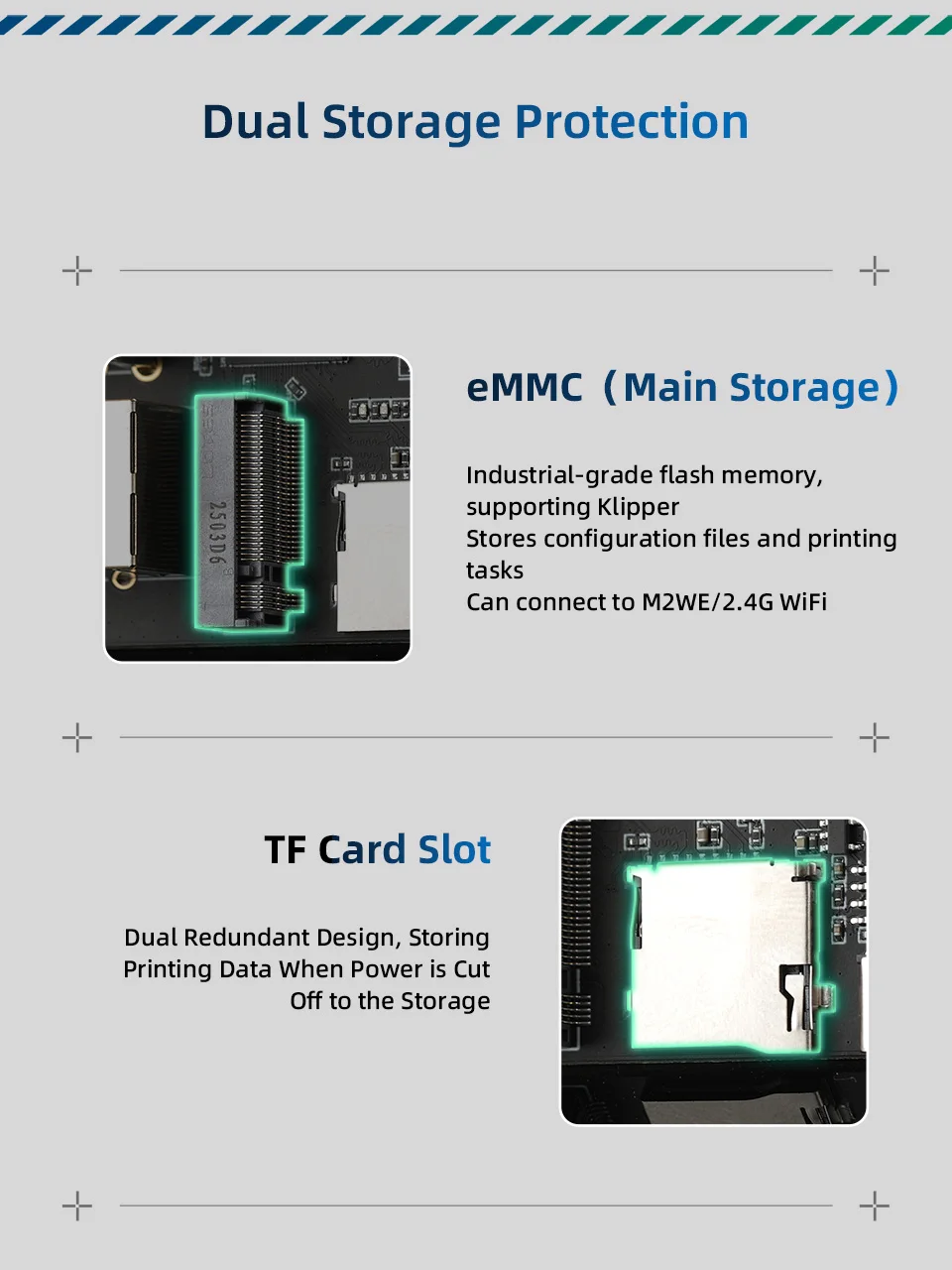

Memory and Storage: 1GB DDR4 , expandable up to 128GB SD card, enabling seamless handling of complex tasks.
-

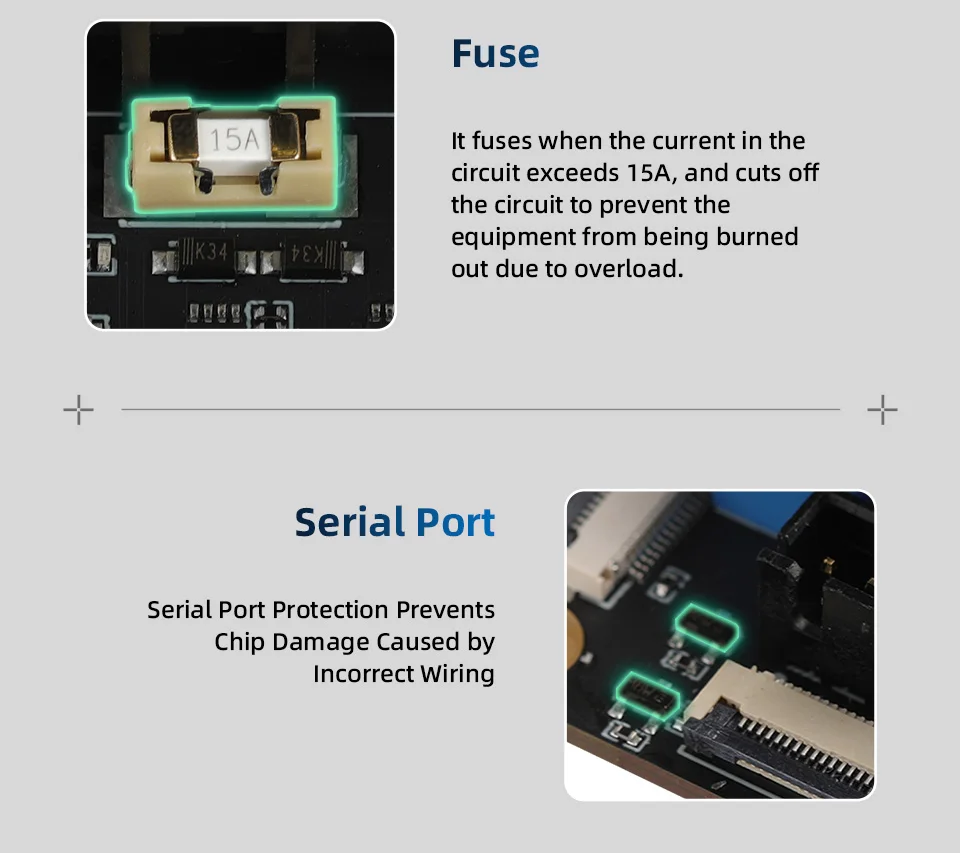

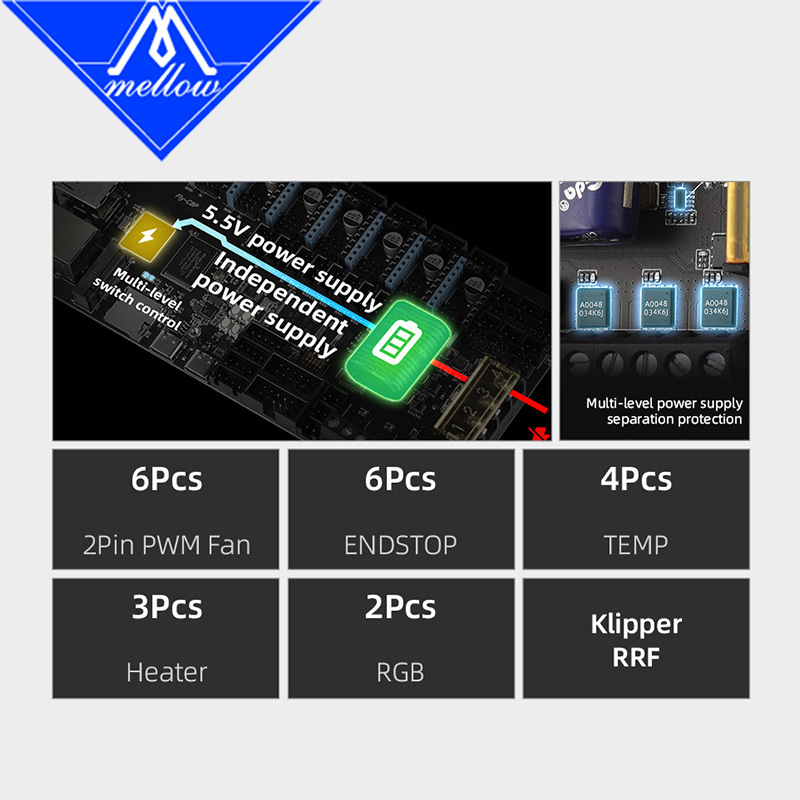

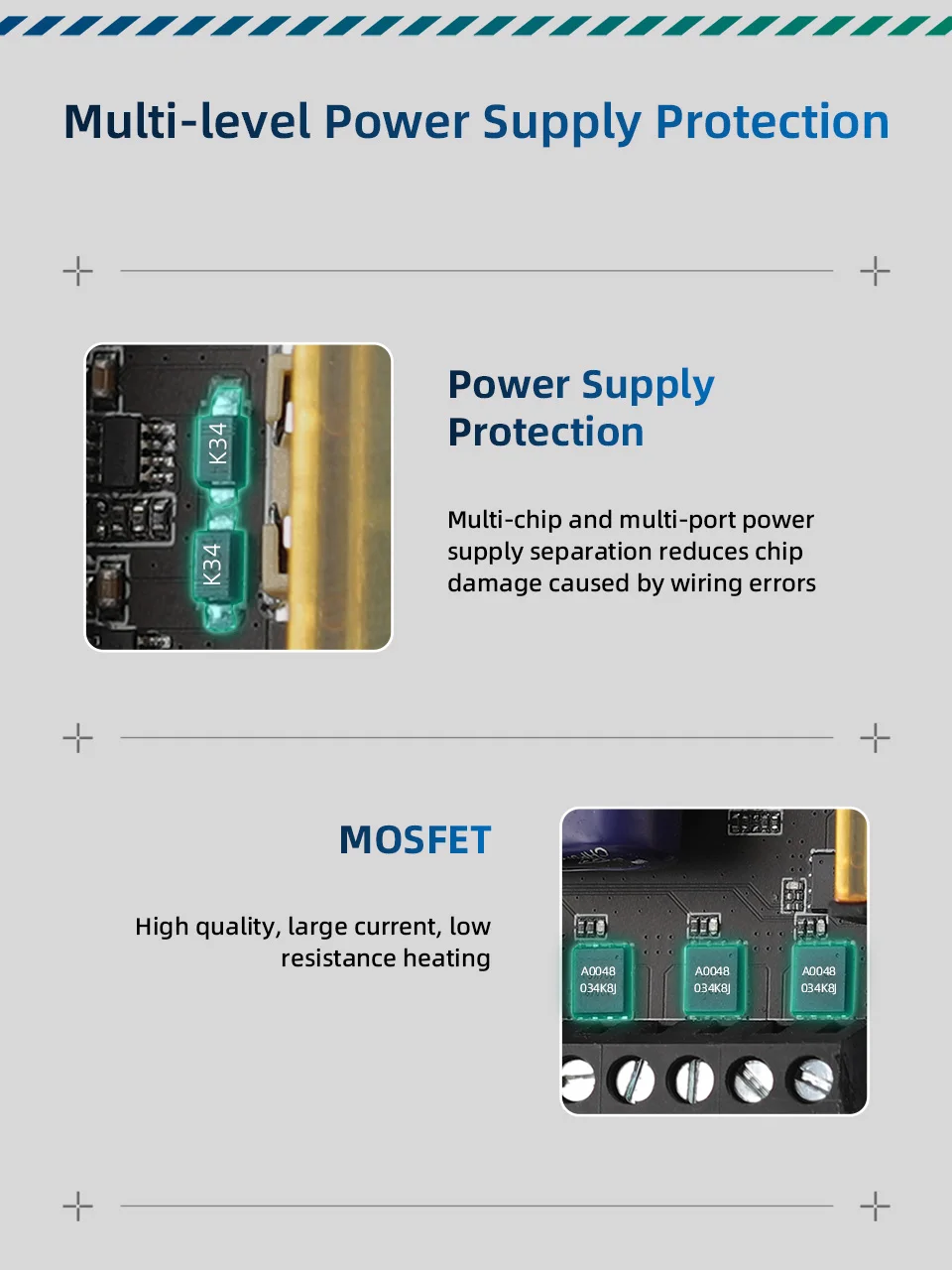

Power Management: Robust multi-channel power management ensures stable operation even during short circuits, enhancing reliability.
2. Comprehensive Driver Support and Modes
-
Driver Compatibility: Supports various mainstream stepper drivers, including TMC2209, TMC5160Pro, A4988, and more.
-

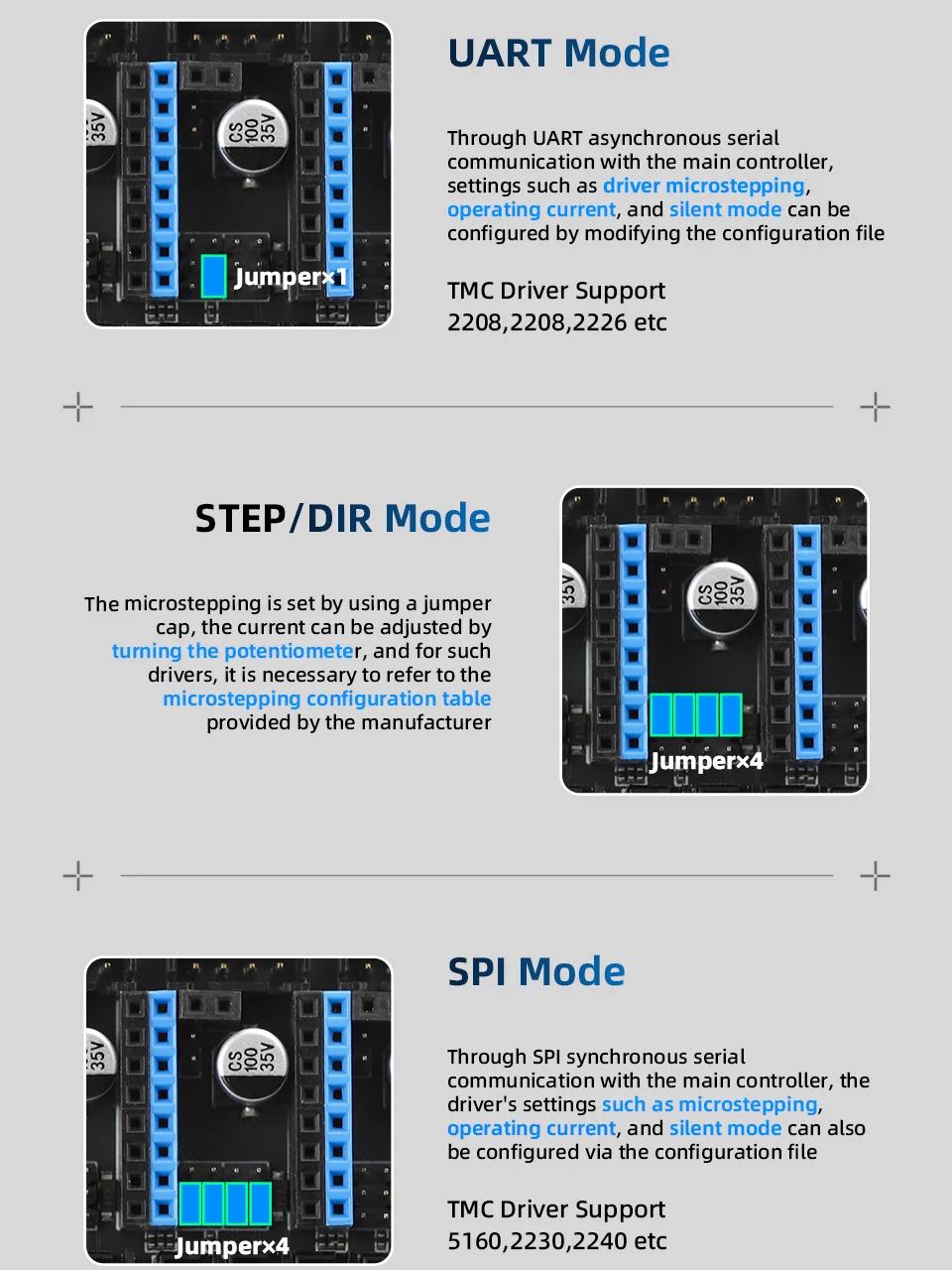

Operating Modes: Compatible with SPI, UART, and STEP/DIR modes for versatile applications.
-
DIAG Functionality: Enables precise homing without occupying limit switch pins, simplifying configuration.

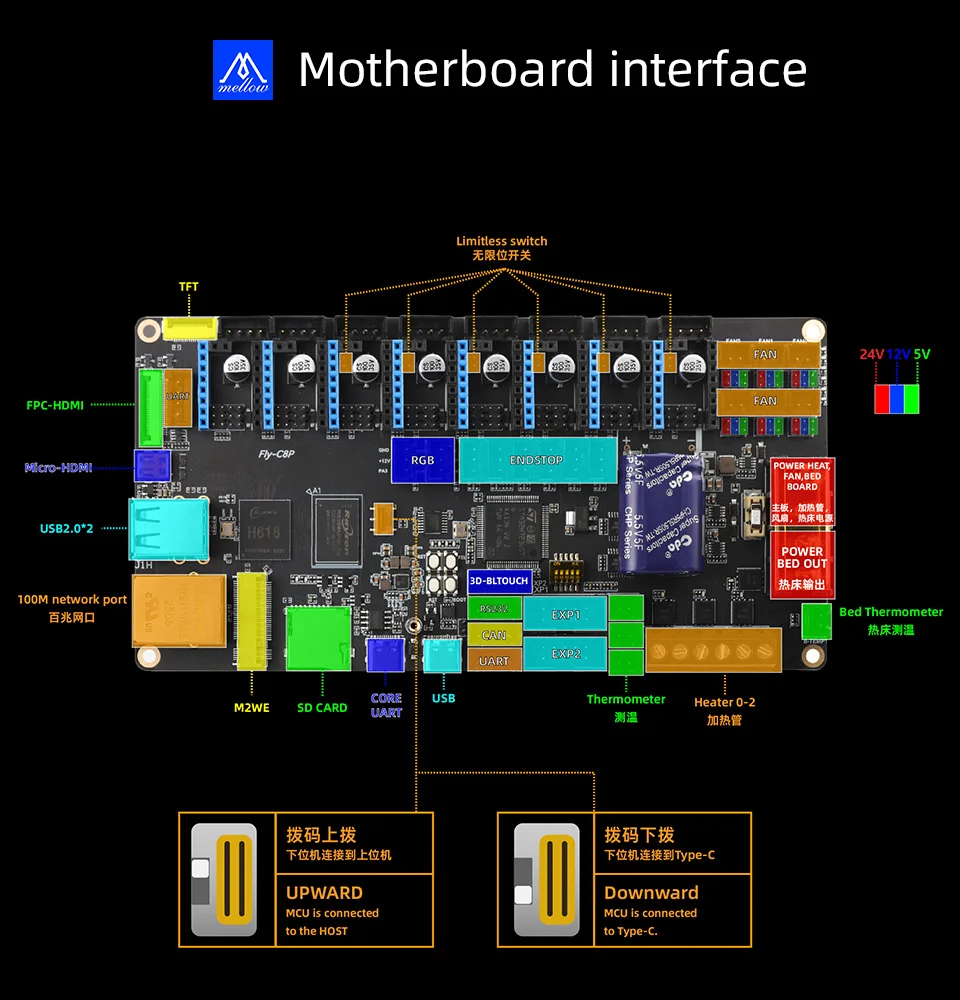

3. Extensive Peripheral and Expansion Capabilities
-

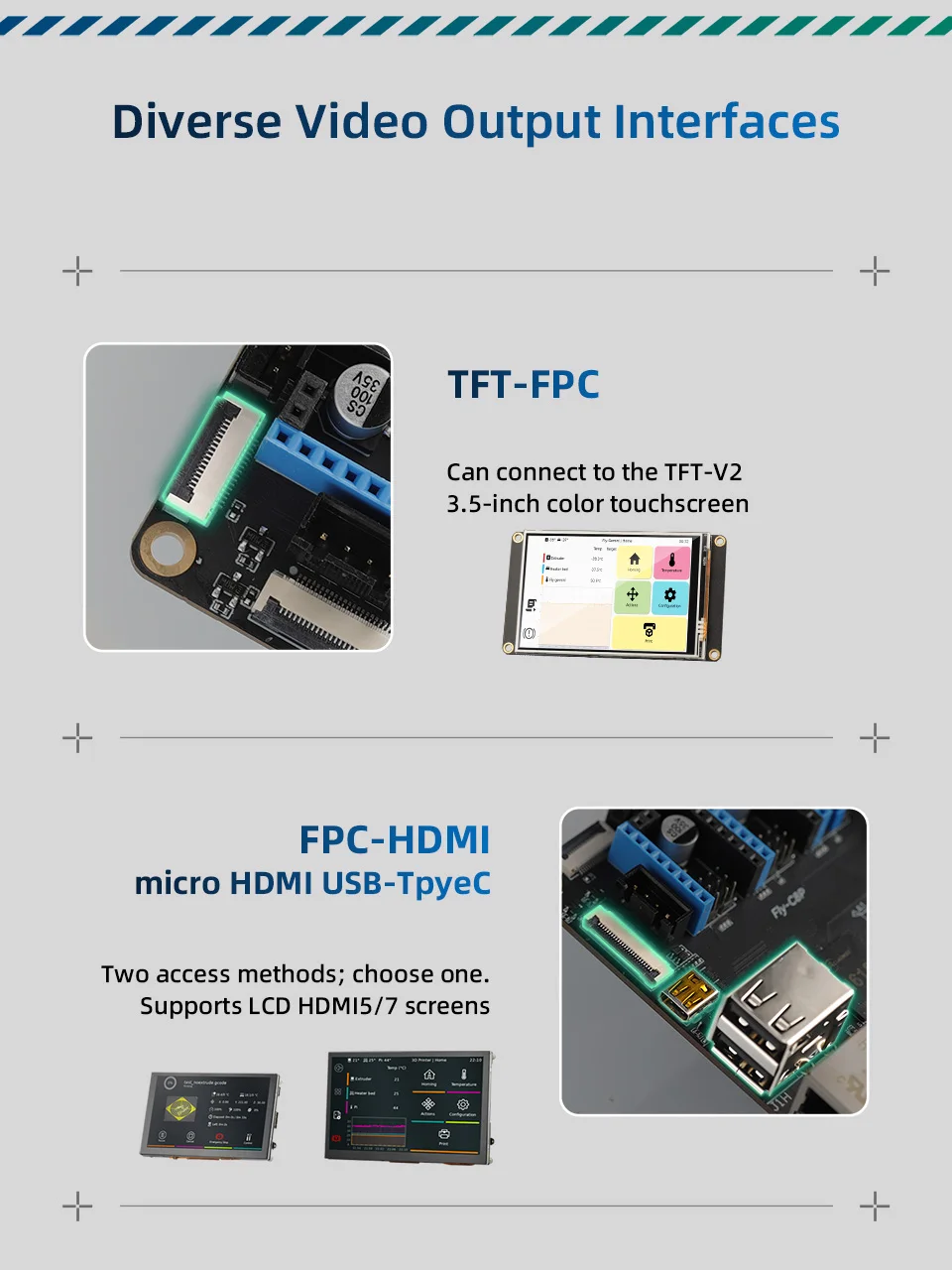

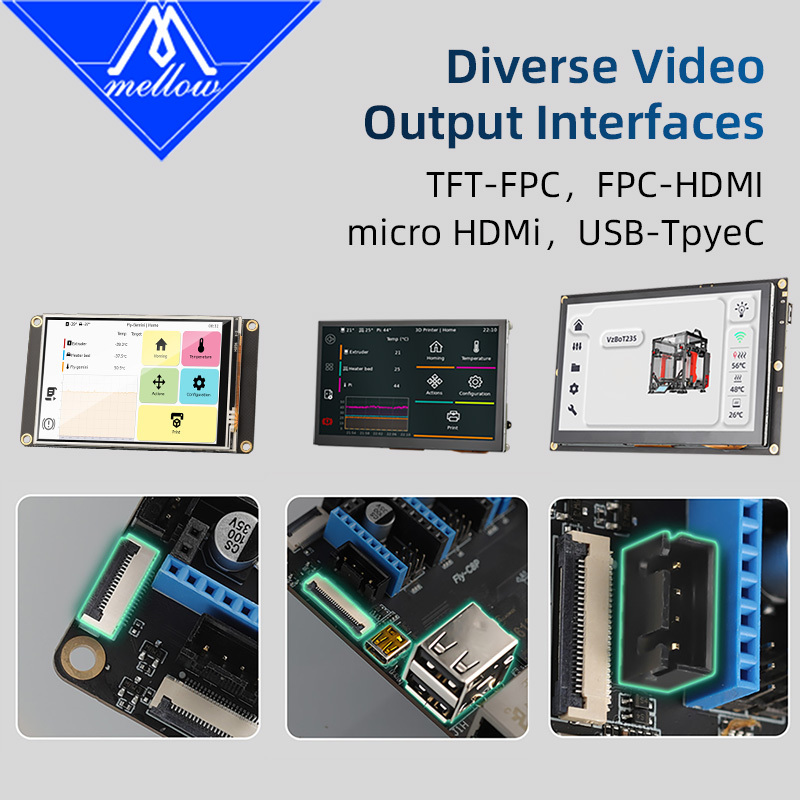

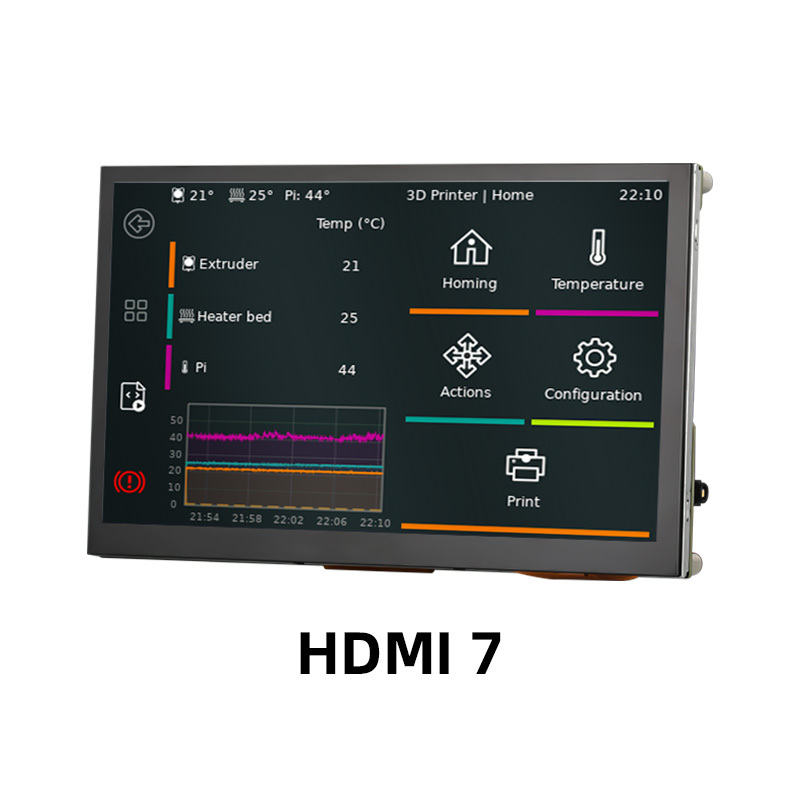

Screen Support: Offers seamless single-cable connection for TFT and HDMI screens, simplifying installation and wiring.
-

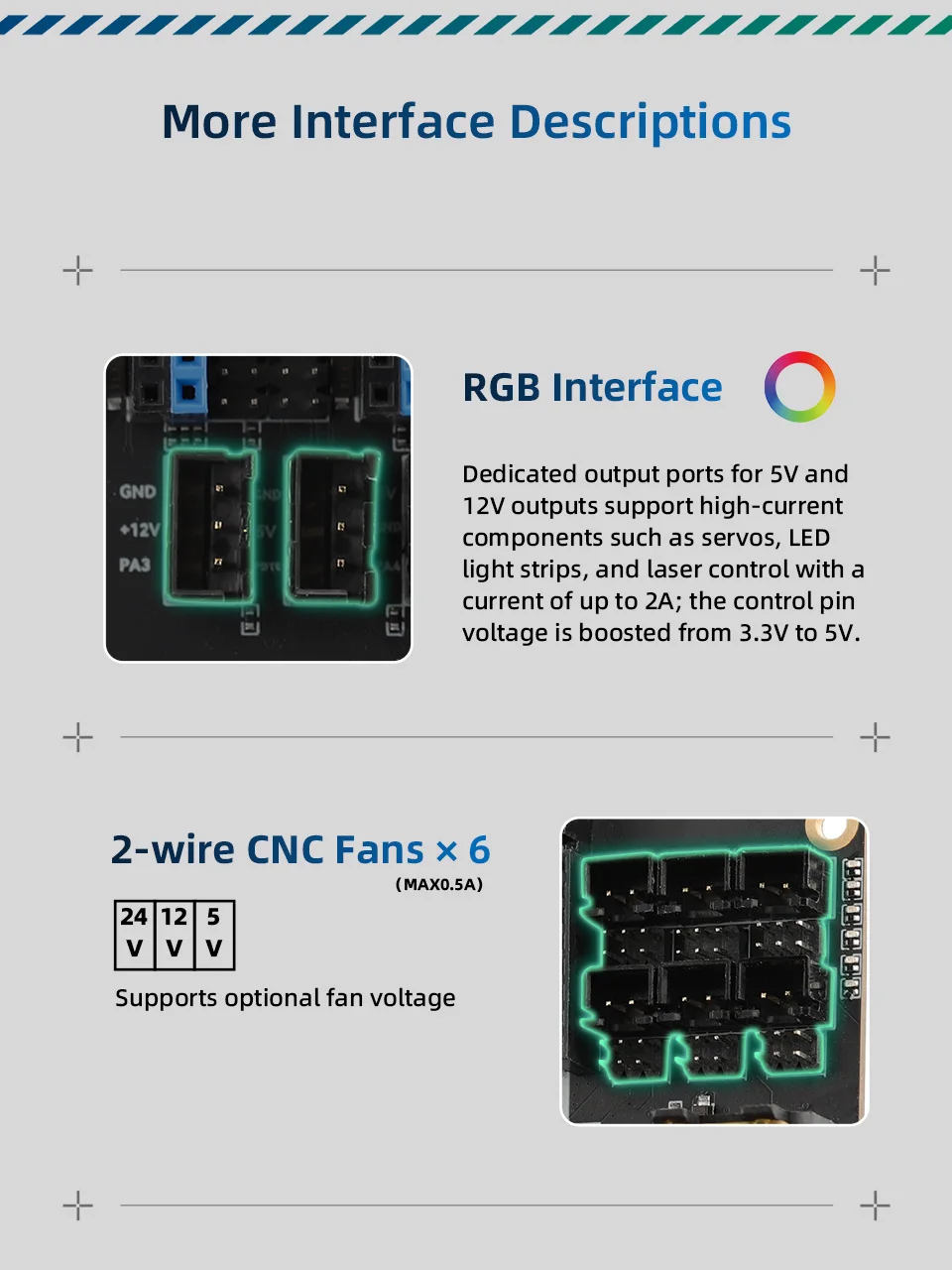

Expansion Interfaces: Equipped with an onboard M.2 interface (proprietary protocol) for Wi-Fi and eMMC expansion, along with RGB, CAN, and UART support.
-
Fan and Temperature Control: Supports four controllable fans with selectable voltages (24V, 12V, 5V) and three temperature sensor inputs (NTC 100K).
-
Current Ratings: Heatbed port supports up to 15A, and heater port supports up to 6A.
4. M2WE Pre-Installed System and Software
-
Preloaded Firmware: Comes with USB-compatible Klipper firmware pre-installed, ready for use out of the box.
-
Integrated System: Includes Klipper, Moonraker, Mainsail, Fluidd, Klipper-Screen, Crowsnest, and vibration compensation plugins, making it beginner-friendly with minimal setup required.
-
Plugin Support: Built-in NumPy library for advanced functionalities like vibration compensation.
5. Versatile Architecture Support
-
Supported Architectures: Compatible with Cartesian, Delta, Kossel, Ultimaker, CoreXY, and more.
-
Power Input: Supports 12-24V DC input for stable operation, eliminating the need for additional buck modules.

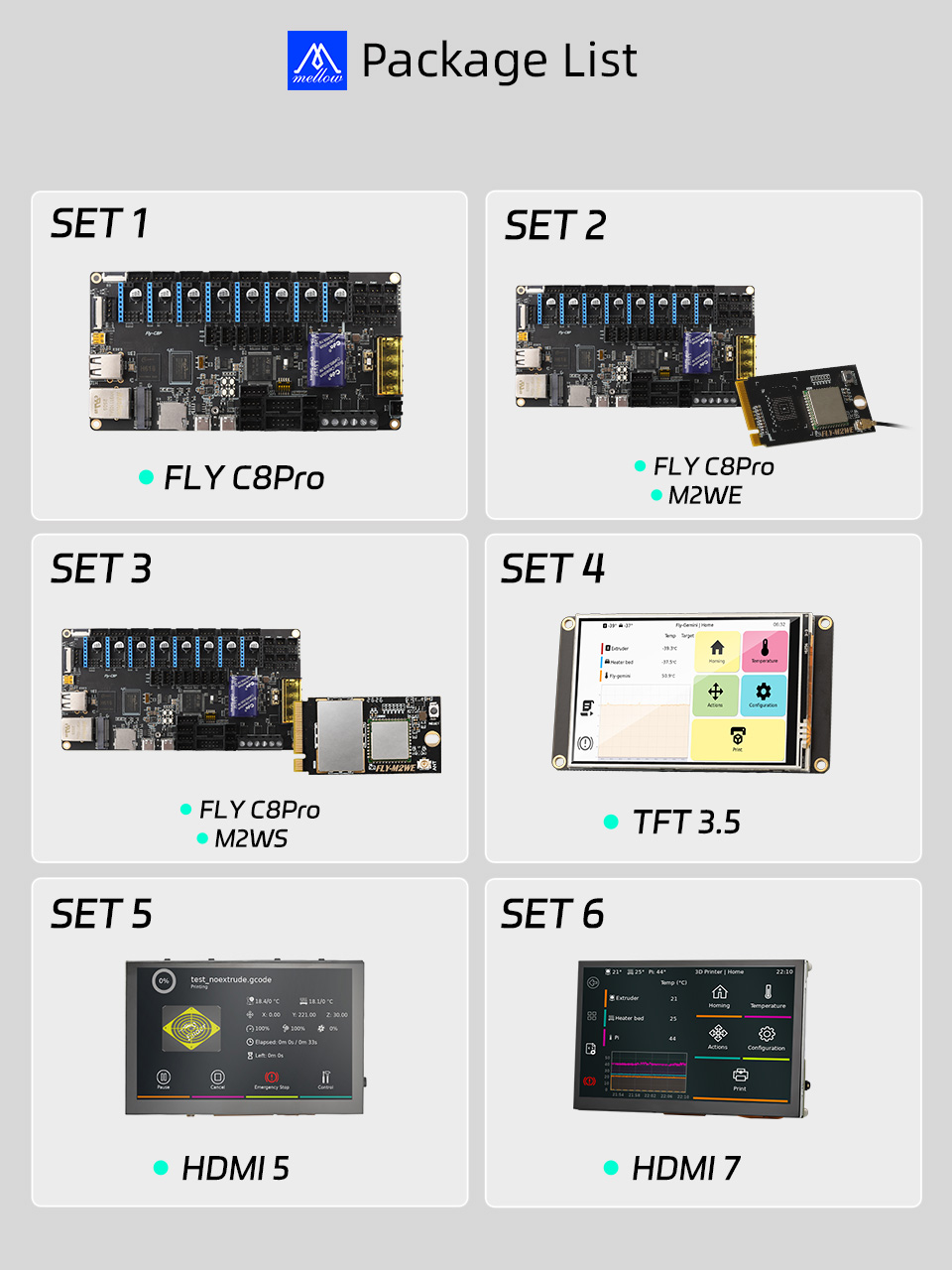

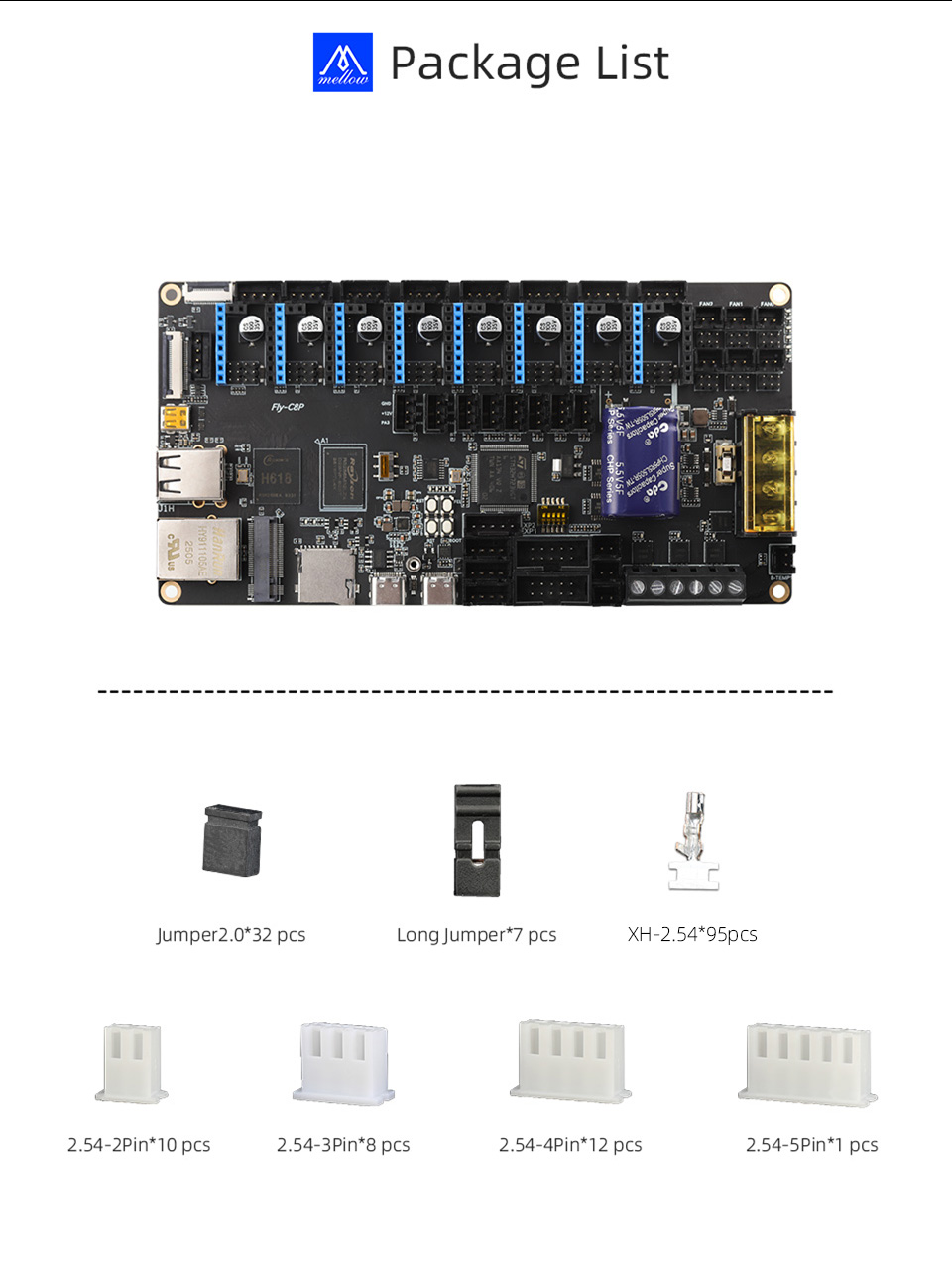

Package:
Set1:
Fly C8 Pro Board*1

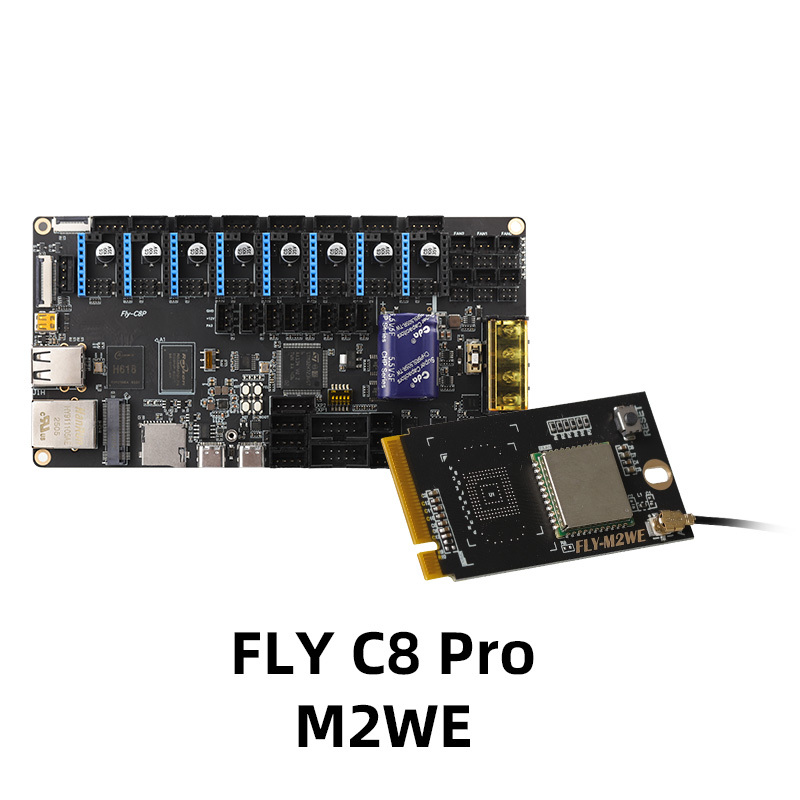

Set2:
Fly C8 Pro Board*1
M2WE Board*1(Pre-installed klipper system and firmware)

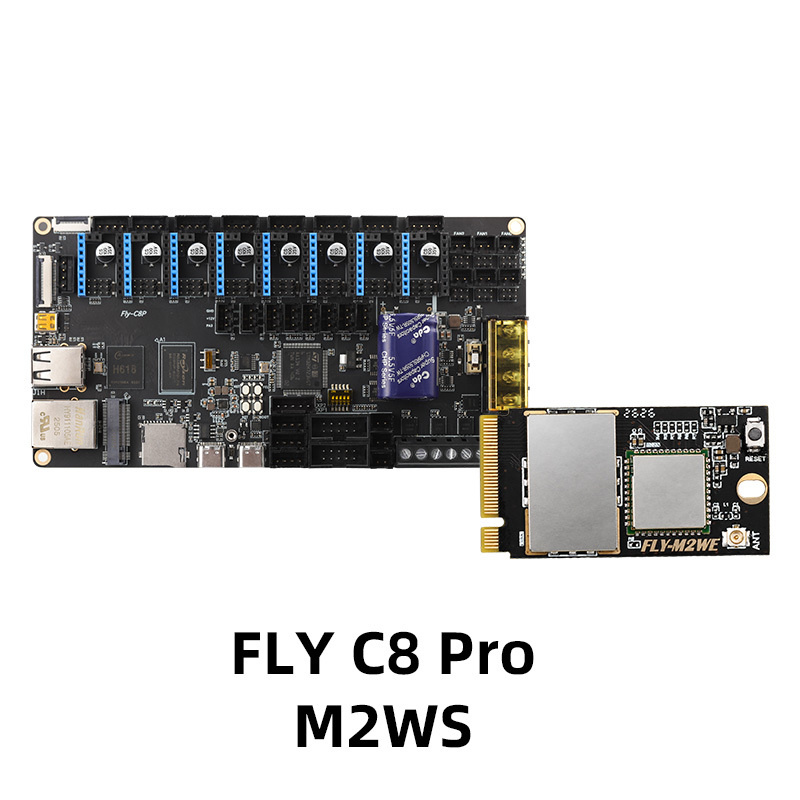

Set3:
Fly C8 Pro Board*1

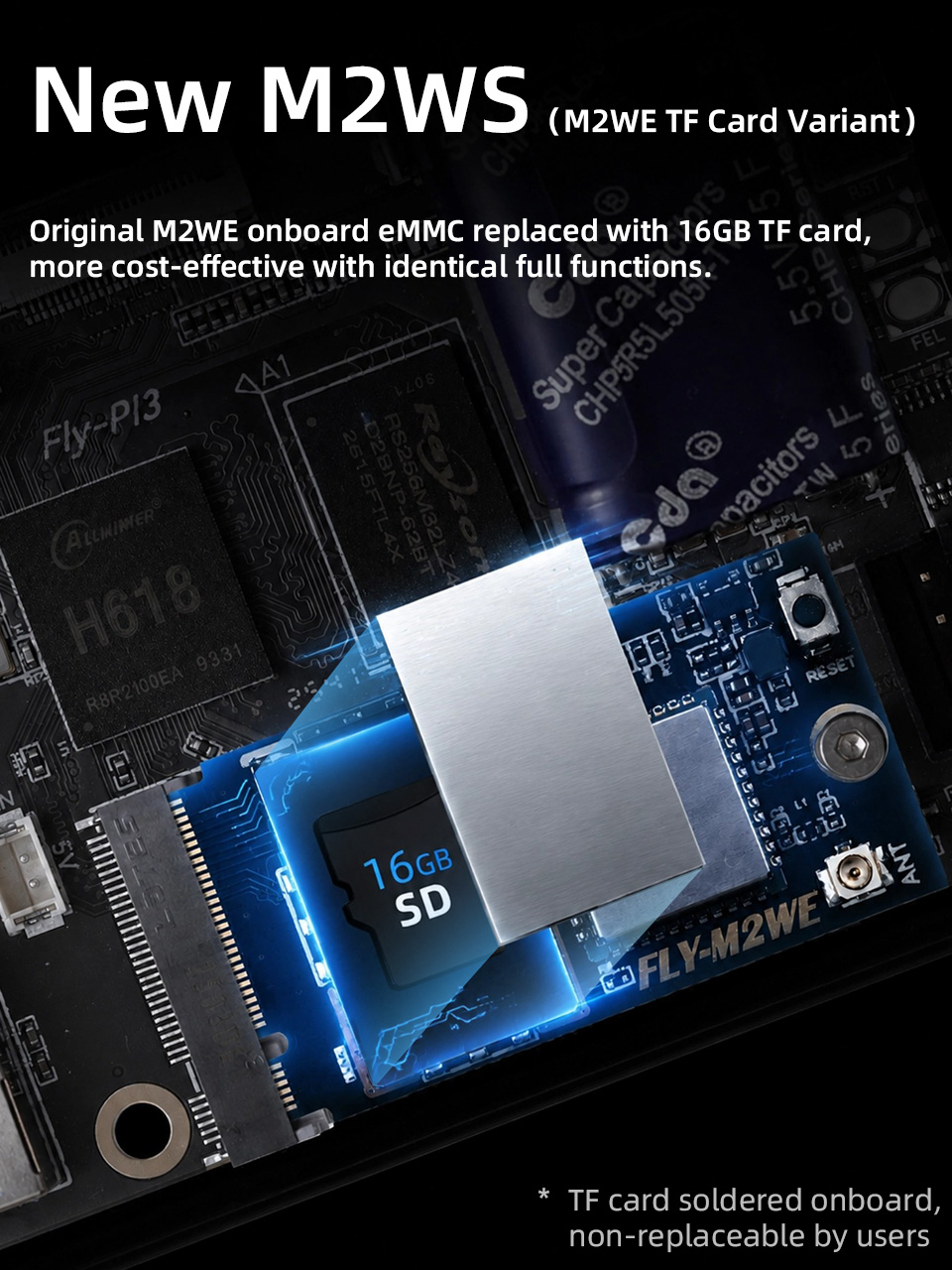

M2WS Board*1(M2WE TF Card Variant)
Set4:

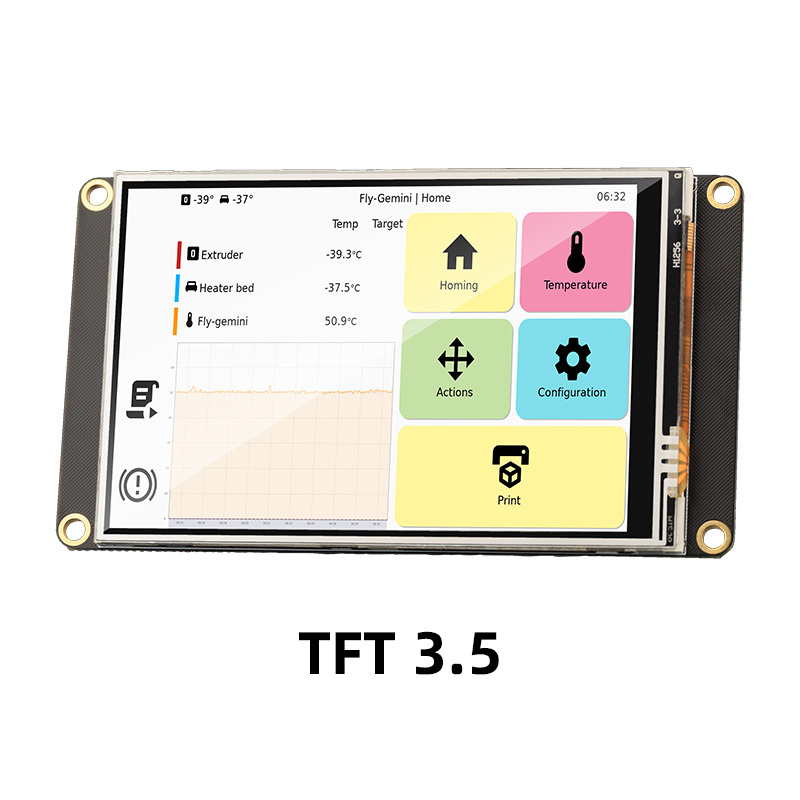

TFT3.5 Capacitive Screen*1
Set5:
