1Description

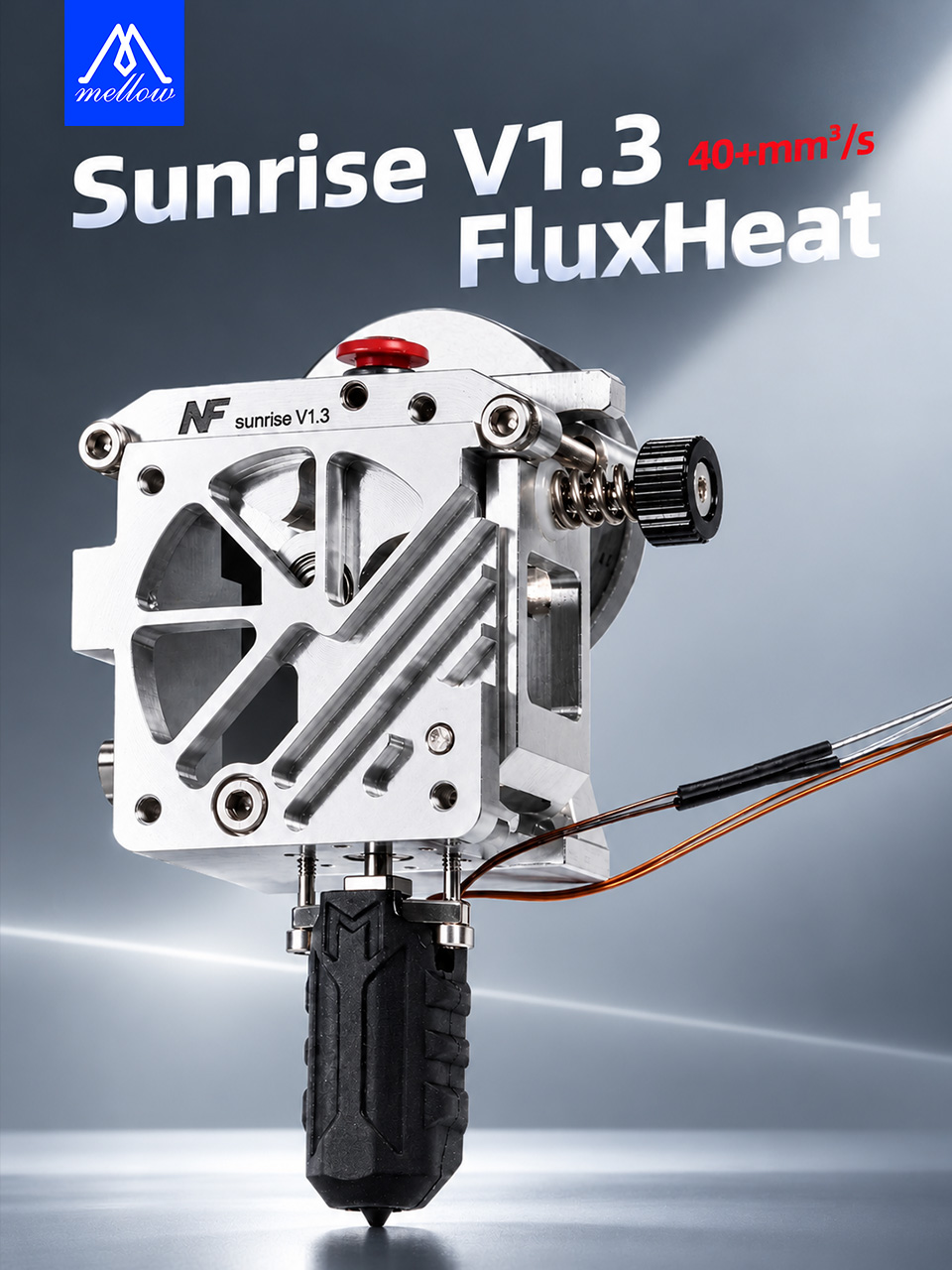

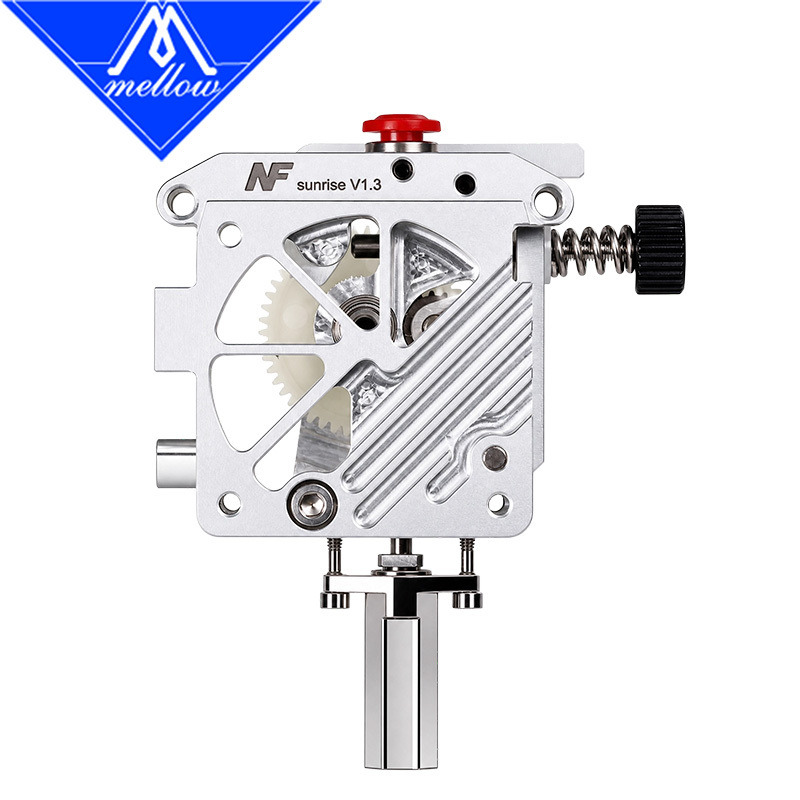

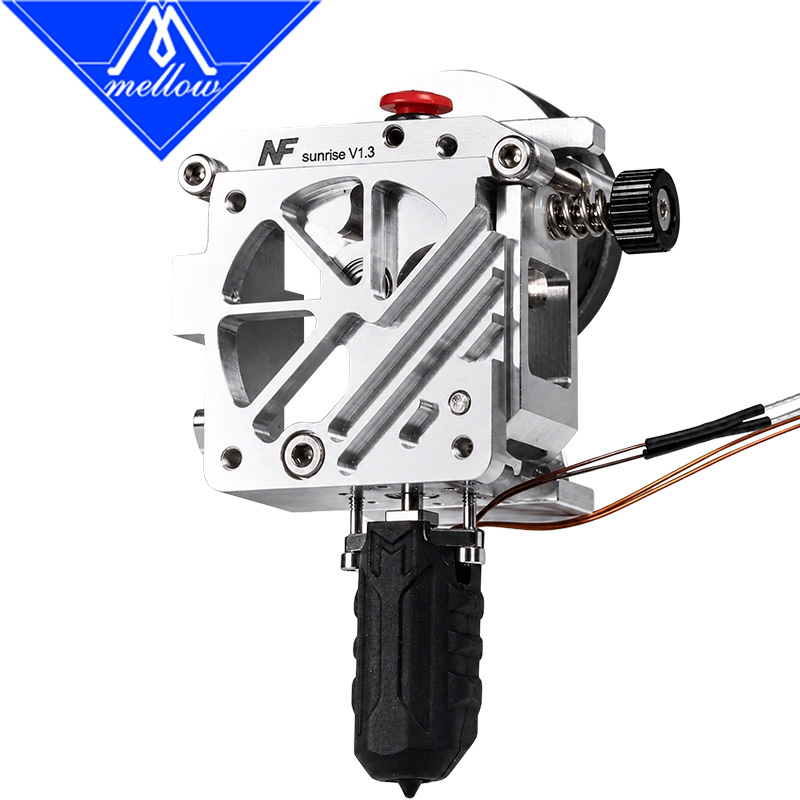

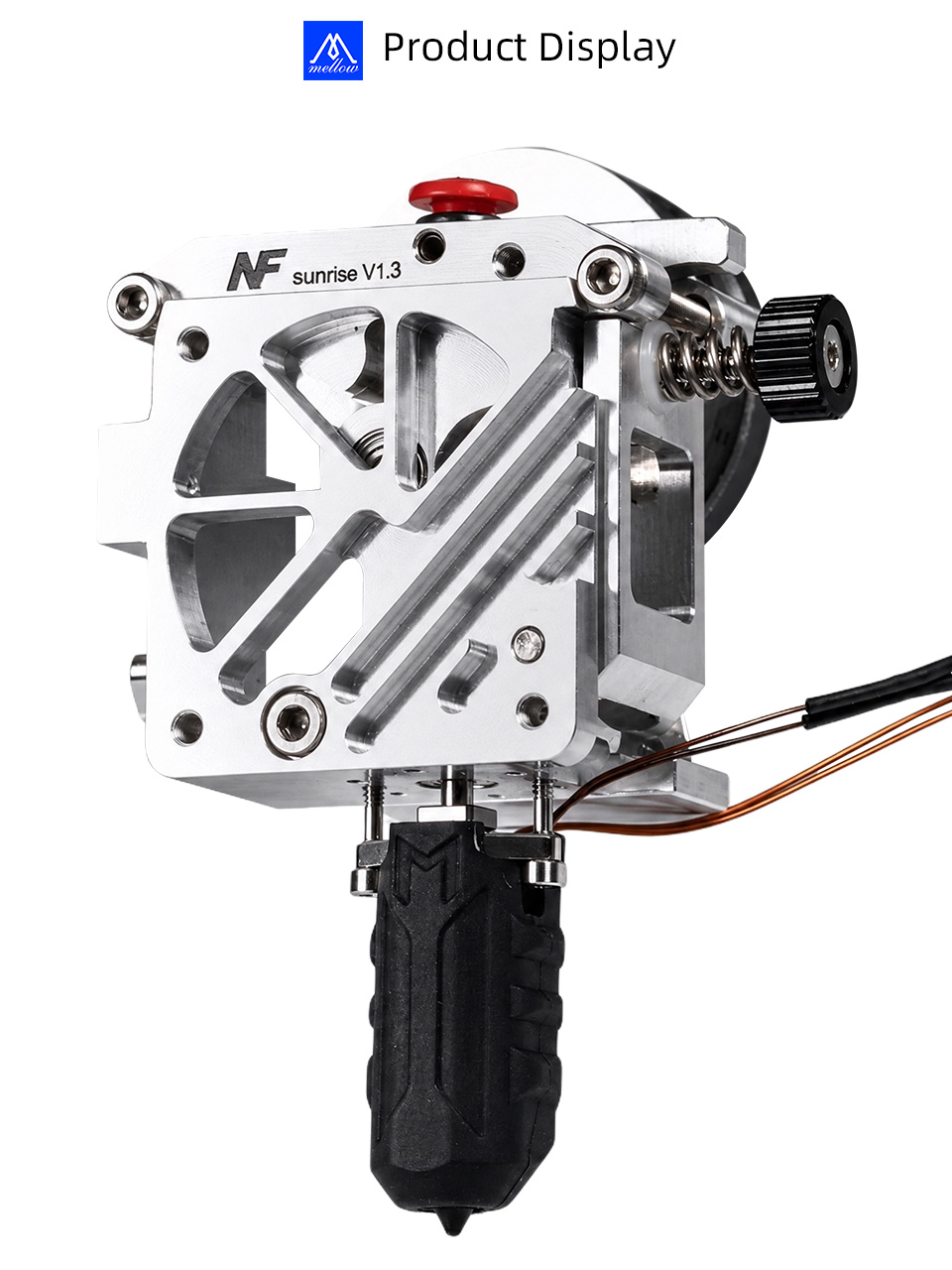

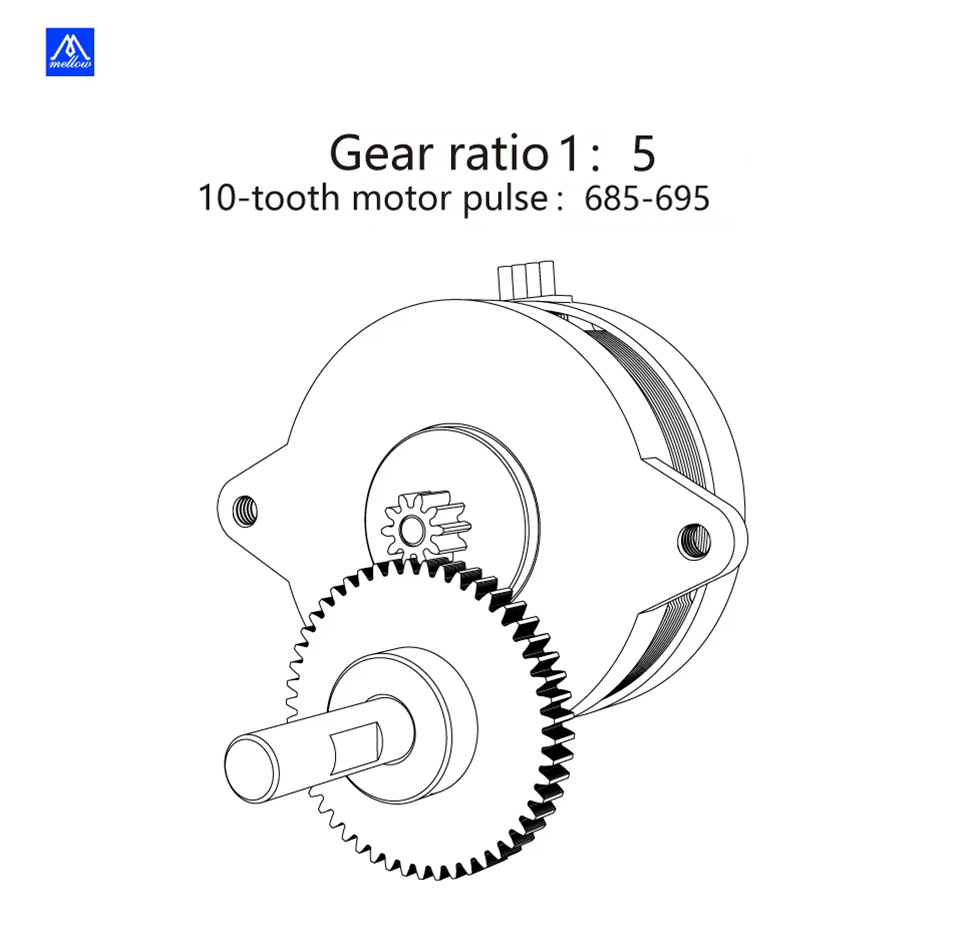

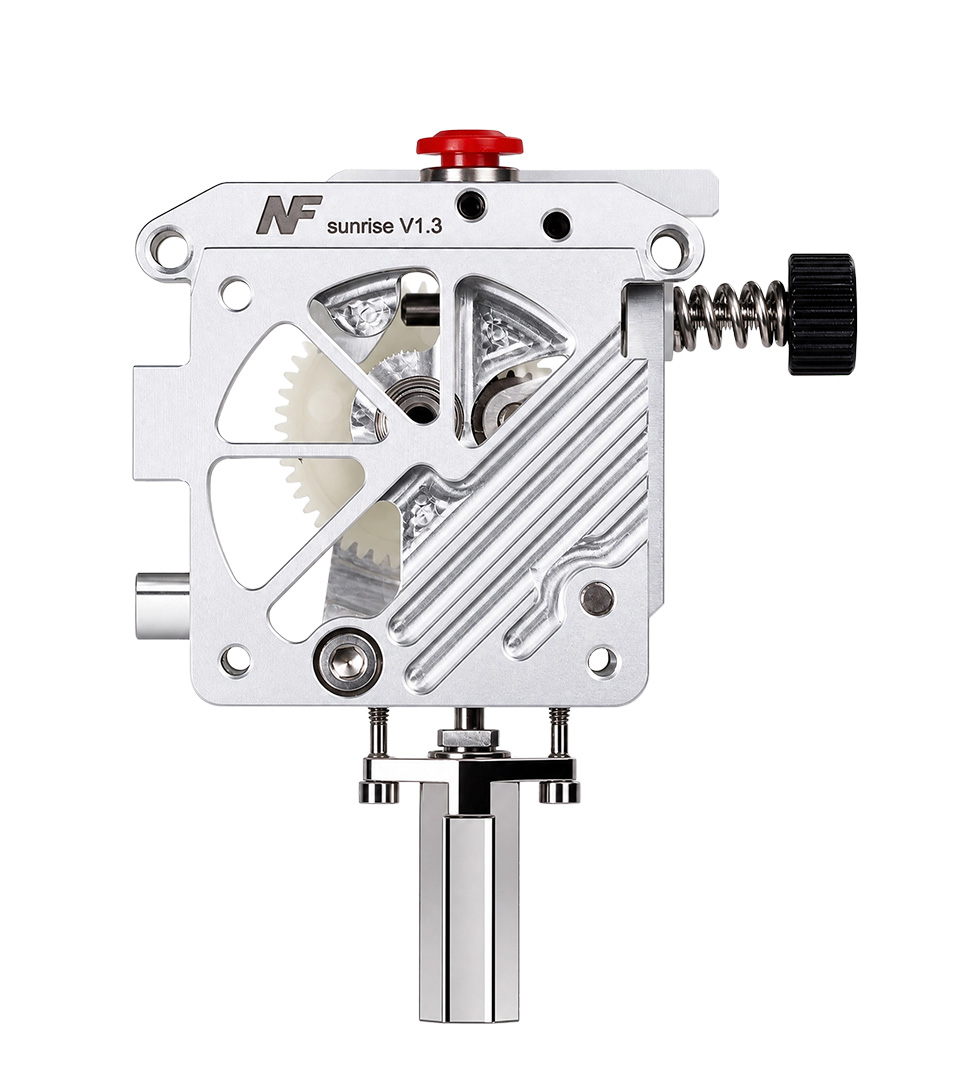

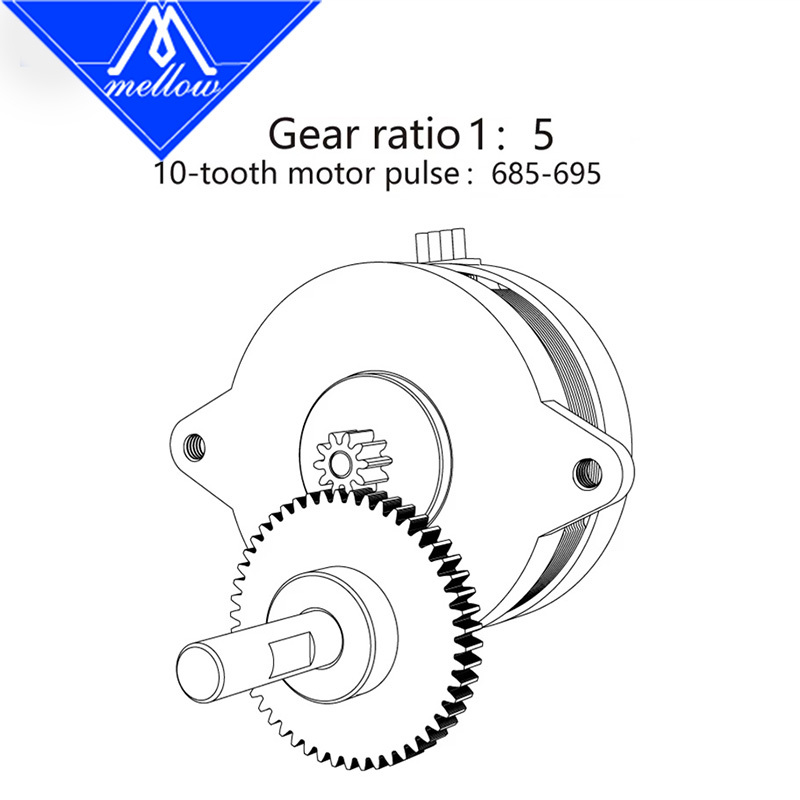

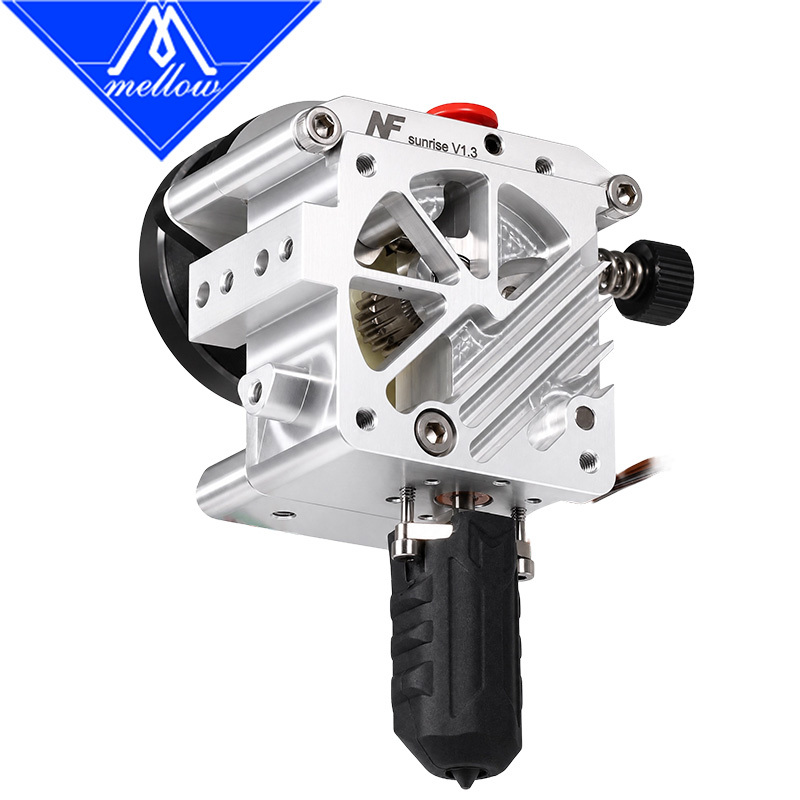

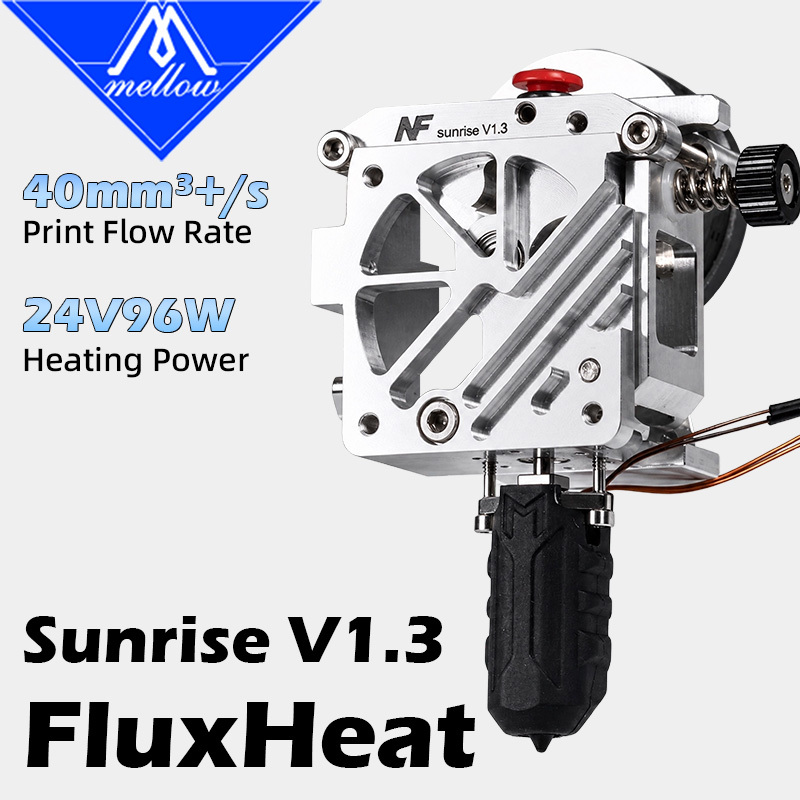

NF FluxHeat Sunrise V1.3 features a 5:1 gear reduction, precision CNC-machined drive gears, and an ultra-short filament path for strong extrusion force and accurate filament feeding. V1.3 adds mounting holes at the heater block connection for compatibility with the FluxHeat heater block, delivering a hotend flow rate of 40+ mm³/s.
Equipped with a hardened steel nozzle, bimetal heatbreak, lightweight aluminum body, and a custom high-temperature LDO 36 mm motor, it reduces weight and heat buildup while improving stability during high-speed printing. It supports both direct installation on Ender-series printers and bracket-mounted installation.
1Characteristics
🔧Sunrise V1.3 Dual Drive Exclusive Upgrade
Added Mounting Holes: The V1.3 version features structural optimizations specifically designed to add mounting holes for popular heating blocks like Fluxheat, Heatcore4, and Goliath.

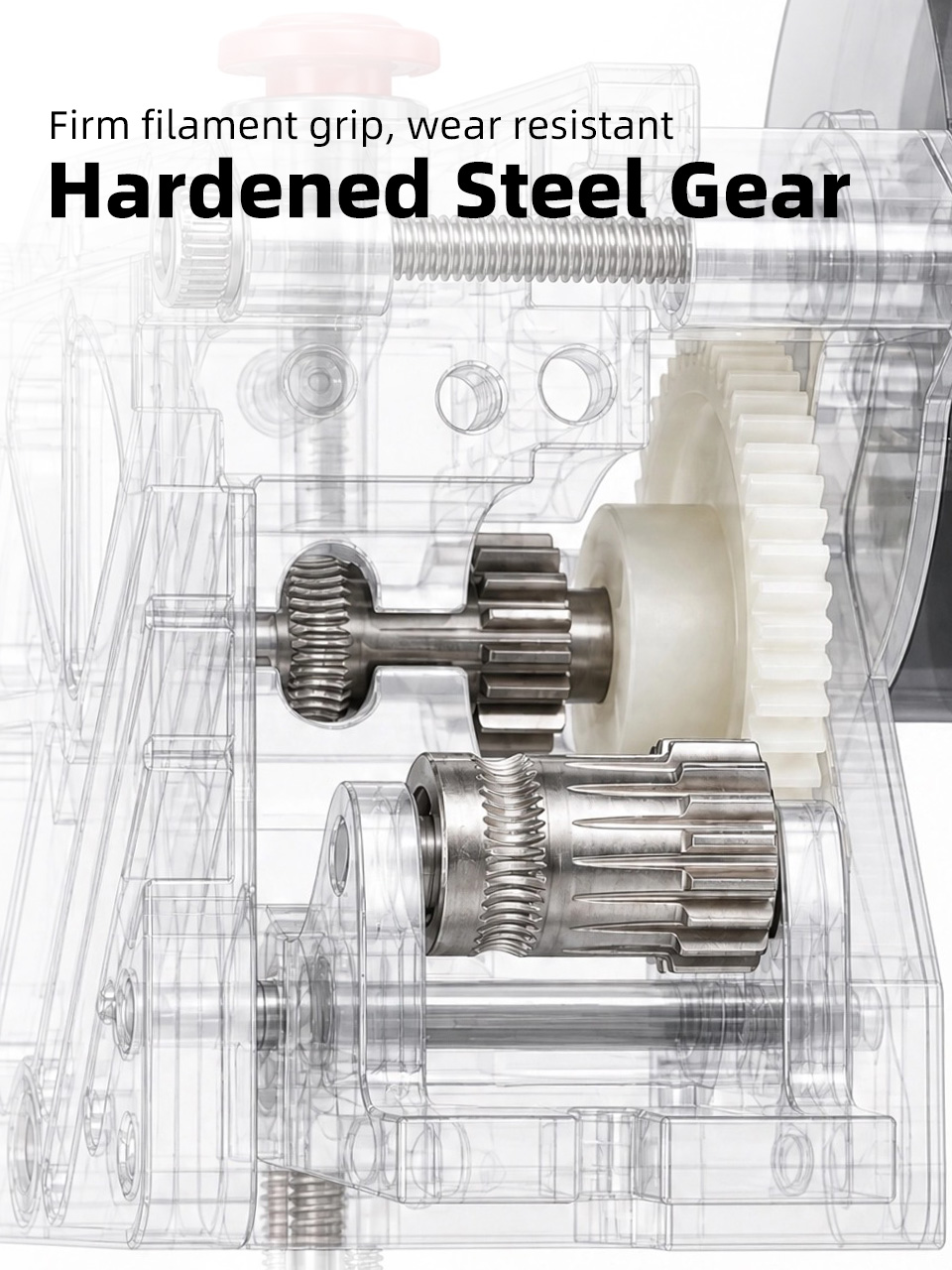

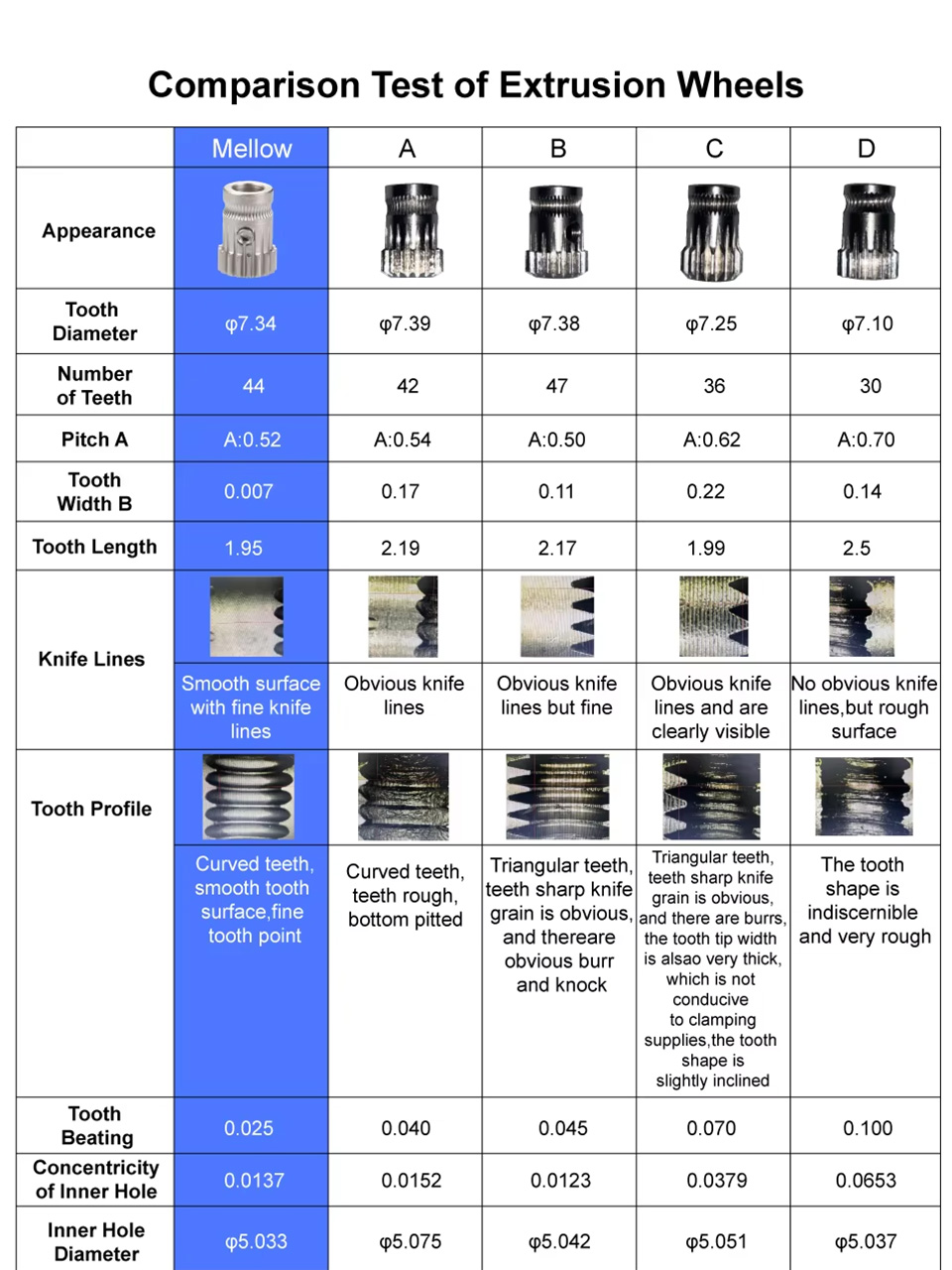

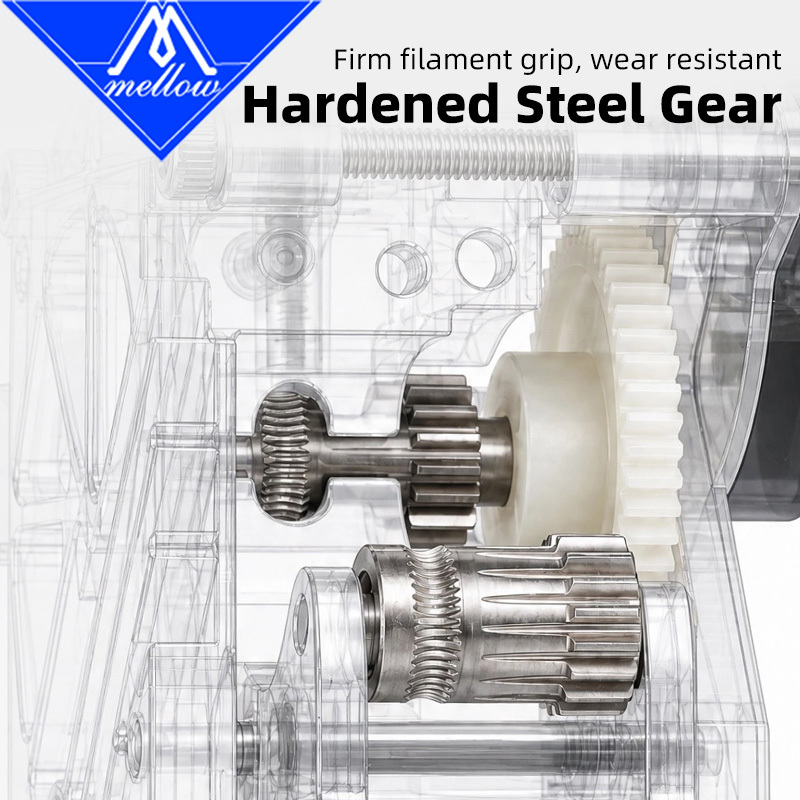

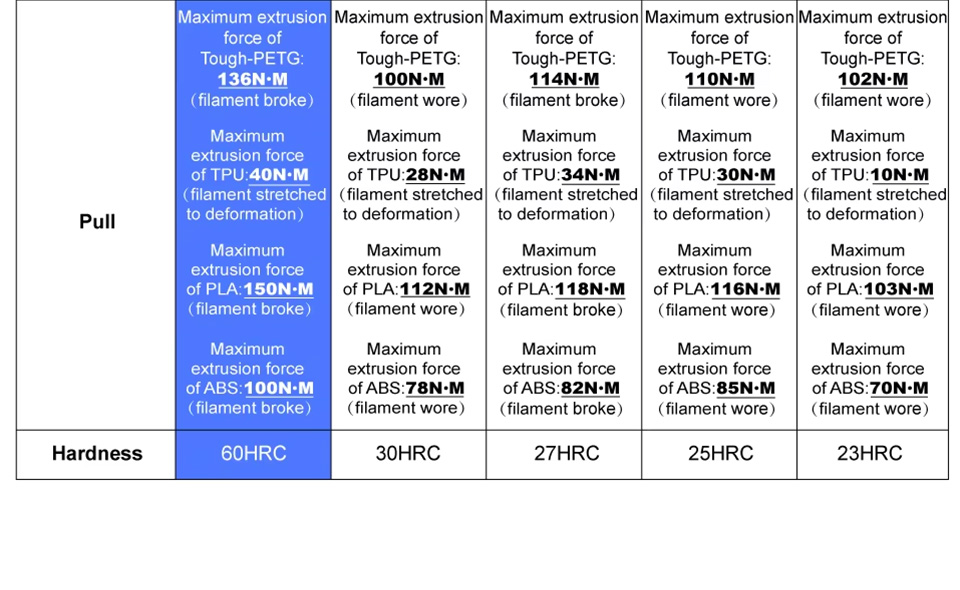

Powerful & Precise Extrusion: Features 60HRC hardened steel gears with a 5:1 transmission ratio.
Lightweight & Cool: Hollow aluminum alloy body reduces weight while providing strong heat dissipation for stable long-term printing.

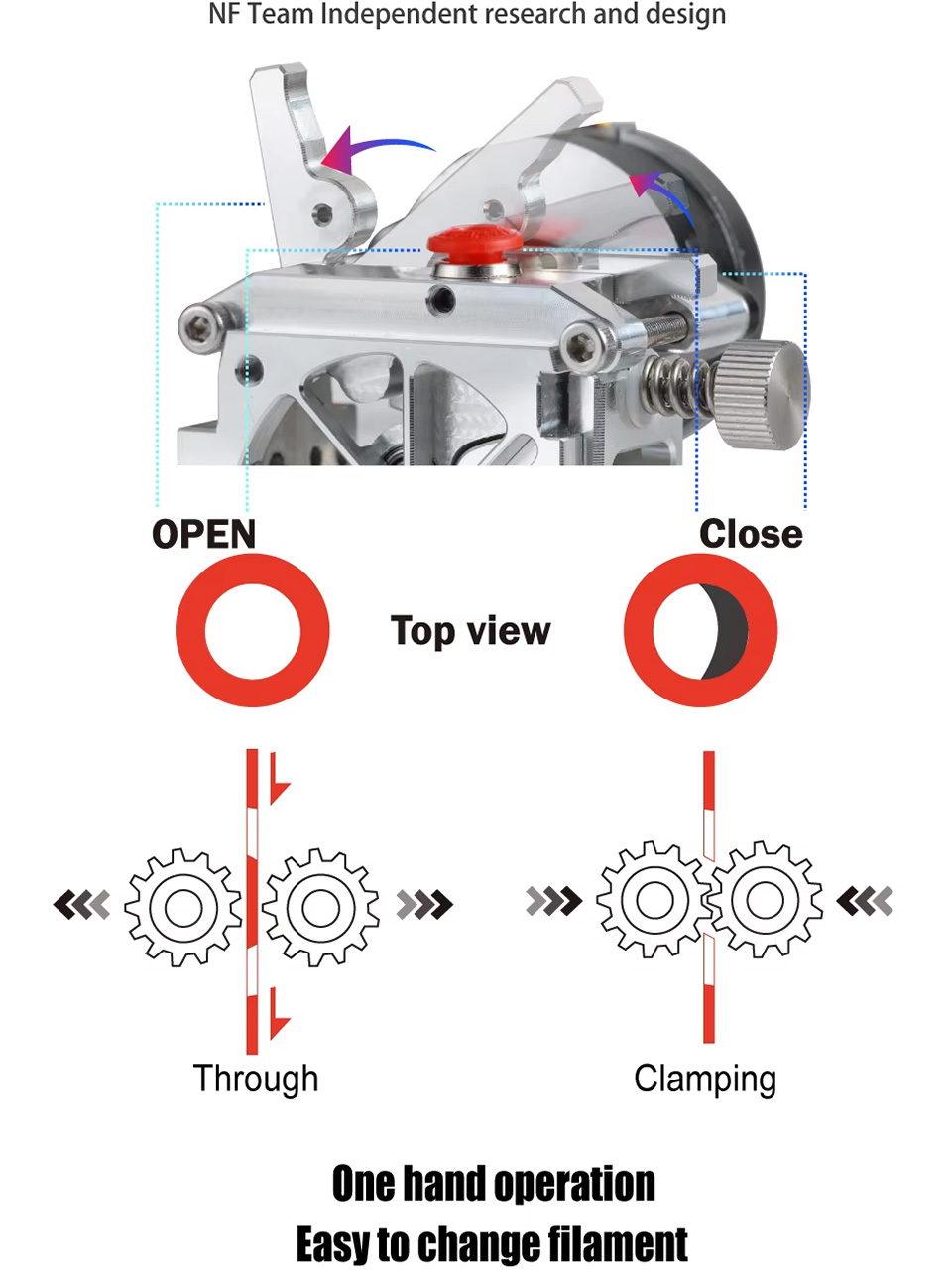

Easy Operation: Newly designed material release structure allows for easy one-hand filament changes.

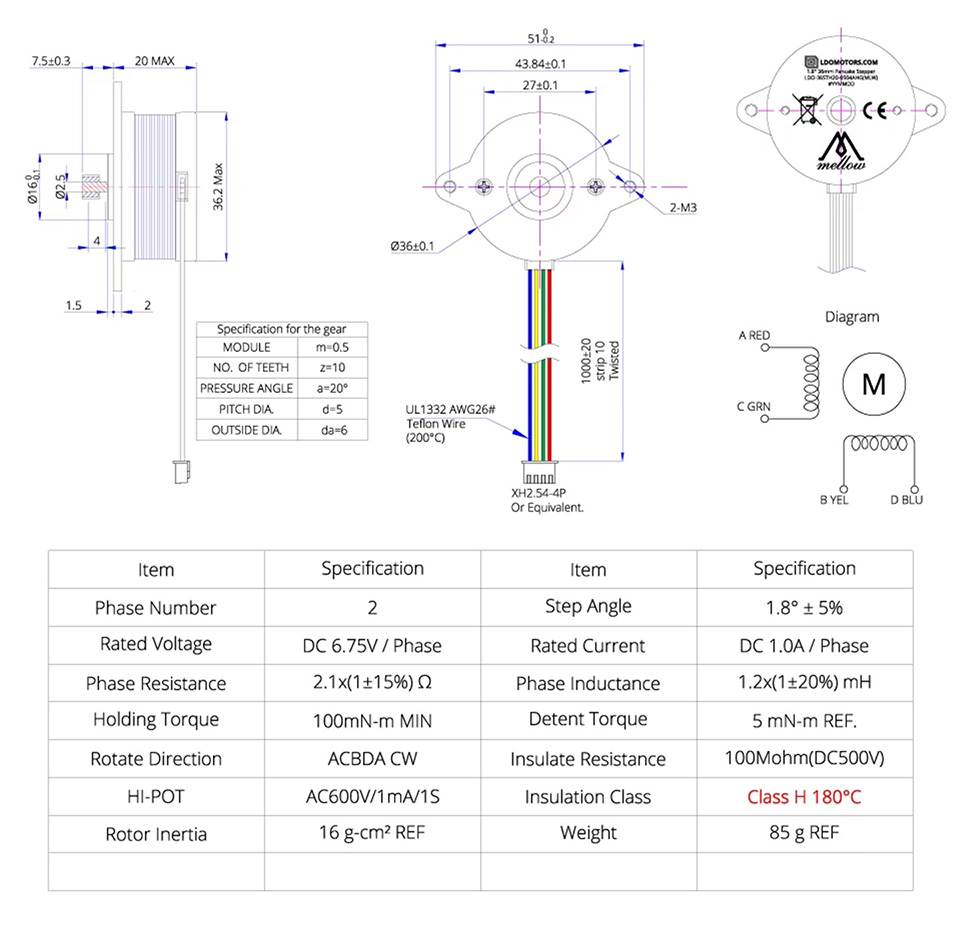

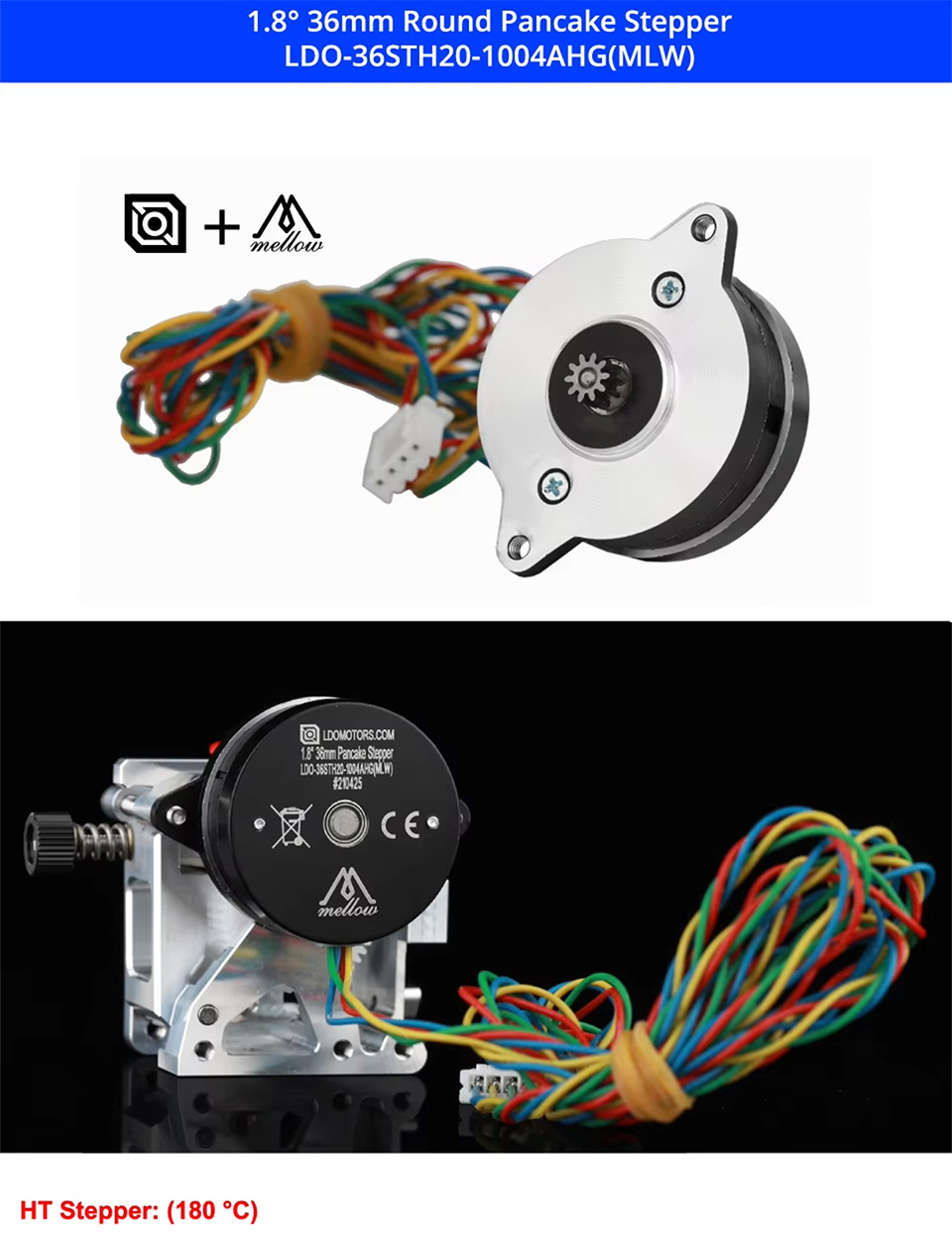

Custom LDO Motor: Equipped with a custom LDO 36mm high-temperature stepper motor for high torque with minimal heat generation.

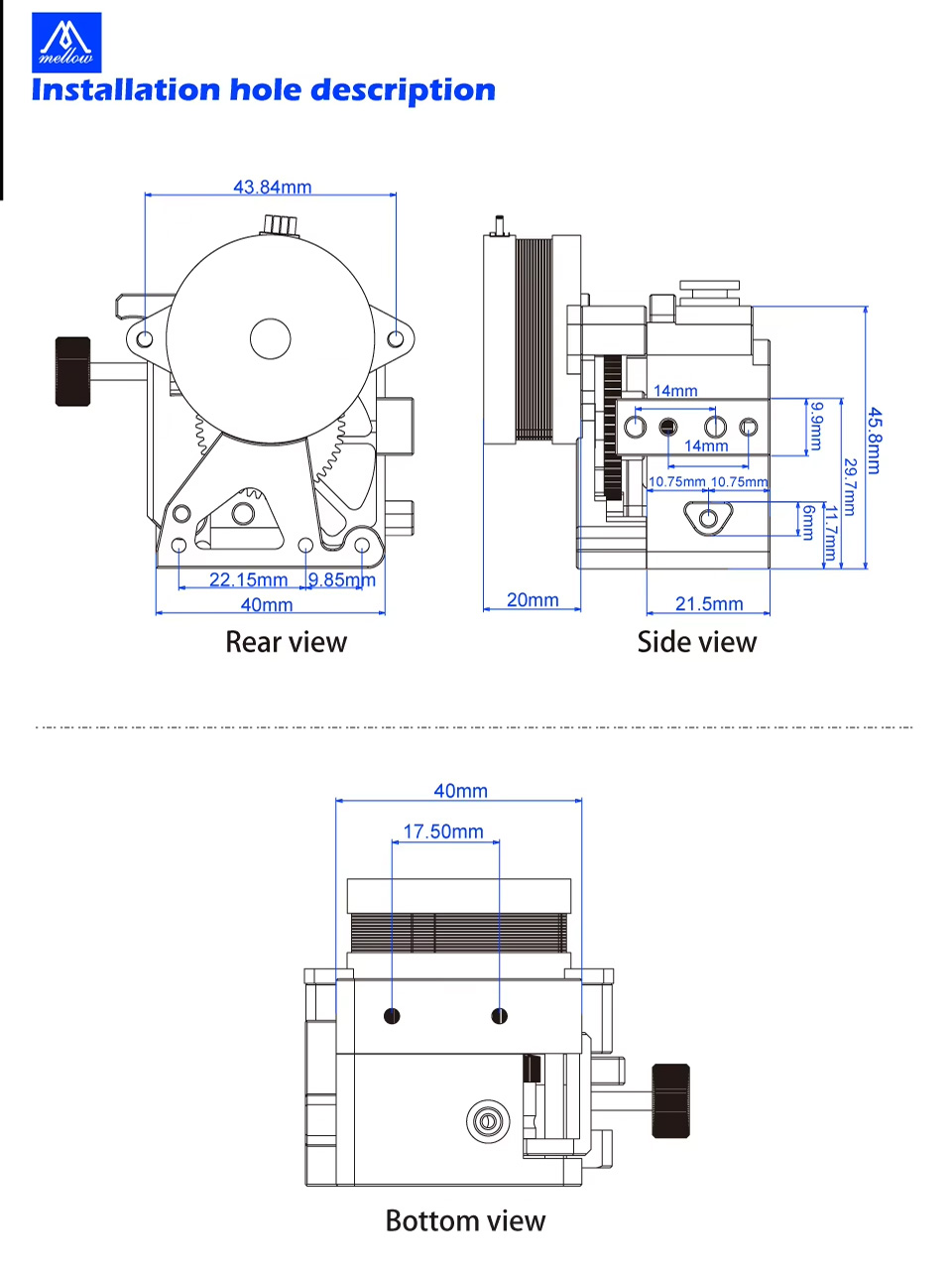

Two mounting hole methods：one can be directly mounted to the Ender series machine, and the other requires the design of a triangular hole bracket.
🔥FluxHeat Hotend
Ultra-Compact Design: Ceramic heater minimizes heat block volume and improves temperature control accuracy. Lightweight construction reduces overall printhead weight, improving printer dynamics and speed.
Extreme Flow: Achieves >40 mm³/s throughput, perfectly handling ultra-high-speed 3D printing.

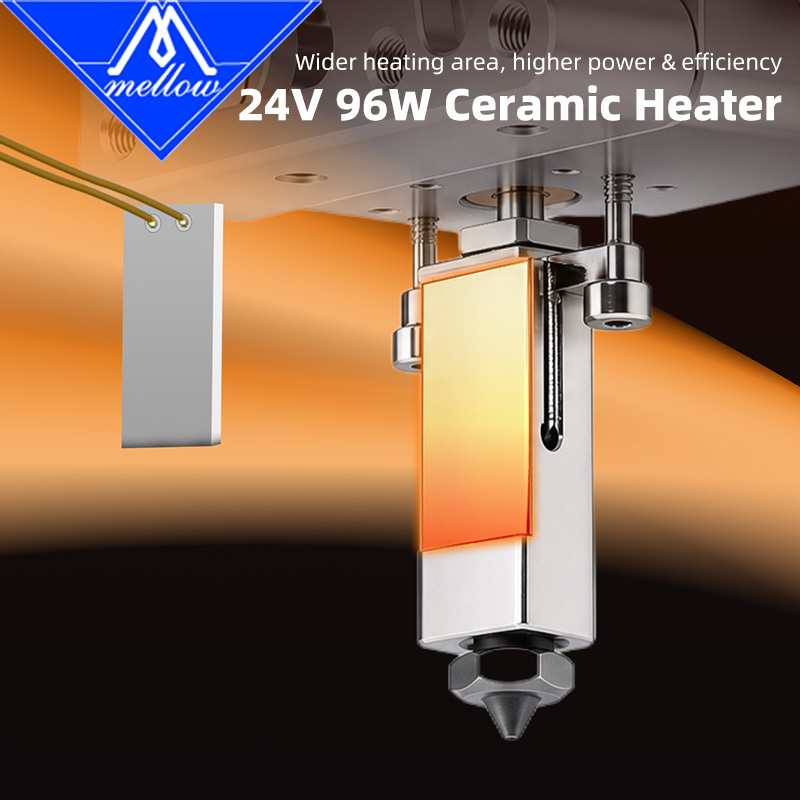

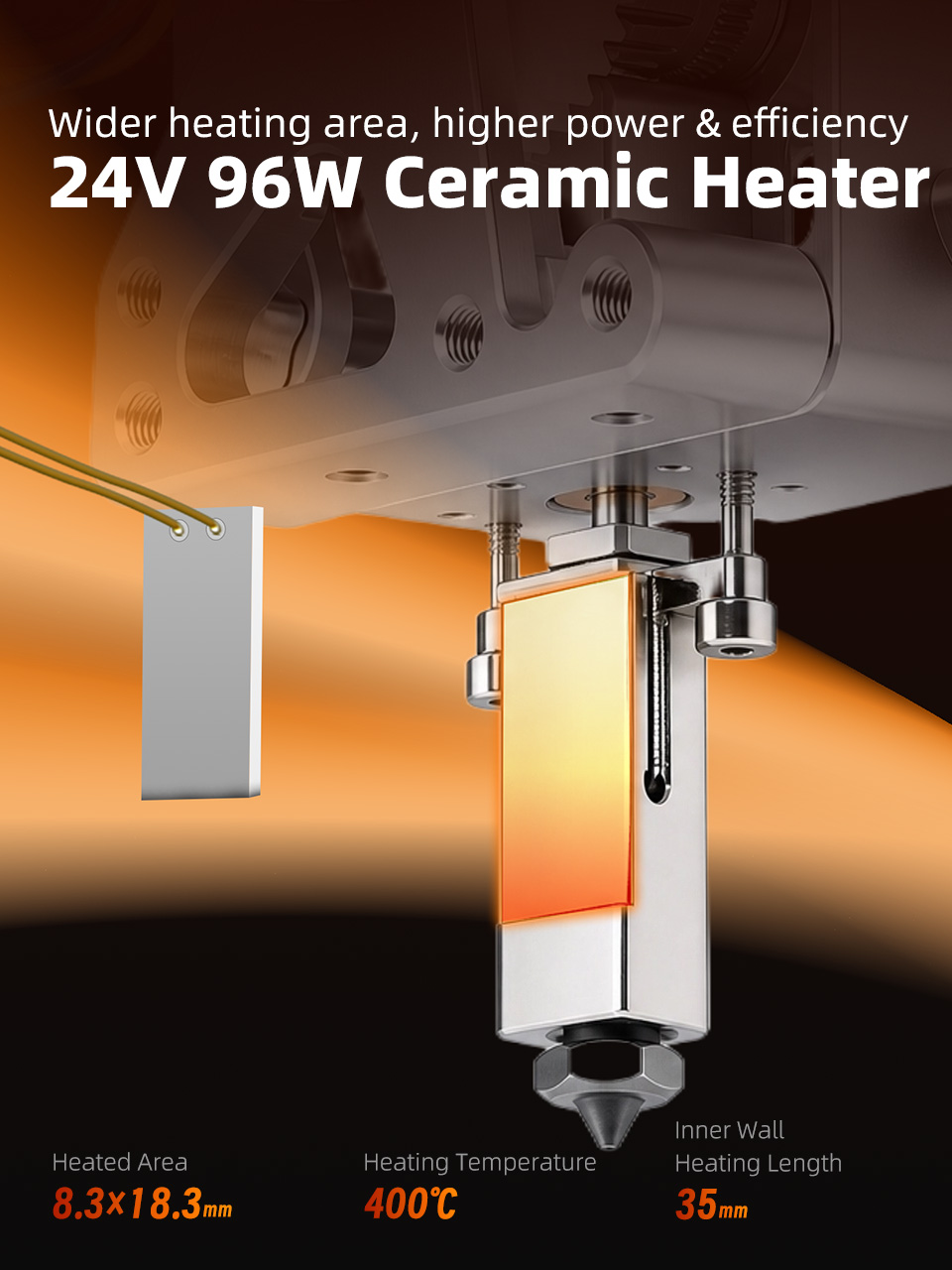

Powerful Heating: 24V 96W high-power ceramic heater paired with a PT1000 sensor, reaching up to 400°C in seconds.

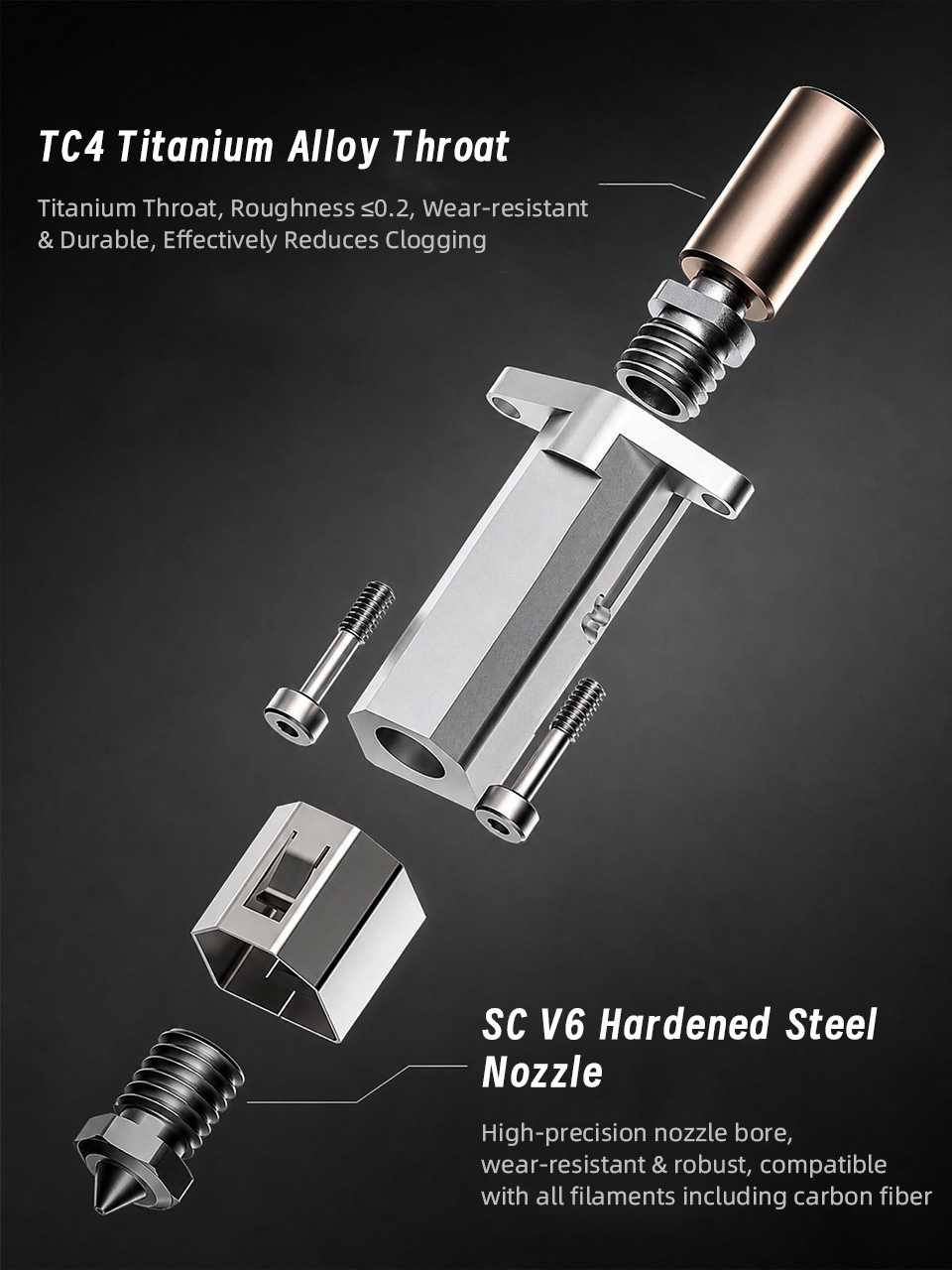

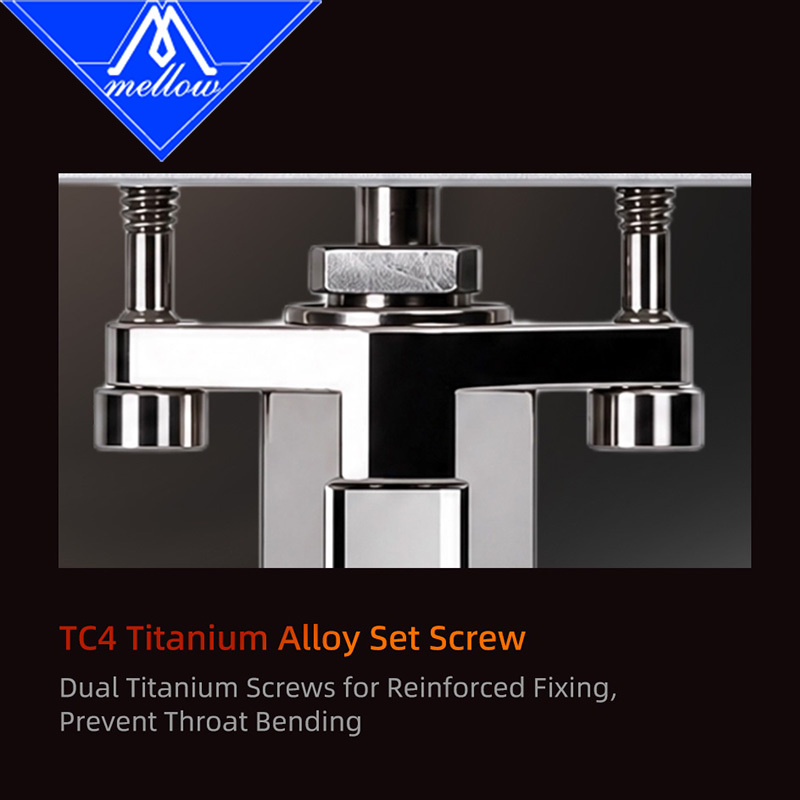

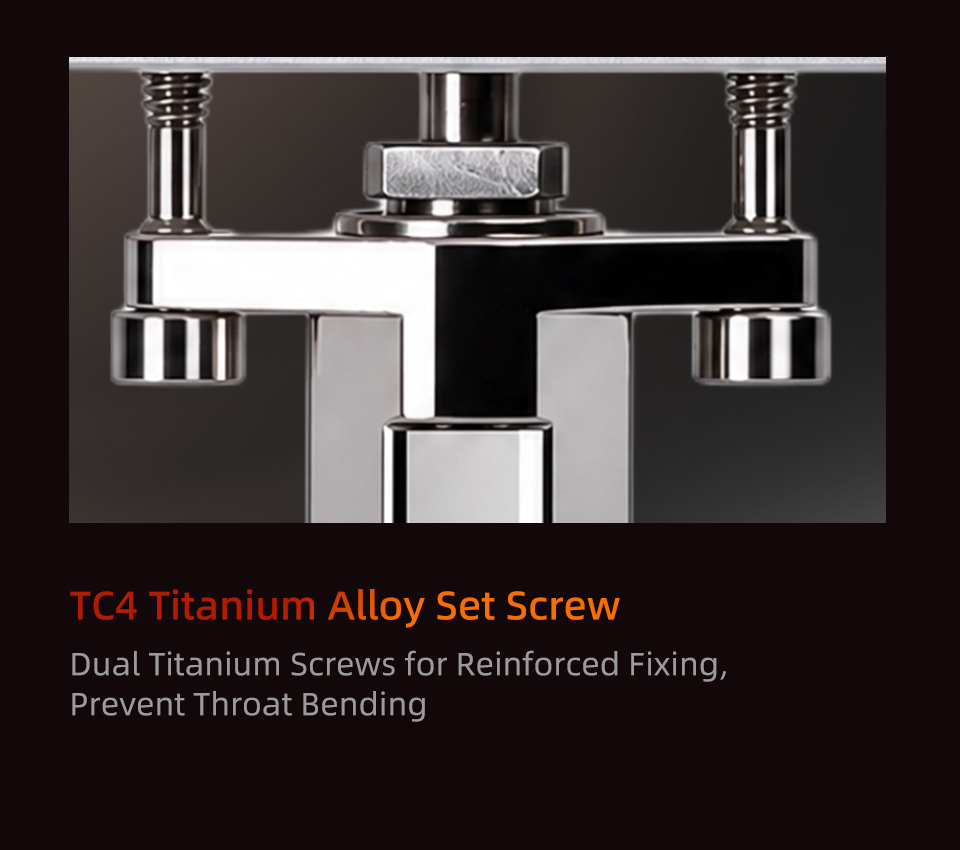

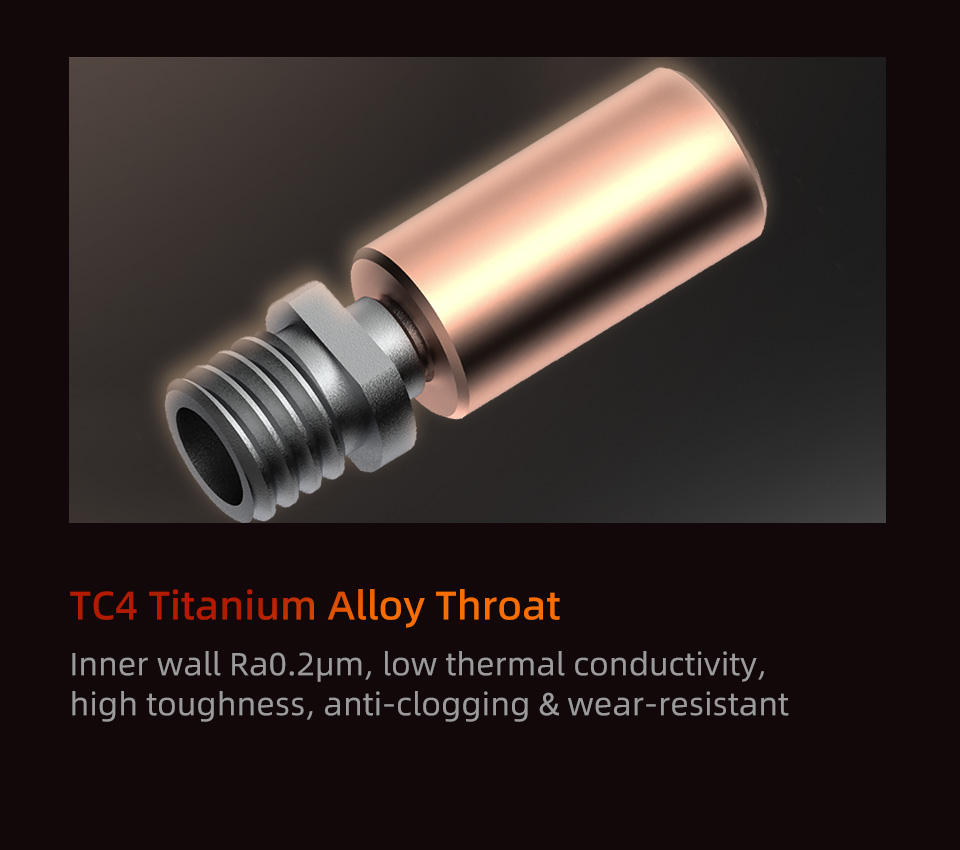

TC4 Titanium Durability: TC4 titanium alloy throat and titanium-reinforced screw support frame reduce heat transfer and prevent bending during long prints.

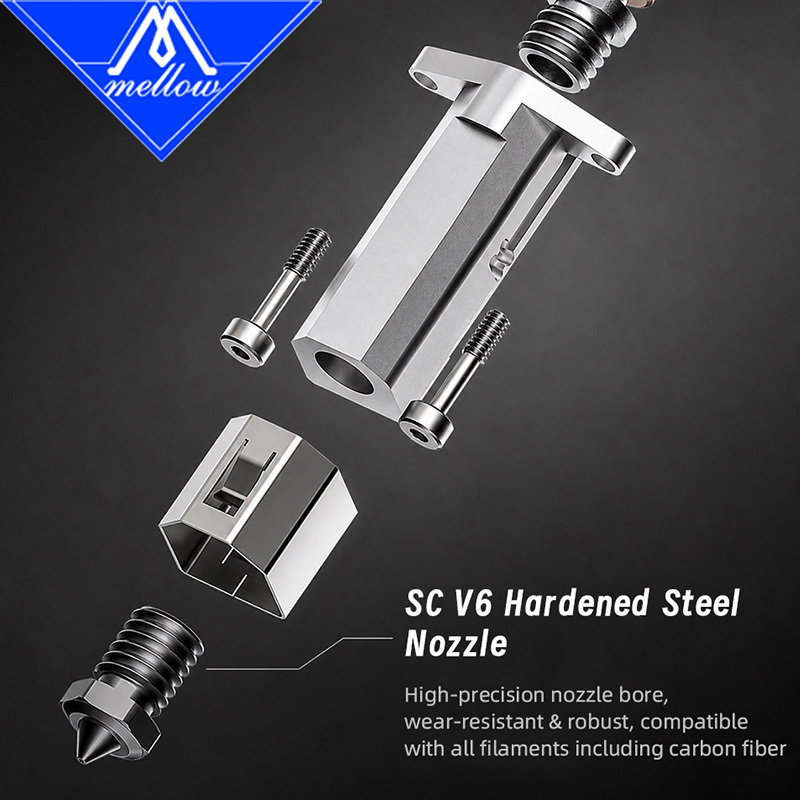

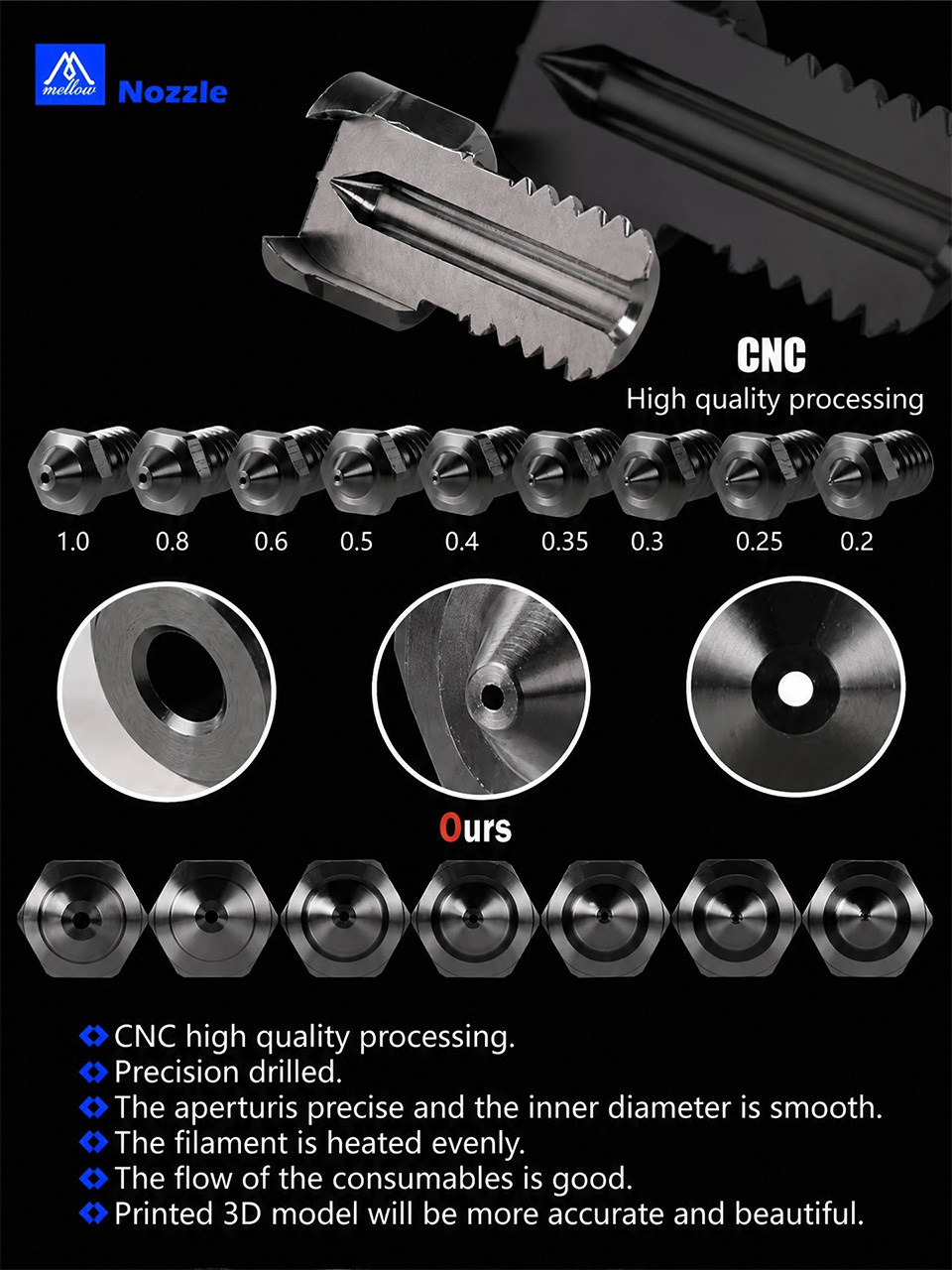

V6 Nozzle Compatibility: Standard V6 interface, easily interchangeable with hardened steel, tungsten carbide, or silicon carbide nozzles.
1Compatible
ENDER3
ENDER5
PRO
Voron
BLV
DIY 3D Printer

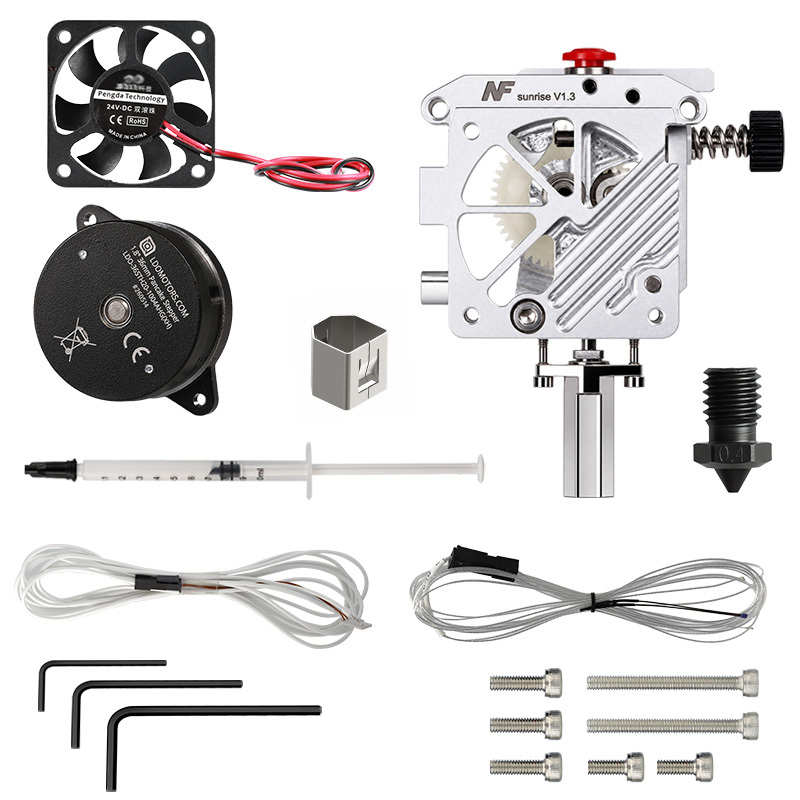

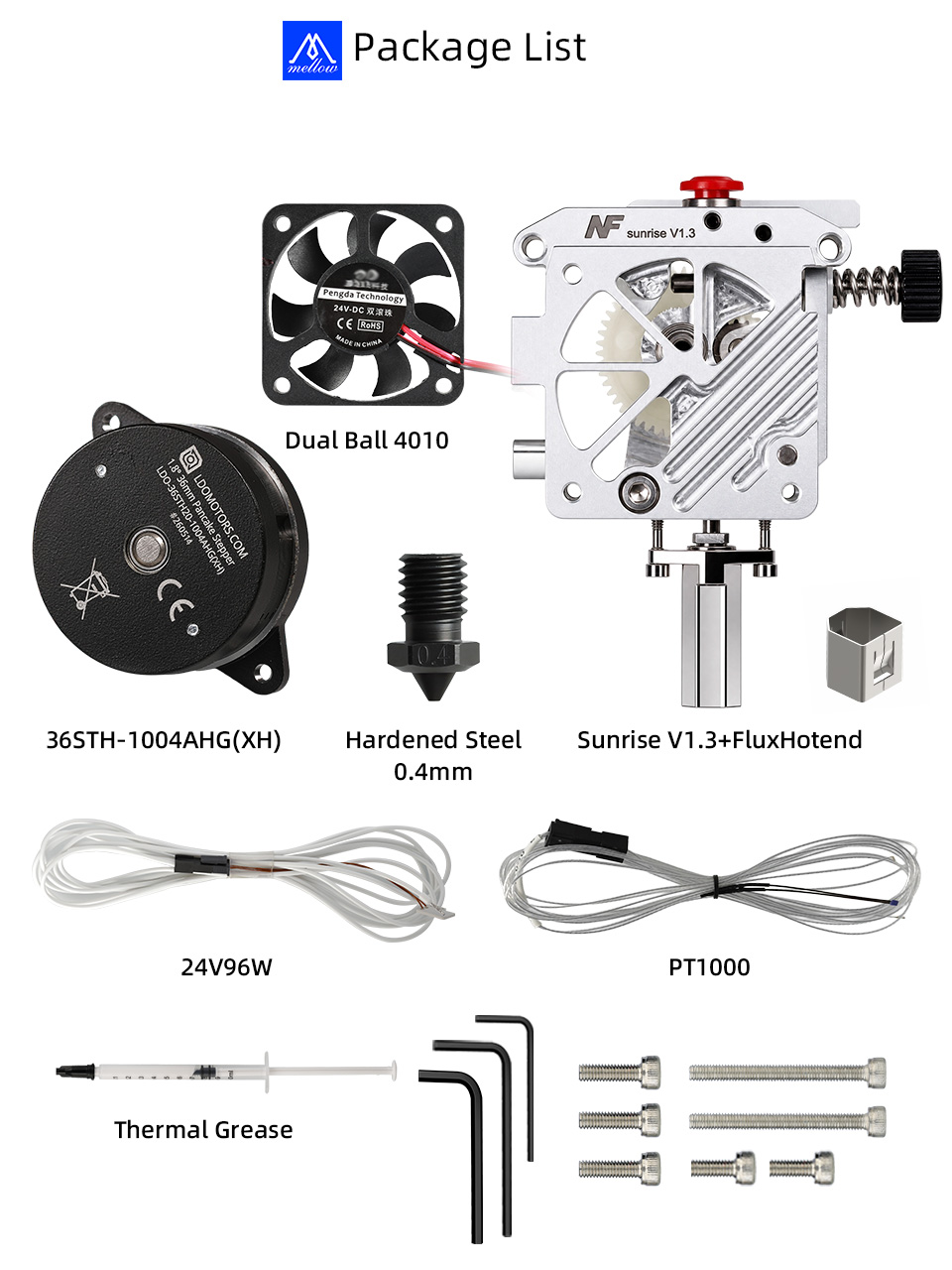

1Package Includes
1*NF FluxHeat Sunrise Extruder
1*Mellow 36MM LDO Motor

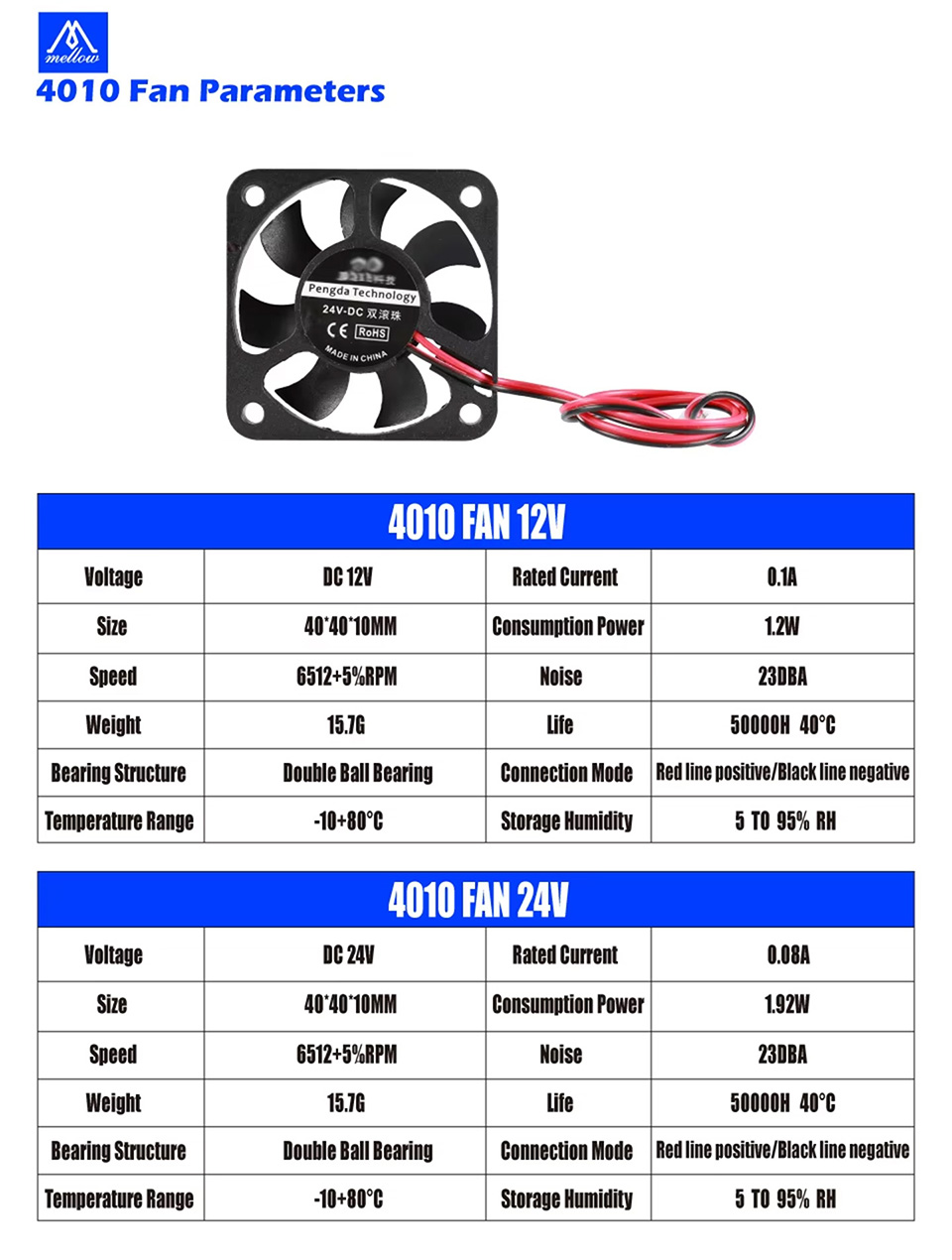

1*4010 Dual Bearing Cooling fan 24V
1*NN PT1000 Temperature Sensor
1*96w High performance Heater
