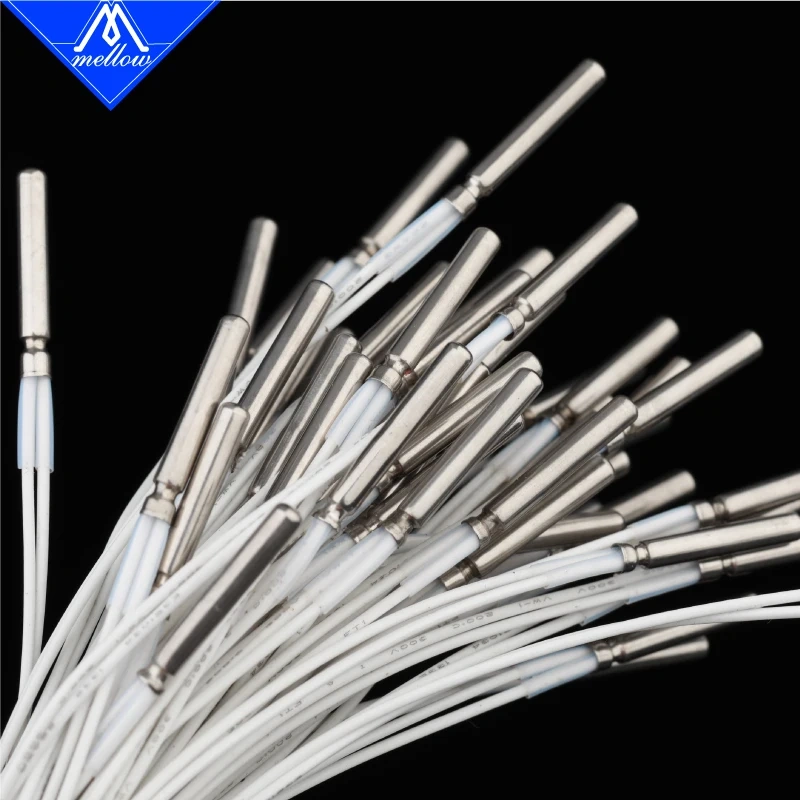

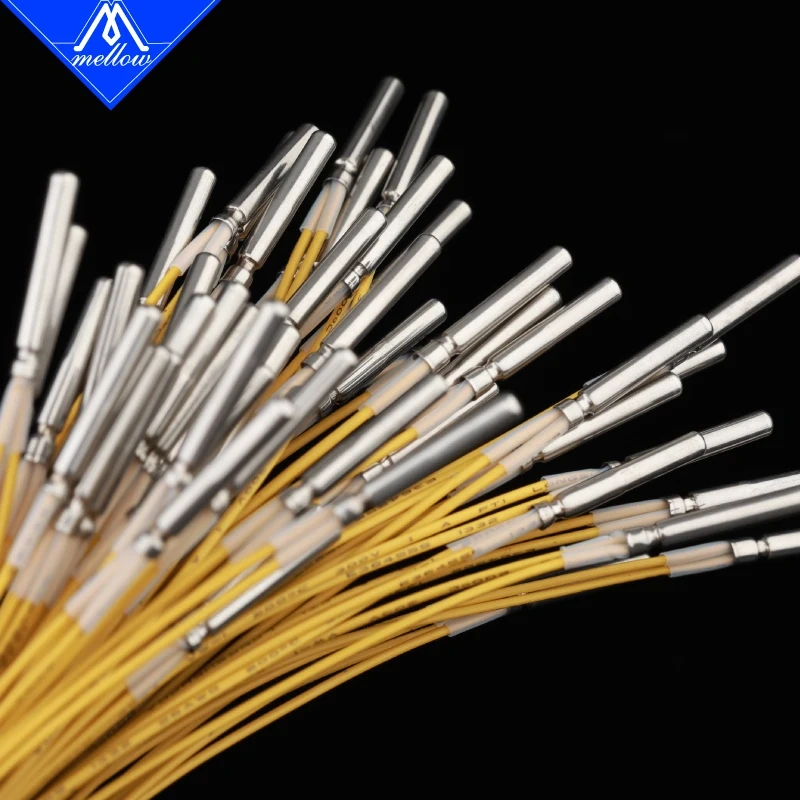

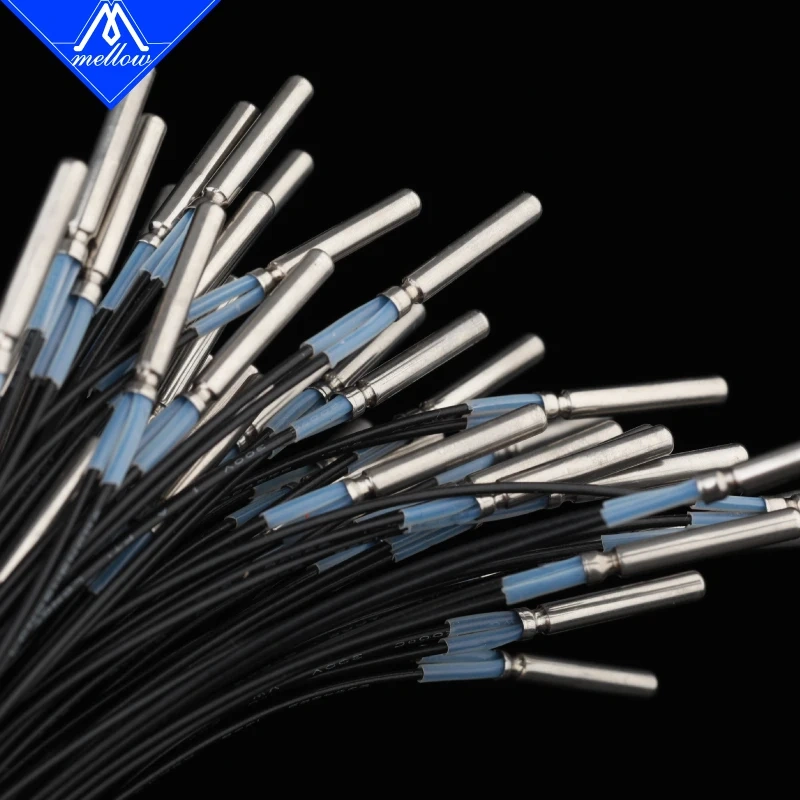

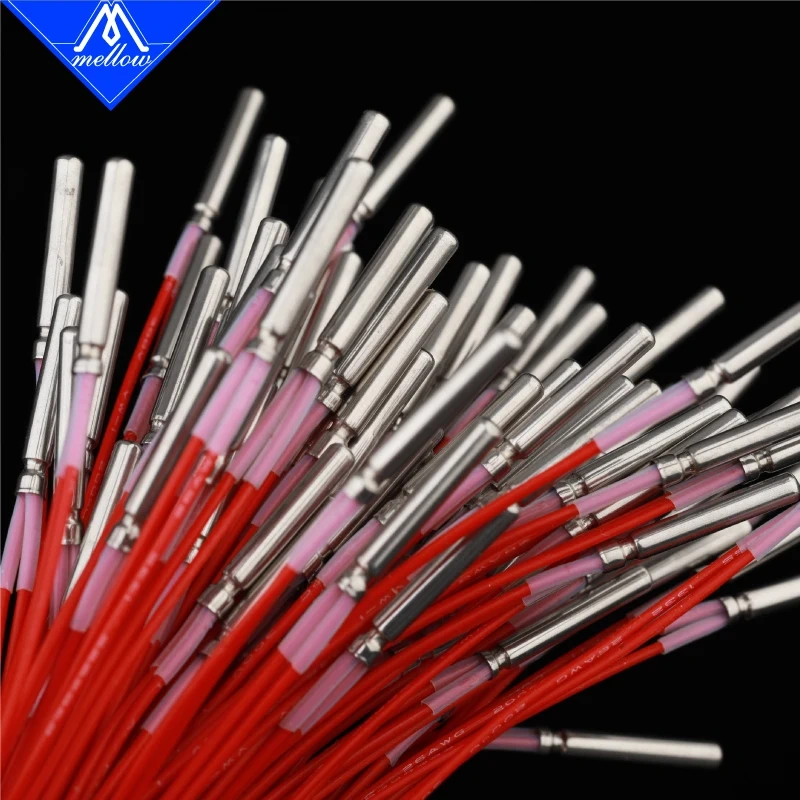

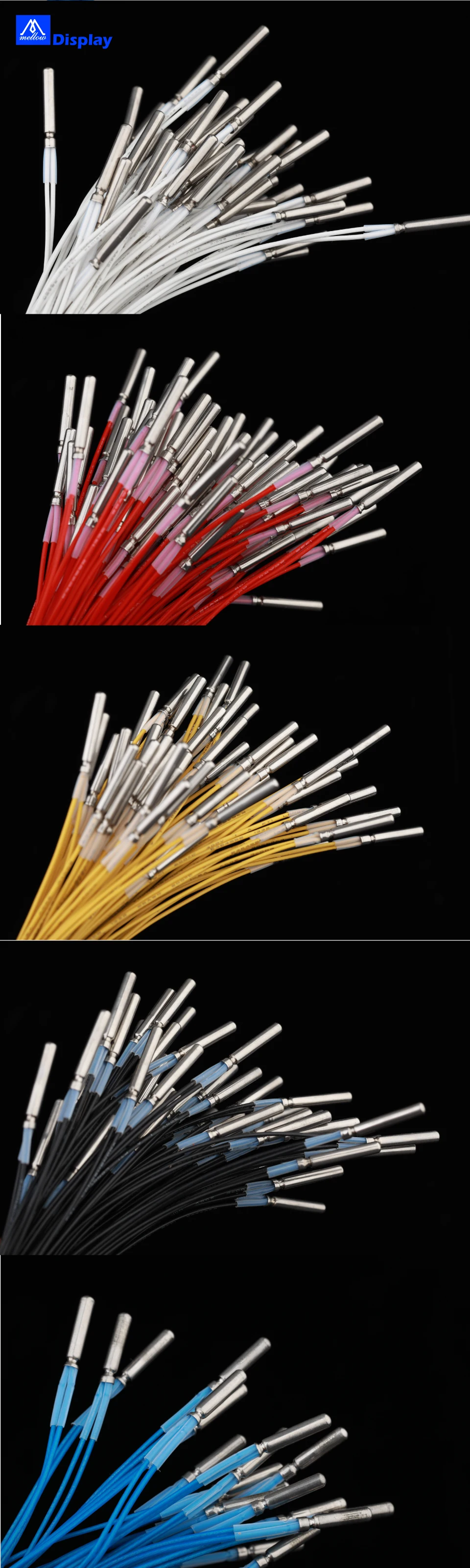

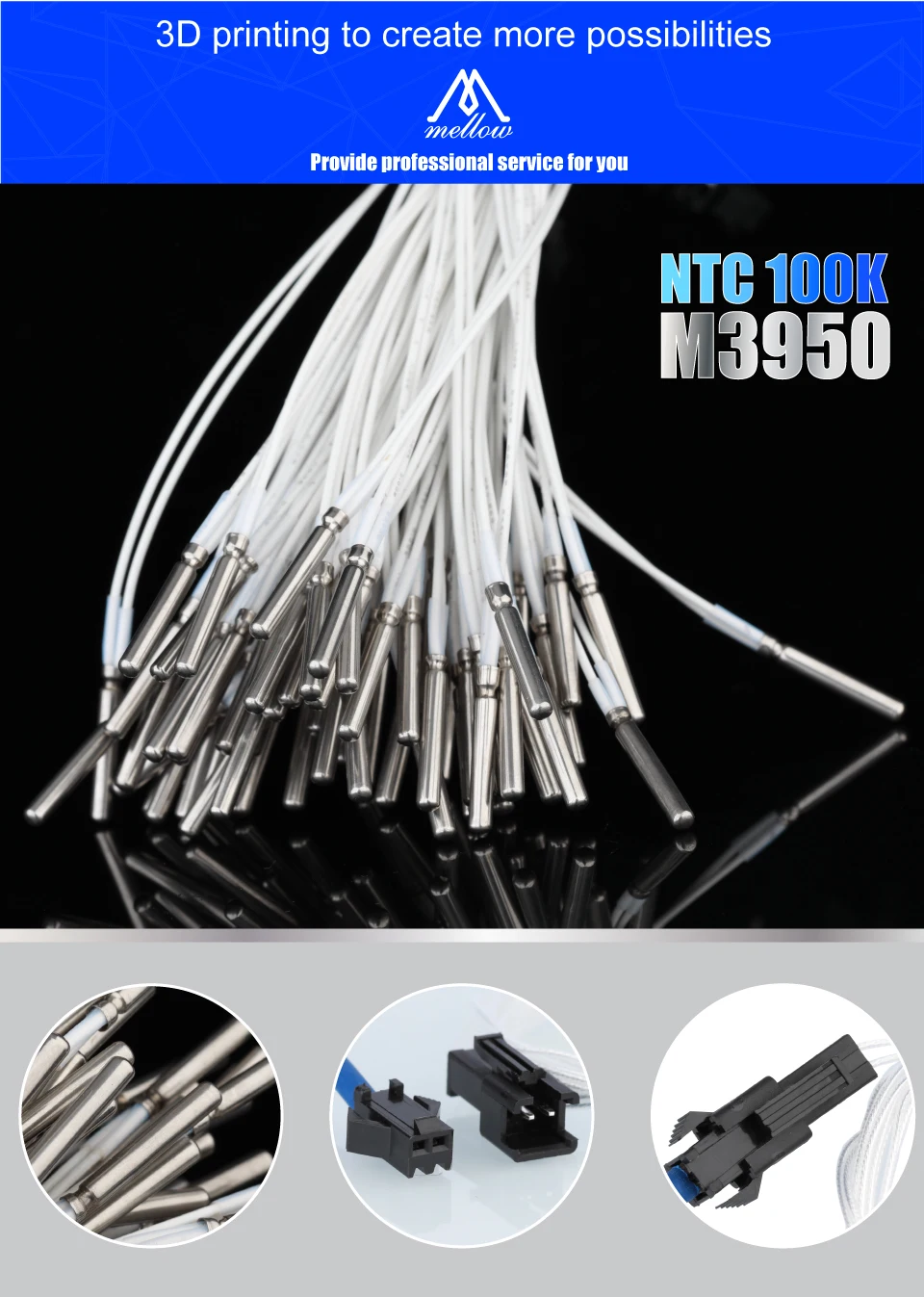

Model: HT-NTC100K thermistor temperature sensor components,which have 1M & 2M cable.

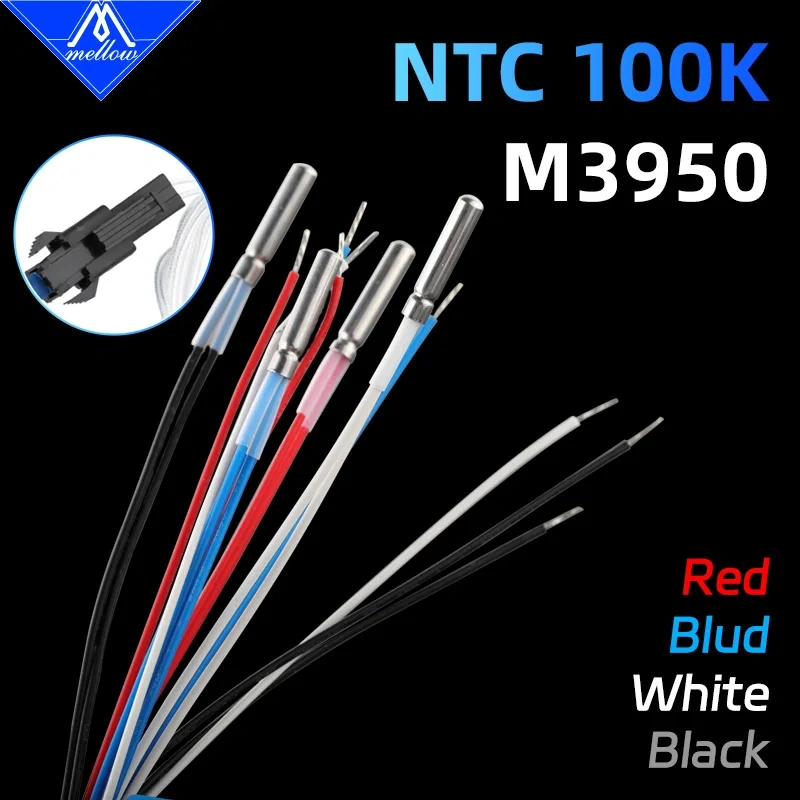

Specifications: Negative Temperature Coefficient (NTC) Thermistor Model: B3950
Temperature measurement head size: 3 * 15mm
Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality.
The improvements compared to the other temperature resistance in the market.
1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple.
2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.
3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.
4. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets).
Package included:

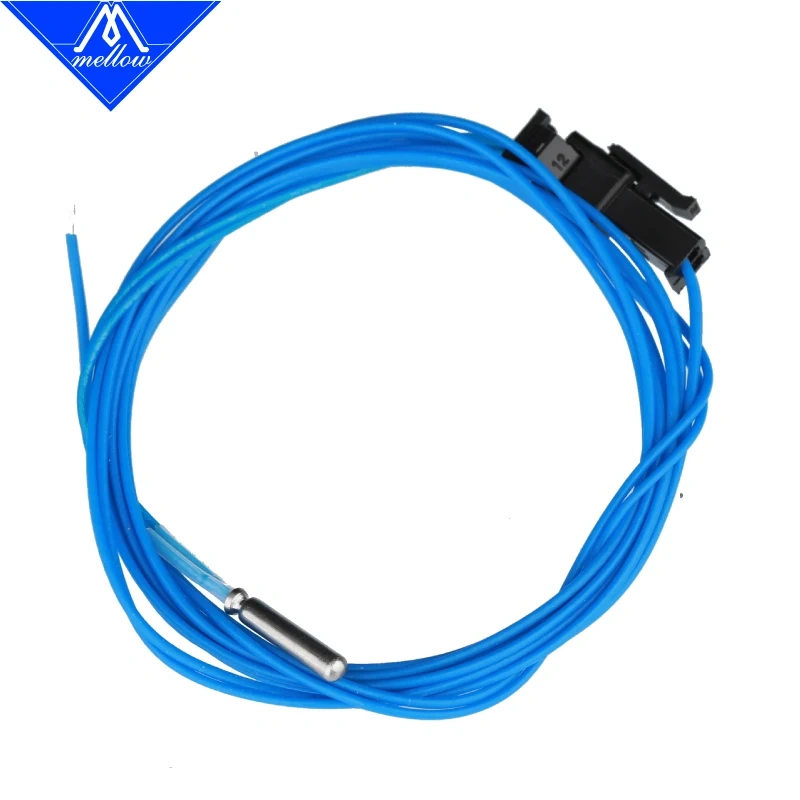

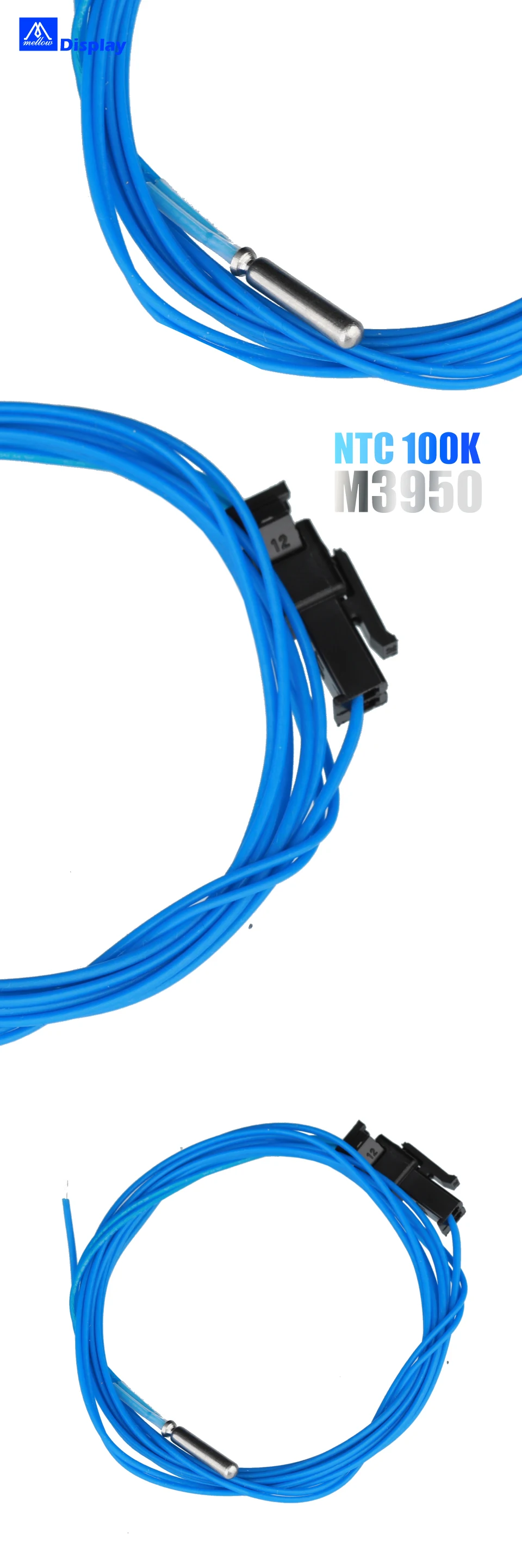

1M replacementHT-ntc:
1 pcs/3pcs A end line length, 15cm
1 pcs/3pcs B end line length, 85cm
or
2M replacementHT-ntc:
1pcs/2pcsA end line length, 15cm
1pcs/2pcsB end line length, 185cm
or
1pcs 1M/2M replacementHT-ntc + 1pcs PT100 v6 block
