Mellow Tp2209 RGB TMC2209 Motor Driver For 3D Printer Uart Mode DP5 / PROX10 Motherboard Stepper Driver

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you a better overall user experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

Description：

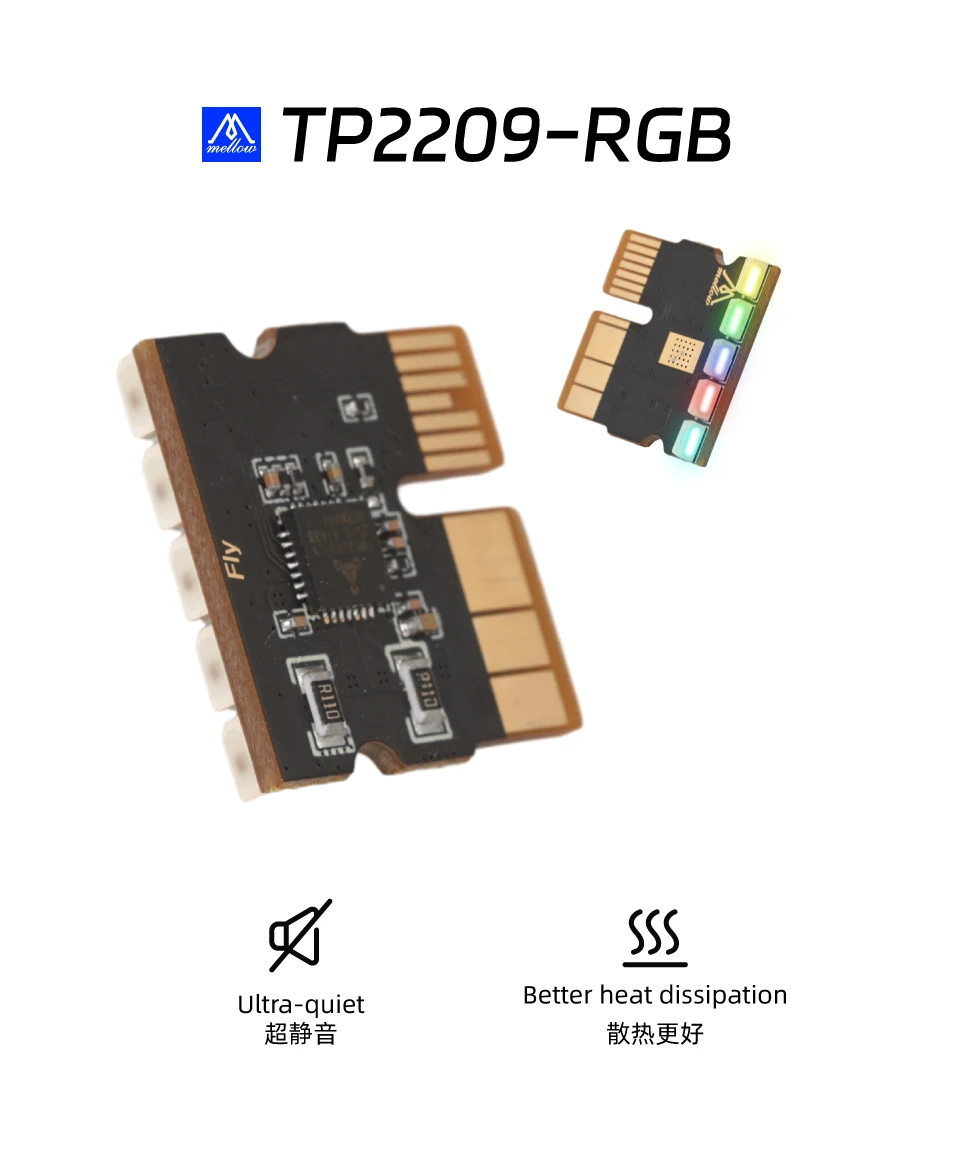

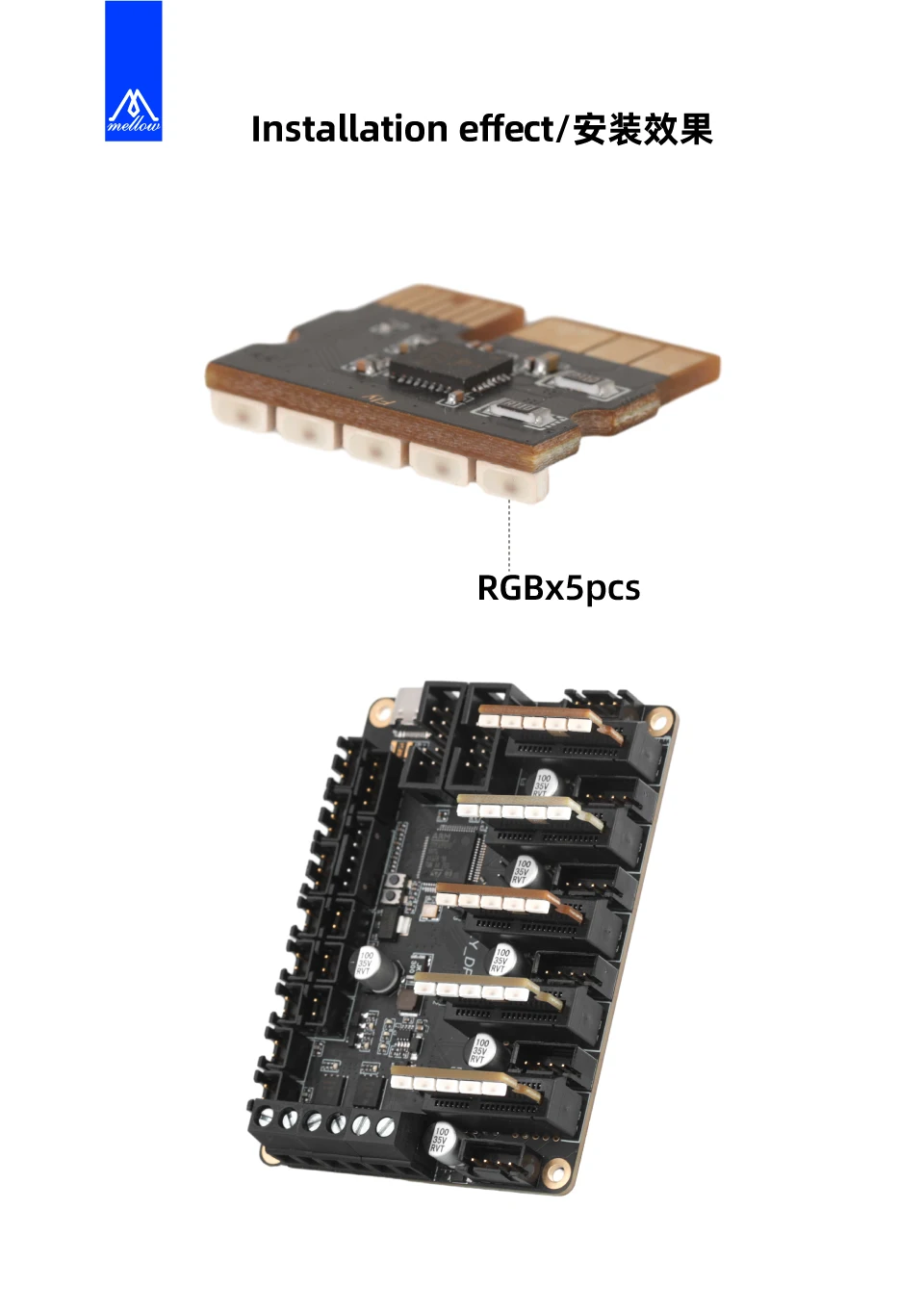

This driver features a unique vertical installation design that significantly improves heat dissipation, addressing the common issue of insufficient cooling in traditional TMC2209 drivers. Additionally, it includes built-in RGB lighting, with support for up to 5 RGB lights controlled via the DP5 and PROX10 mainboards. Users can customize the lighting effects based on their personal preferences, adding a personalized touch to the device.

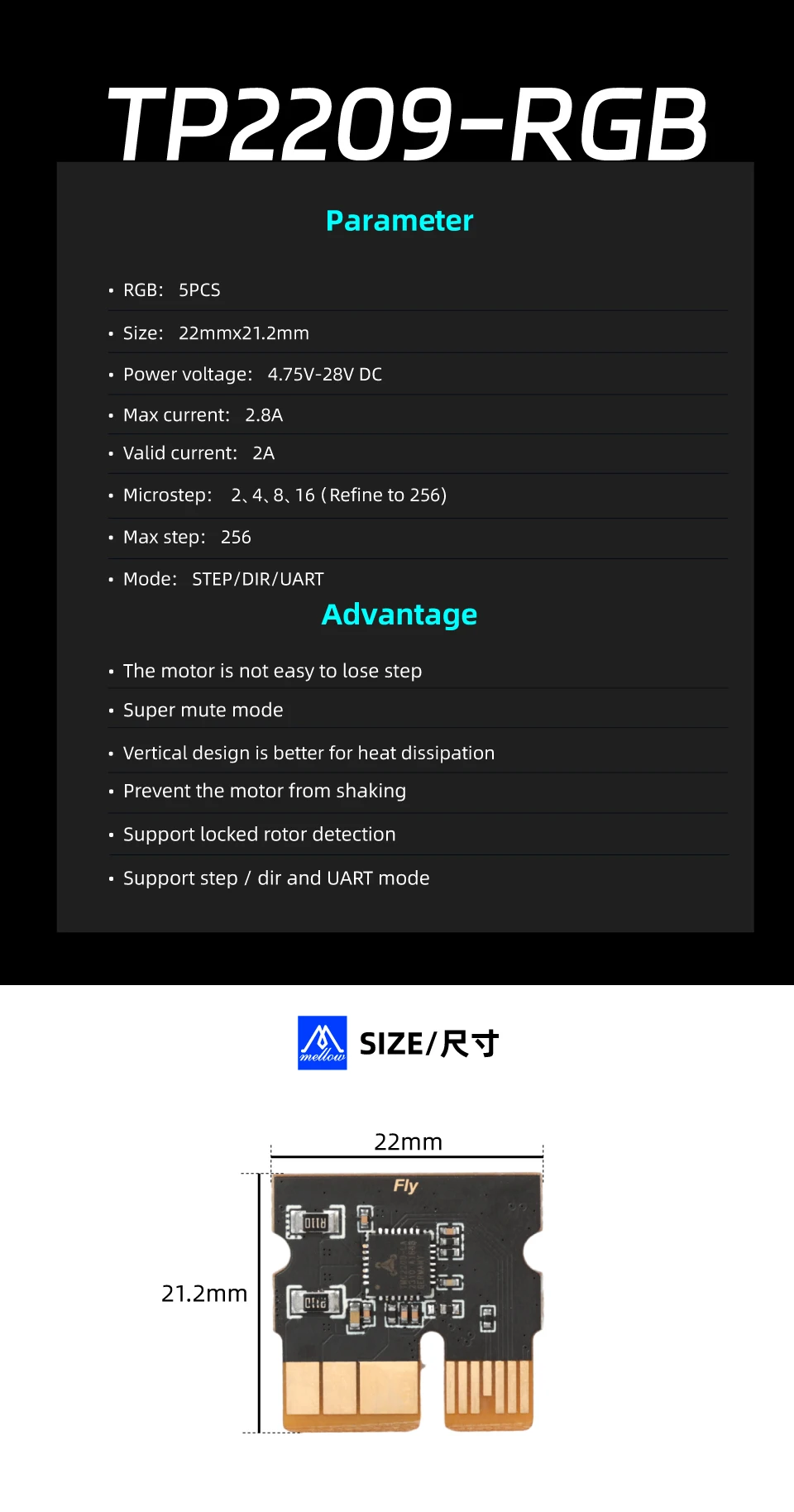

Parameter

RGB:5PCS

Size:22mmx21.2mm

Power voltage: 4.75V-28V DC

Max current: 2.8A

Valid current: 2A

Microstep: 2、4、8、16(Refine to 256)

Maxstep: 256

Mode:STEP/DIR/UART

Advantage

The motor is not easy to lose step

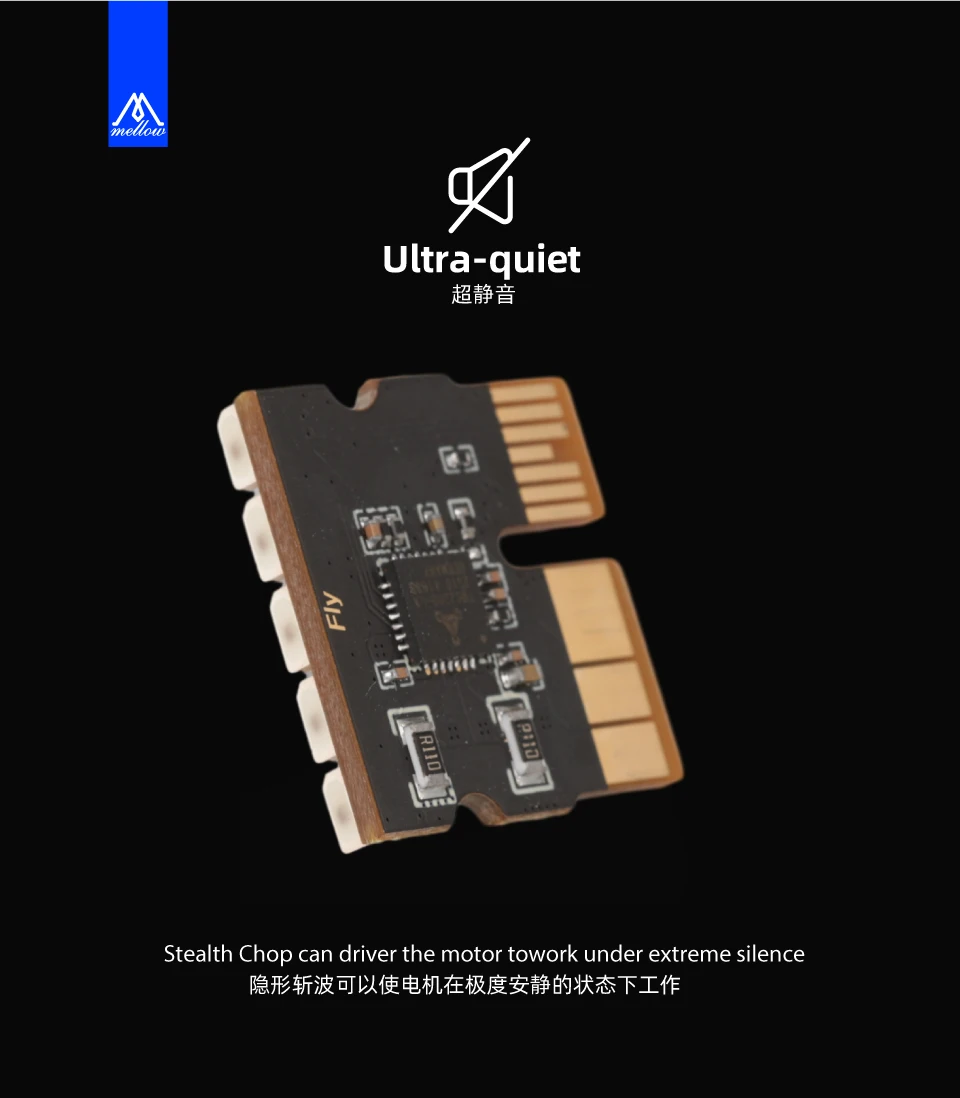

Super mute mode

Vertical design is better for heat dissipationPrevent the motor from shaking

Support locked rotor detection

Support step / dir and UART mode

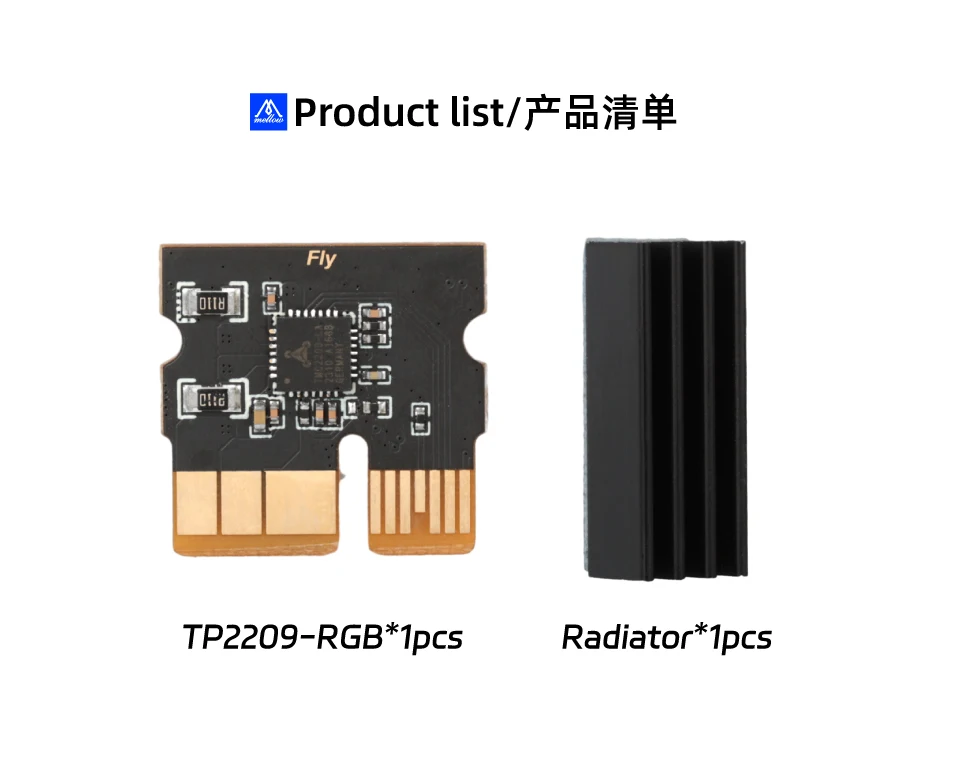

Package:

TP2209
