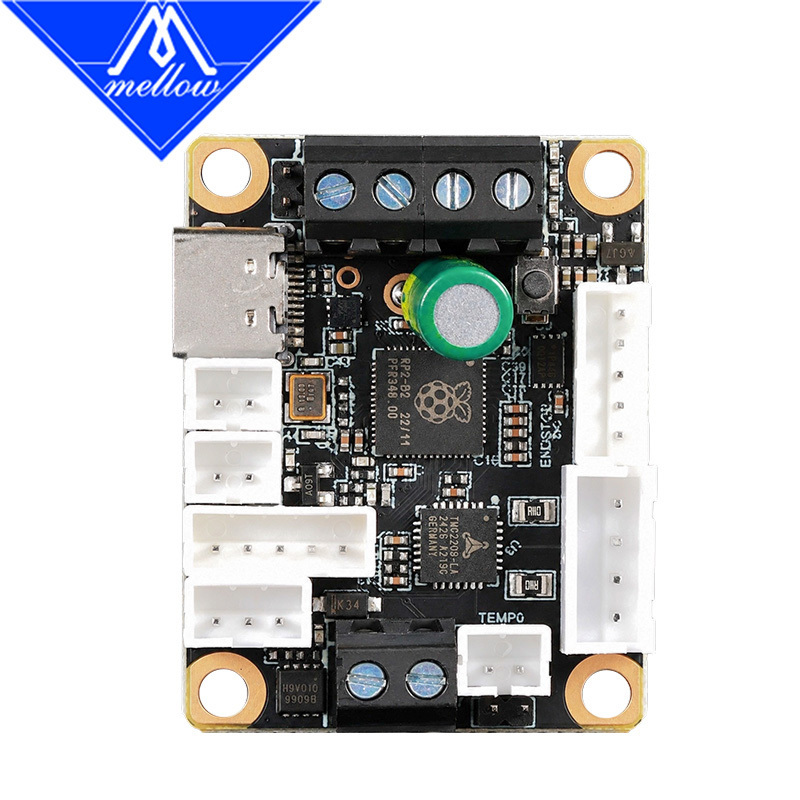

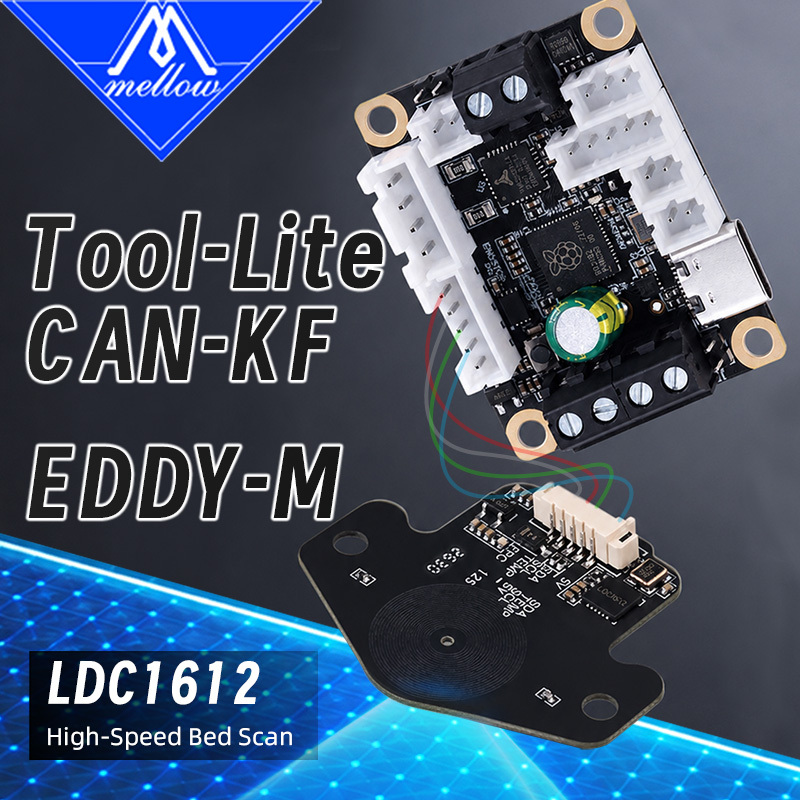

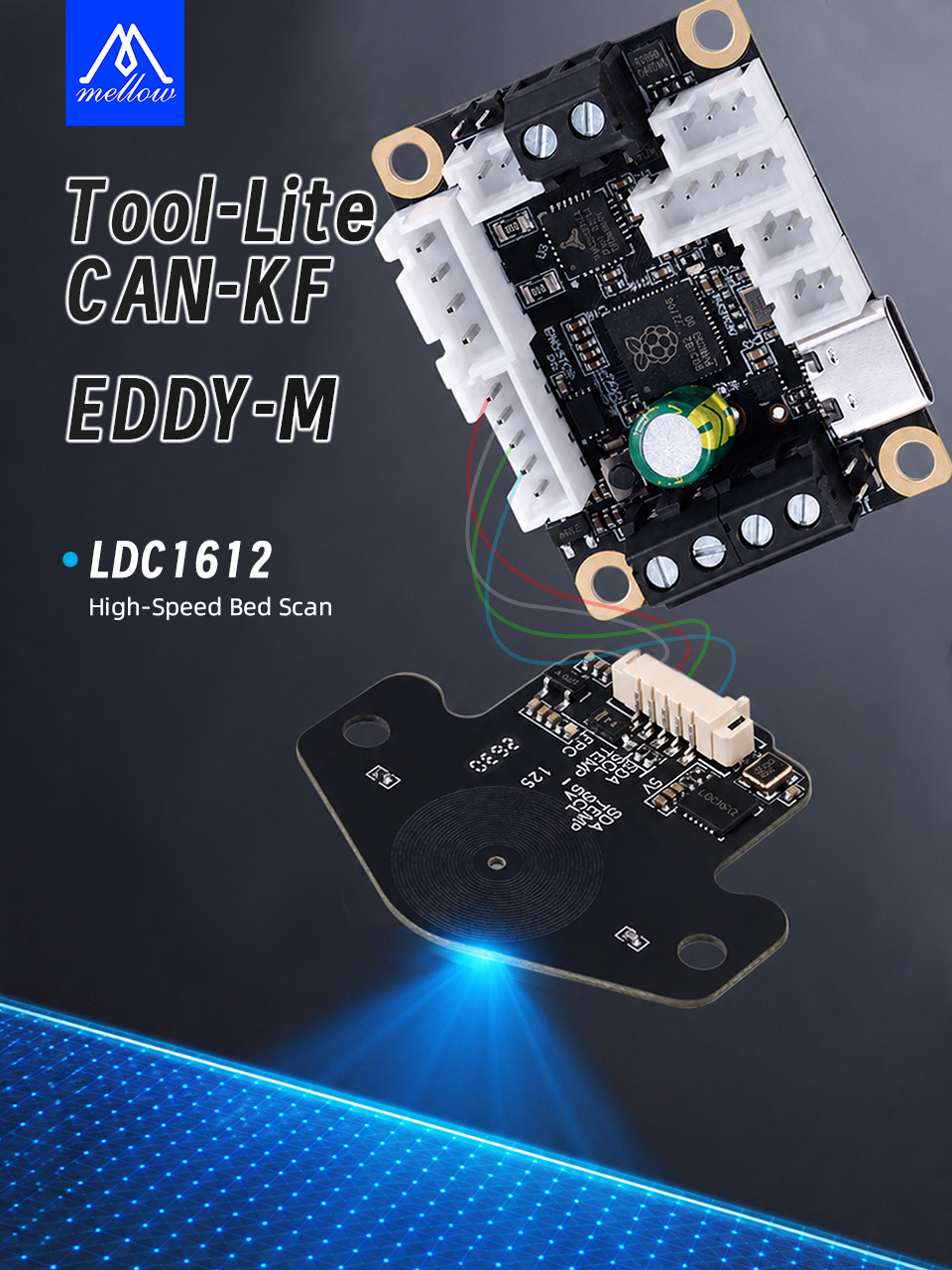

Mellow Tool-Lite CAN-KF + EDDY-M Kit: High-Speed Bed Mesh Scanning Toolhead Board for Voron/CoreXY 3D Printers

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you better overall experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

1Description

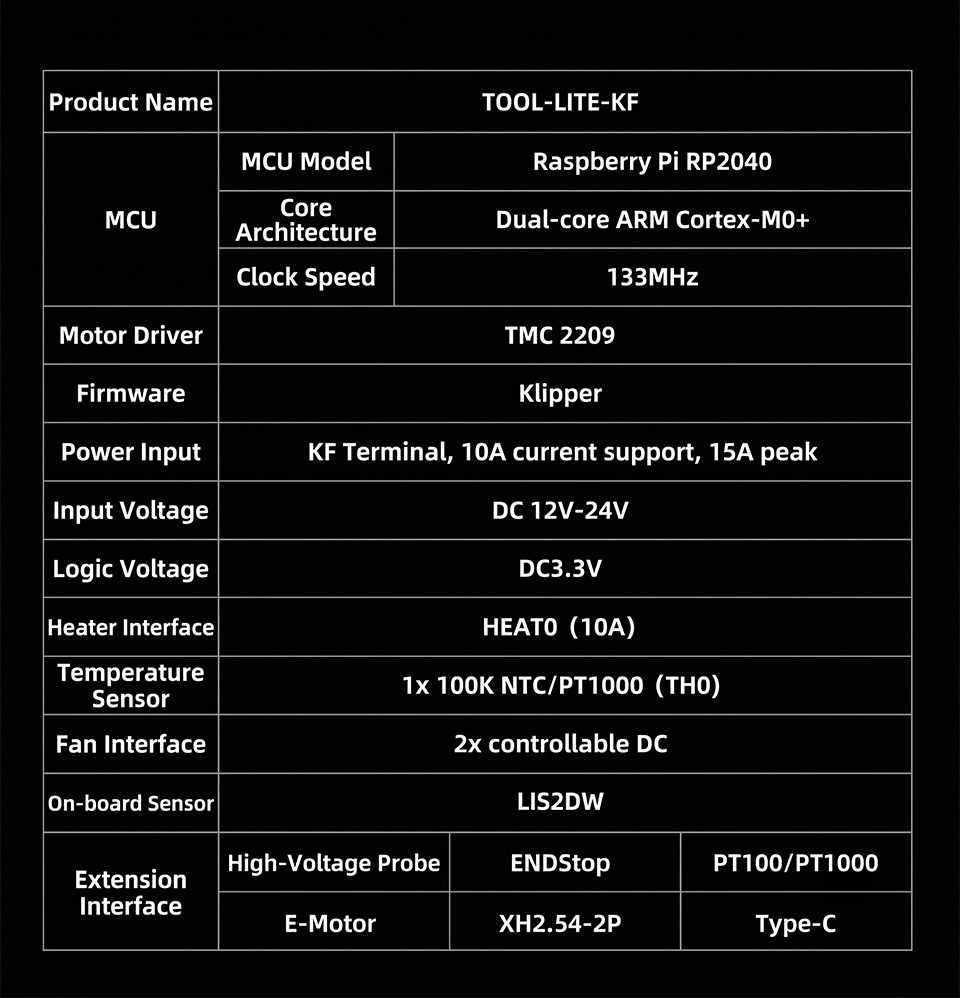

1Technical Specifications

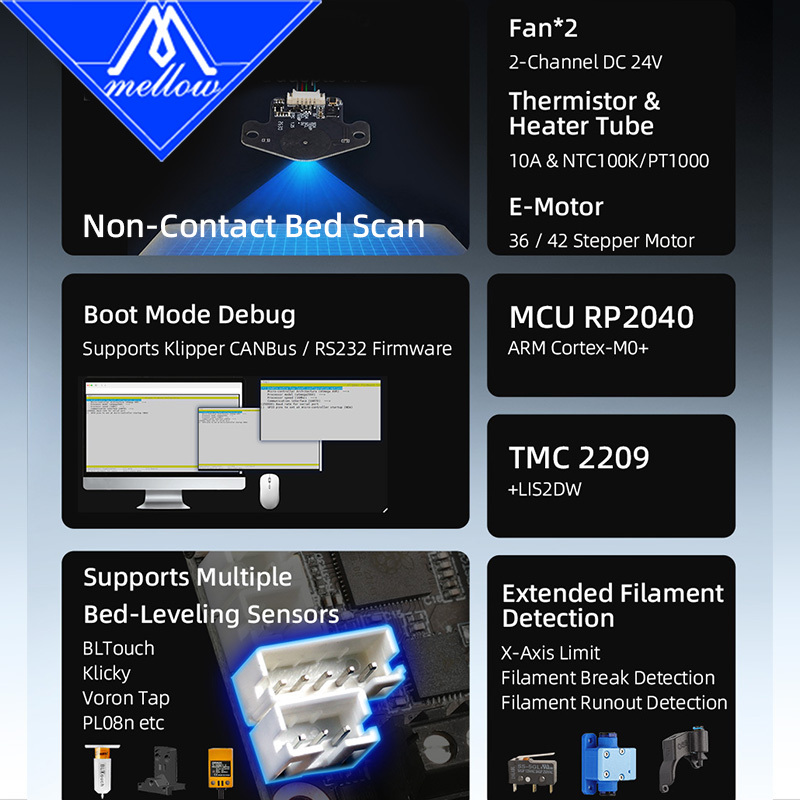

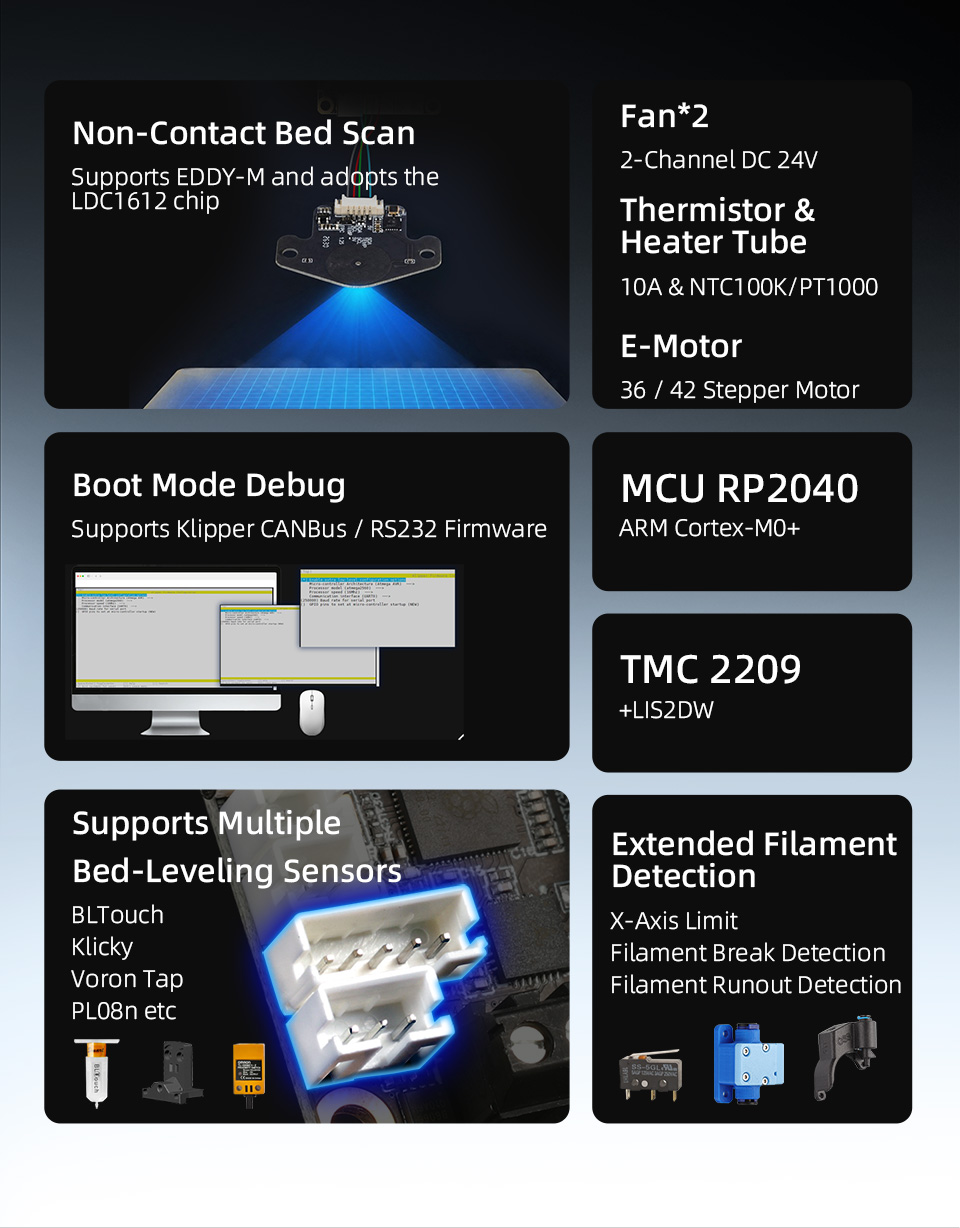

MCU: Raspberry Pi RP2040, dual-core ARM Cortex-M0+ @ 133MHz

Connection Interface: Uses KF connector, supporting 10A current

Firmware:Klipper

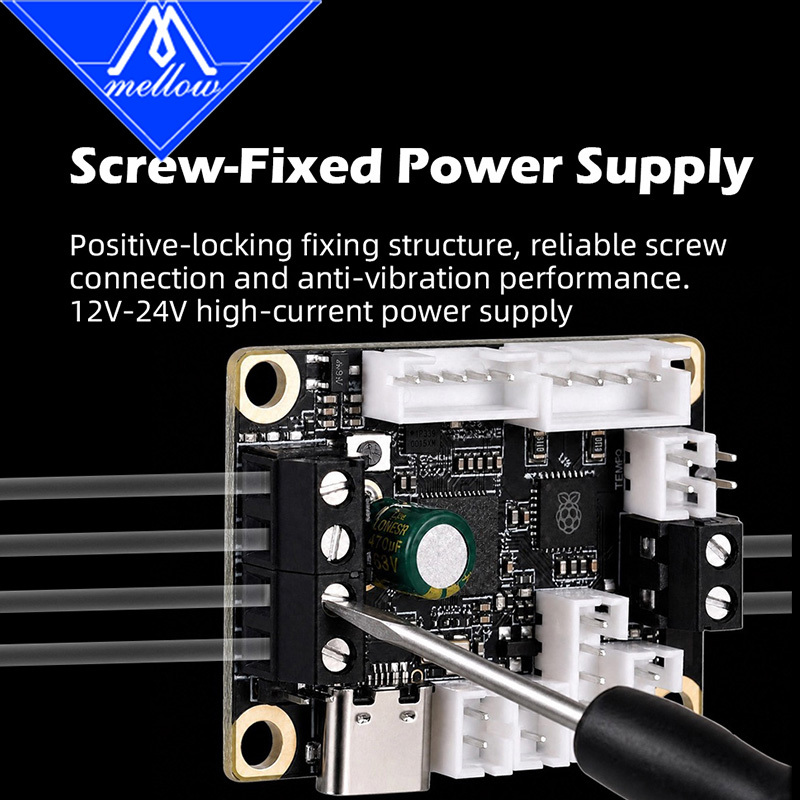

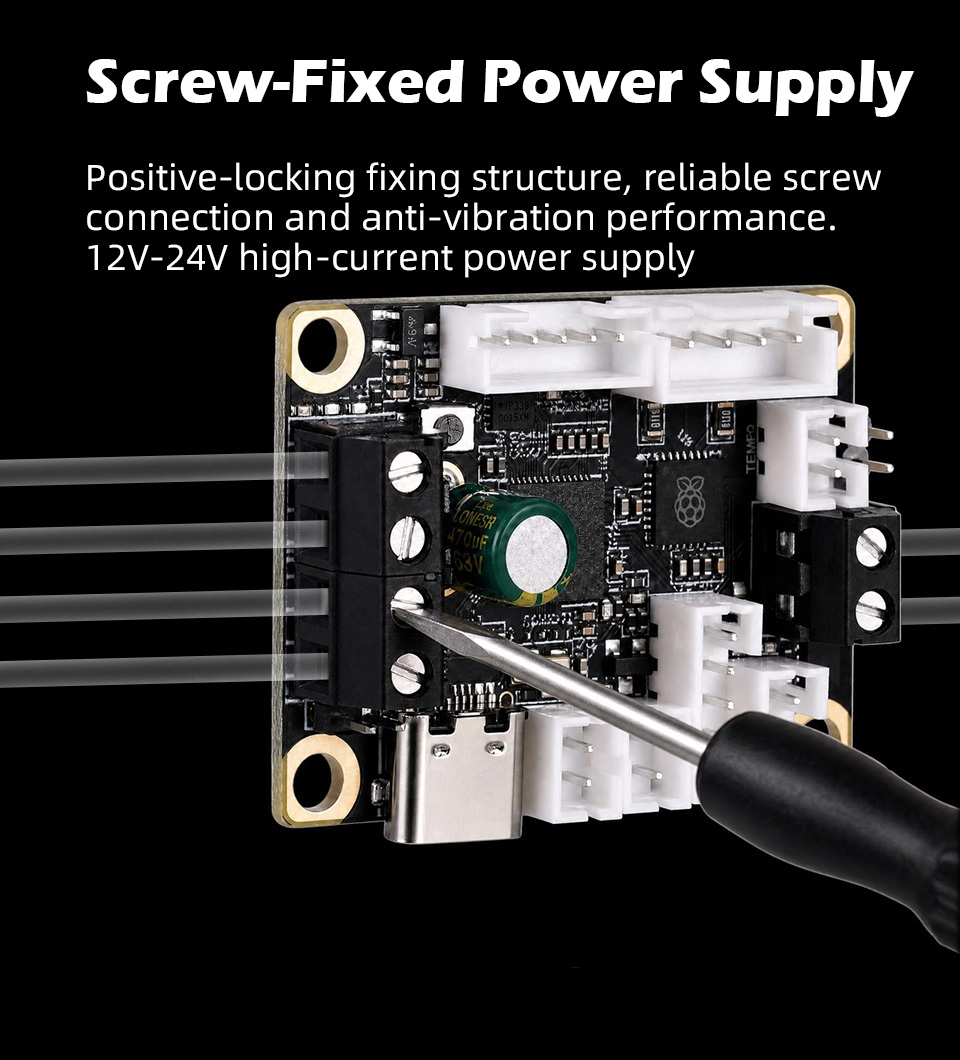

Input Voltage: DC 12V-24V

Logic Voltage: DC 3.3V

Onboard Sensors: LIS2DW

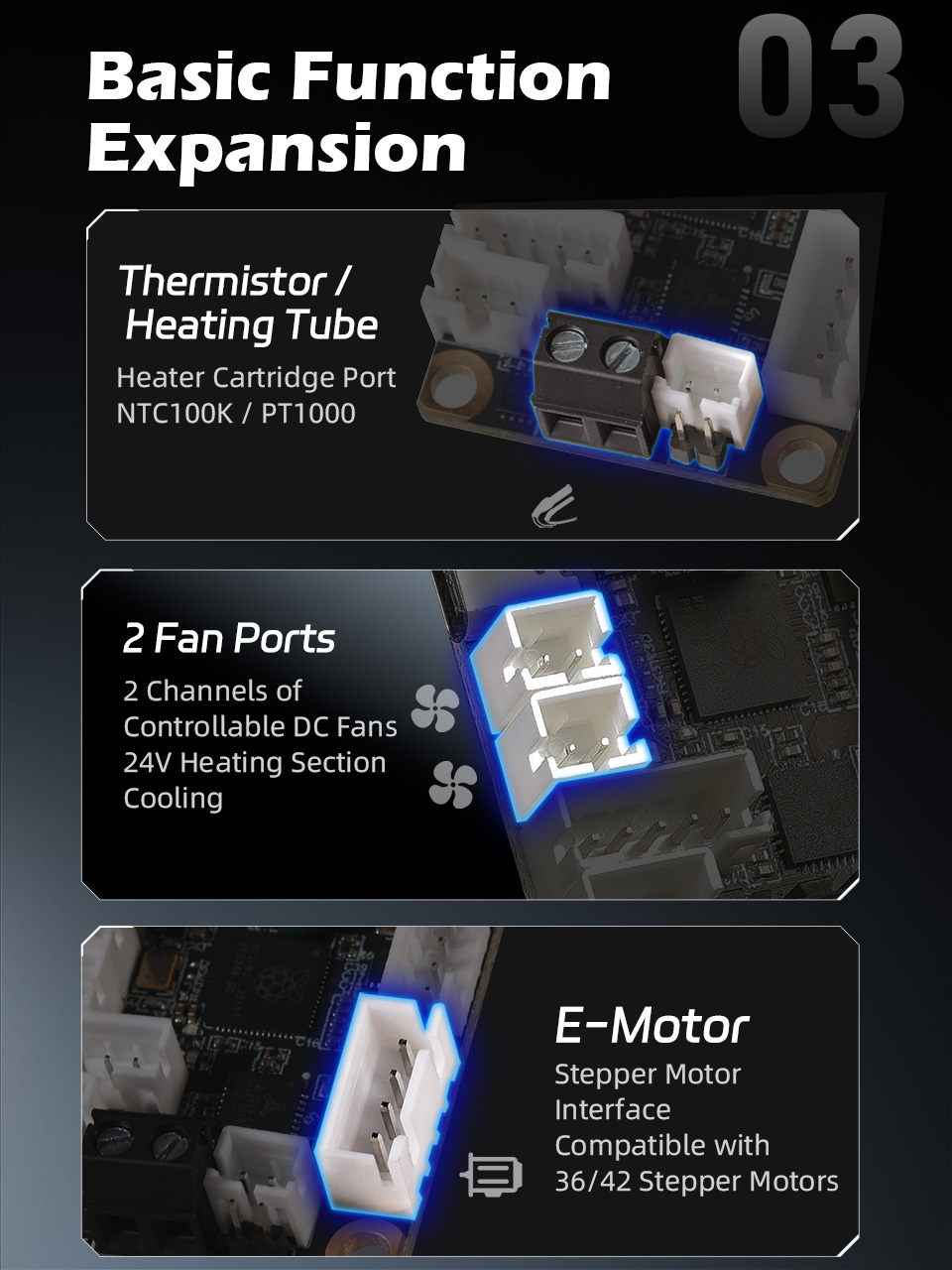

Heater Interface: HEAT0, supporting 10A

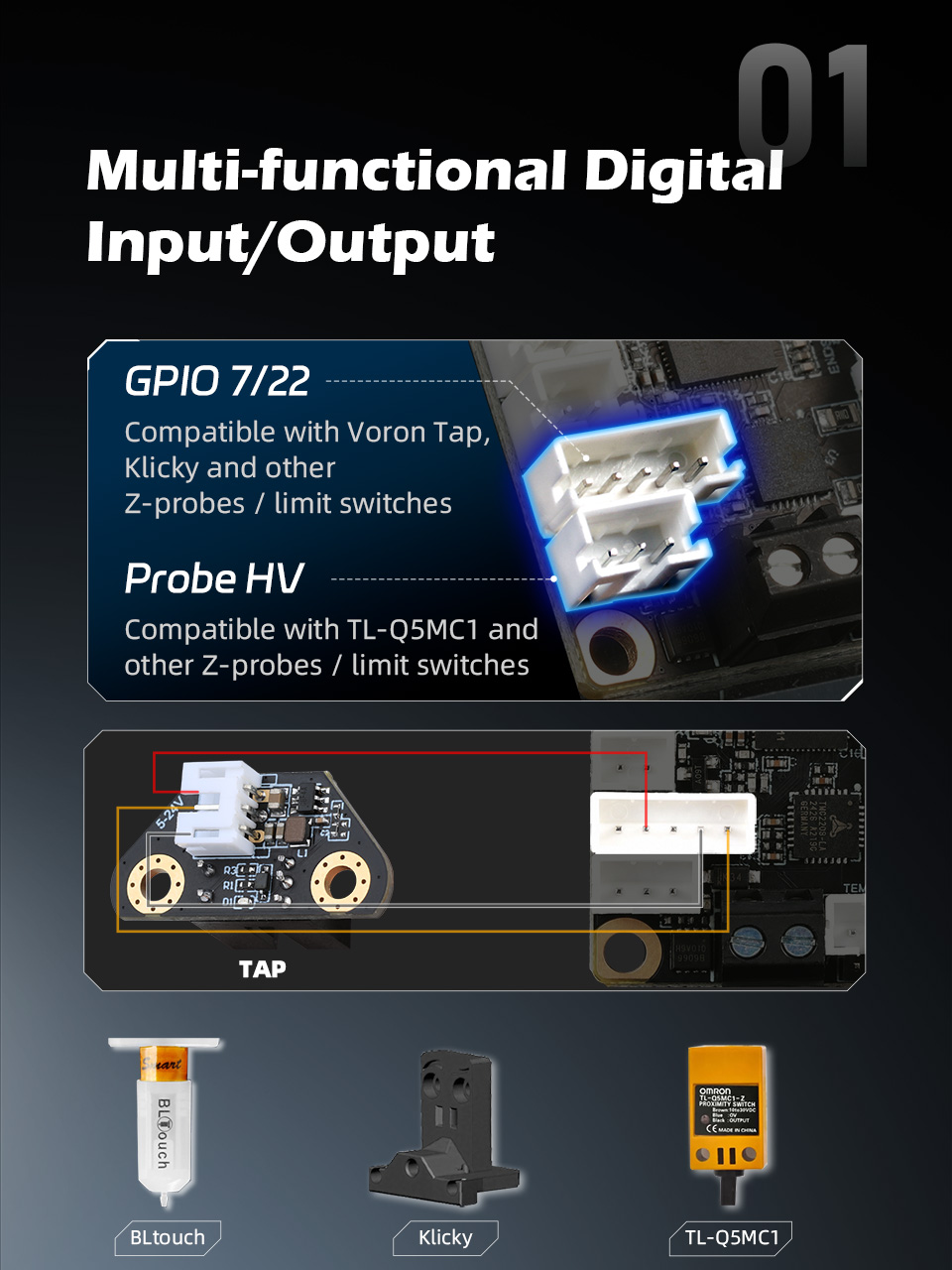

Expansion Interfaces: EndStop，BLtouch

Fan Interfaces: Two controllable DC fans

Motor Driver: Onboard TMC2209

Temperature Sensor: One 100K NTC or PT1000

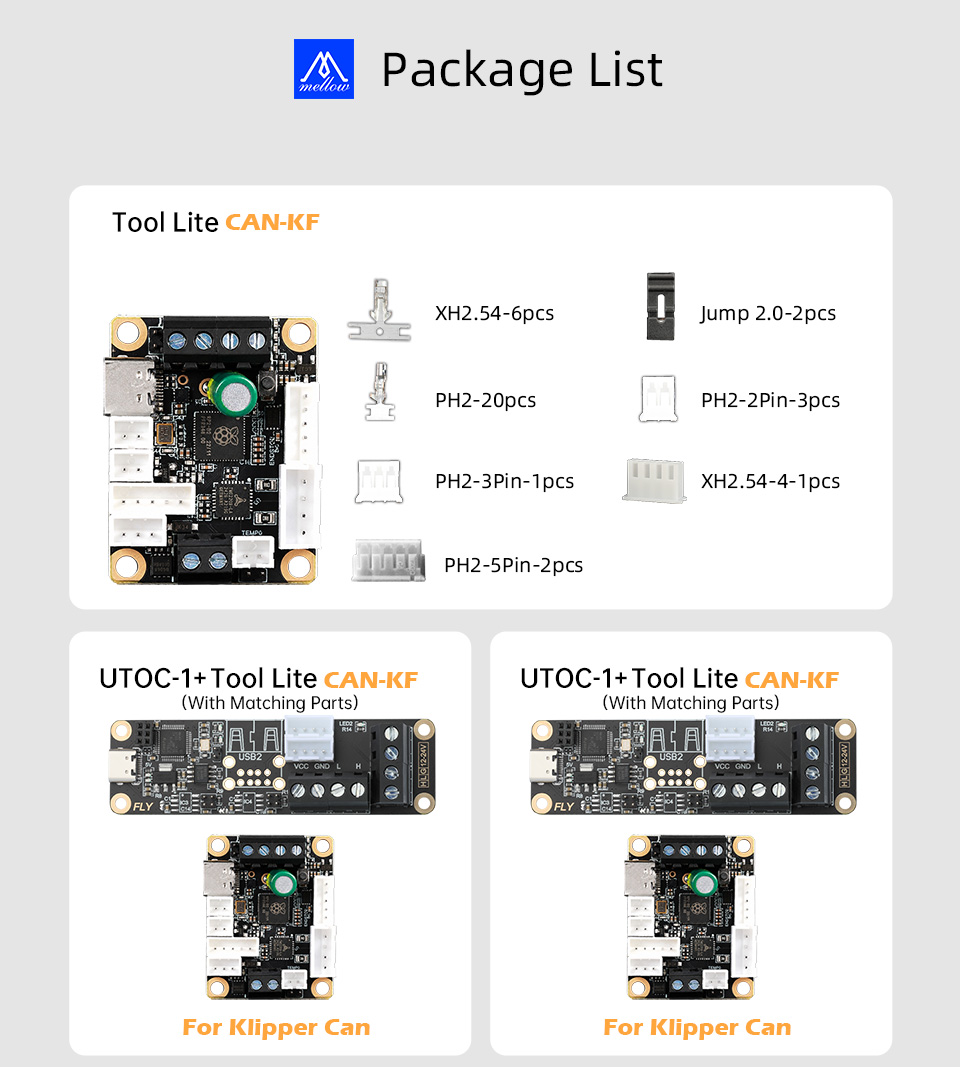

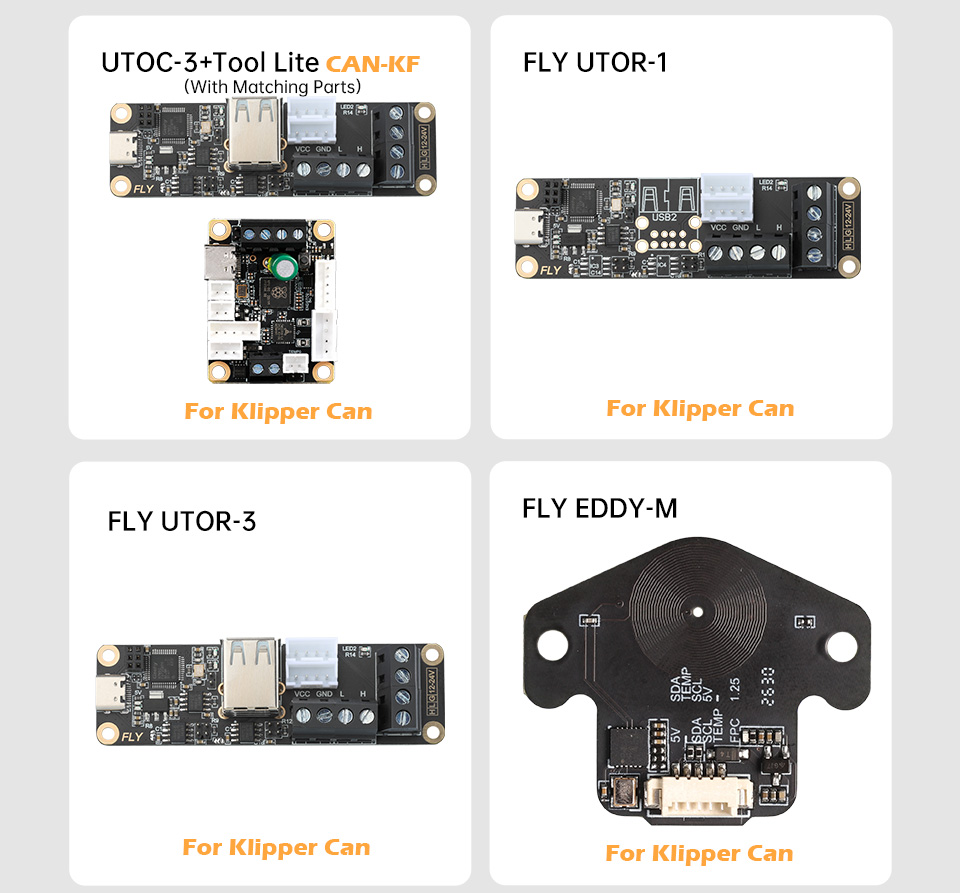

1Package Includes

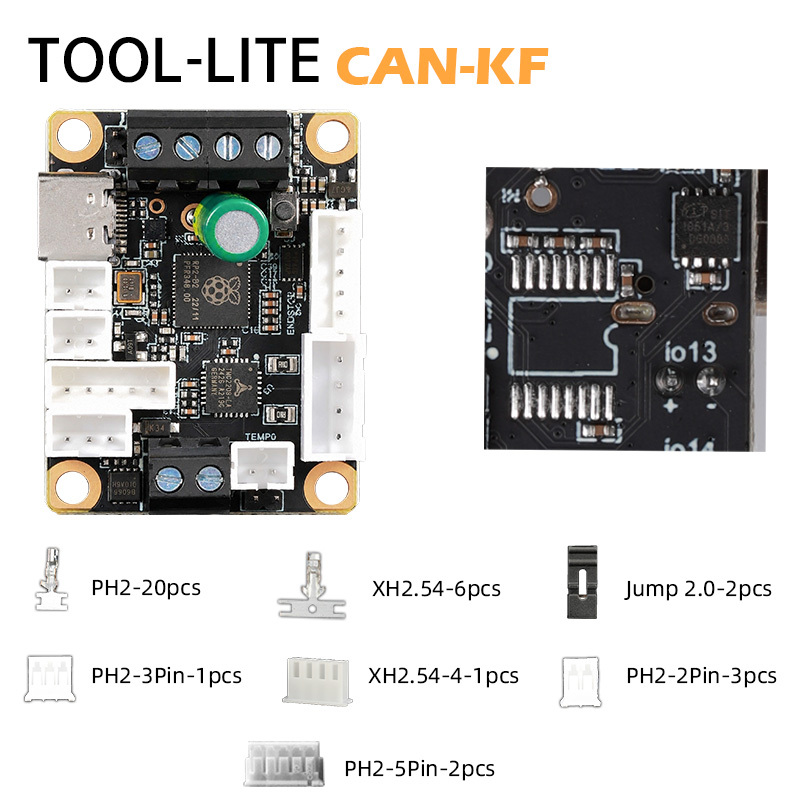

Set1

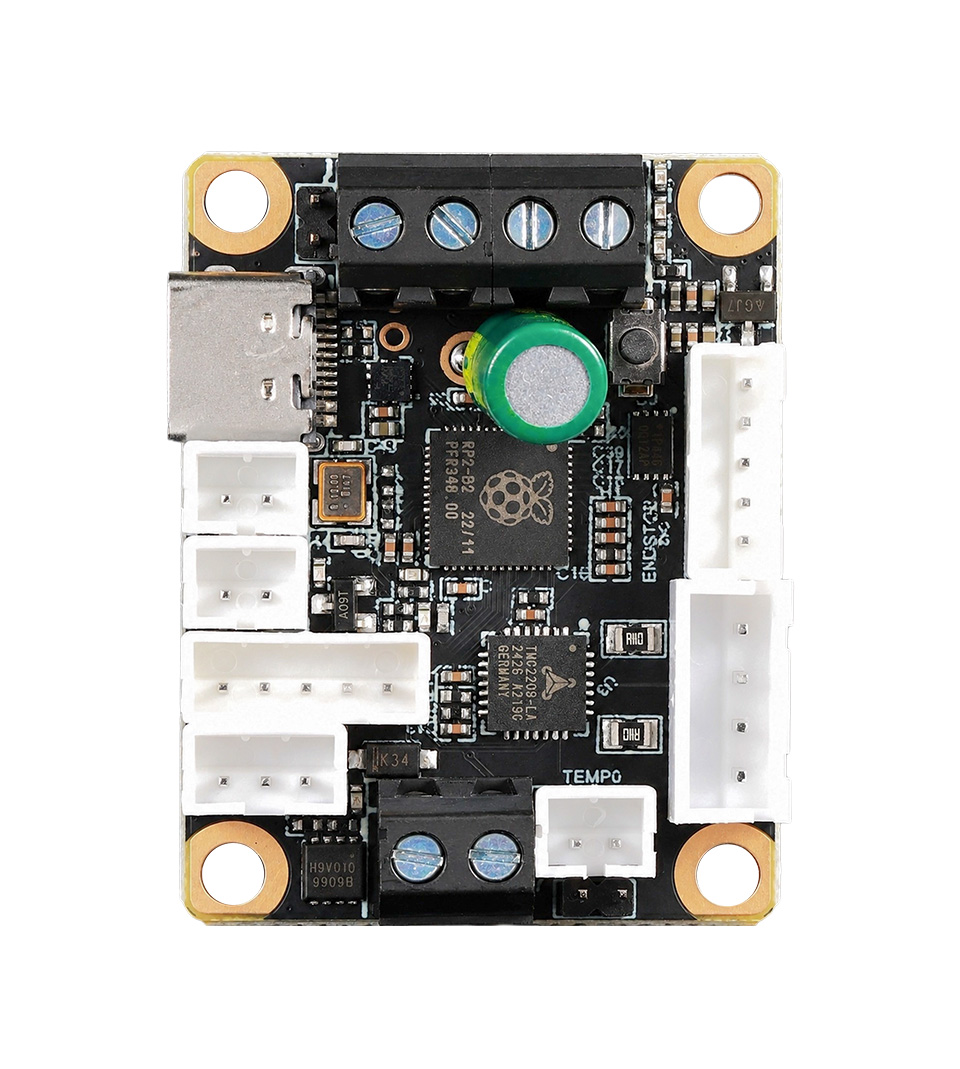

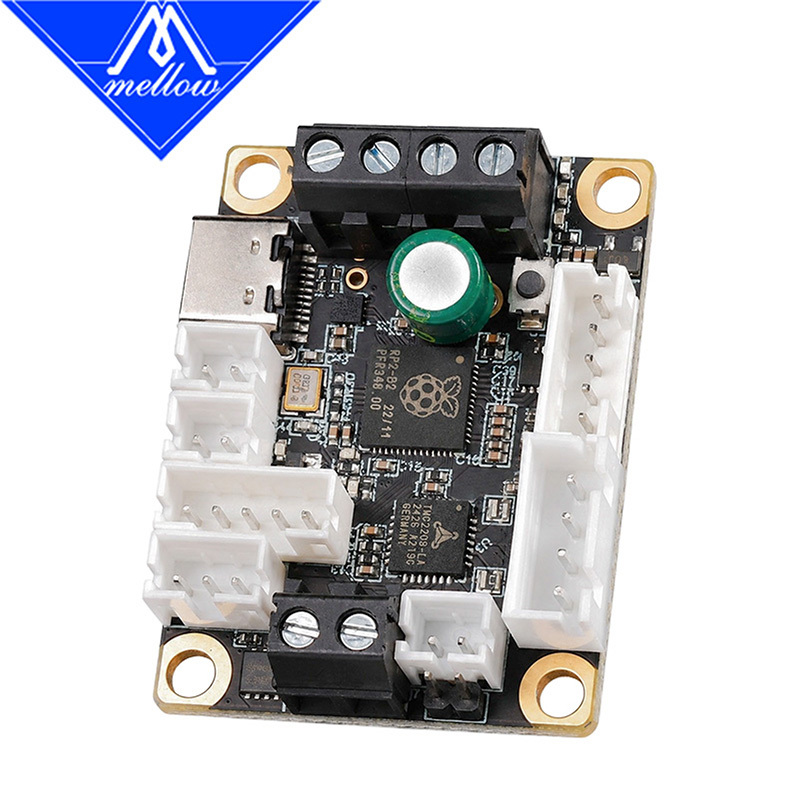

Tool Lite Can Board*1

Set2

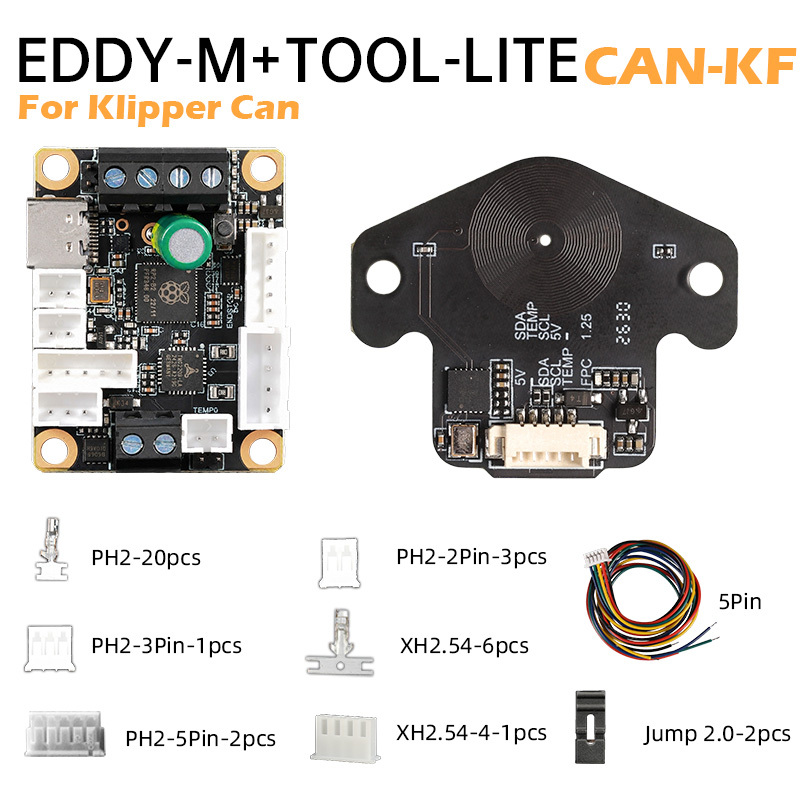

Tool Lite Can Board*1

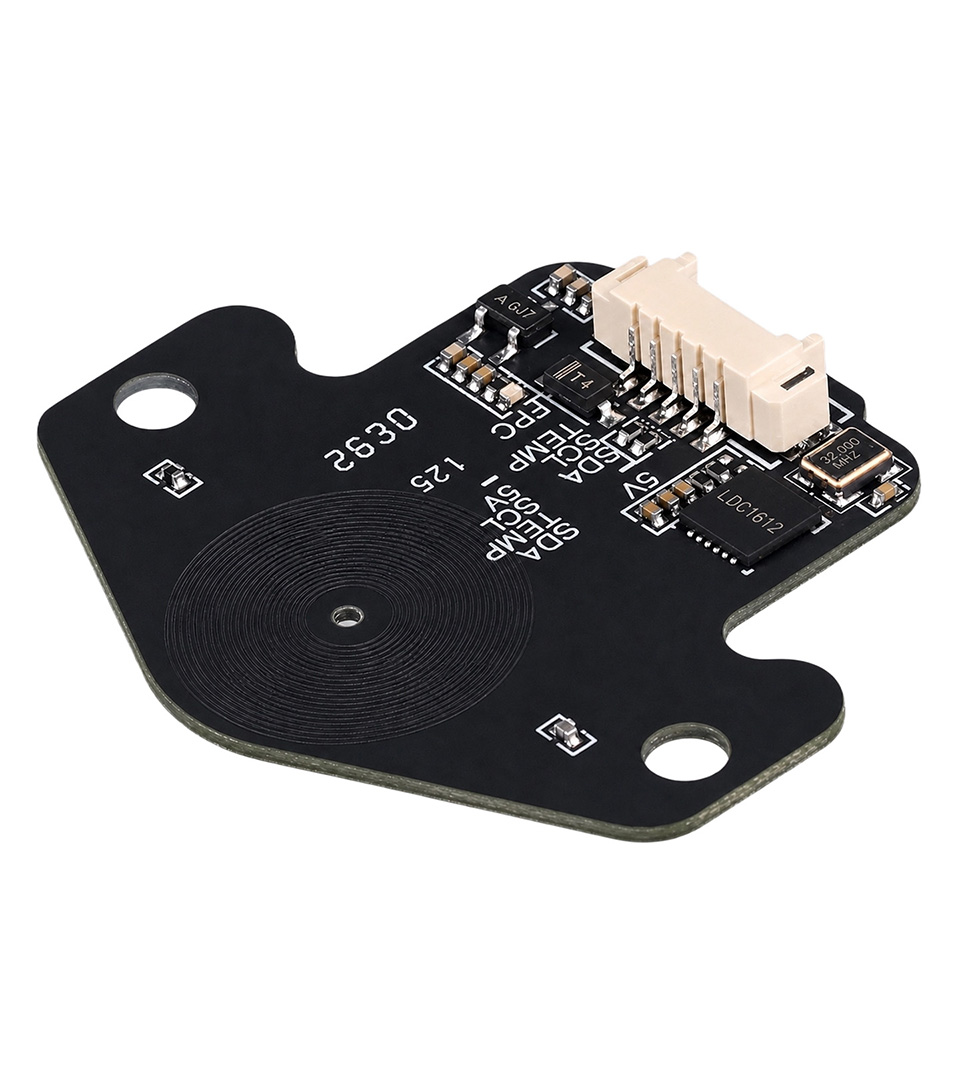

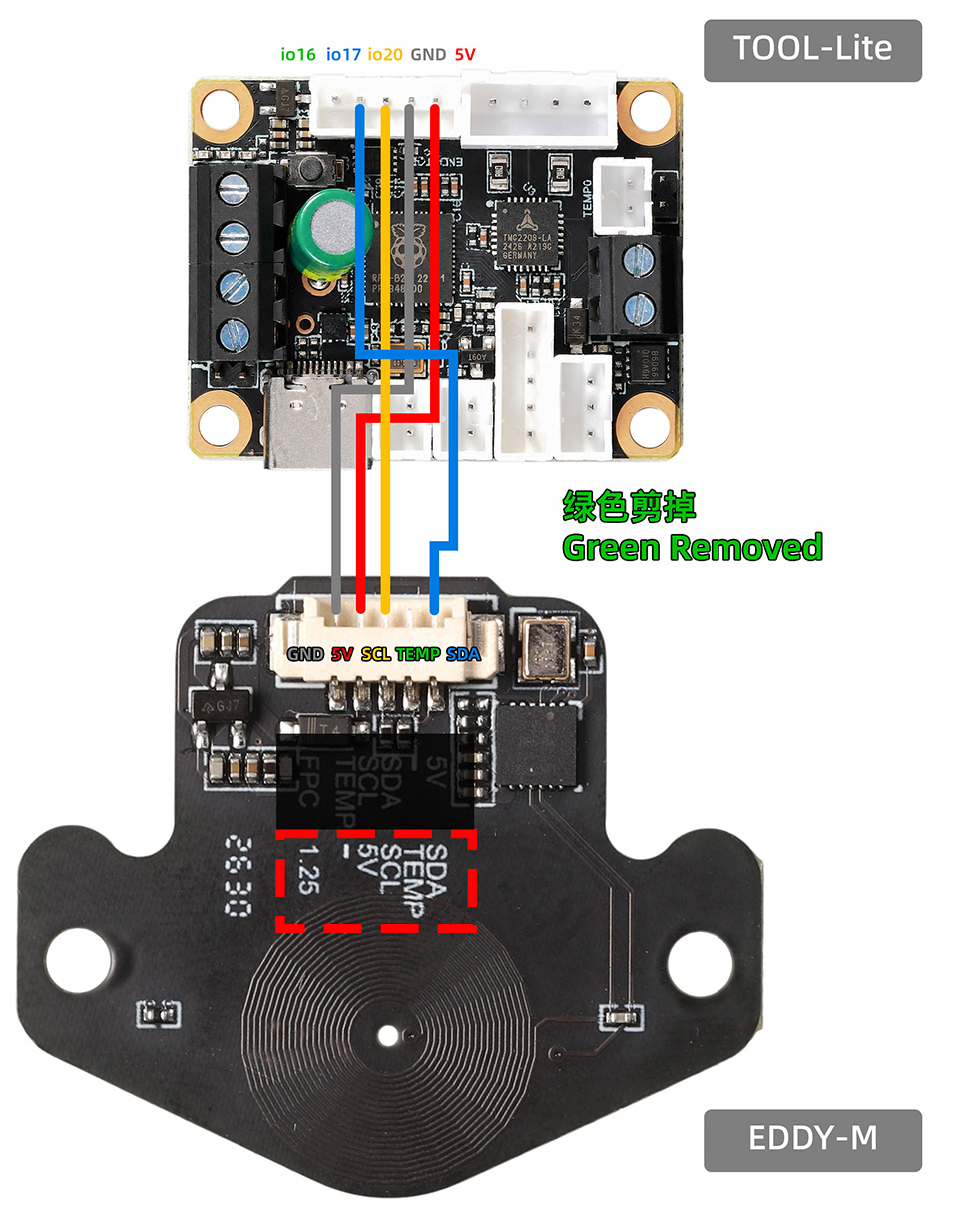

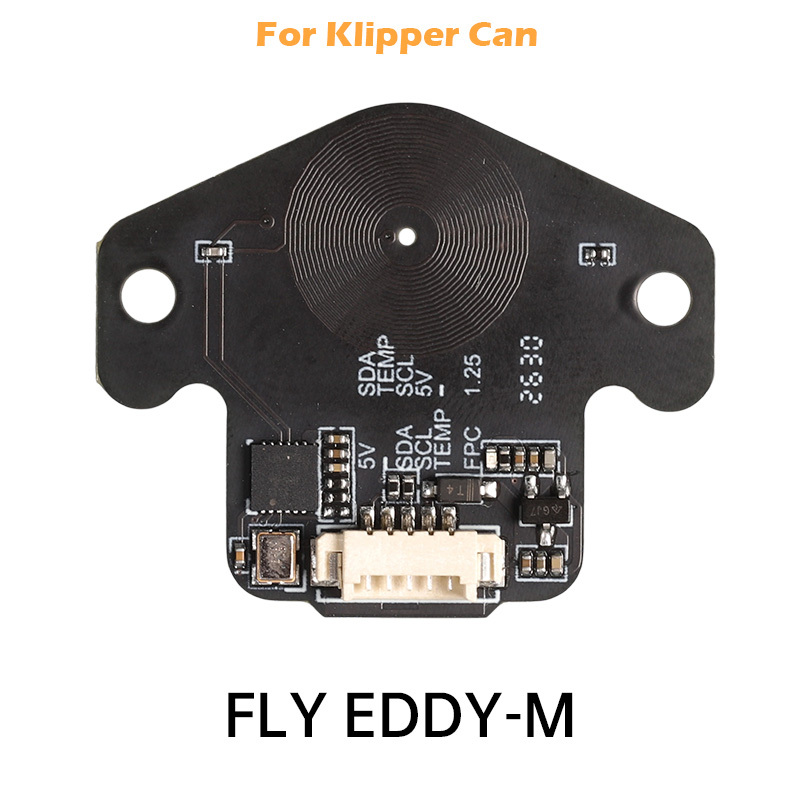

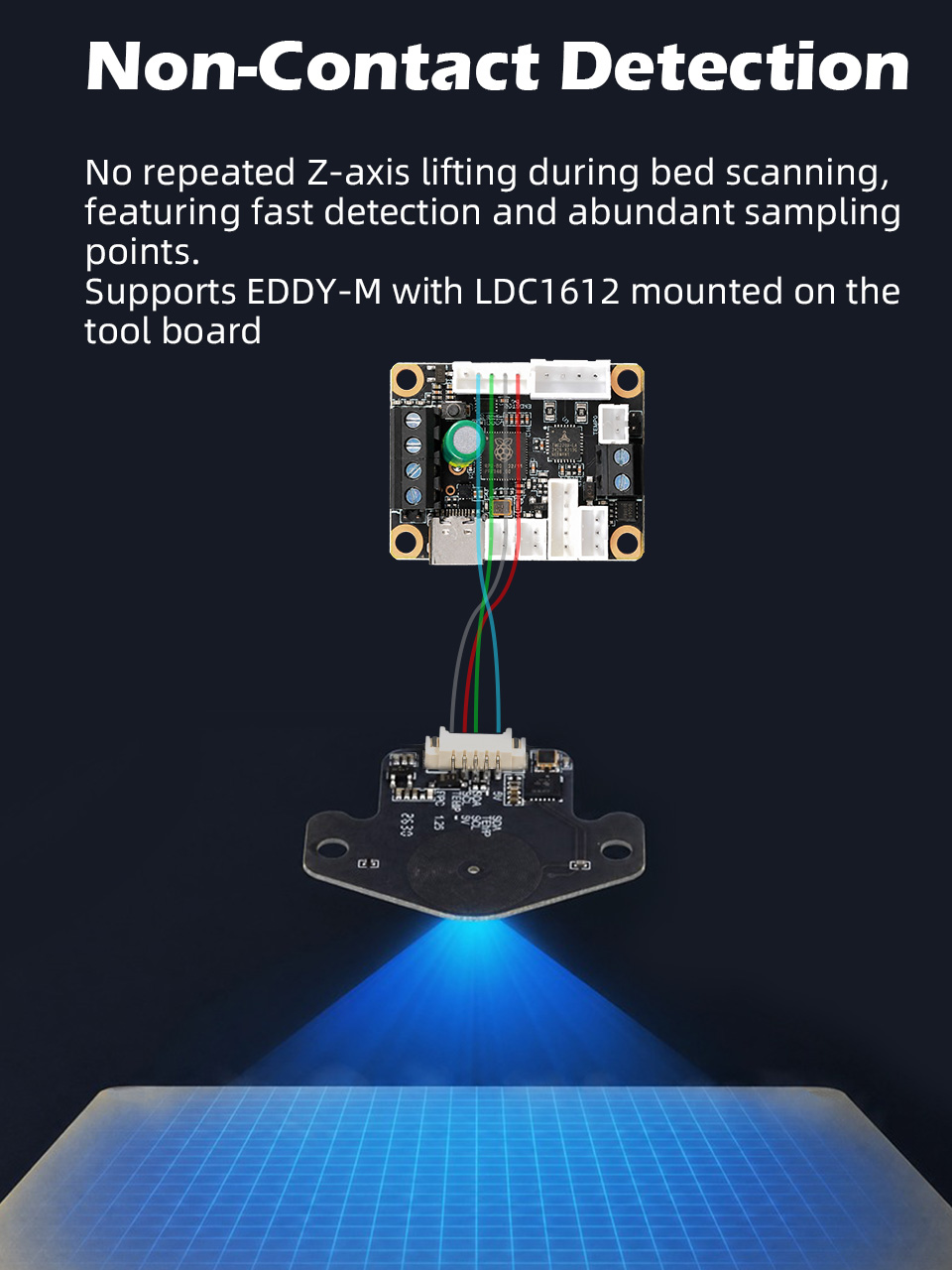

EDDY-M(For Klipper Can)*1

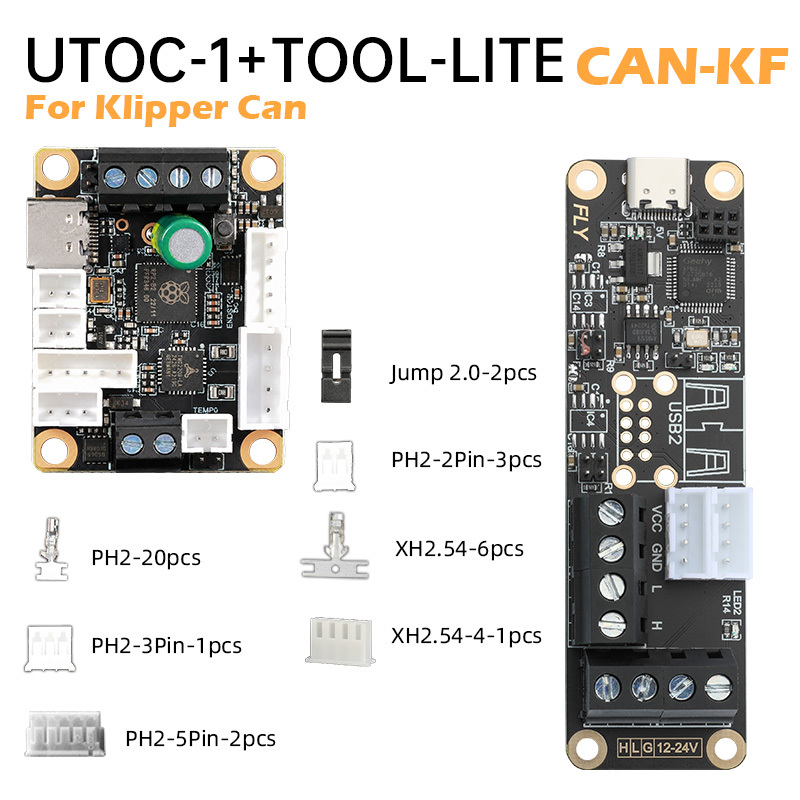

SET3

Tool Lite Can Board*1

UTOC-1 Board(For Klipper Can)*1

SET4

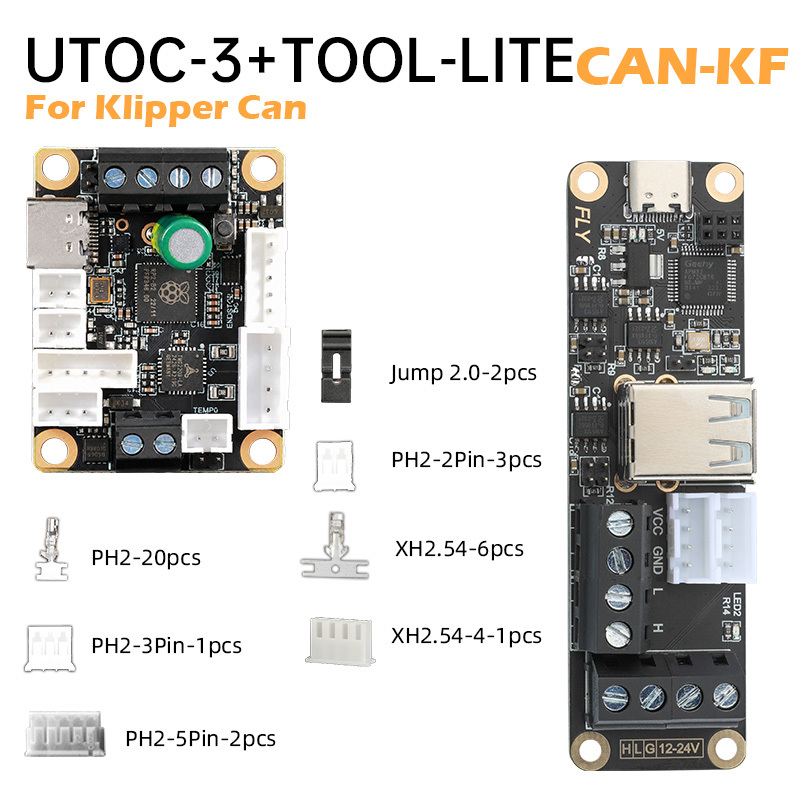

Tool Lite Can Board*1

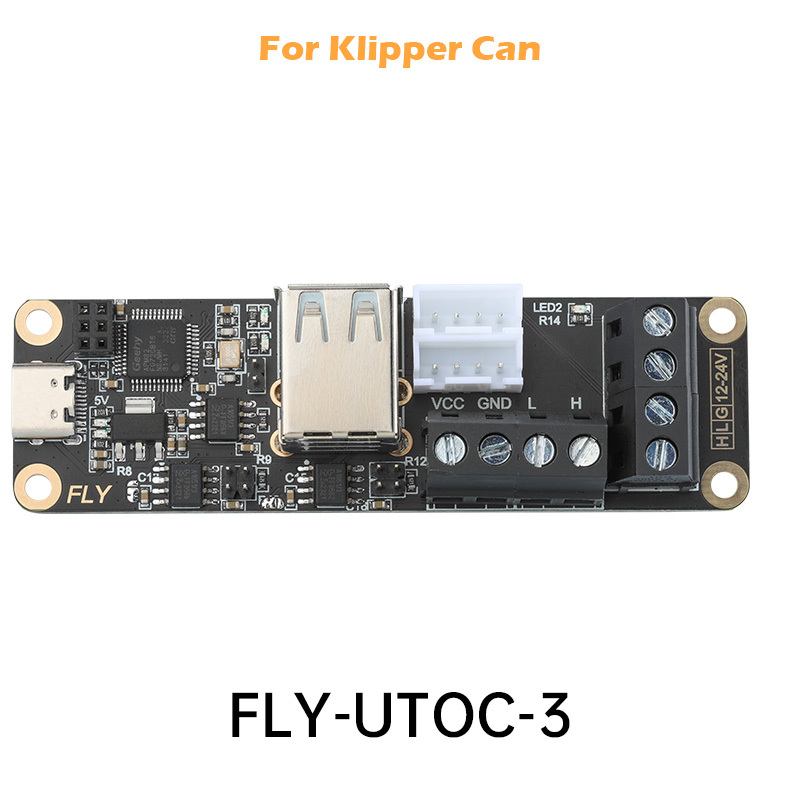

UTOC-3 Board(For Klipper Can)*1

SET5

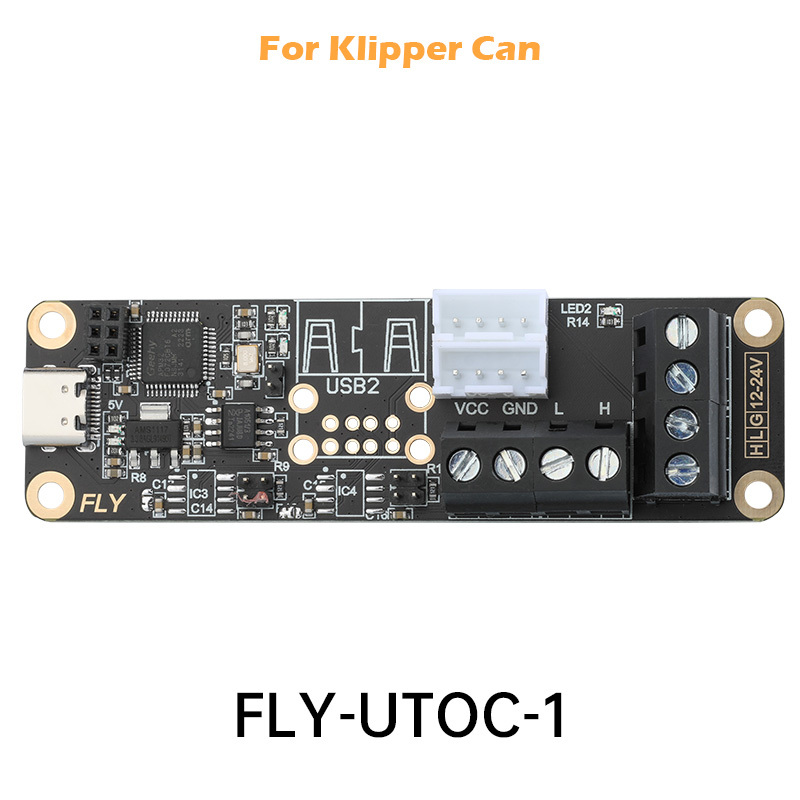

UTOC-1 Board(For Klipper Can)*1

SET6

UTOC-3 Board(For Klipper Can)*1

SET7

EDDY-M(For Klipper Can)*1
