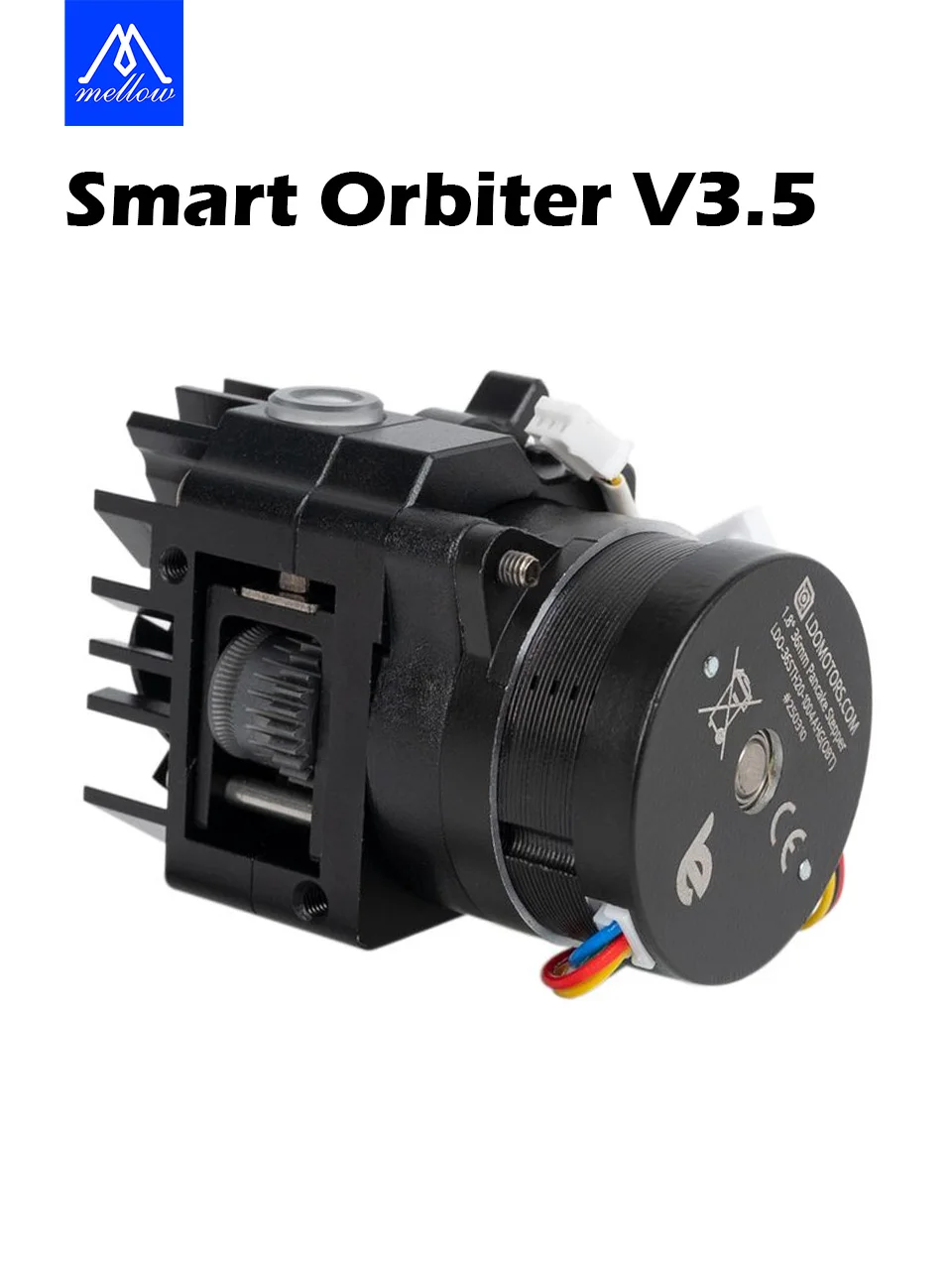

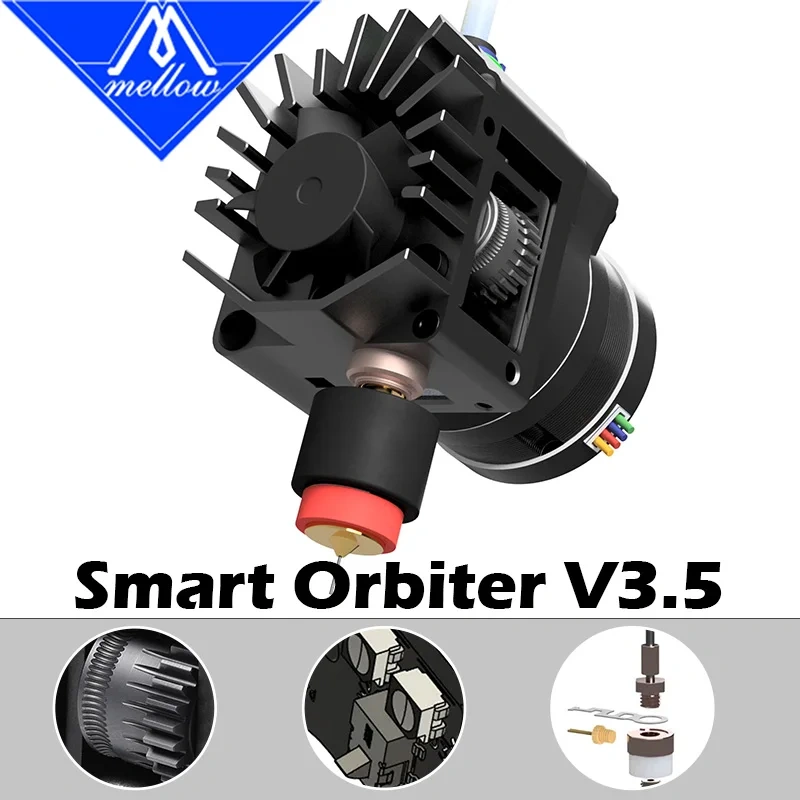

Mellow Smart Orbiter V3.5 Extruder Dual Drive With LDO Motor Direct Drive For Voron 2.4 Creality3D CR-10 Ender3 / PRO 3D Printer

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you better overall experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

1Description

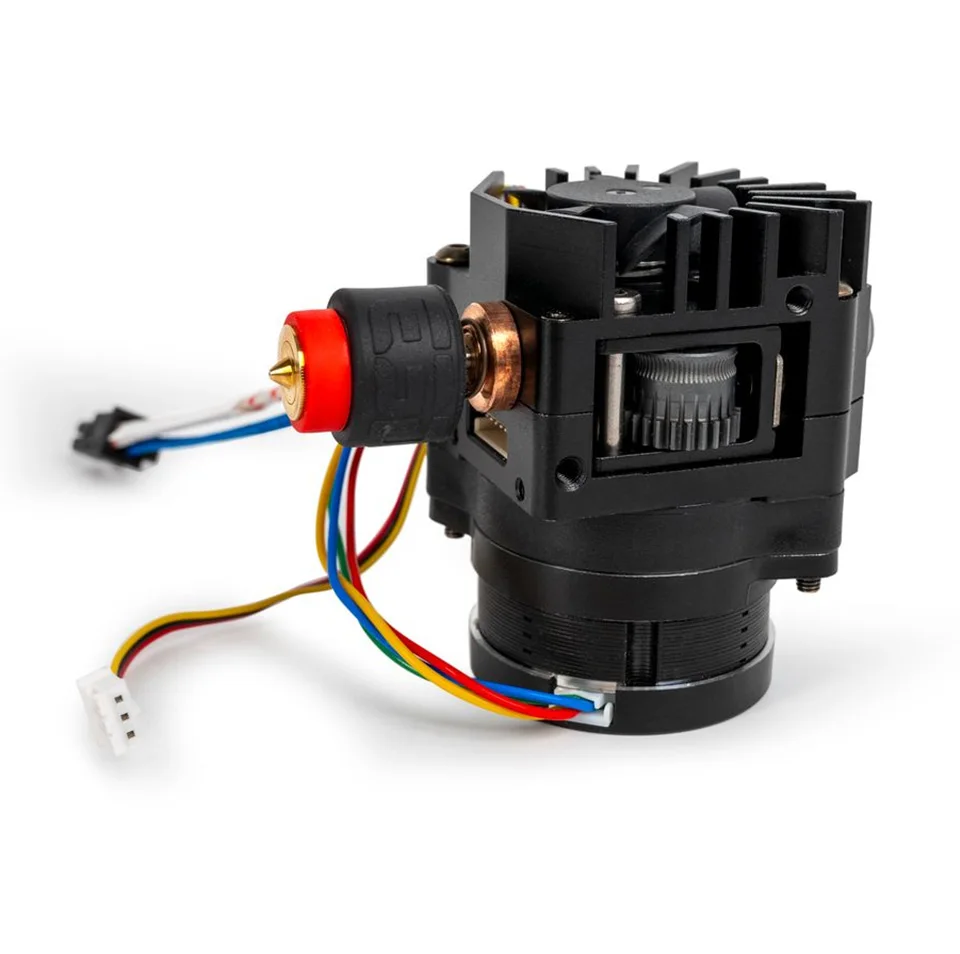

Orbiter v3.5 represents the next step in the evolution of the proven Orbiter v3.0, with several improvements for enhanced performance and reliability.

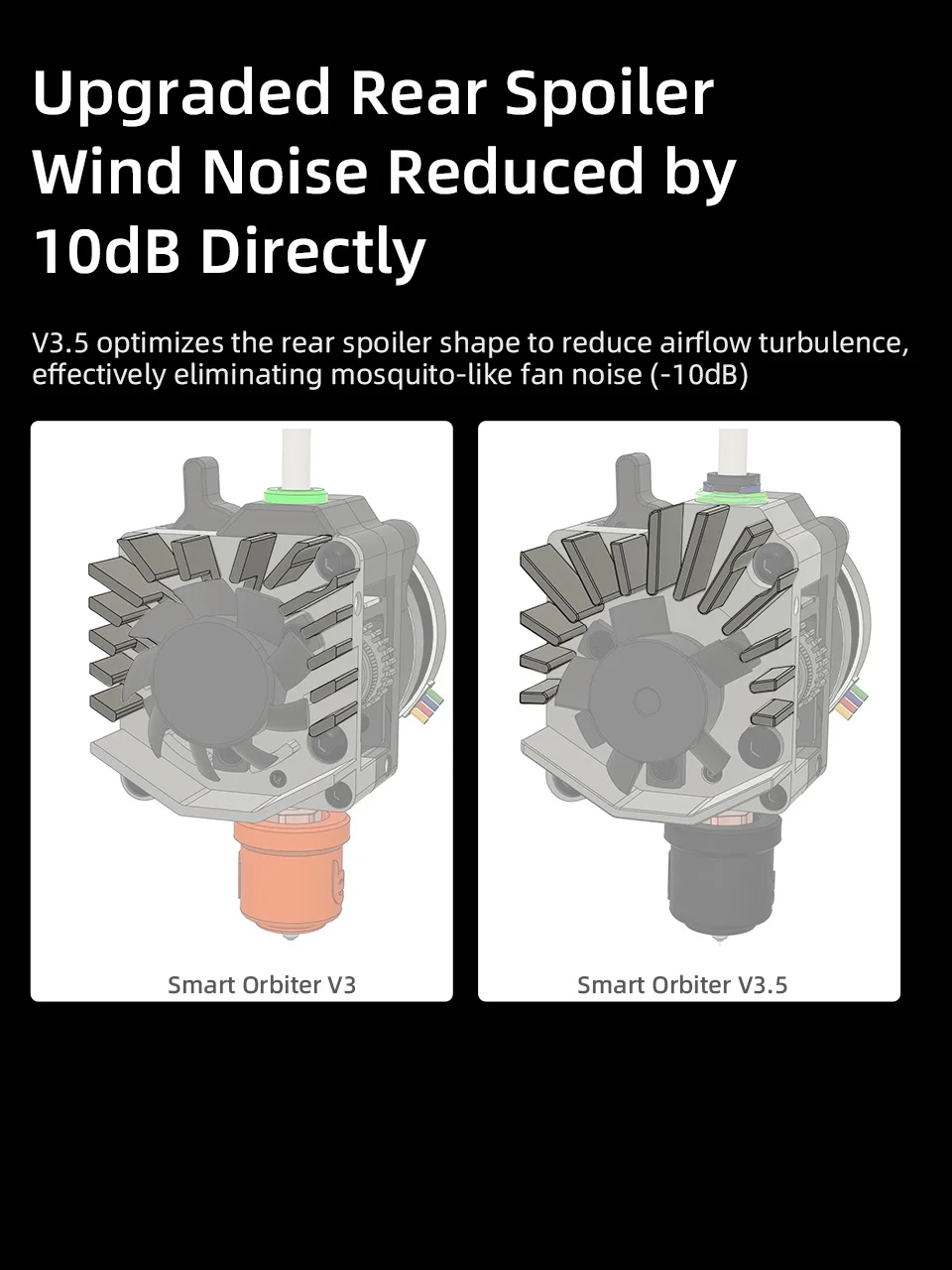

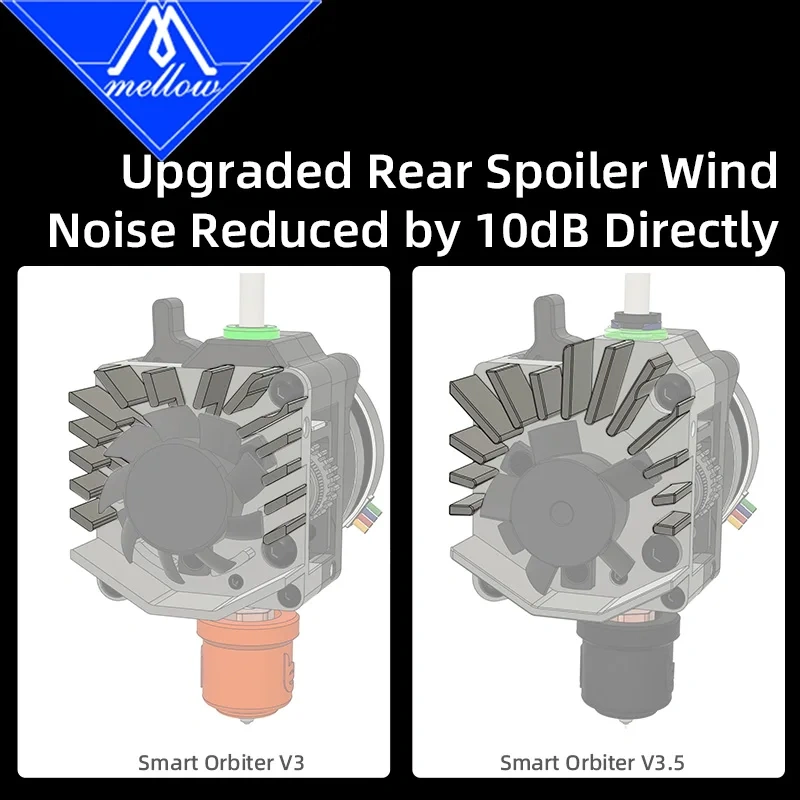

• Fan noise reduction by 10 dB

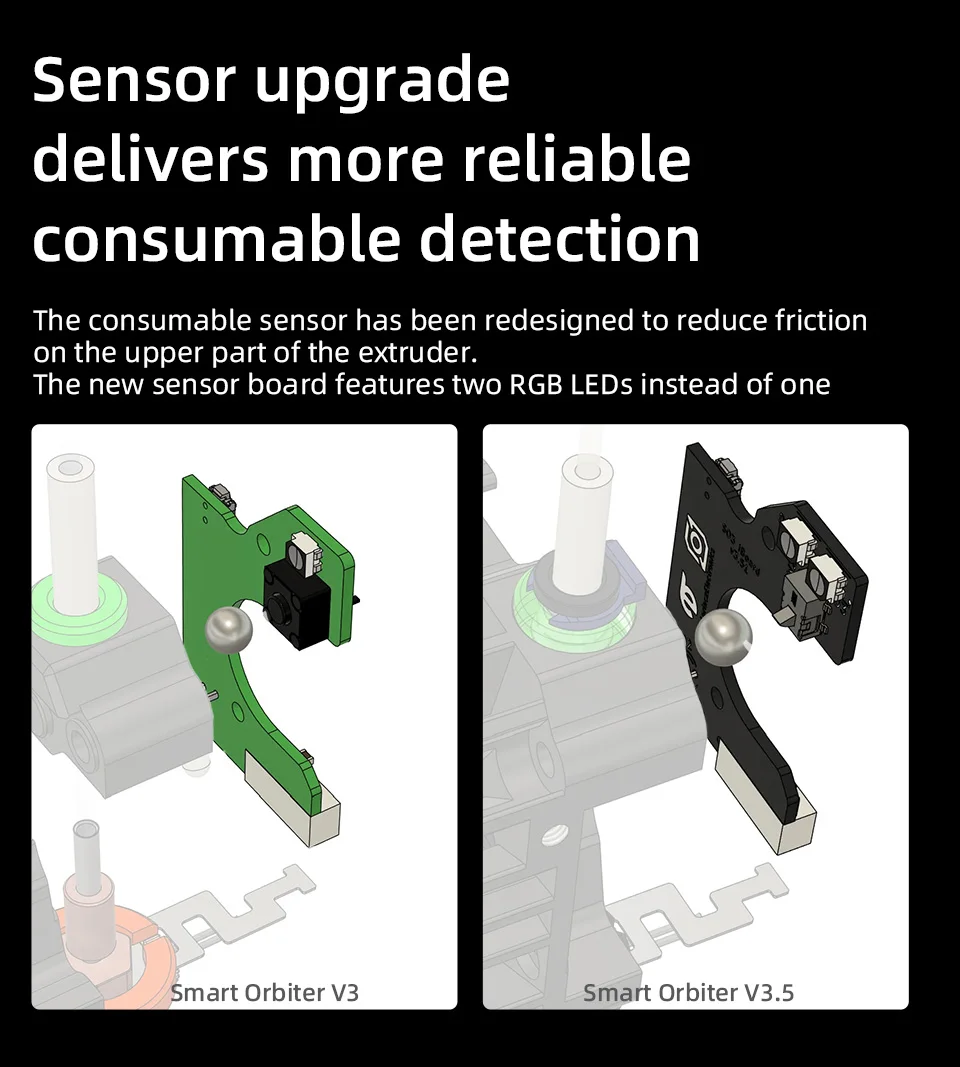

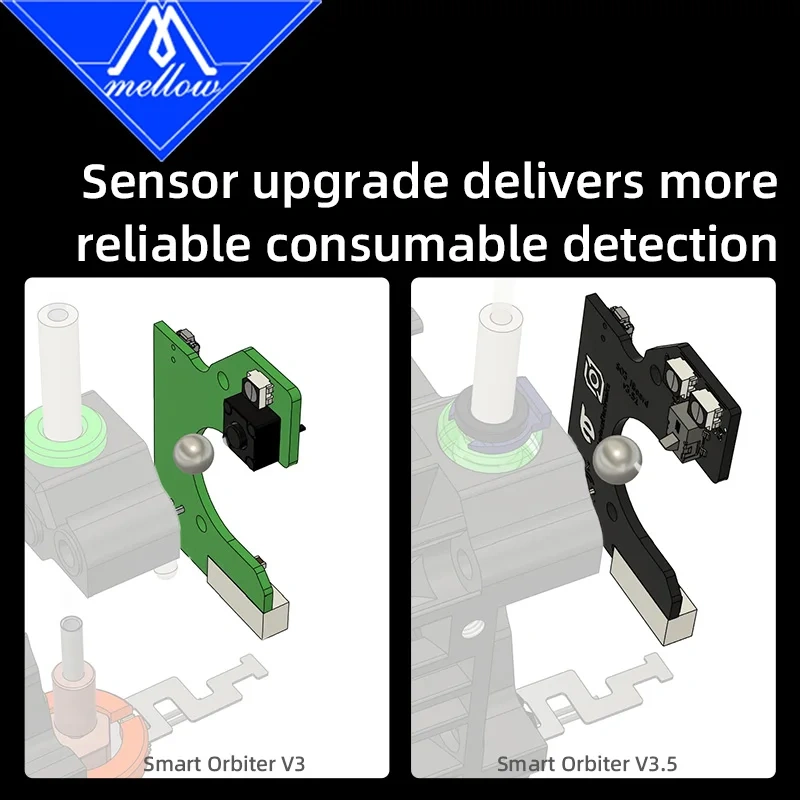

• Reduced False runout detections
• Better control of filament path tolerance

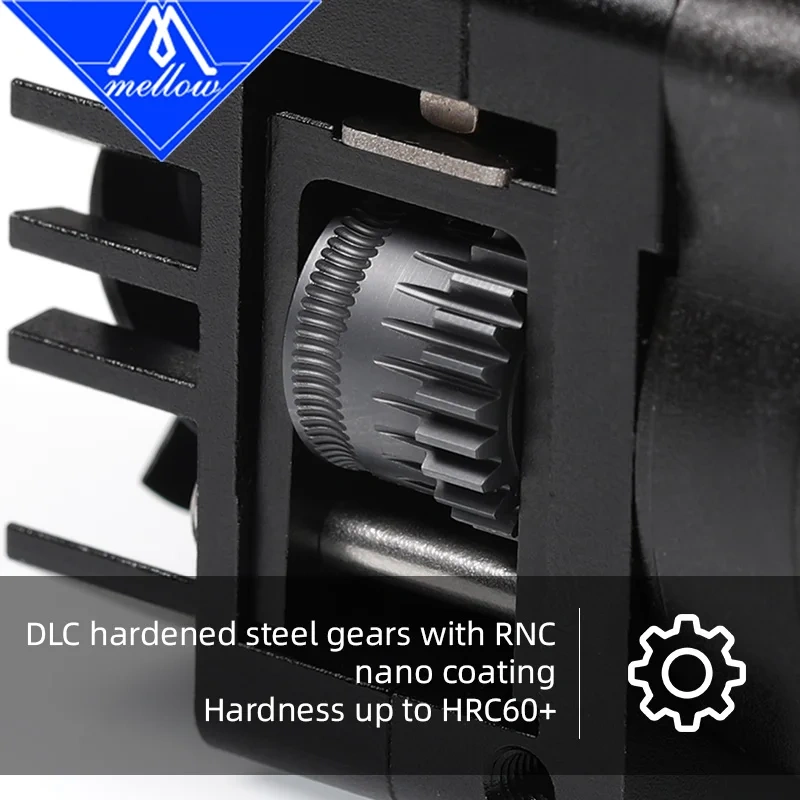

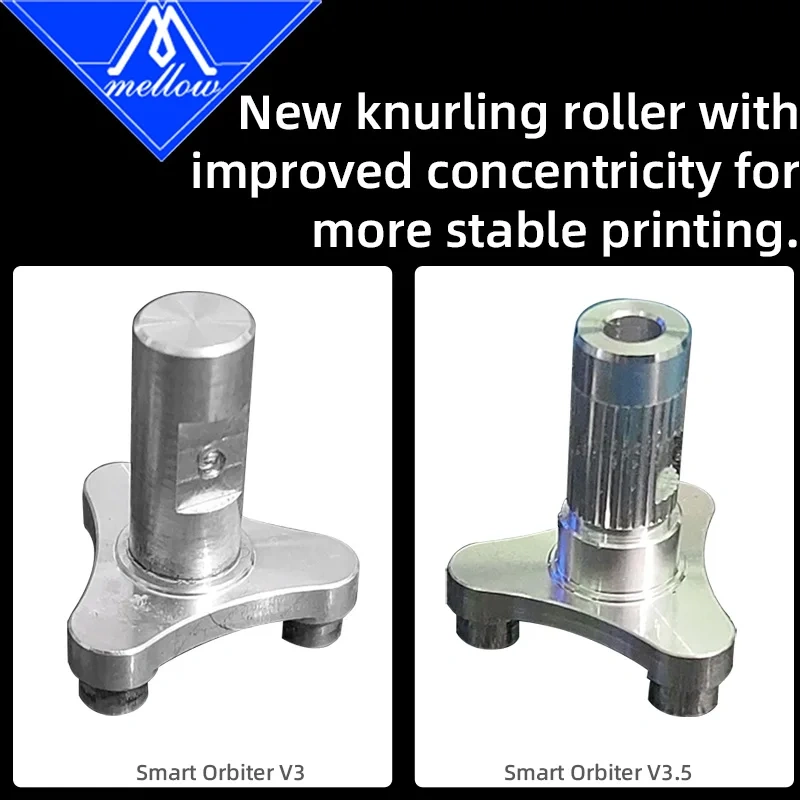

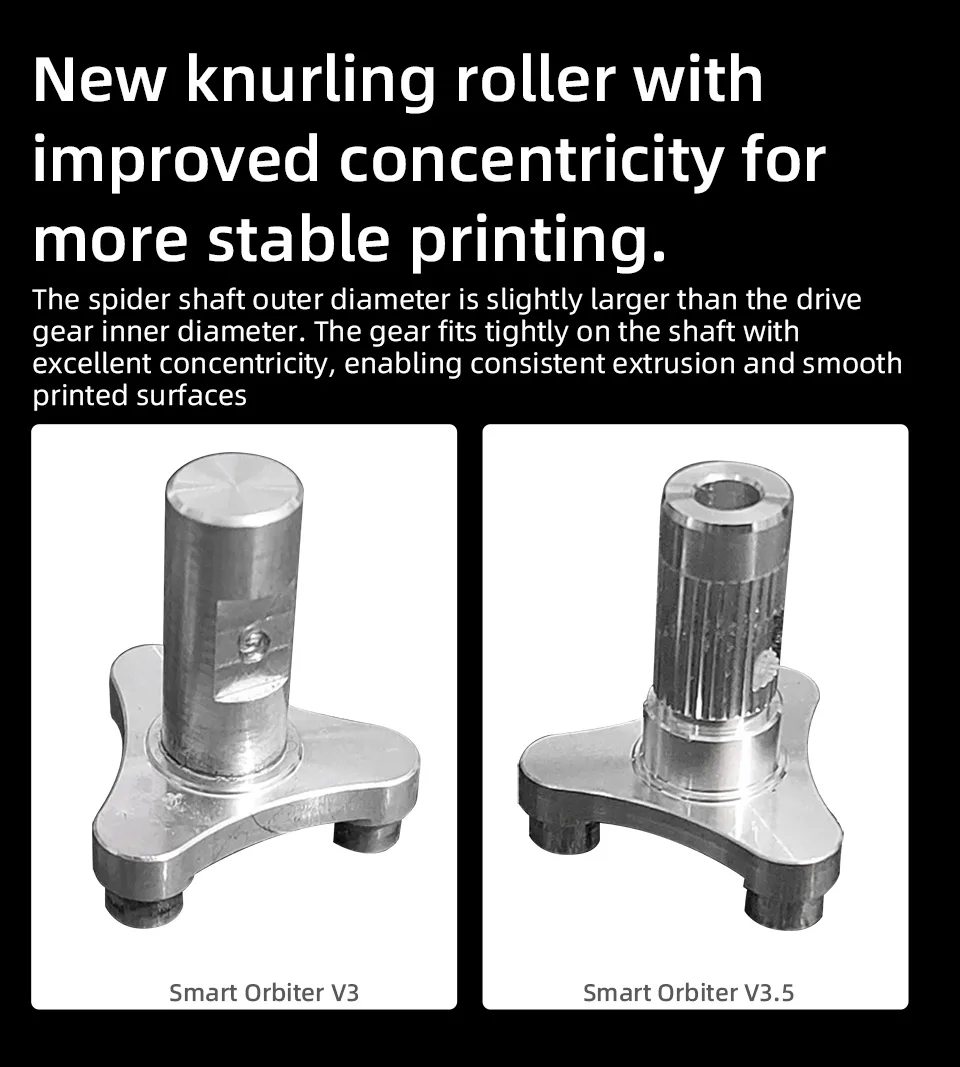

• More precise extrusion—knurled main shaft

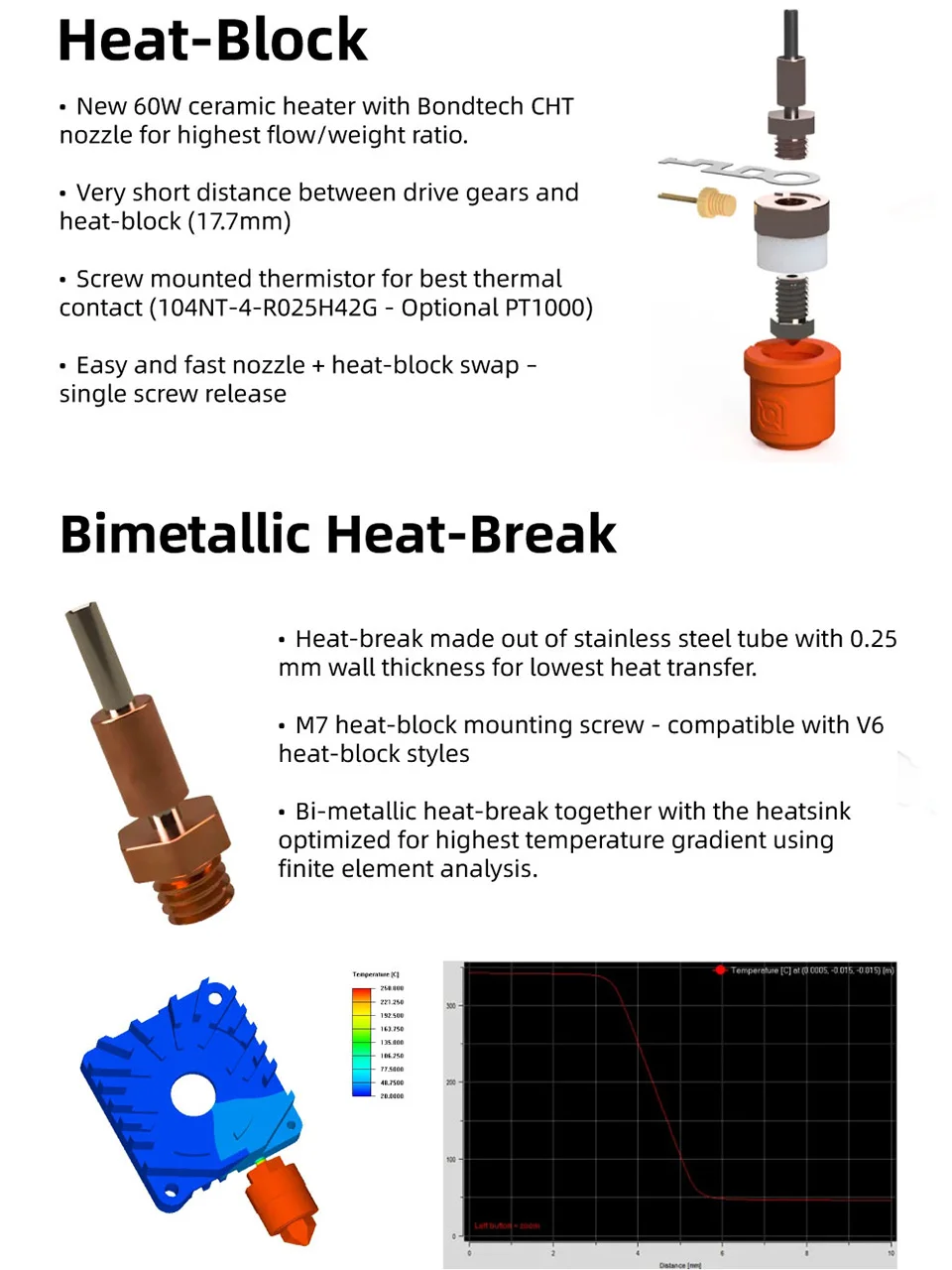

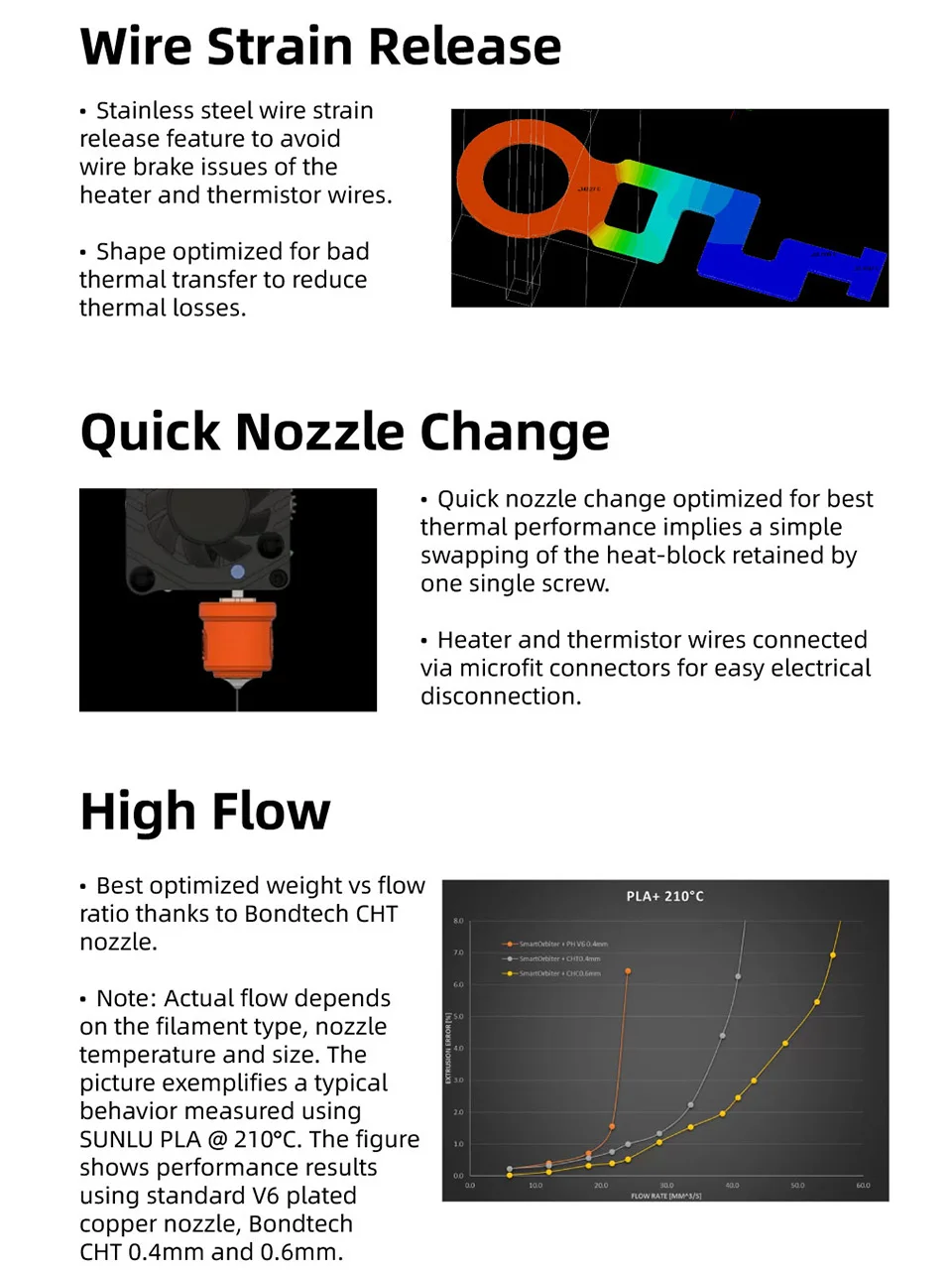

•  New TFN nozzle, improved maximum flow-rate and layer precision

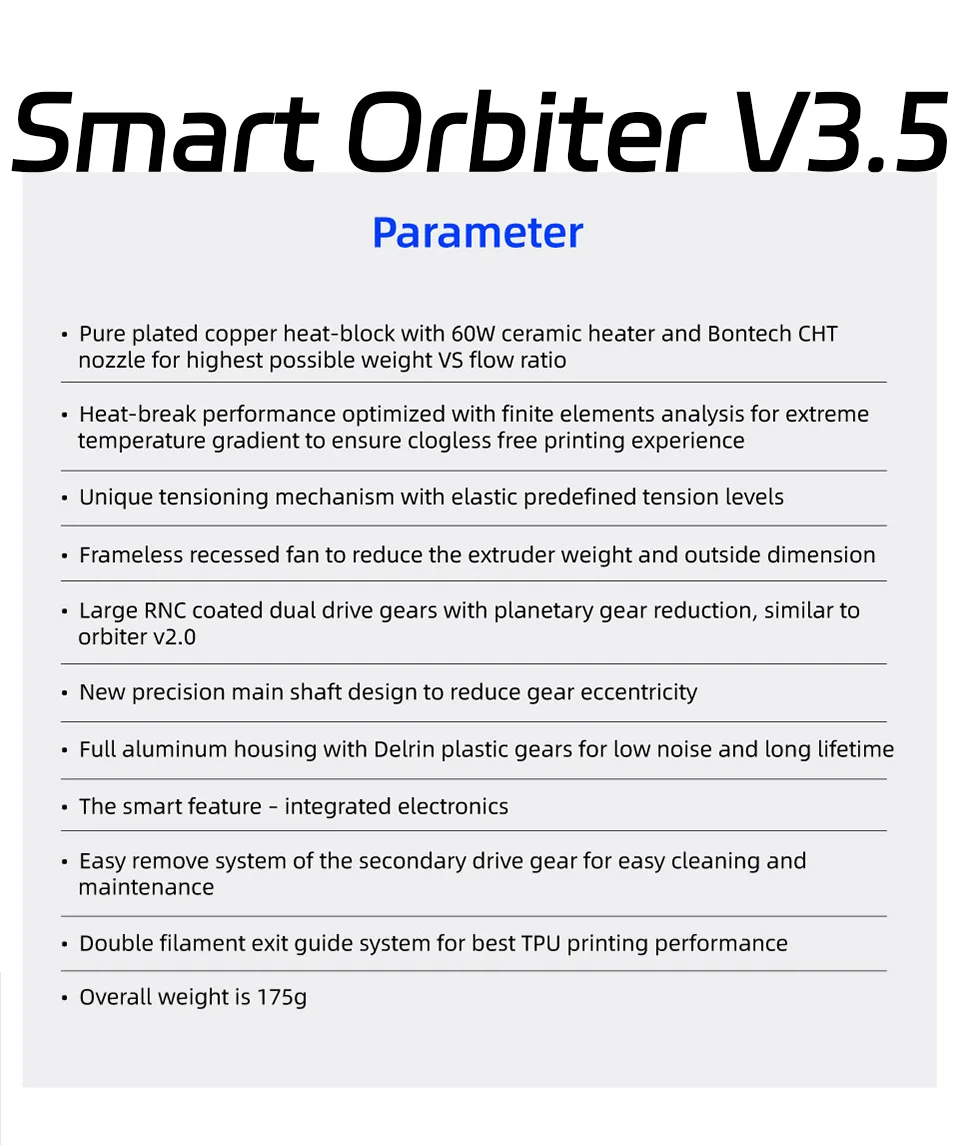

Orbiter v3.5 specifications summary:

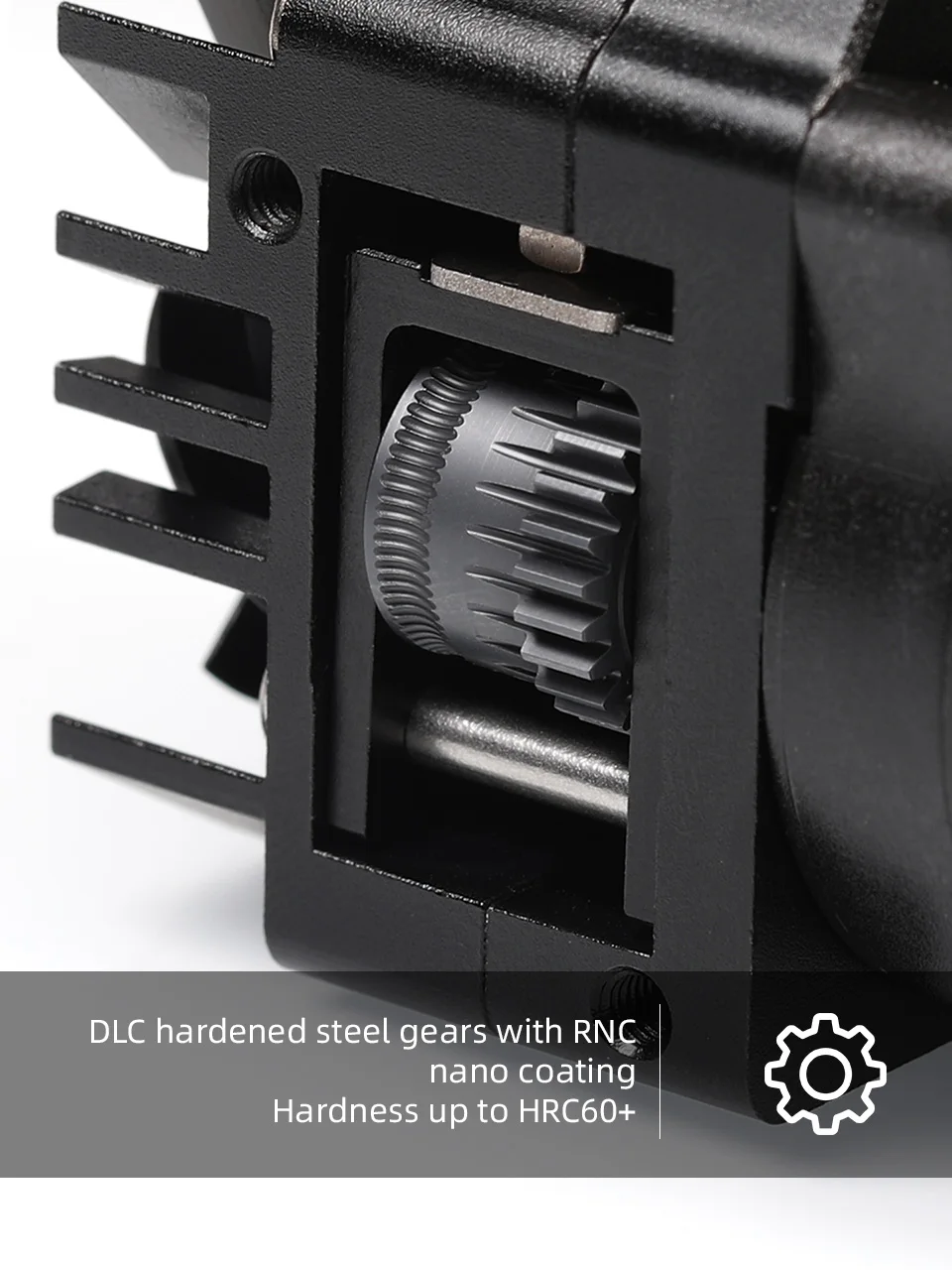

• Drive type: 12mm dual drive extrusion system
• Weight: 175g including standard hotend
• Nominal steps / mm: 690 (16x microstepping) / 1380 (32x microstepping)
• Rotation distance: 4.69
• Extrusion force: 6.5 kg+
• Maximum operating temperature: 70°C (0.55A RMS stepper current)

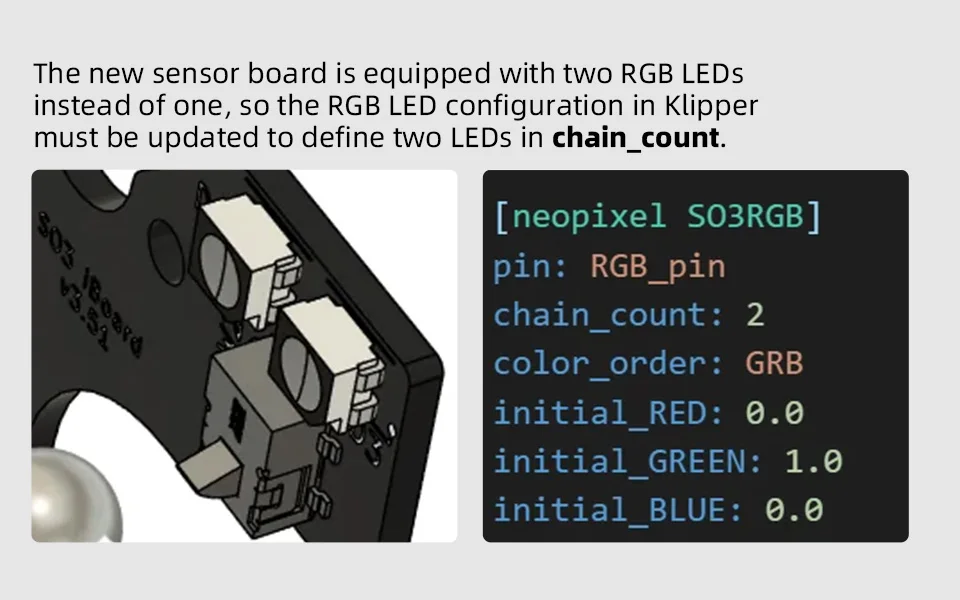

• Filament sensing and automatic unload

The new Orbiter v3.5 is based on the well-known Orbiter v3.0, with several refinements that further enhance its extrusion performance. The technical characteristics of Orbiter v3.5 remain largely the same as those of Orbiter v3.0; please refer to the Orbiter v3.0 webpage for detailed specifications.

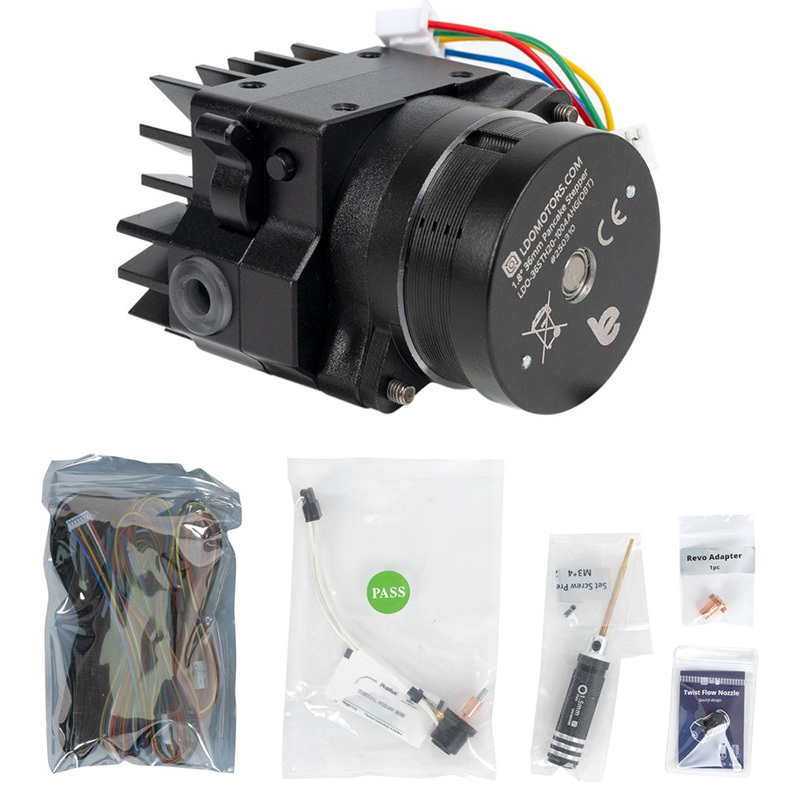

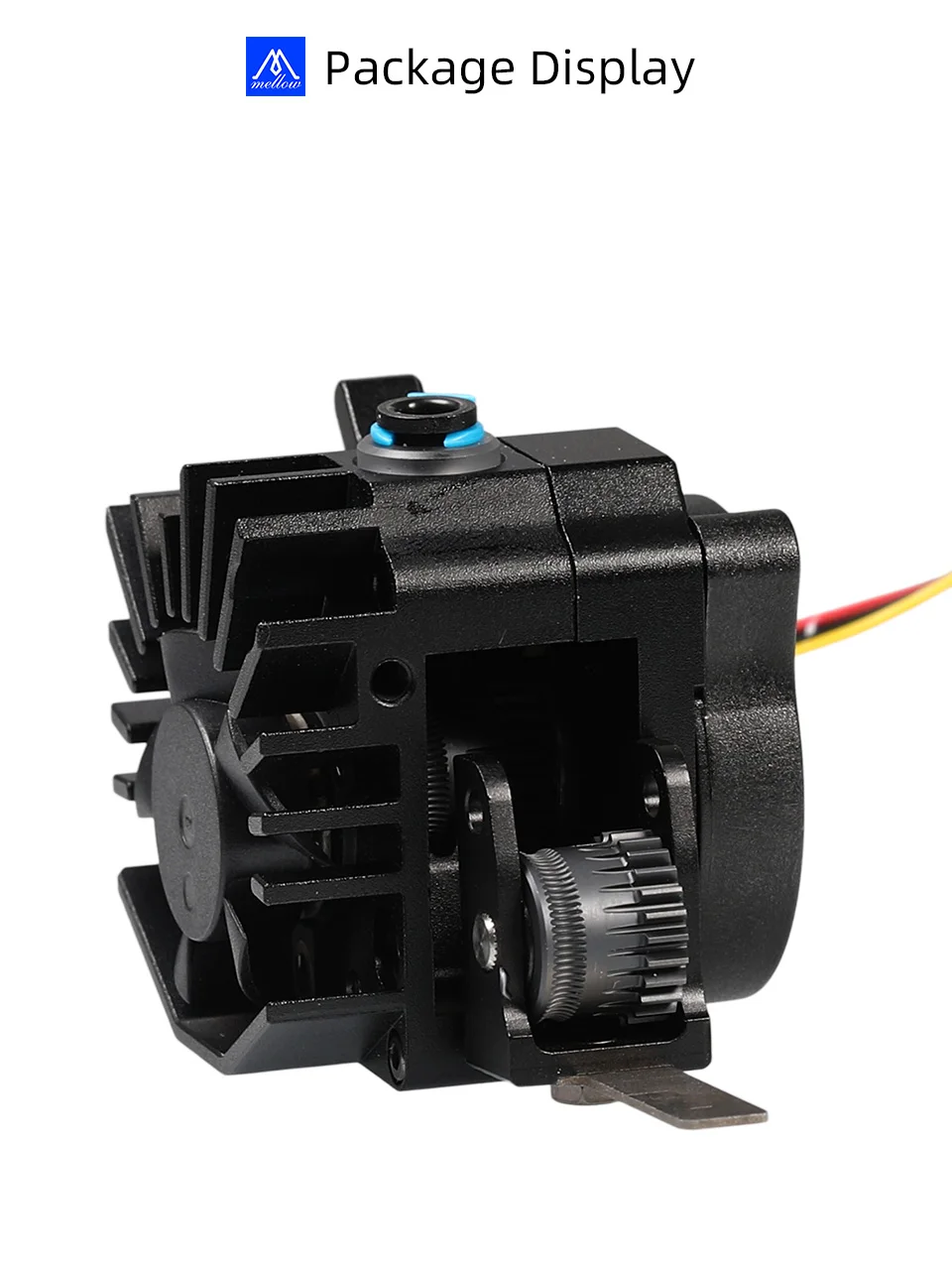

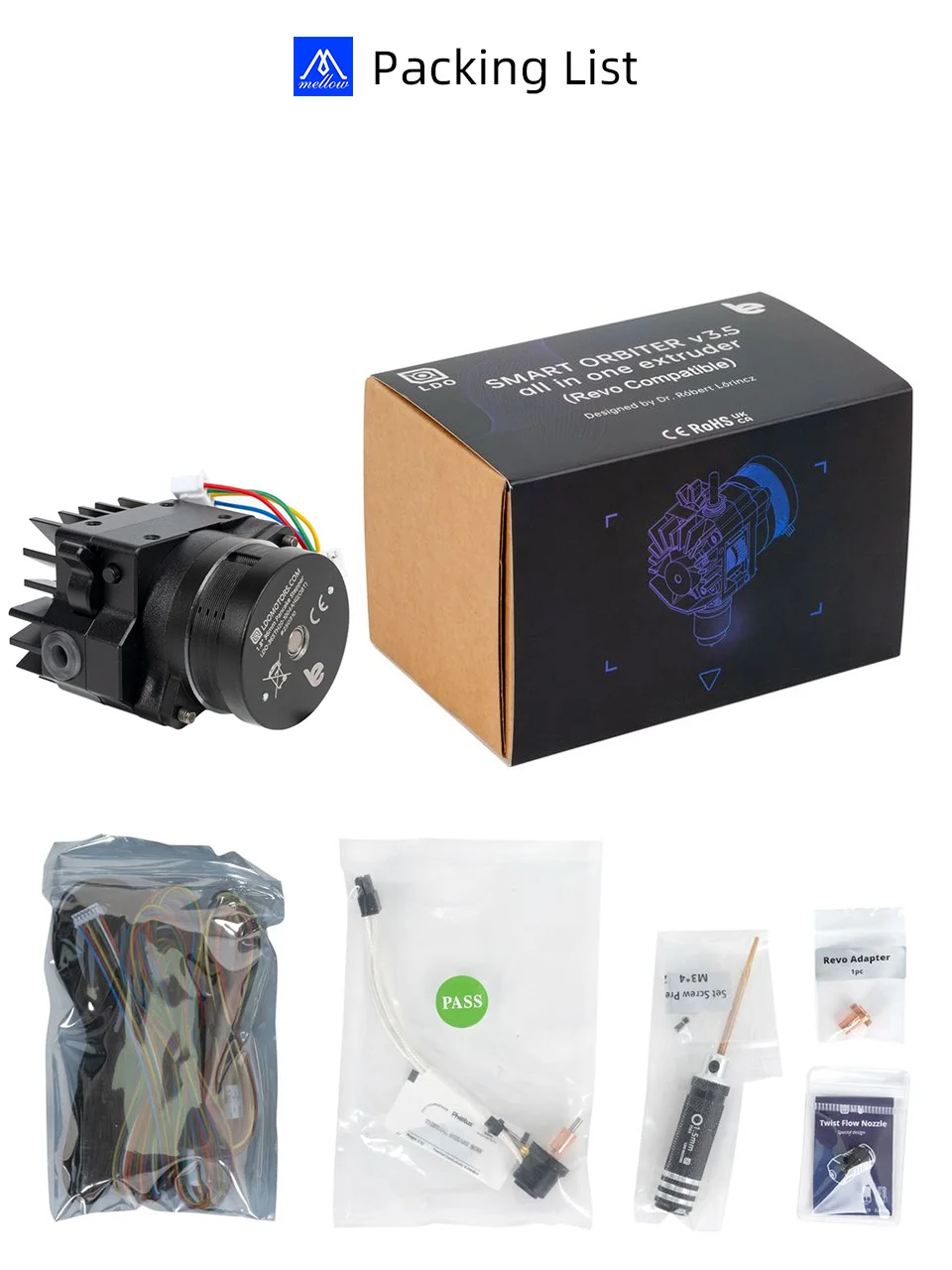

1Package
1*LDO Orbiter V3.5
