1Description

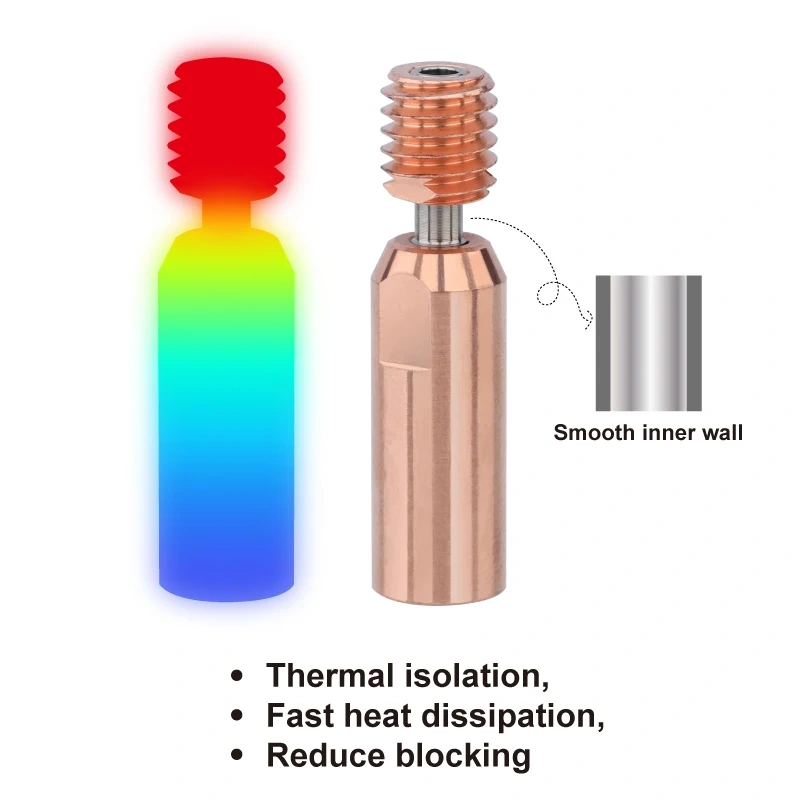

The new upgraded titanium tube bimetal heatbreak, the m6 thread and 7mm non-thread use copper material, the middle tube uses titanium metal, and the copper m6 thread helps the filament in the titanium tube to melt more easily, which has a better melting effect than pure titanium metal head To increase the flow rate, the titanium metal tube is used in the middle to reduce heat conduction upwards, reduce printing clogging, and improve printing quality. It has better heat resistance performance than using stainless steel tubes. The 7mm non-thread uses copper to help heatbreak heat quickly conduct to the heat sink. Improve heat dissipation efficiency.

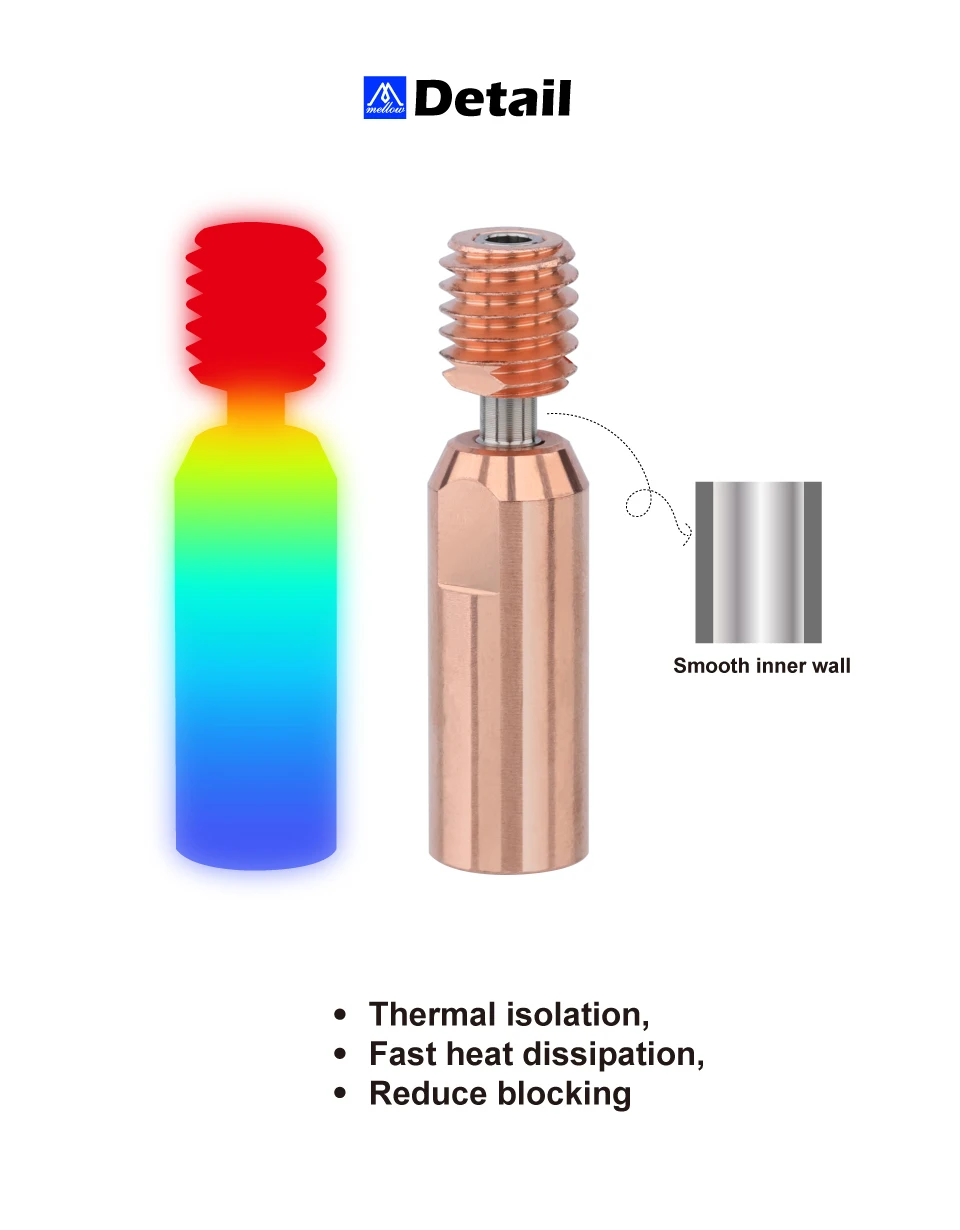

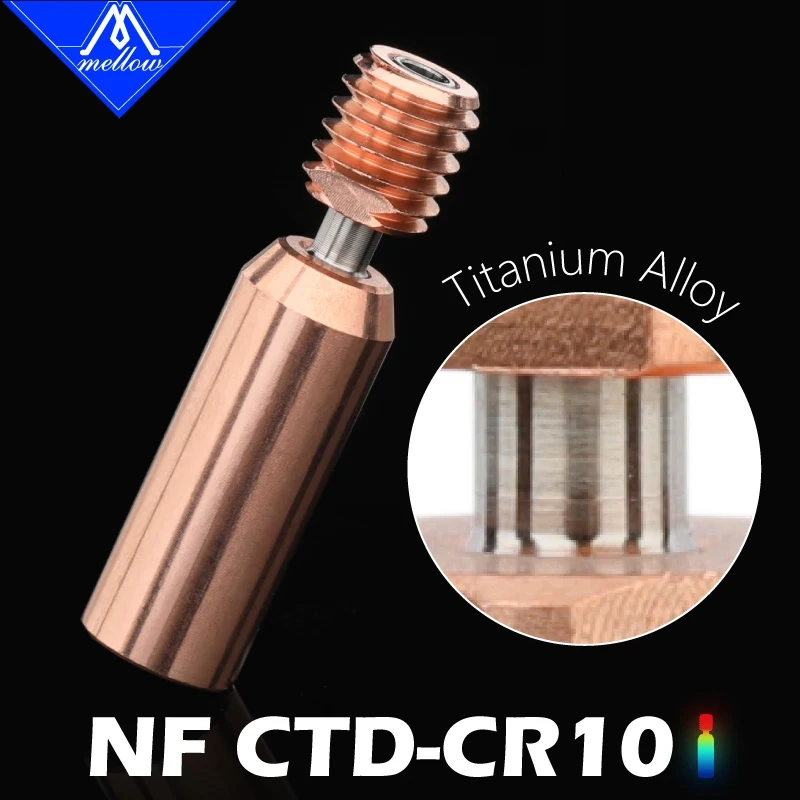

The titanium metal tube in the middle is produced by high-precision cnc, and the internal control finish is less than 0.3um. The special tube structure design helps less heat conduction upwards, and it prevents the tube from falling off from the m6 and 7mm copper parts.
It can directly replace the original cr10 heat break

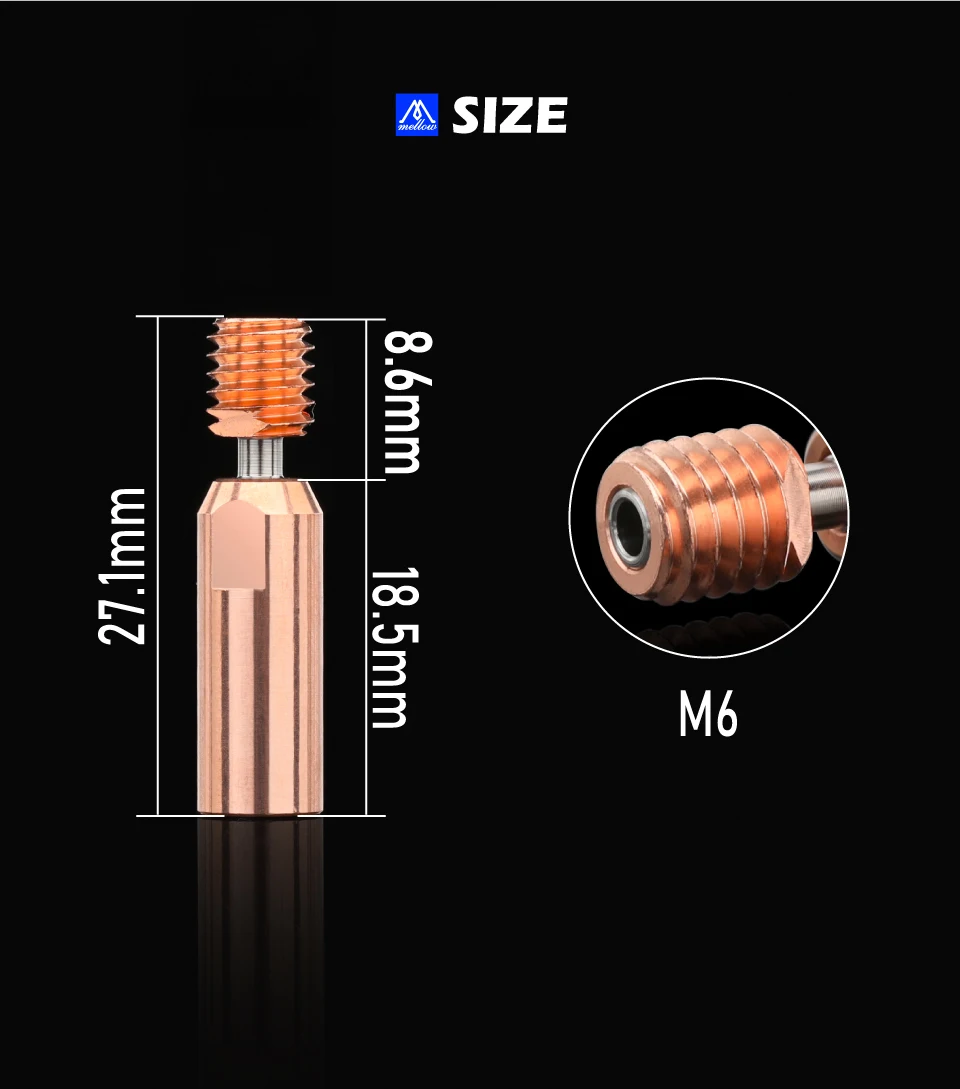

Size: total length 27.1mm;
Use for: 1.75mm

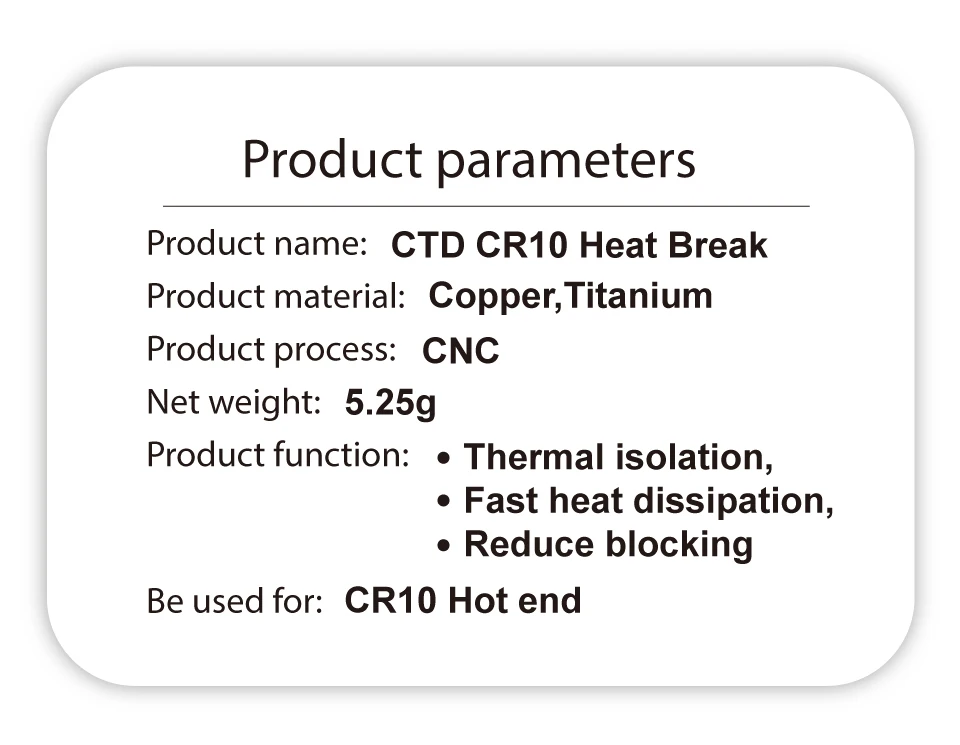

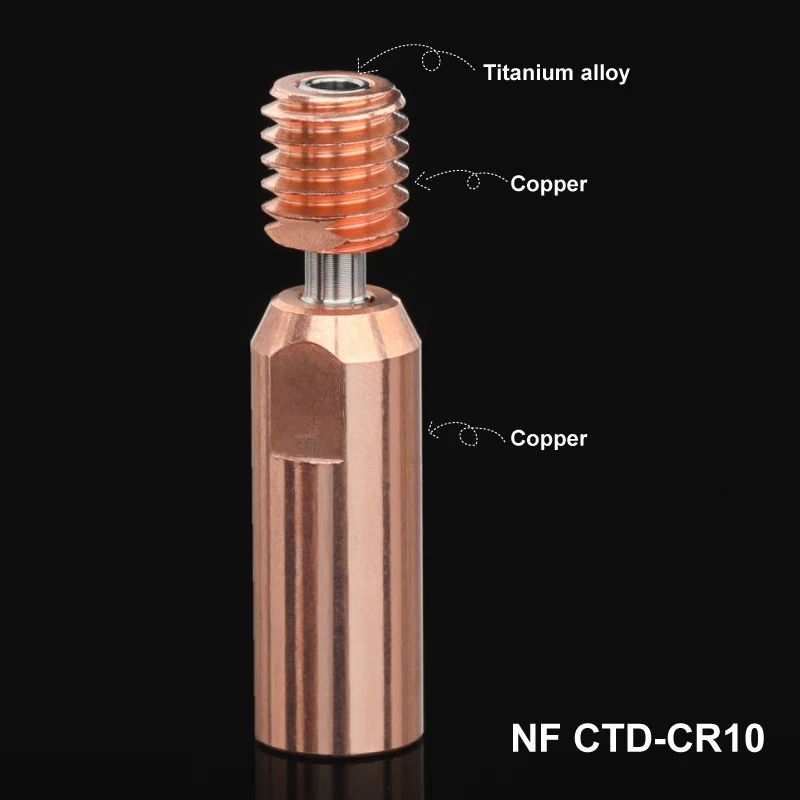

Material:Copper & Titanium (TC4)
Package:

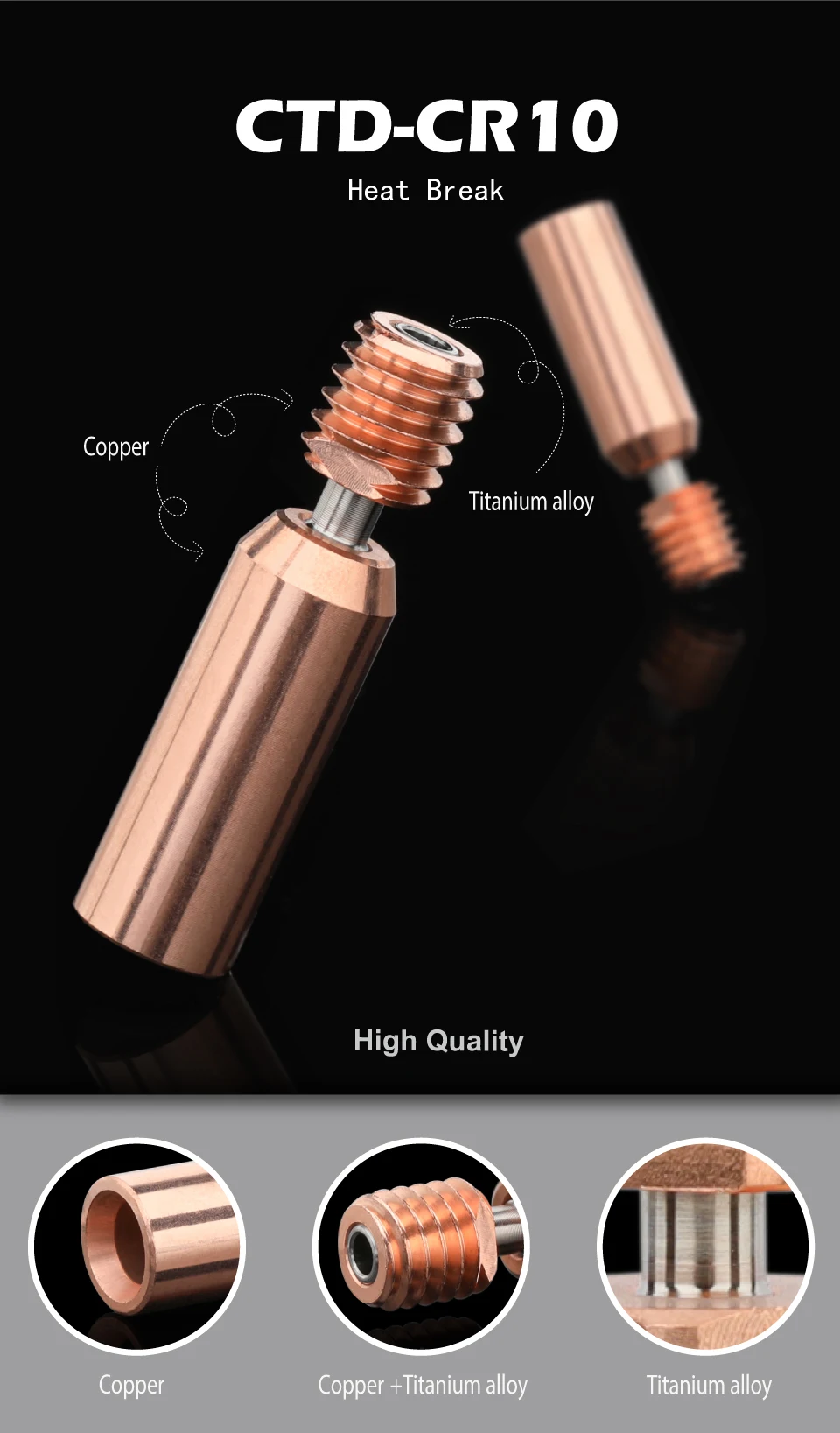

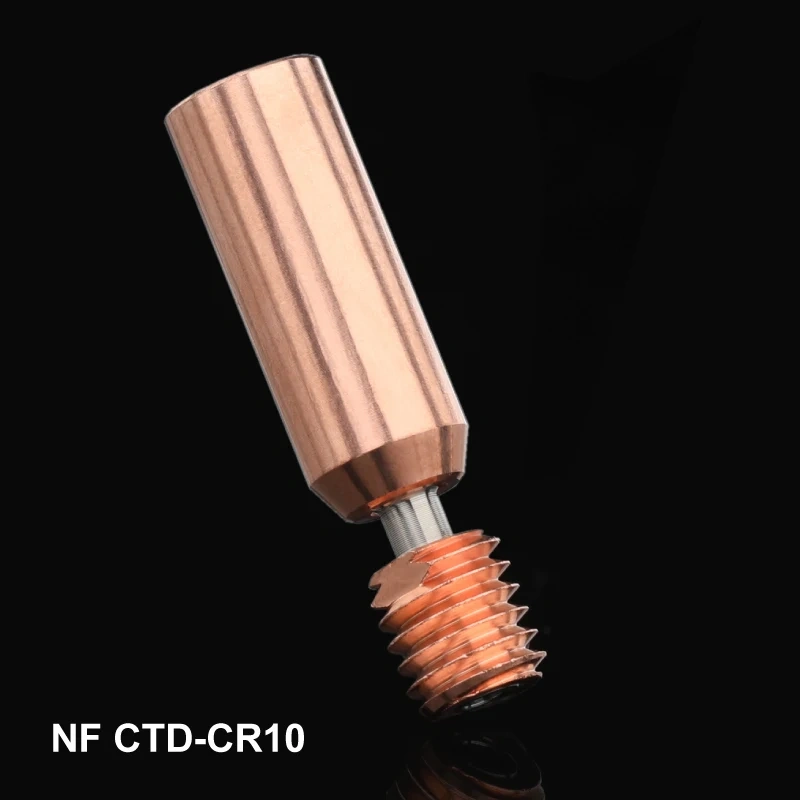

Crazy CTD-CR10 Heat Break

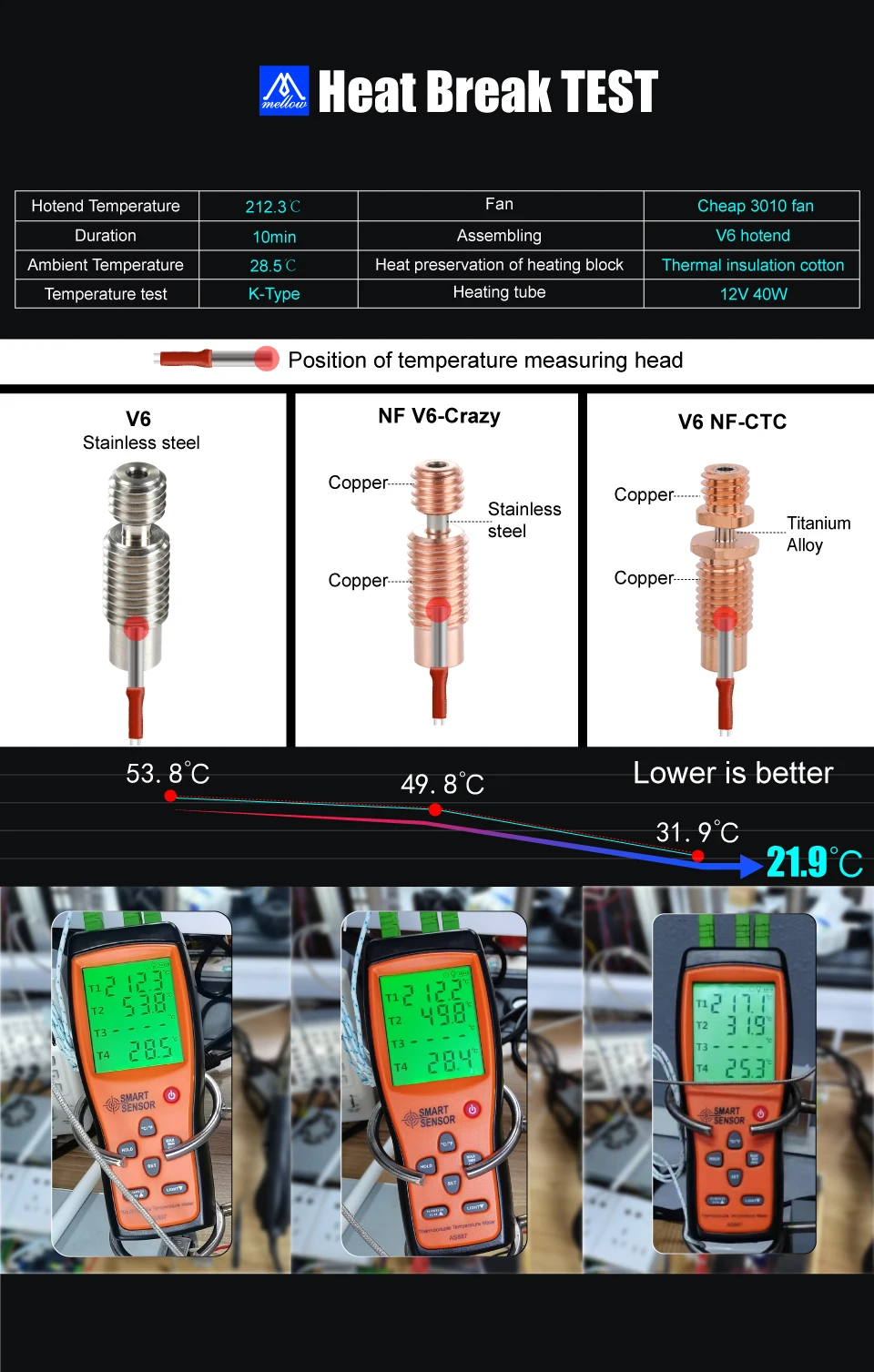

Heat Break TEST:
There may be different product shapes, but the same product materials have the same heat dissipation and insulation effect.
Hotend Temperature：212.3℃
Duration：10min
Ambient Temperature:28.5℃
Temperature test:K-Type
Fan :Cheap 3010 fan
Assembling:V6 hotend
Heat preservation of heating block:Thermal insulation cotton
Heating tube:12V 40W
