Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you a better overall user experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.
Description:

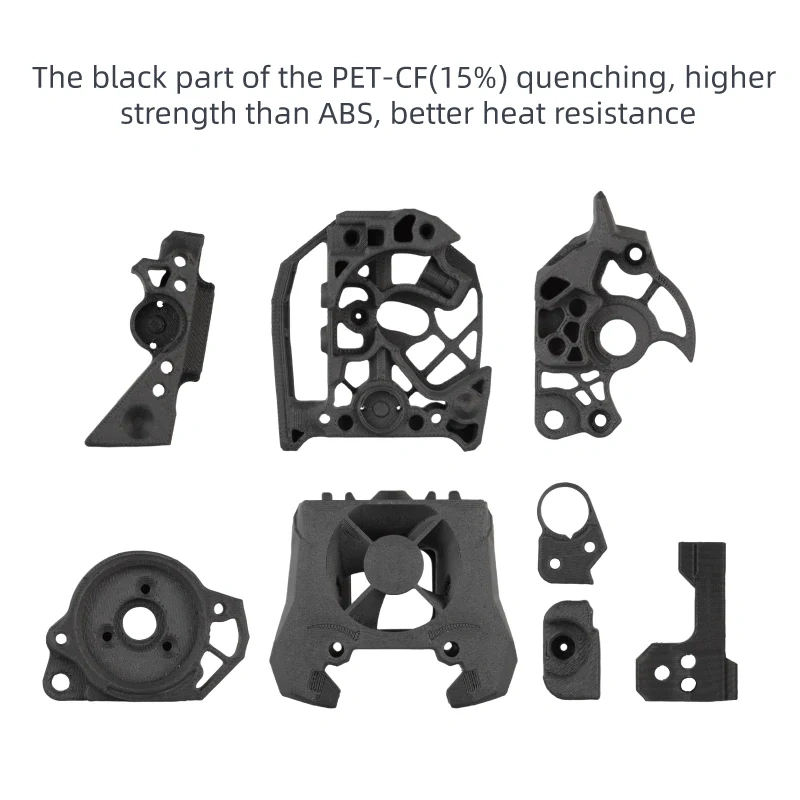

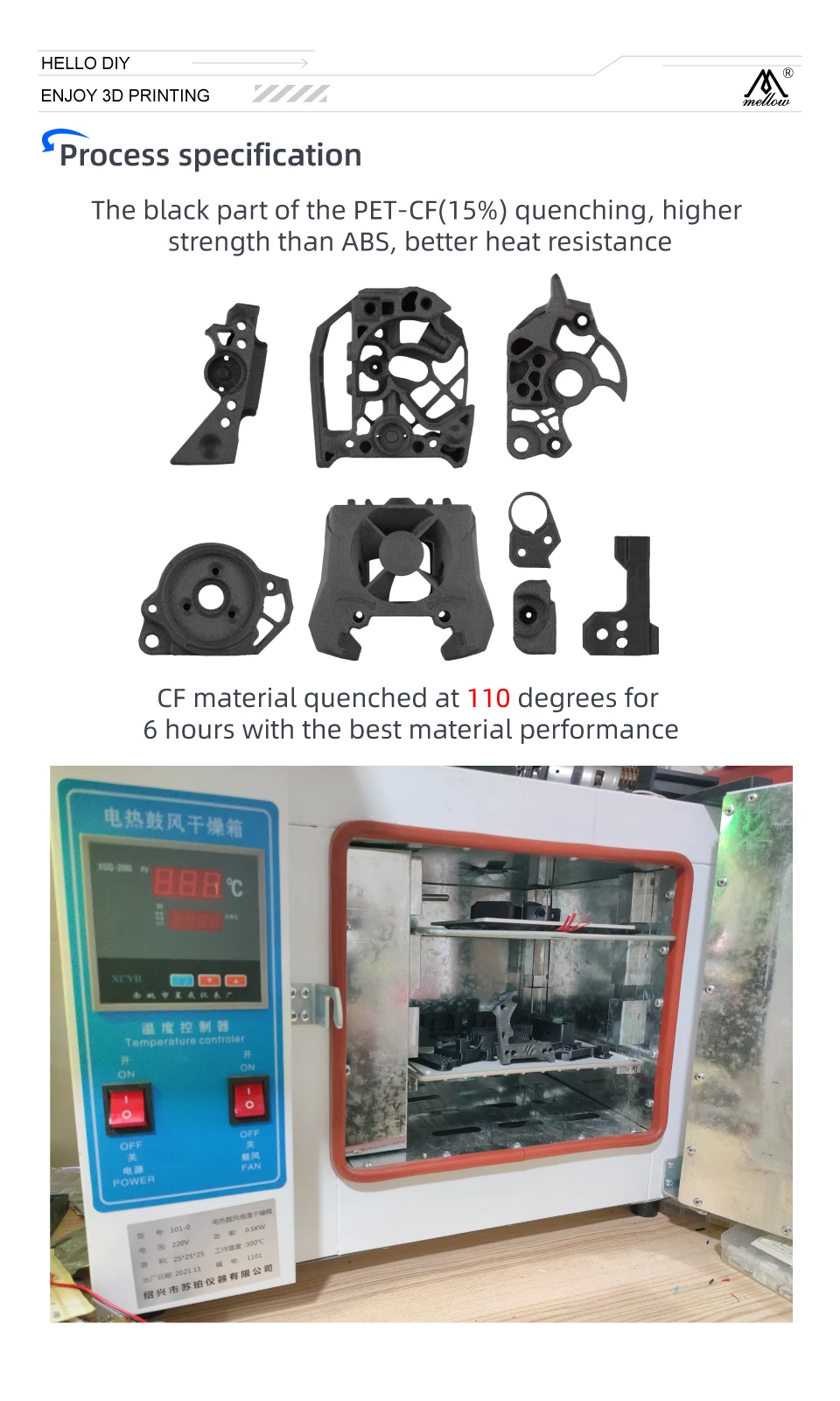

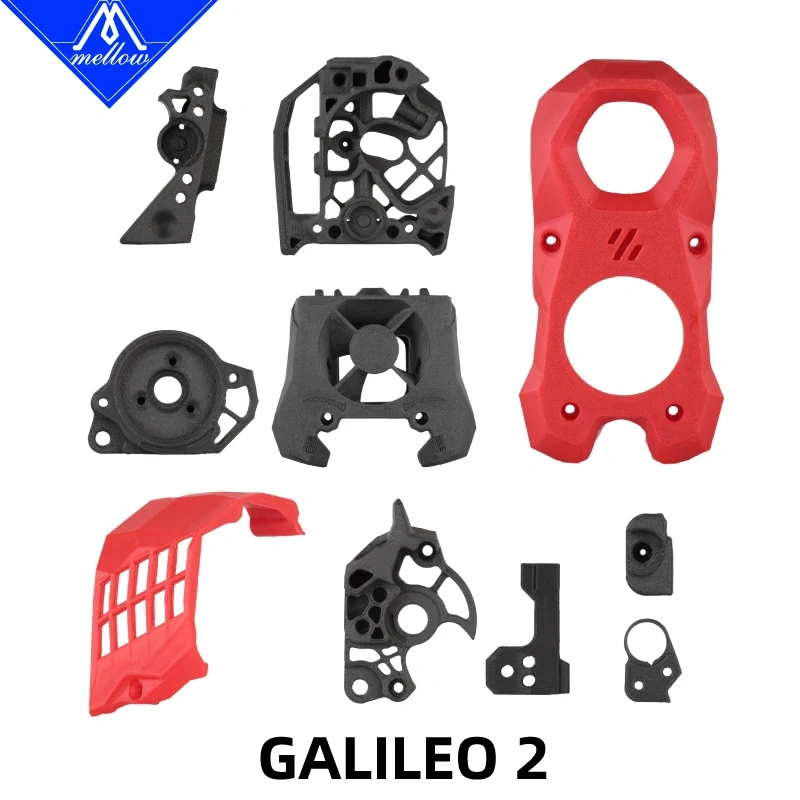

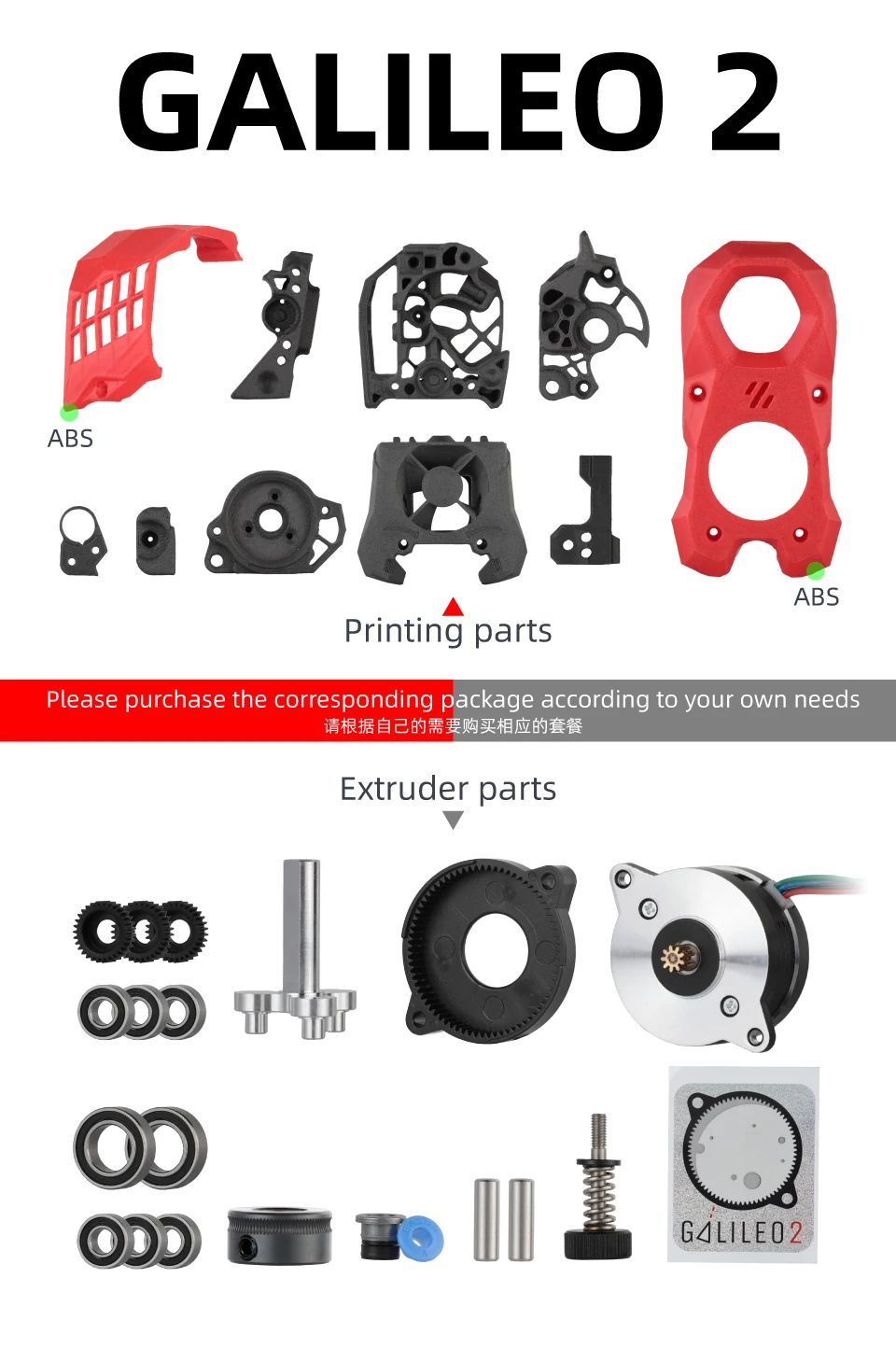

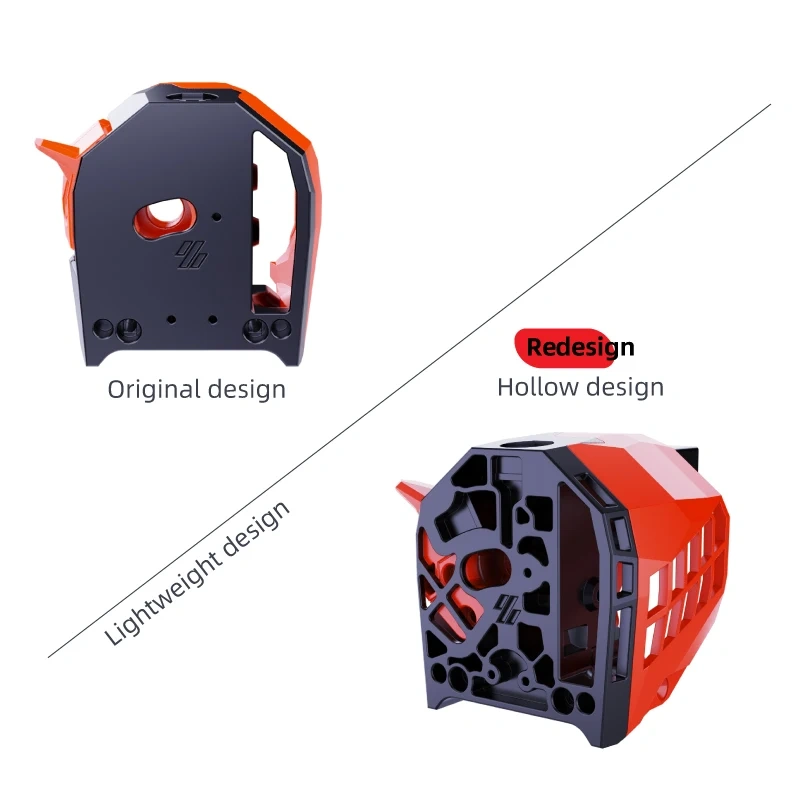

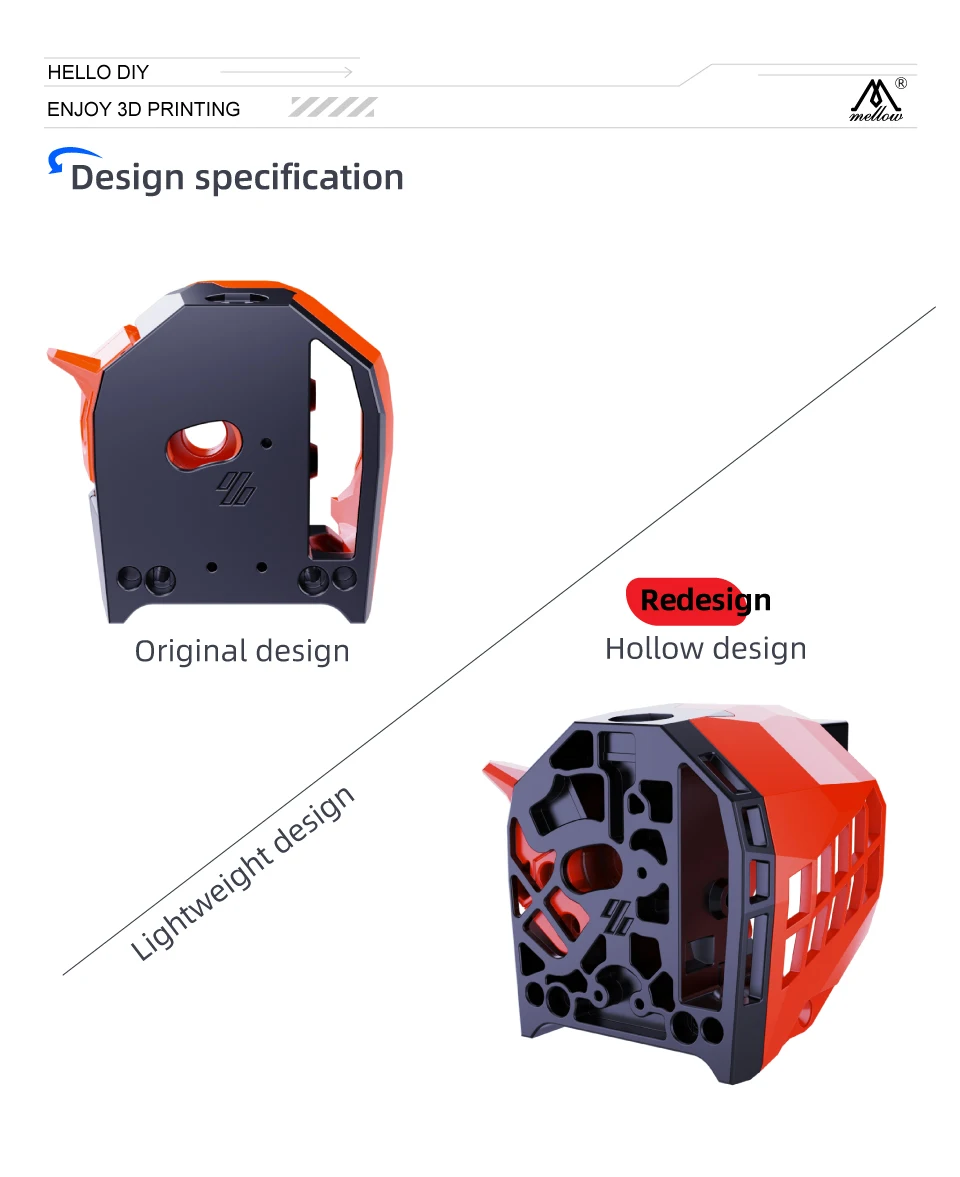

This is a lightweight transformation of the original design, which maximizes weight reduction while ensuring the structural strength of the extruder. The black part is made of ABS carbon fiber and then quenched in an insulating box to increase its strength. The red part uses Abs material. Buy now to make your extruder lighter.

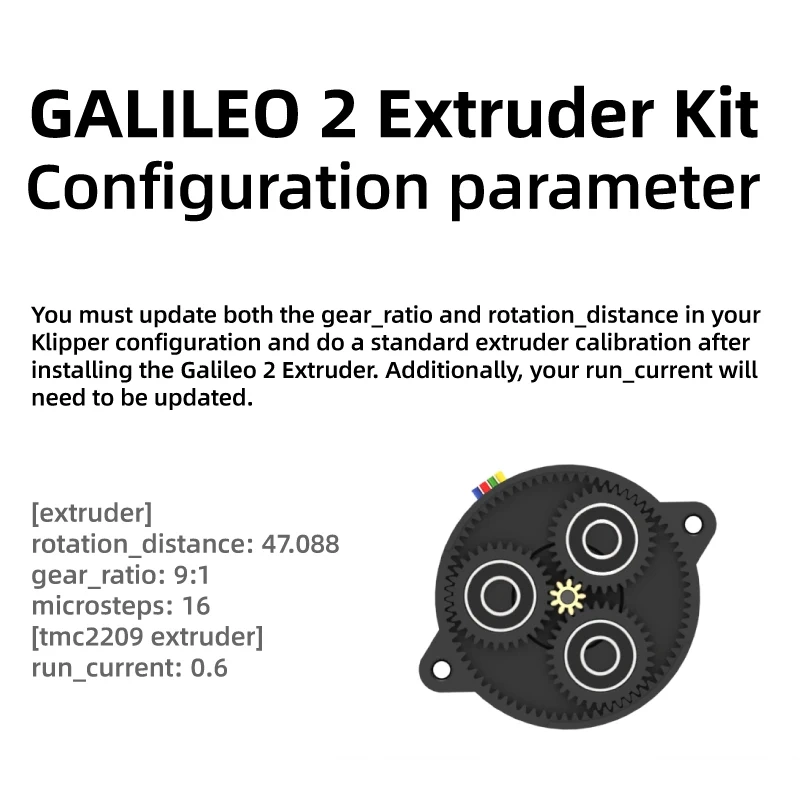

Galileo 2 is a full redesign, moving to a 9:1 gear ratio and optimizing the gearbox design over Galileo 1. No parts from Galileo 1 are reused with Galileo 2.
Custom 9T stepper with a taller spur gear resulting in 20% higher contact surface area than existing 10T stepper designs, resulting in better wear characteristics and power transfer.
Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun / 3 planets), which gives even loading on the planets / sun gear and improves wear characteristics and power transfer. Previous designs with 10T steppers had uneven loading on the planet gears.
G2 Extruder (G2E) is designed as a drop-in replacement for the CW2 extruder for Voron printers utilizing the Stealthburner toolhead. G2E features a custom large drive gear (16mm diameter) mated to an idler bearing to help prevent extruder artificing due to gear meshing, and because it features a planetary gearbox, there's no issue with gear-meshing noise as found on CW2. G2E is also fully compatible with all current toolhead boards available.
G2 Standalone (G2SA) is designed as an Orbiter 2.0 or Sherpa Mini drop-in replacement extruder and utilizes the G2E kit parts for assembly. This expands the printer lineup for G2 to any printer compatible with the Orbiter 2.0 or Sherpa Mini, and gives the benefits noted above for G2E to every compatible printer. The G2SA is also a lightweight extruder, comparable to the Orbiter 2.0.

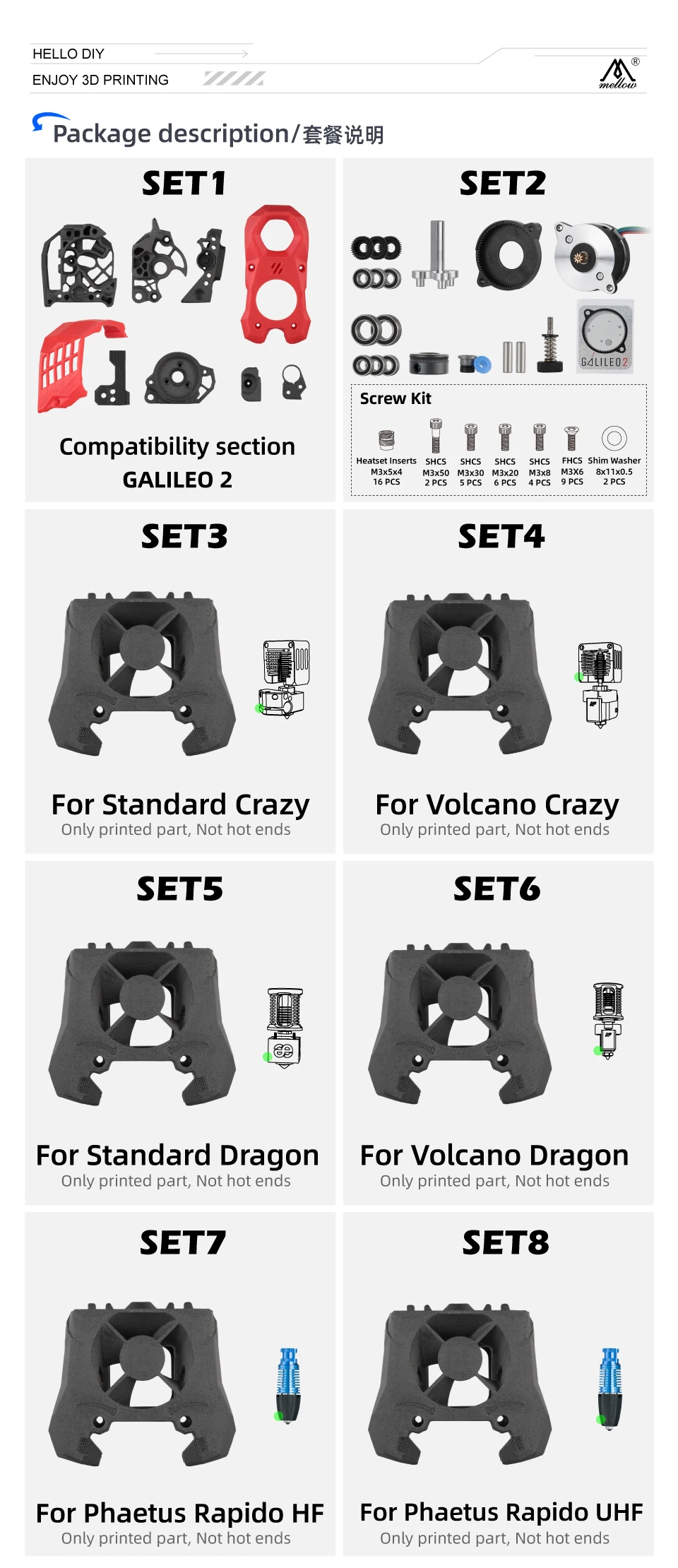

Package:

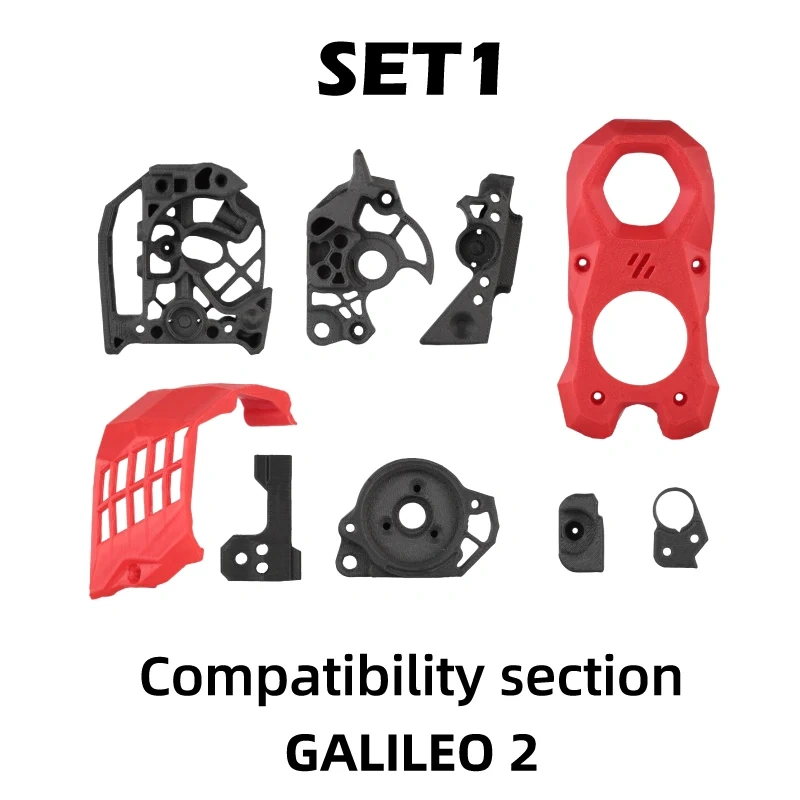

Set1:
1*Hollow Voron G2E Bracket(Extruder parts not included)

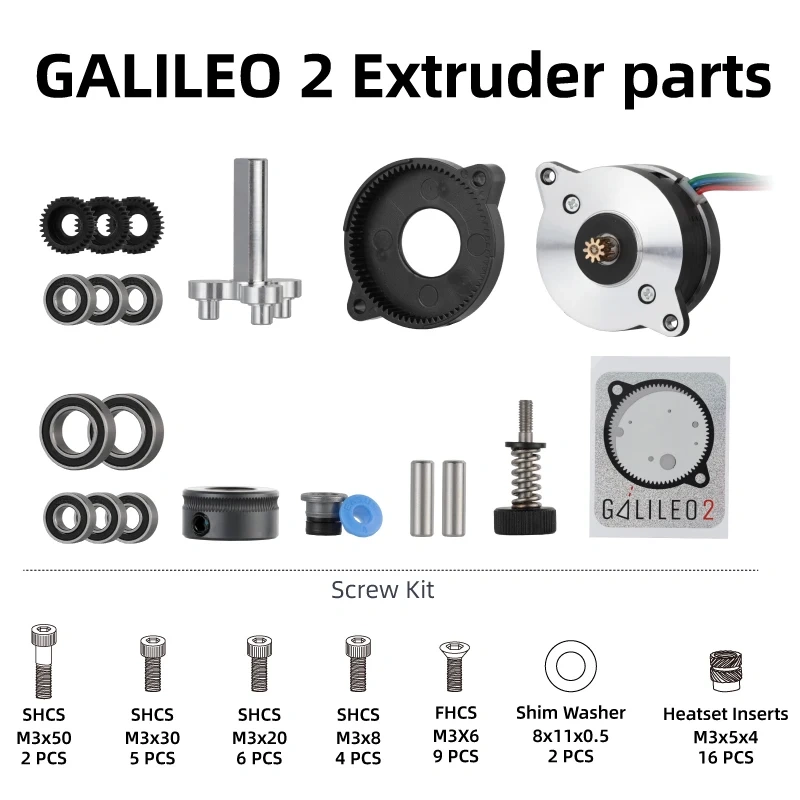

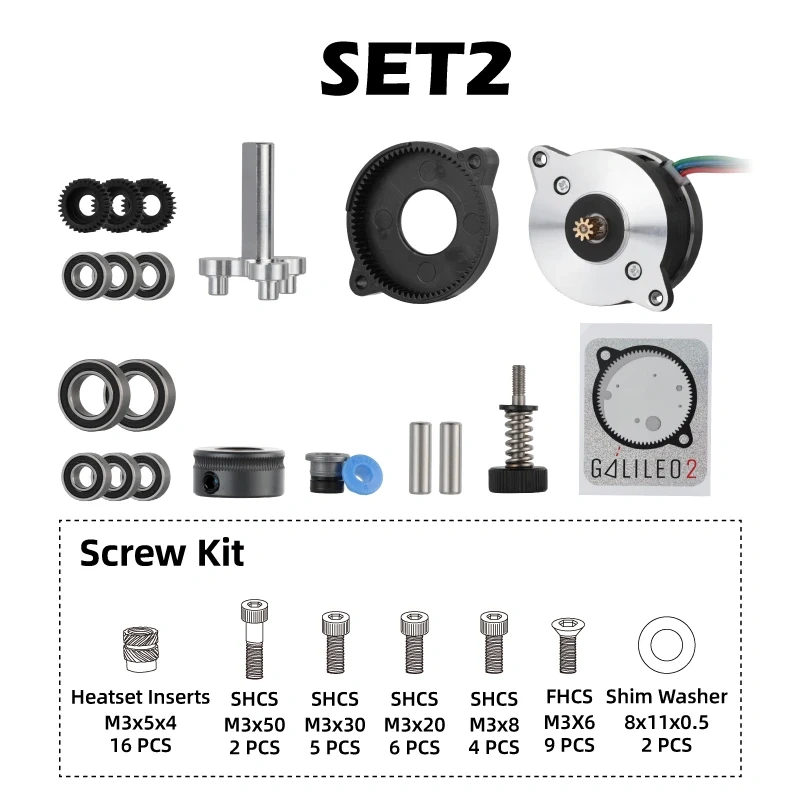

Set2:

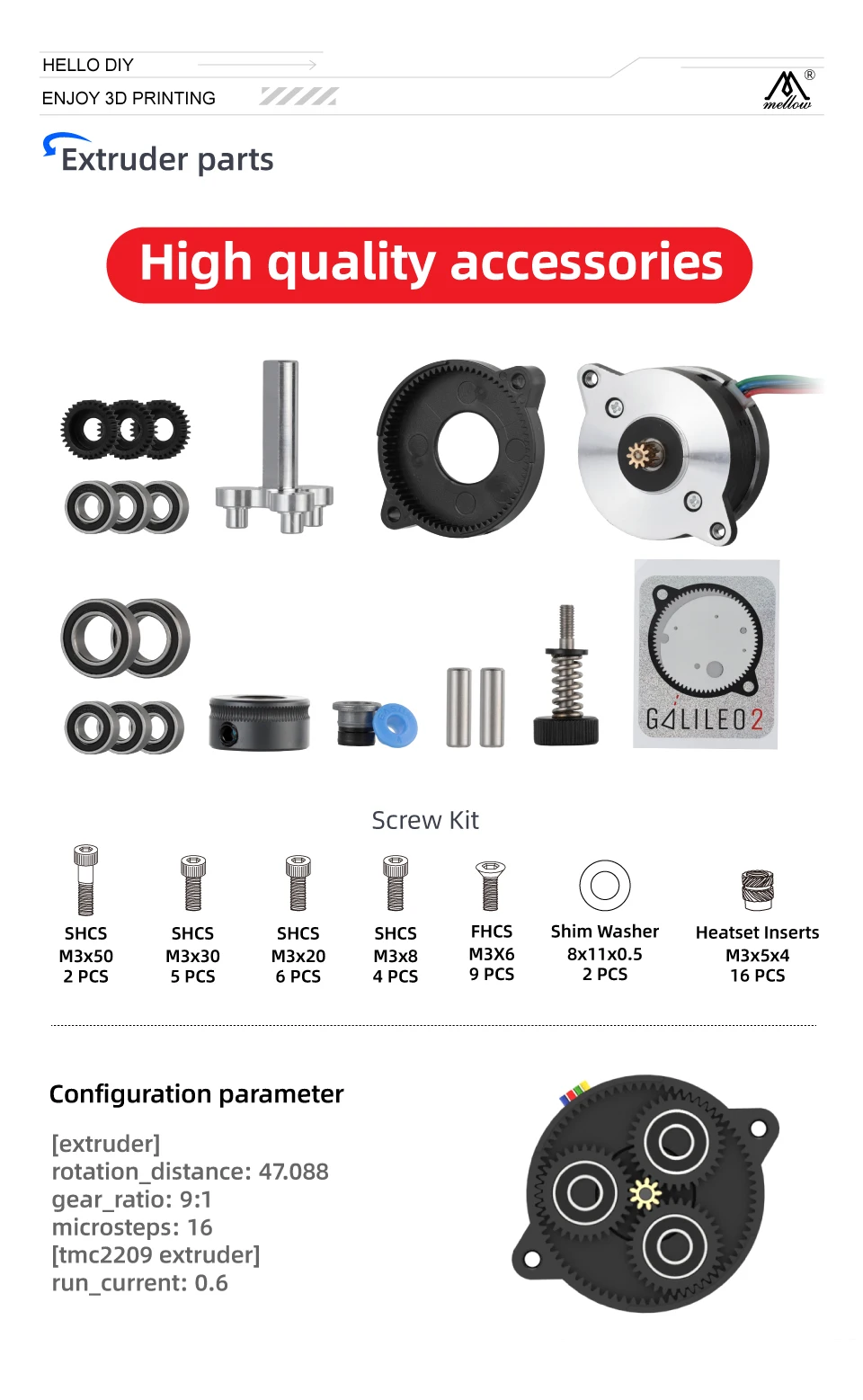

1*G2E Extruder parts(Printed parts not included)

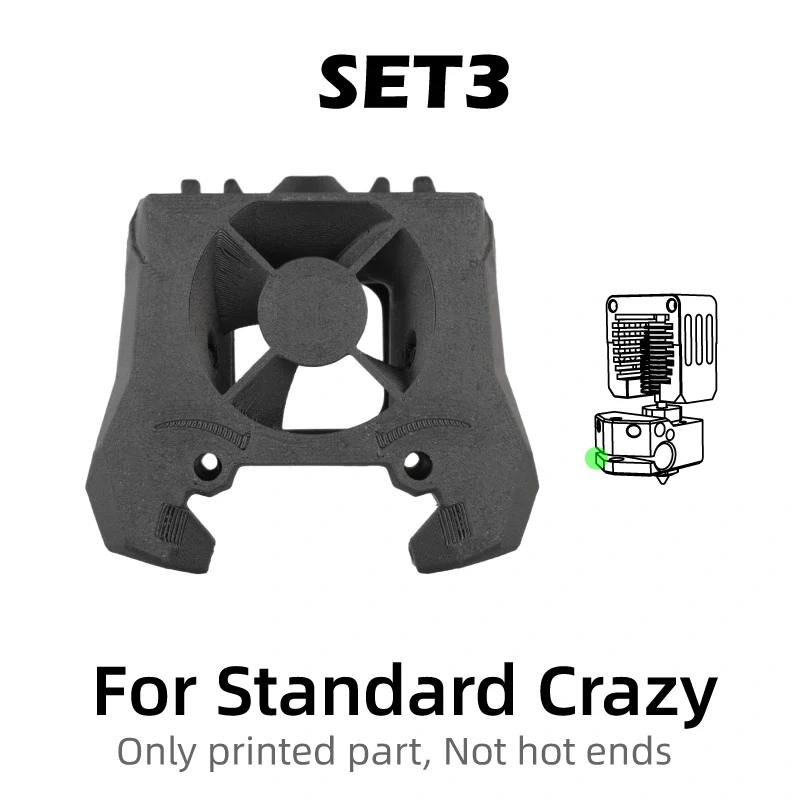

Set3:
1*Crazy Hotend Bracket(Hot end not included)

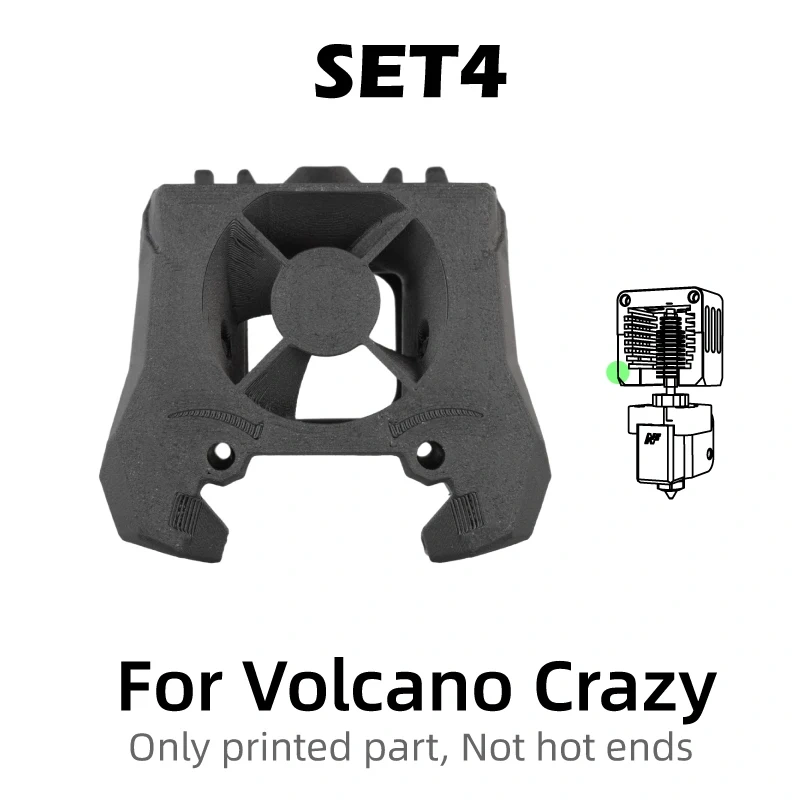

Set4:
1*Crazy Volcano Hotend Bracket(Hot end not included)

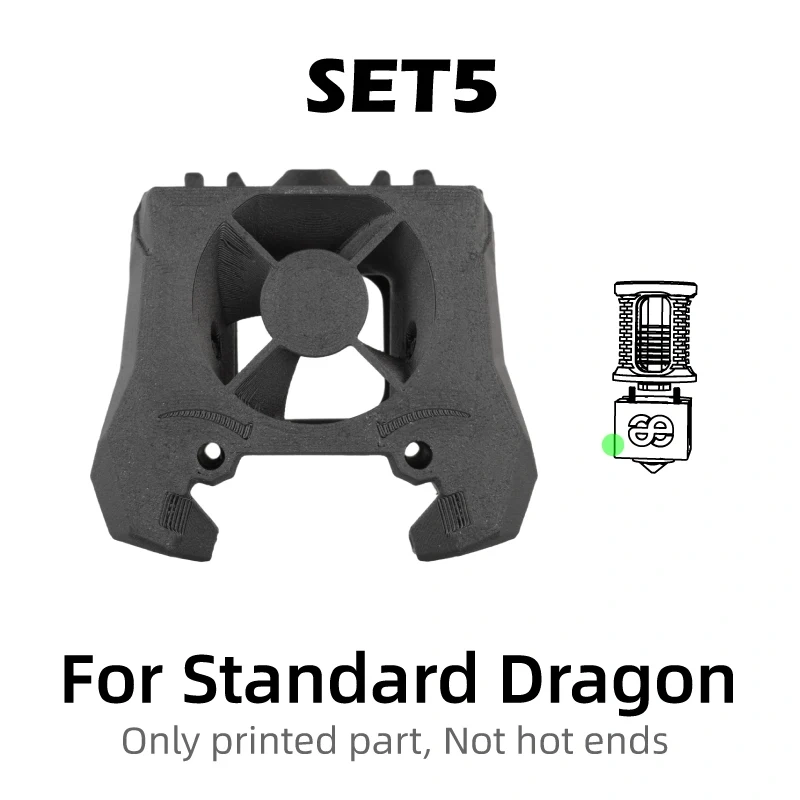

Set5:
1*Dragon Hotend Bracket(Hot end not included)

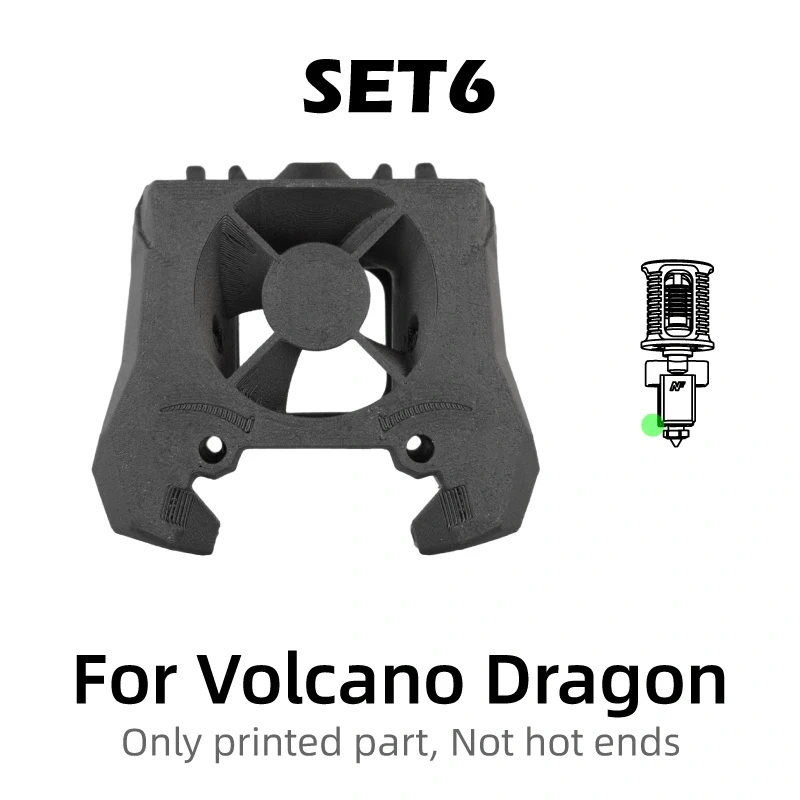

Set6:
1*Dragon Volcano Hotend Bracket(Hot end not included)

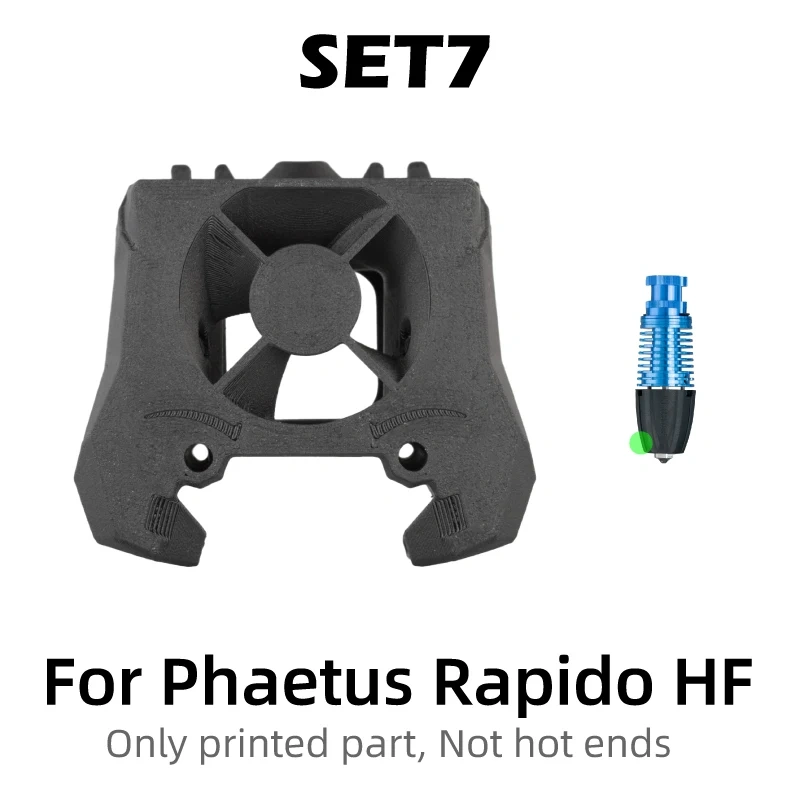

Set7:
1*Rapido HF Hotend Bracket(Hot end not included)

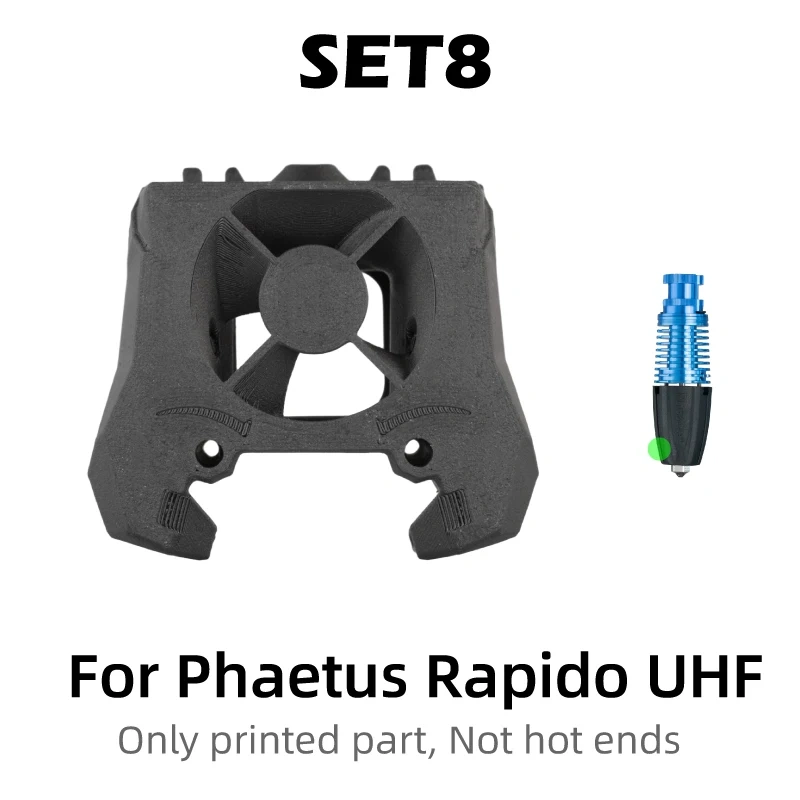

Set8:
1*Rapido UHF Hotend Bracket(Hot end not included)
