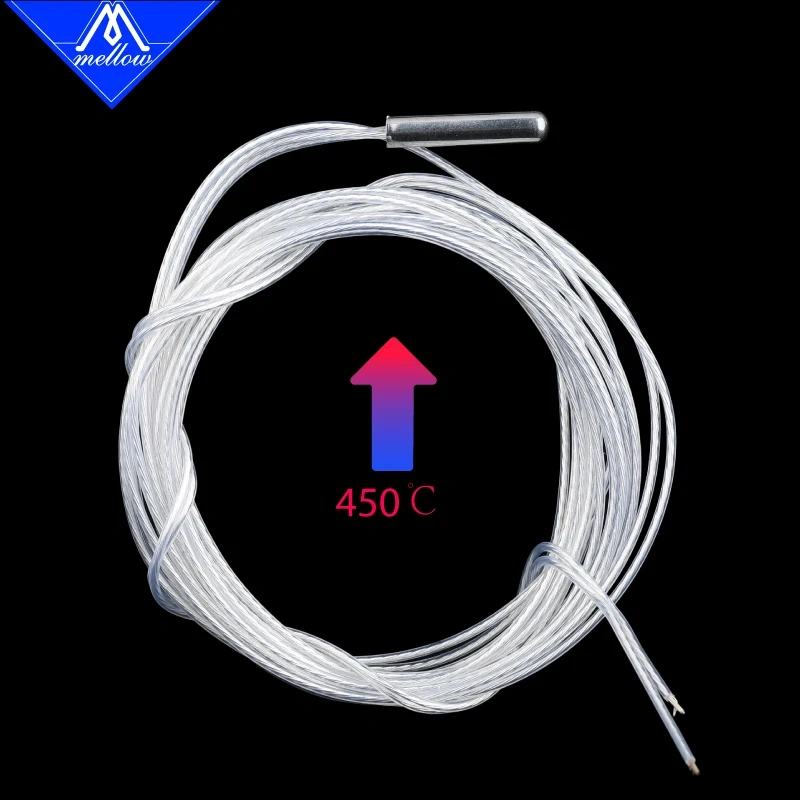

Mellow High Temperature PT1000 Thermistor Cartridge 450 C For Voron Klipper V6 Volcano Dragon Crazy Hotend Heat Block PEEK PEI

Name: Mellow High Temperature PT1000 Thermistor Cartridge 450 C For Voron Klipper V6 Volcano Dragon Crazy Hotend Heat Block PEEK PEI
Brand: 3D Mellow
SKU: 10PT1000
Price: 7 USD
Availability: InStock

No.3*15PT1000

SKU: 10PT1000

$7.00 ~~$14.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Notice

If you are unable to purchase, please contact us: sale@3dmellow.com

Item guides & documents

📖 User Manual >

Description

Please note before placing your order:

All our prices are exclusive of taxes; you are responsible for declaring and paying any applicable tax.
If you require UPS, FedEx, TNT, or DHL shipping, please contact us in advance so we can discuss the freight arrangements.

For technical inquiries, please email: service@3dmellow.com
For sales inquiries, please email: sale@3dmellow.com

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you a better overall user experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

1Description

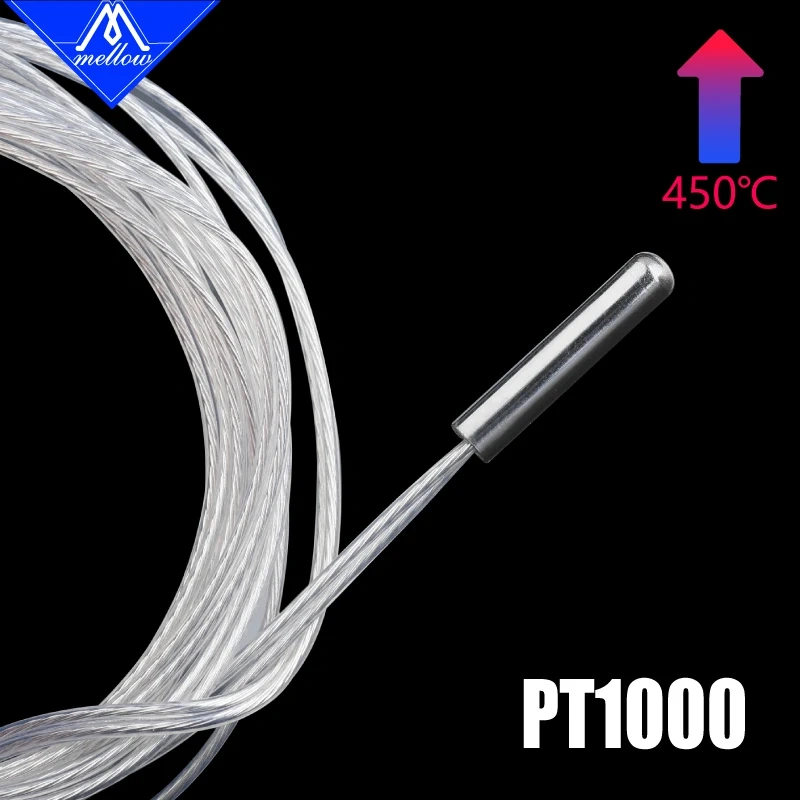

The temperature measurement range of pt1000 is higher than that of ntc, which can reach 450 degrees Celsius, and the temperature measurement is more accurate

PT1000 sensor can directly replace ntc sensor, no need to increase 31865 chip conversion signal like pt100

Temperature range 0-450 degrees

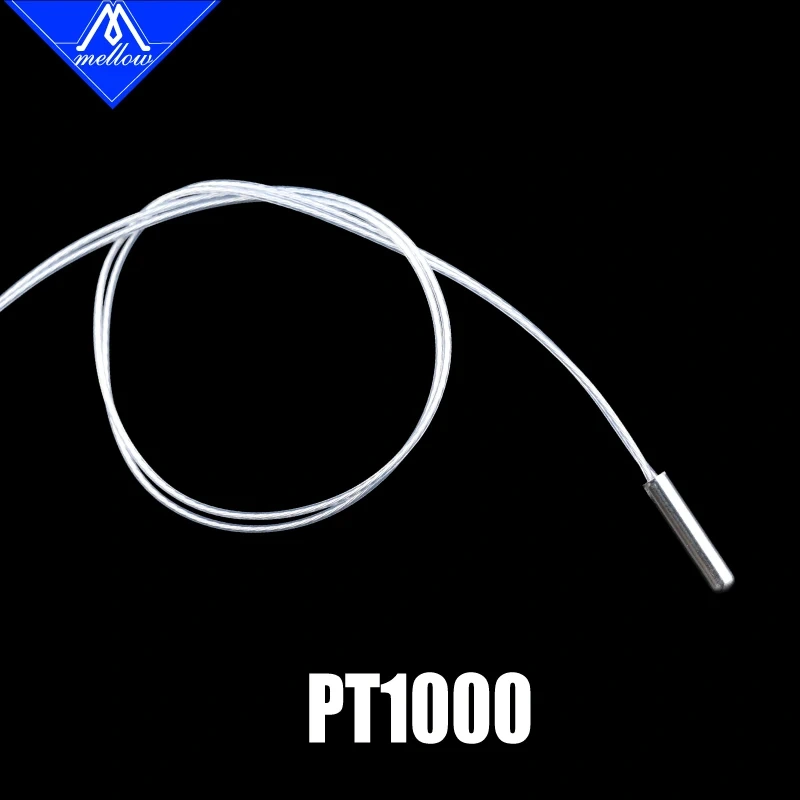

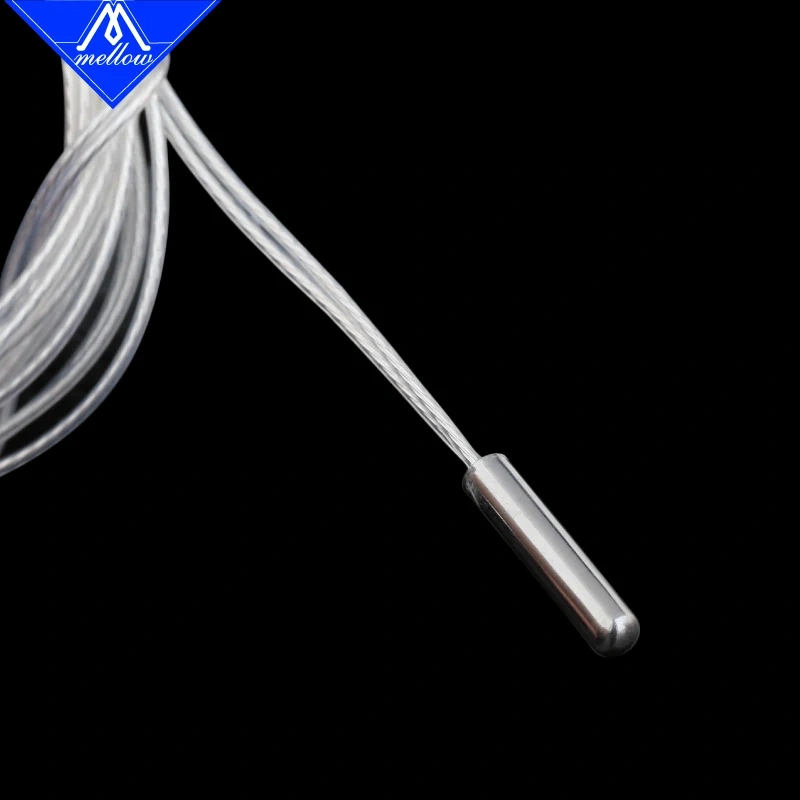

Metal dimension 3MM diameter 20MM length

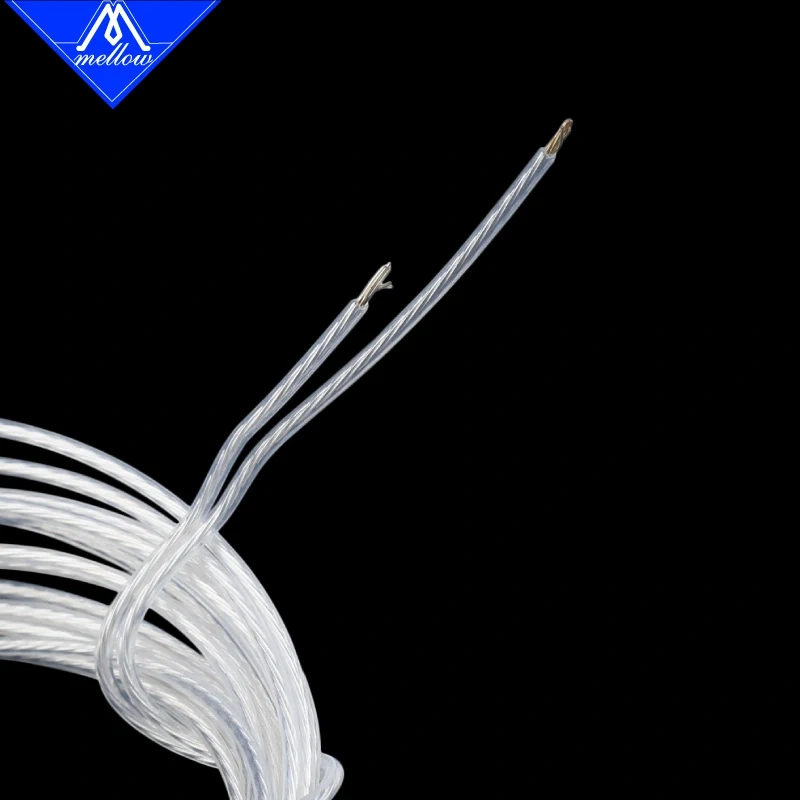

1.3Meter length Tinned PTFE wire reduces signal interference
RESISTANCE VALUE CHART PER 1C PT1000: http://www.hayashidenko.co.jp/en/info14.html

Package:

1*PT1000 seneor with sealed with metal cartridge

For duet2 Wifi,RepRapFirmware 3.x:

Duet 2/Fly board
M308 S1 P"e0temp" Y"pt1000" ; sensor 1

Duet 3
M308 S1 P"121.temp0" Y"pt1000" ; sensor 1 (toolboard)https://duet3d.dozuki.com/Wiki/Connecting_thermistors_or_PT1000_temperature_sensors#Section_RepRapFirmware_3_x

For Klipper:
sensor_type: PT1000 sensor_pin: # Analog input pin connected to the sensor. This parameter must be # provided. #pullup_resistor: 4700 # The resistance (in ohms) of the pullup attached to the sensor. The # default is 4700 ohms.

For Marlin:
pullup resistor please choose sensor '1047'

Configuration.h:

*1047 : Pt1000 with 4k7 pullup

thermistortable_1047.h:

// Pt1000 with 4k7 pullup

const short temptable_1047[][2] PROGMEM = {

// only a few values are needed as the curve is very flat

PtLine( 0, 1000, 4700)

PtLine( 50, 1000, 4700)

PtLine(100, 1000, 4700)

PtLine(150, 1000, 4700)

PtLine(200, 1000, 4700)

PtLine(250, 1000, 4700)

PtLine(300, 1000, 4700)

PtLine(350, 1000, 4700)

PtLine(400, 1000, 4700)

PtLine(450, 1000, 4700)

};

For Repetier:

Pt1000 with 4k7 pullup resistor(default)

Configuration.h:

#define NUM_TEMPS_USERTHERMISTOR0 12

#define USER_THERMISTORTABLE0{{723,0},{812,320},{896,640},{975,960},{1049,1280},{1118,1600},{1184,1920},{1246,2240},{1305,2560},{1361,2880},{1414,3200},{1464,3520}}

Pt1000 with 1K pullup resistor

Configuration.h:

#define NUM_TEMPS_USERTHERMISTOR0 23

#define USER_THERMISTORTABLE0 {{2055,0},{2132,160},{2202,320},{2327,640},{2383,800},{2436,960},{2485,1120},{2531,1280},{2574,1440},{2614,1600},{2653,1760},{2689,1920},{2723,2080},{2755,2240},{2786,2400},{2815,2560},{2842,2720},{2869,2880},{2894,3040},{2918,3200},{2940,3360},{2962,3520},{2983,3680}}

You can also set up a new USER_THERMISTORTABLE in their web firmware configuration tool.

R2 is the pullup resistor of thermistor pins.

For Smoothieware:

Working on it please refer to

http://forum.smoothieware.org/forum/t-1086570/using-ptc-pt100-pt1000

http://smoothieware.org/pt100

TIPS:You can use the temperature input pin P0.23-P0.26 by remove the pullup resistor of that pin.When you connect the PT100 amplifier board to your smoothieboard or MKS SBASE.(we already tested it works)
