Mellow High Flow FluxHeat V6 ALPS Hotend Smart Leveling Nozzle Probe For Voron Blv Vzbot Hevort DIY 3D Printer Replace 3D TOUCH

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines.NF Extruders, NF Hotends and FLY Mother boards and Electronics. We hope our products will bring you a better overall user experience. lf you have any ideas products, use, sales), please contact us. We look forward to hearing from you.

1Description

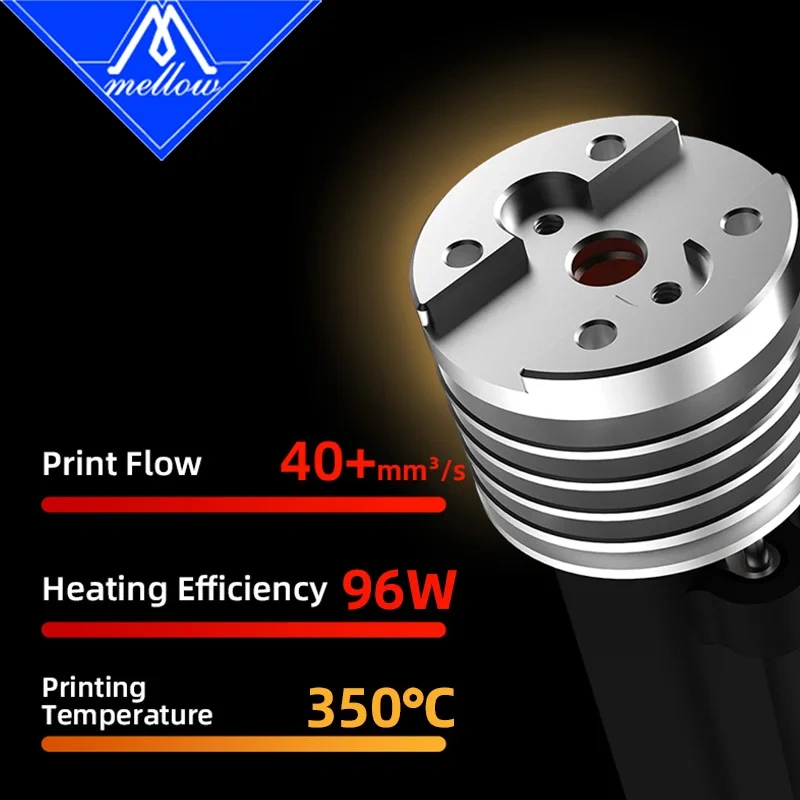

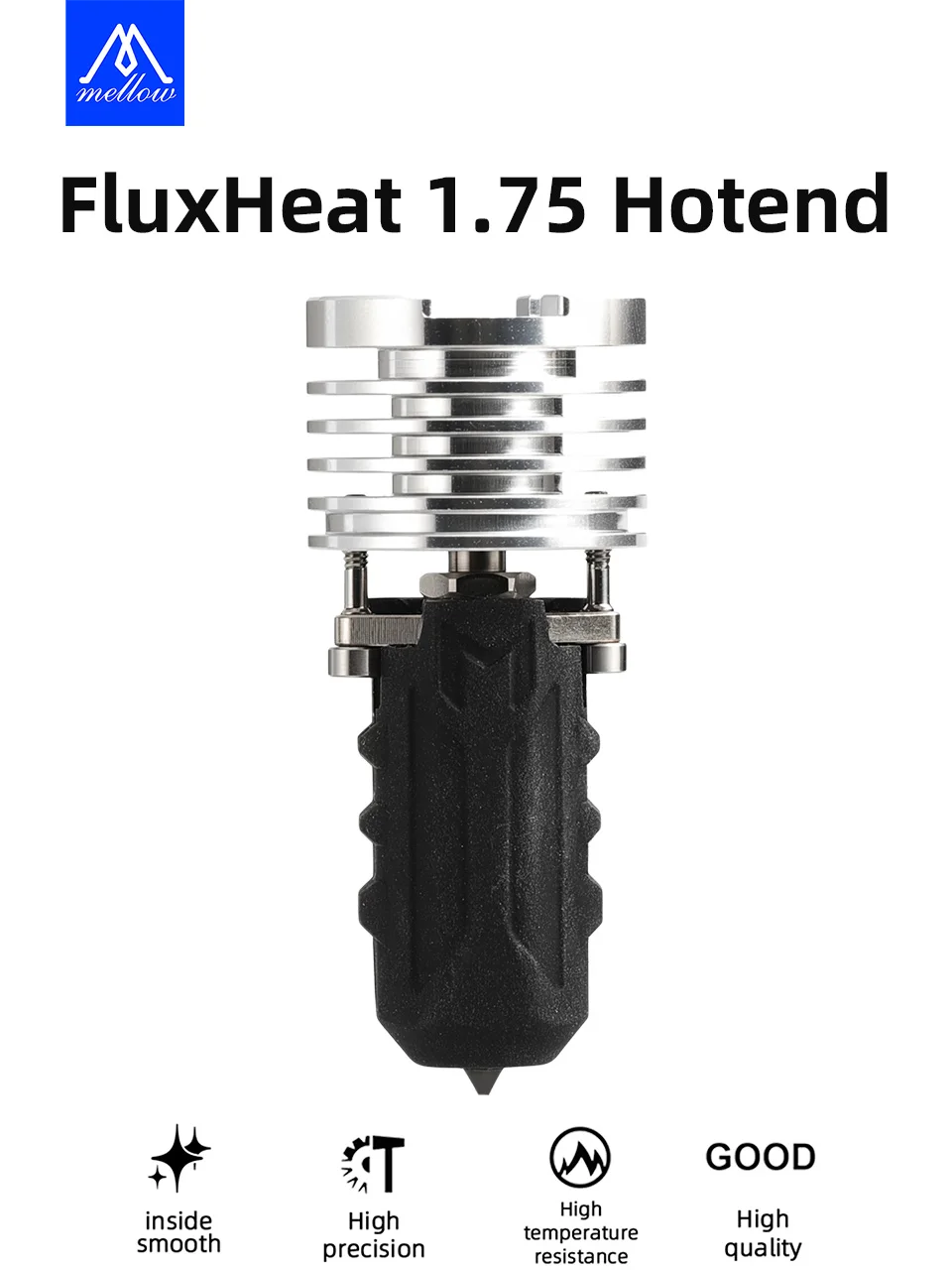

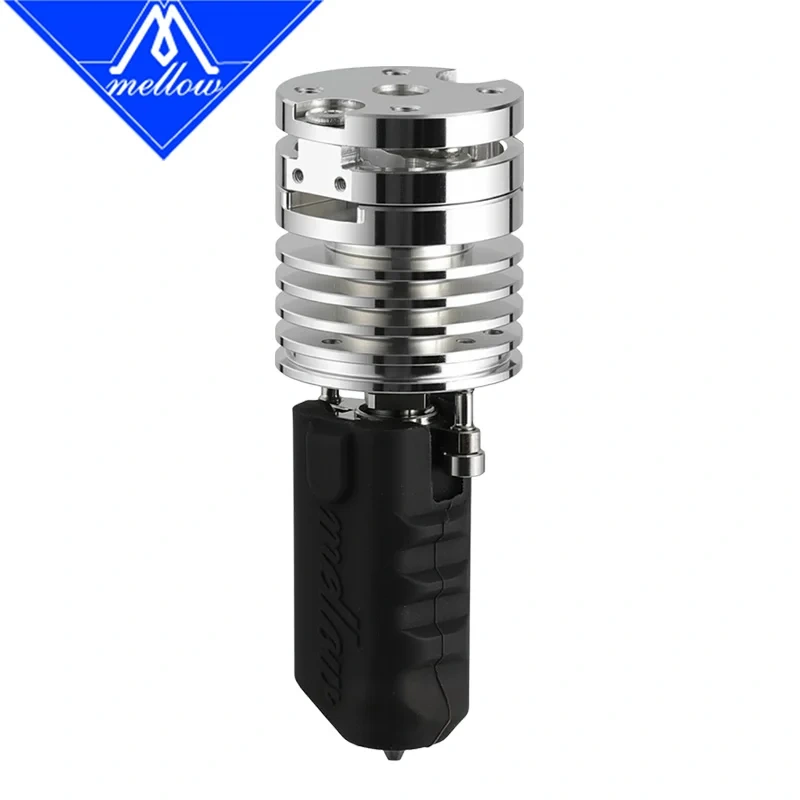

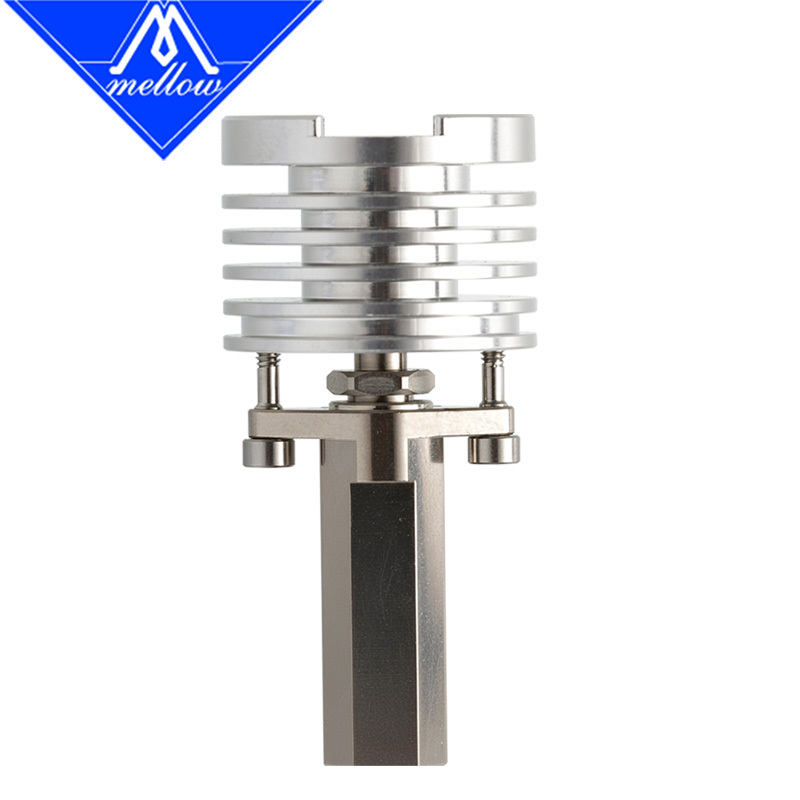

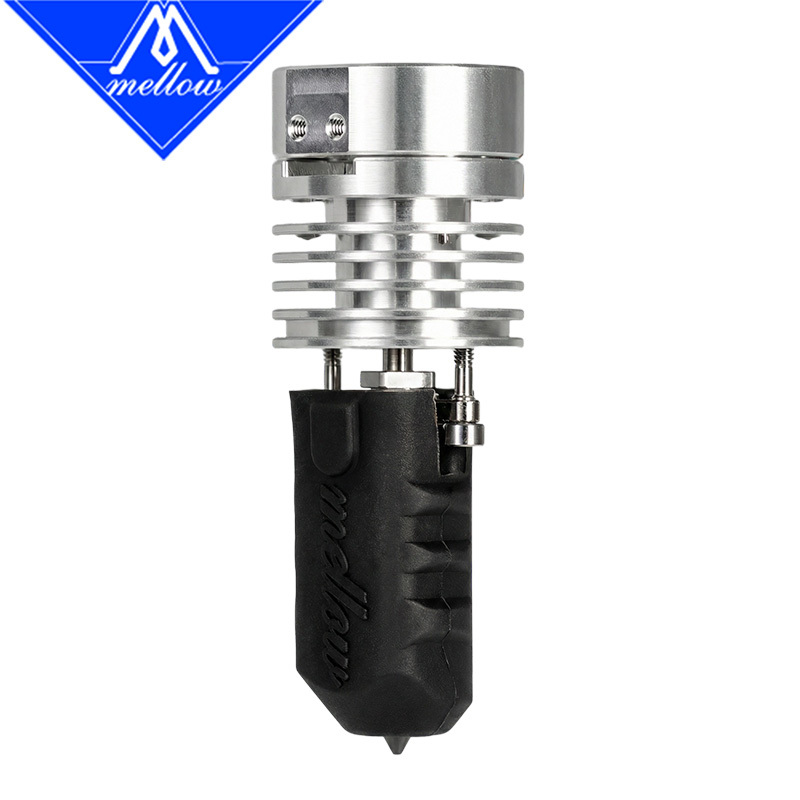

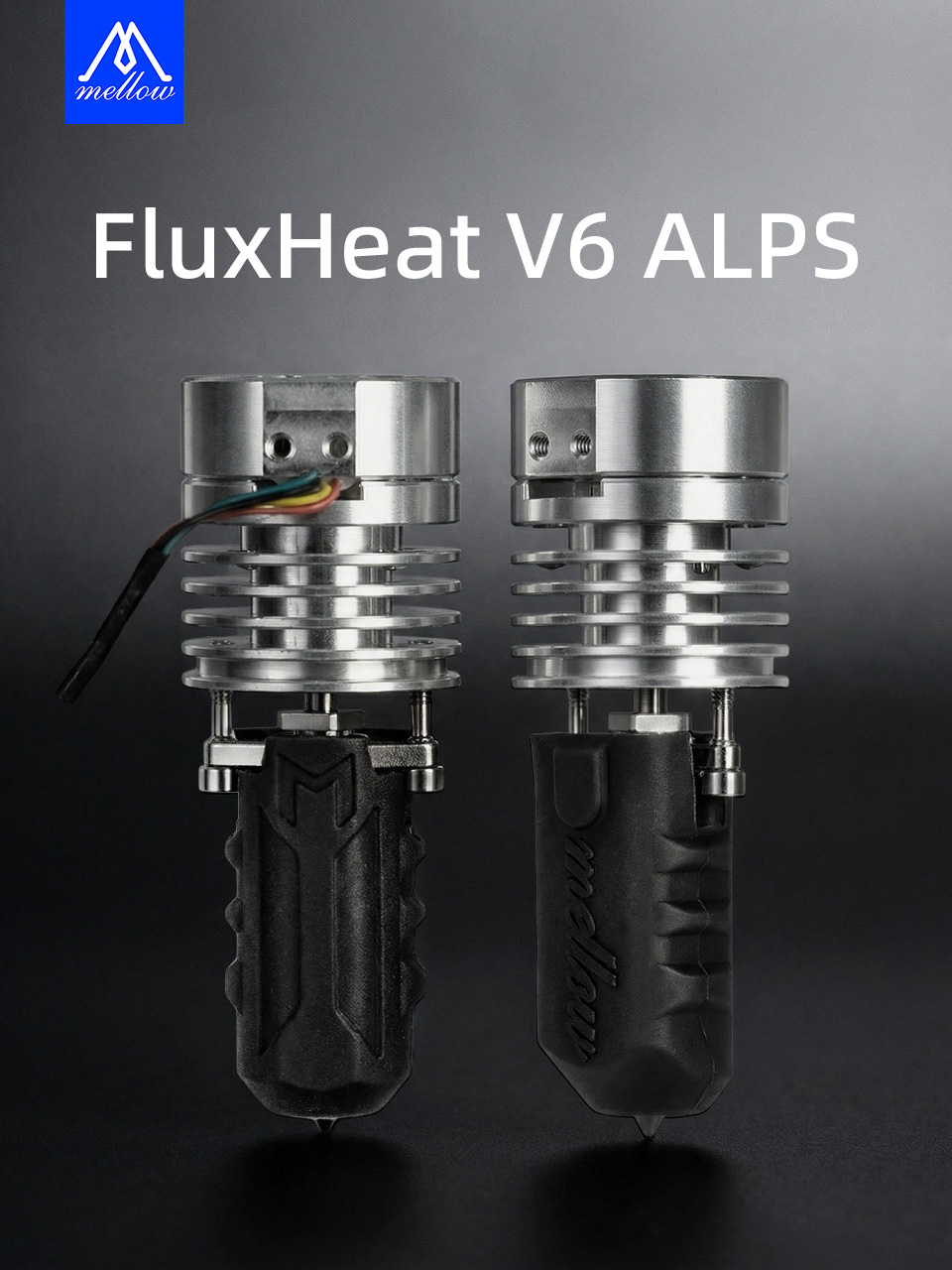

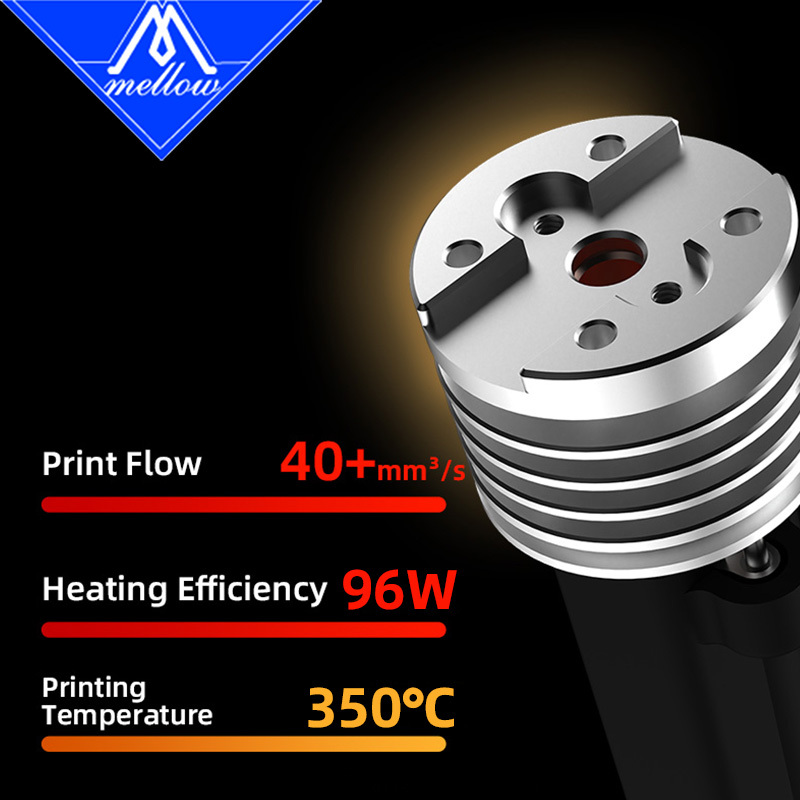

The FluxHeat V6 ALPS hot end is a next-generation, compact, high-performance hot end designed for ultra-high-speed, high-temperature 3D printing. Equipped with a large, high-power ceramic heating element and aerospace-grade components, it seamlessly integrates with the ALPS pressure-based bed leveling module, providing fast heating, stable extrusion, and precise leveling for professional and industrial applications.

Key Features of FluxHeat V6 ALPS Hotend

FluxHeat V6 ALPS Hot End Key Features

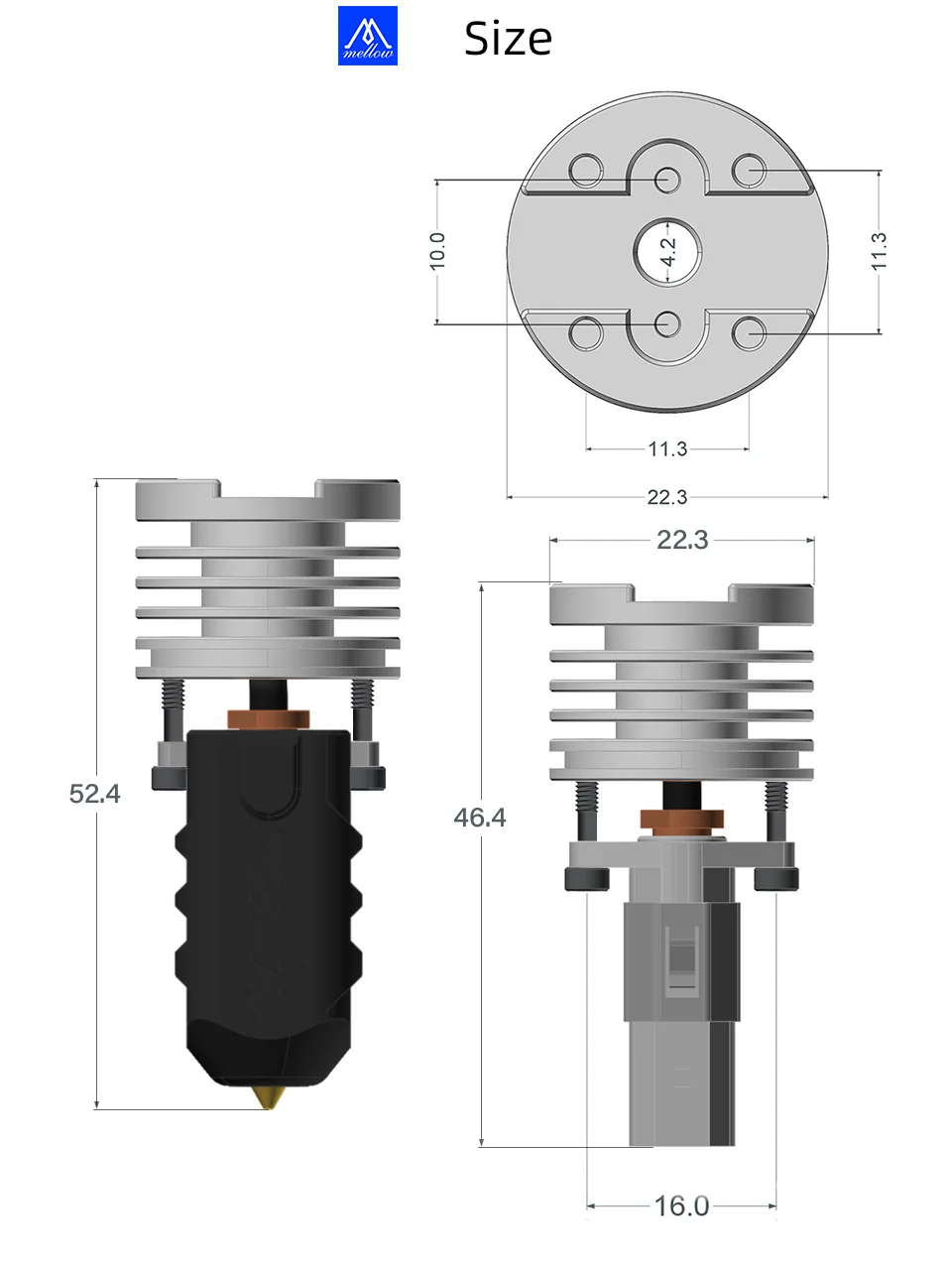

1. Ultra-Compact Design

Ceramic Heater: Minimizes heat block volume and improves temperature control accuracy

Lightweight Construction: Reduces overall printhead weight, improving printer dynamics and speed.

2. High-Power Heating System

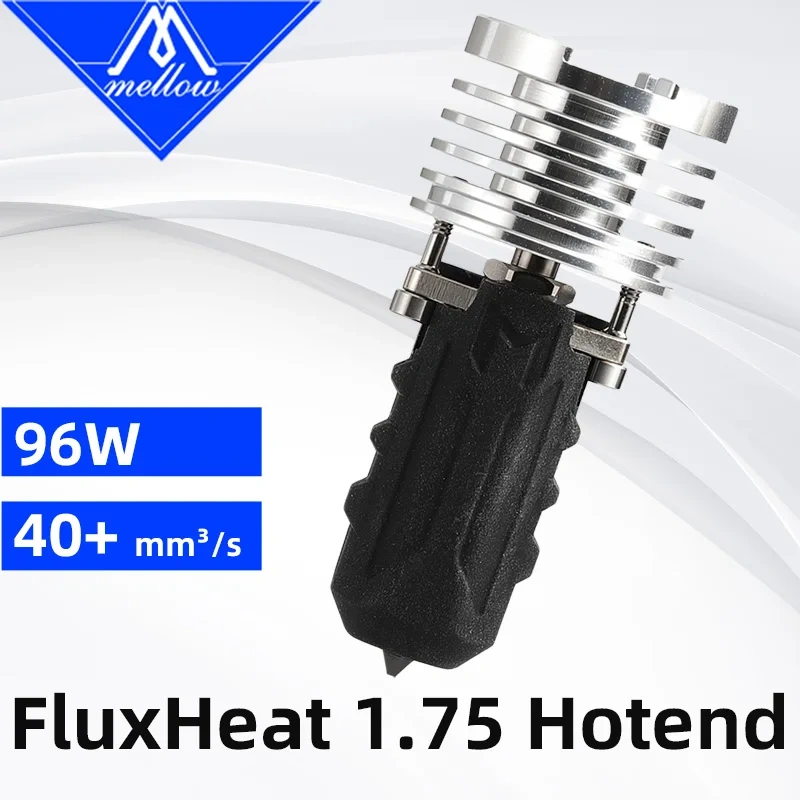

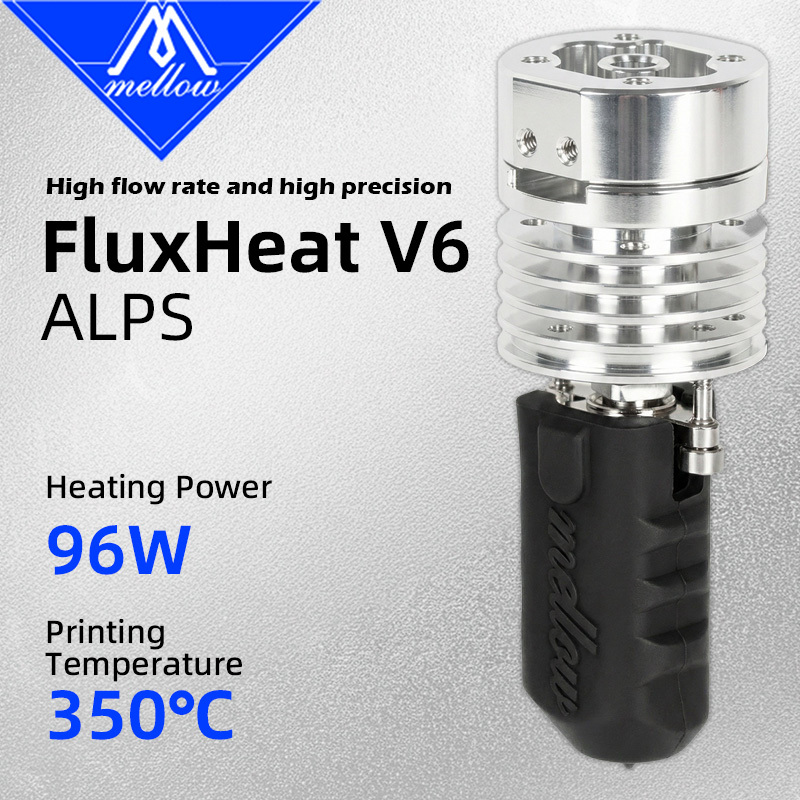

96W Heater: Reaches target temperature in seconds, significantly reducing warm-up time.

Up to 350°C: Pt1000 temperature sensor supports high-temperature materials for precise control.

3. Optimized Thermal Insulation

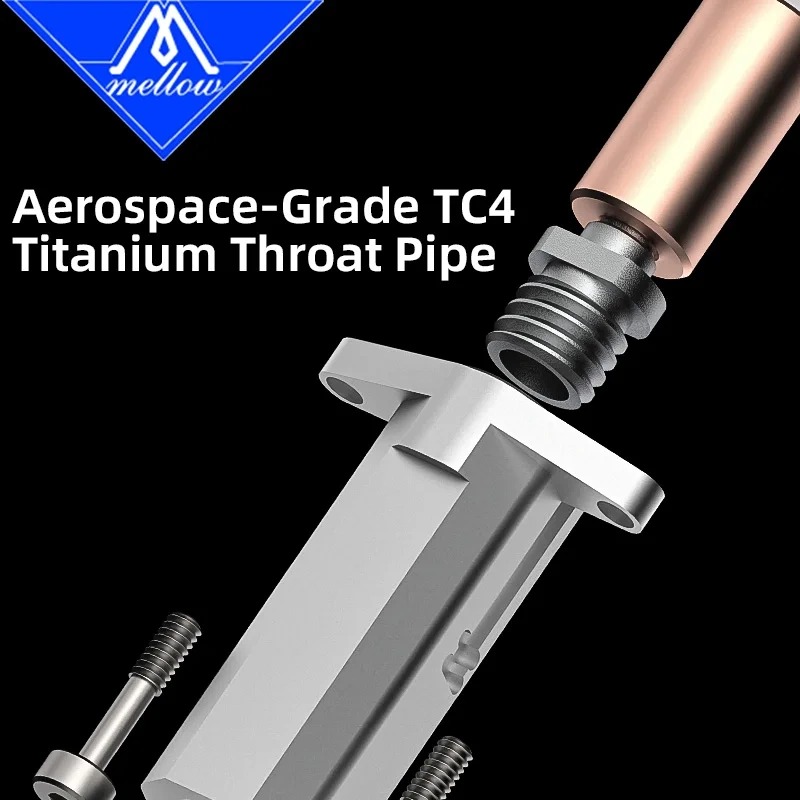

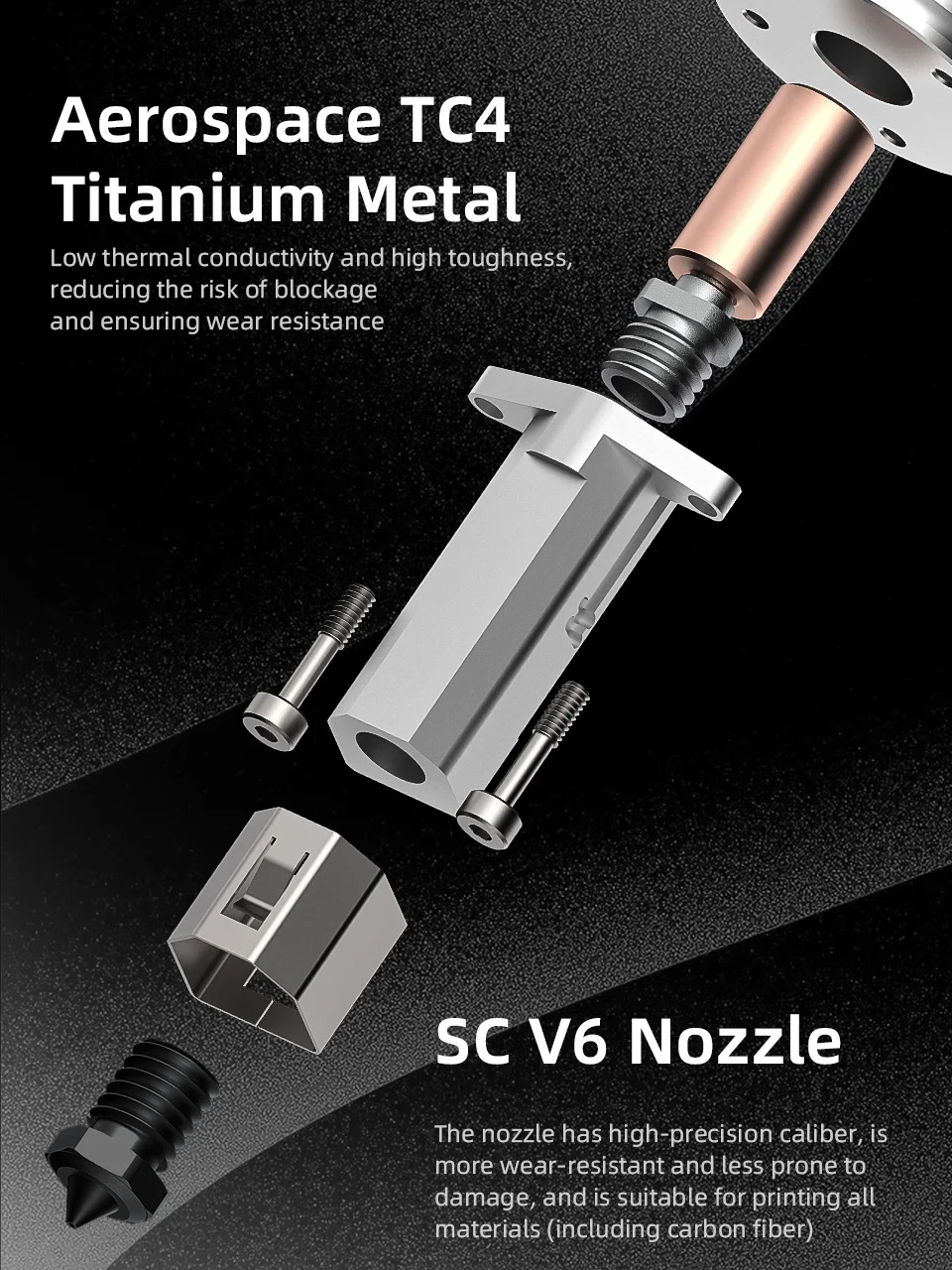

TC4 titanium alloy insulation reduces heat transfer to the heat sink and is more wear-resistant than stainless steel, providing stable printing results.

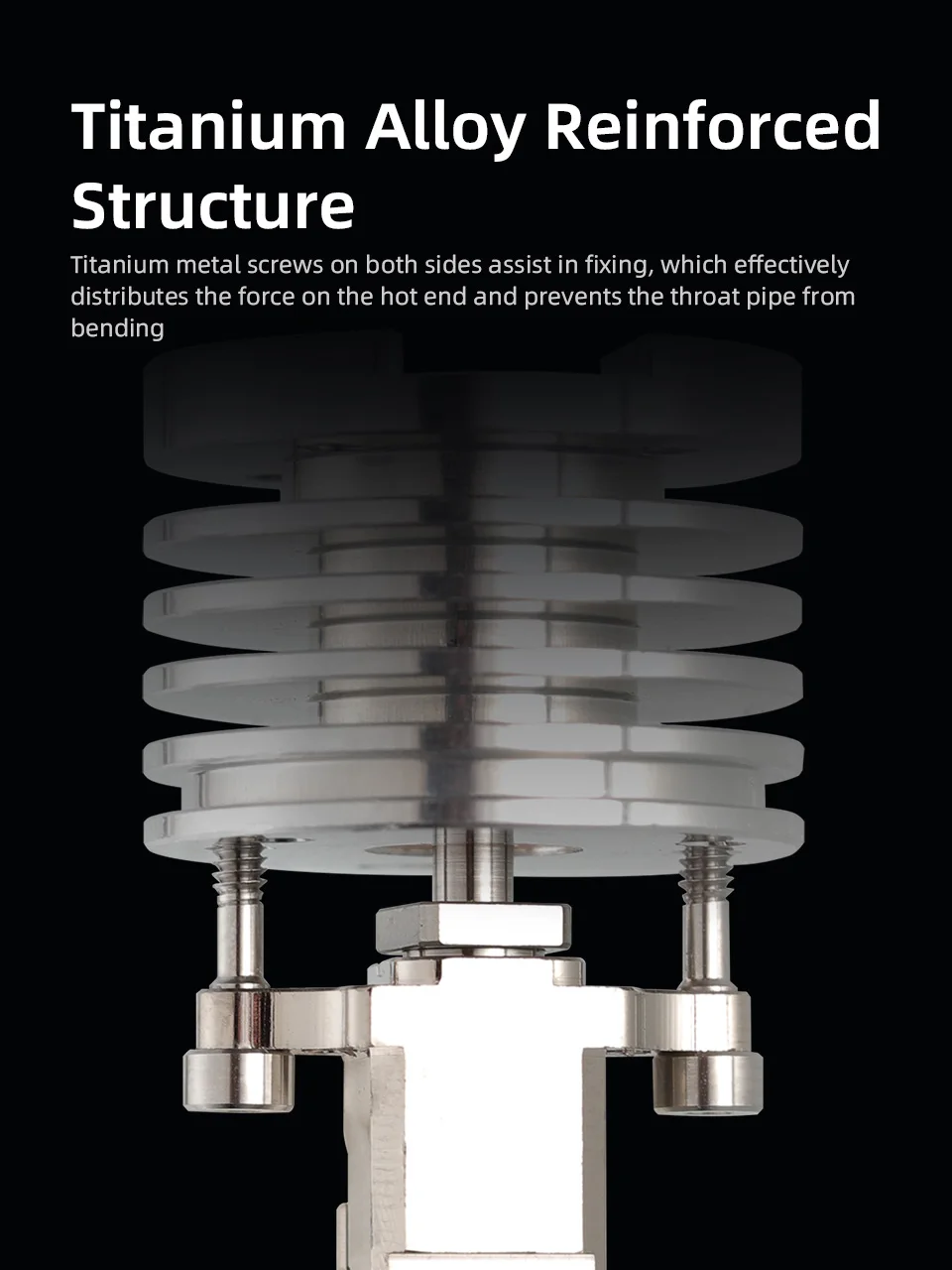

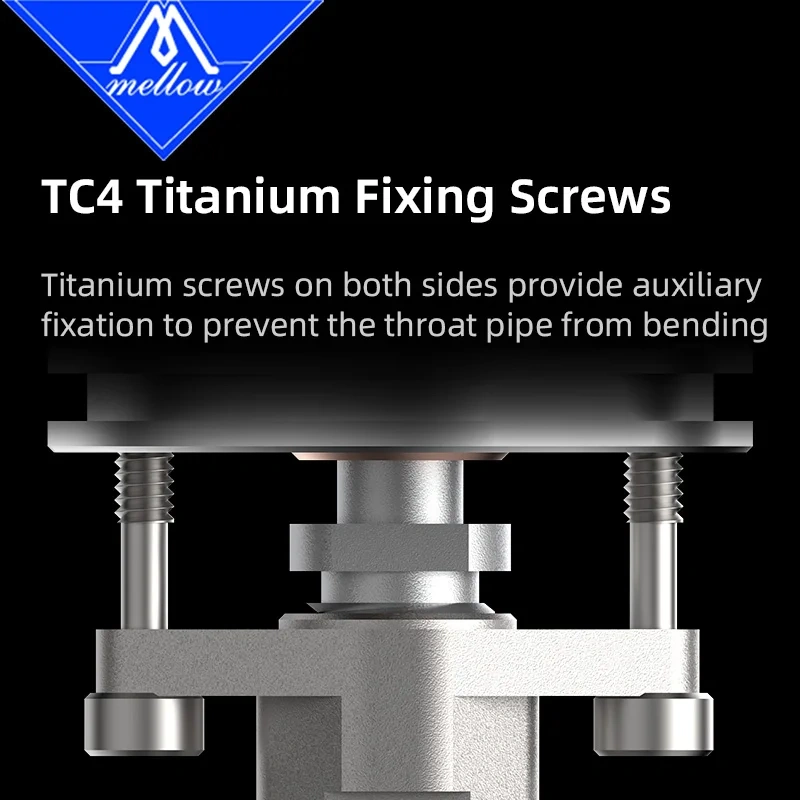

4. Titanium-Reinforced Structure

Innovative Screw Support Frame: Distributes mechanical stress on the hot end, improving reliability during long-term printing.

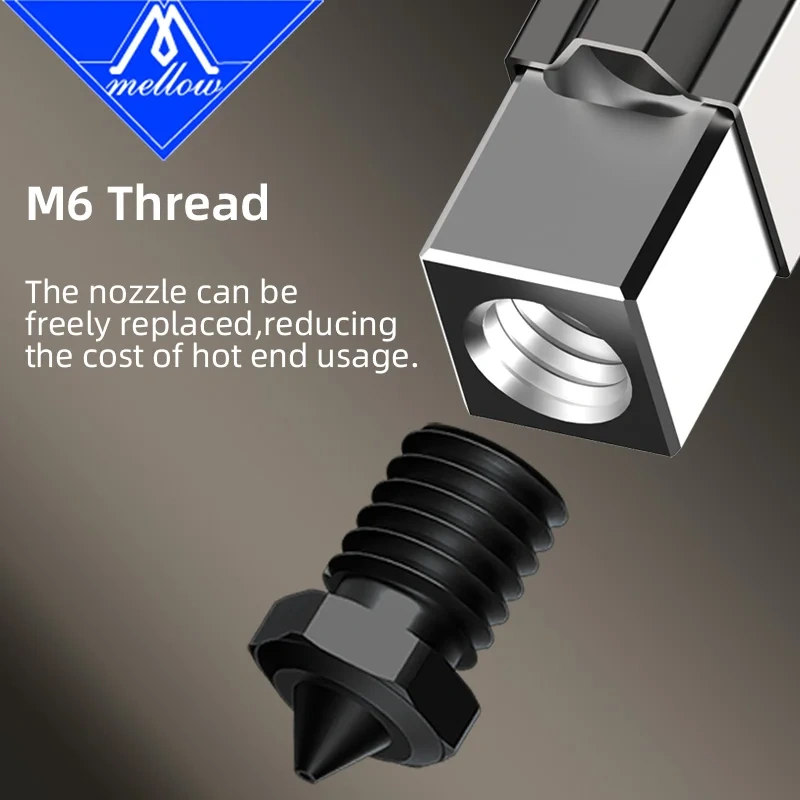

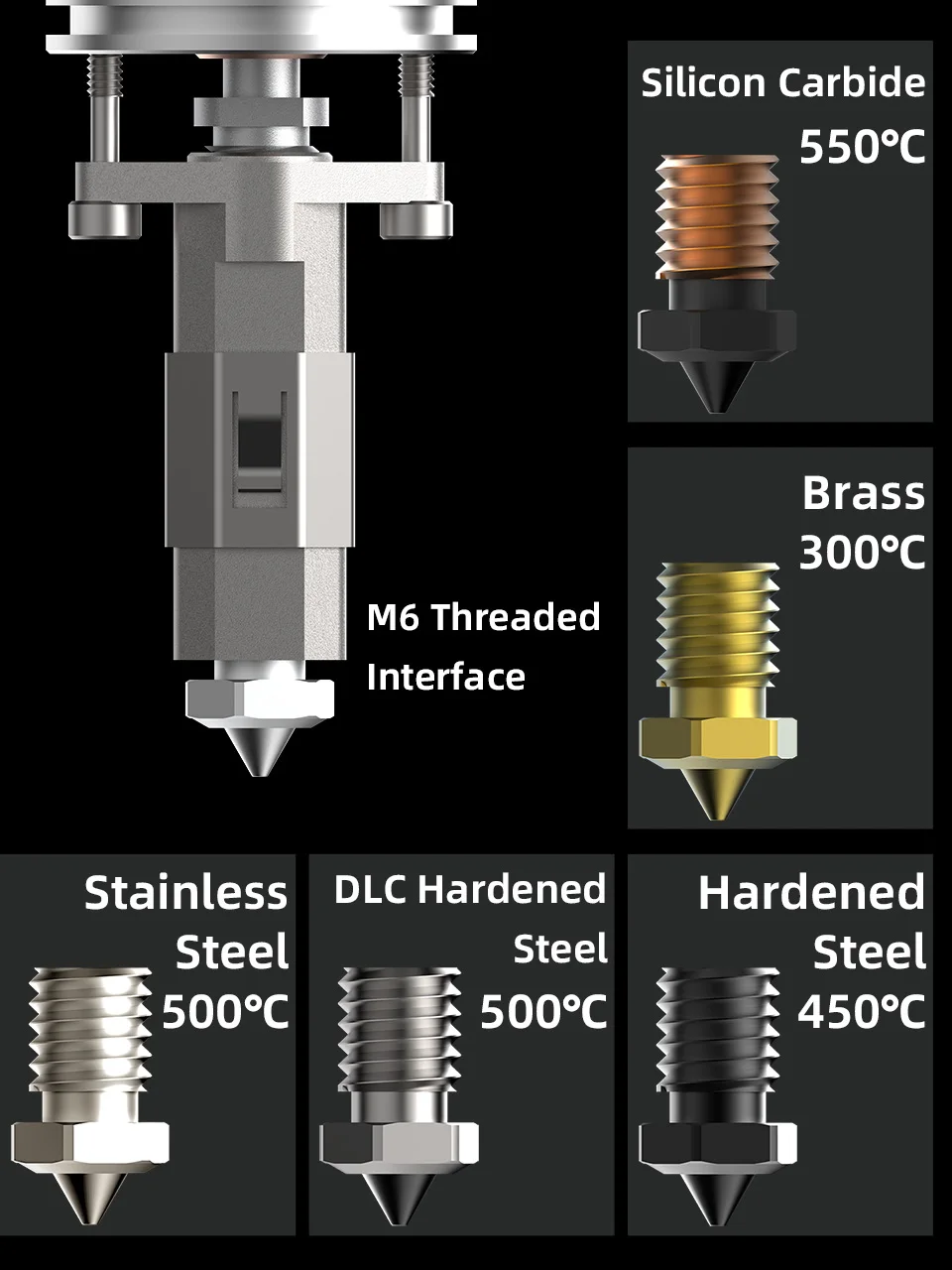

5. V6 Nozzle Compatibility

Standard copper nozzle: Easily interchangeable with hardened steel, tungsten carbide, or silicon carbide nozzles to accommodate abrasive or high-temperature consumables.

6. Excellent flow performance

> 40 mm³/s throughput: Ensures stable material feeding during high-speed printing, maximizing production efficiency.

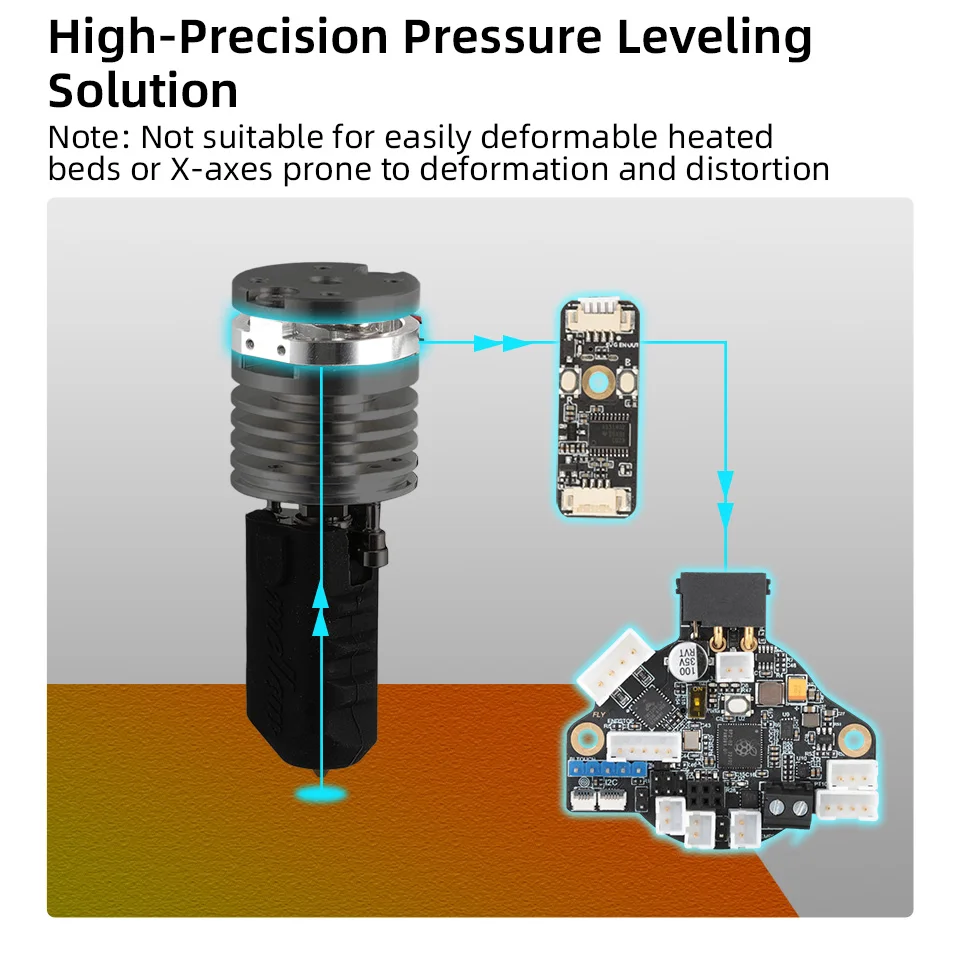

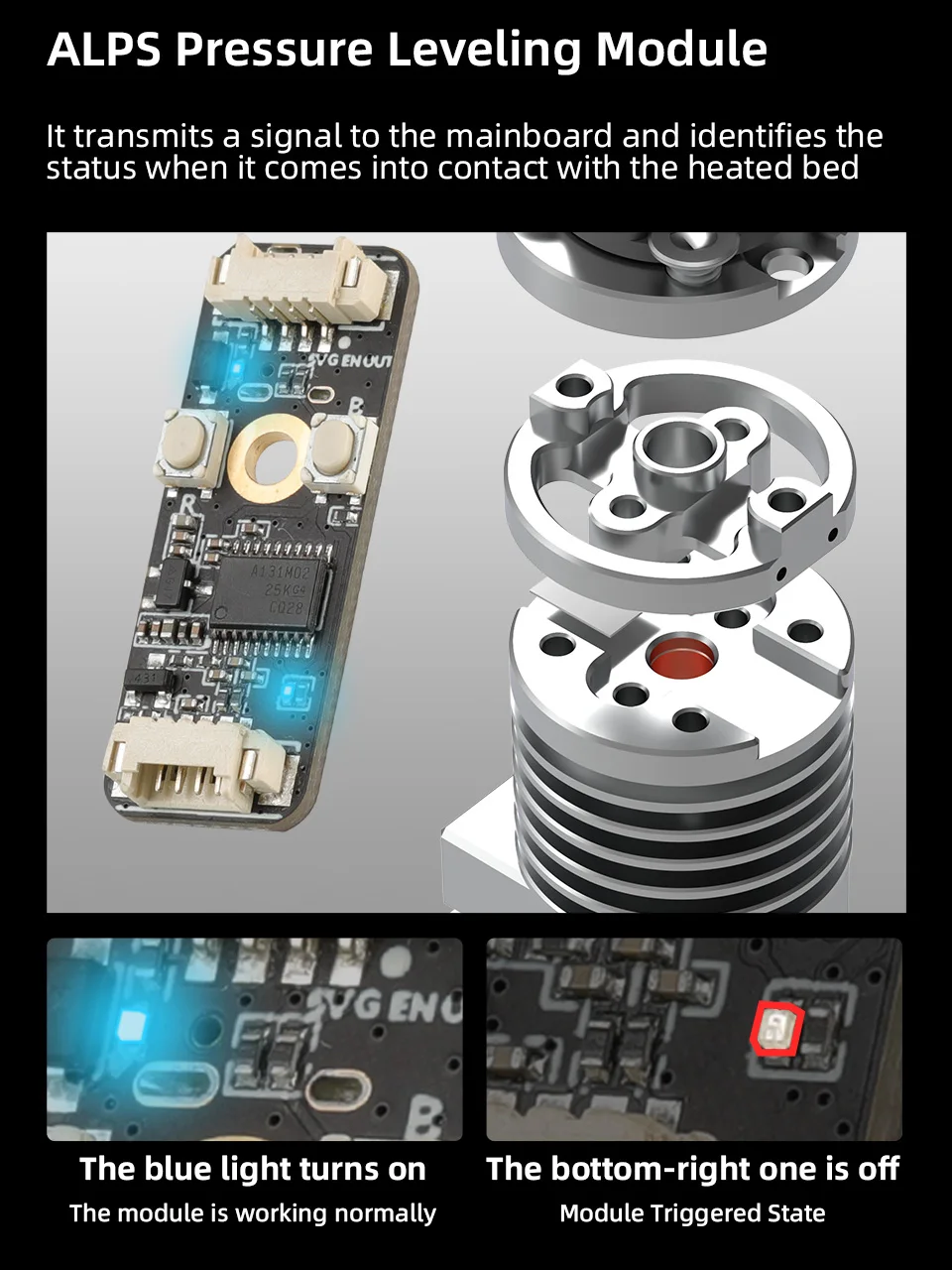

Highlights of the ALPS Pressure-Based Leveling Module

• Nozzle Calibration Probe

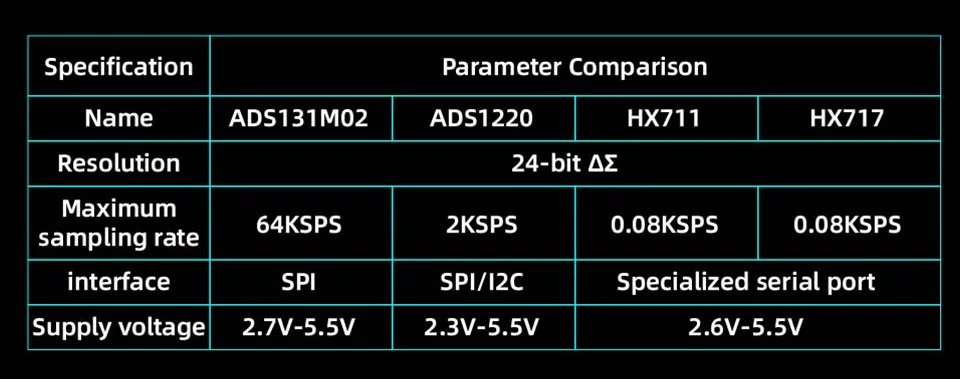

1. 24-Bit High-Precision ADC

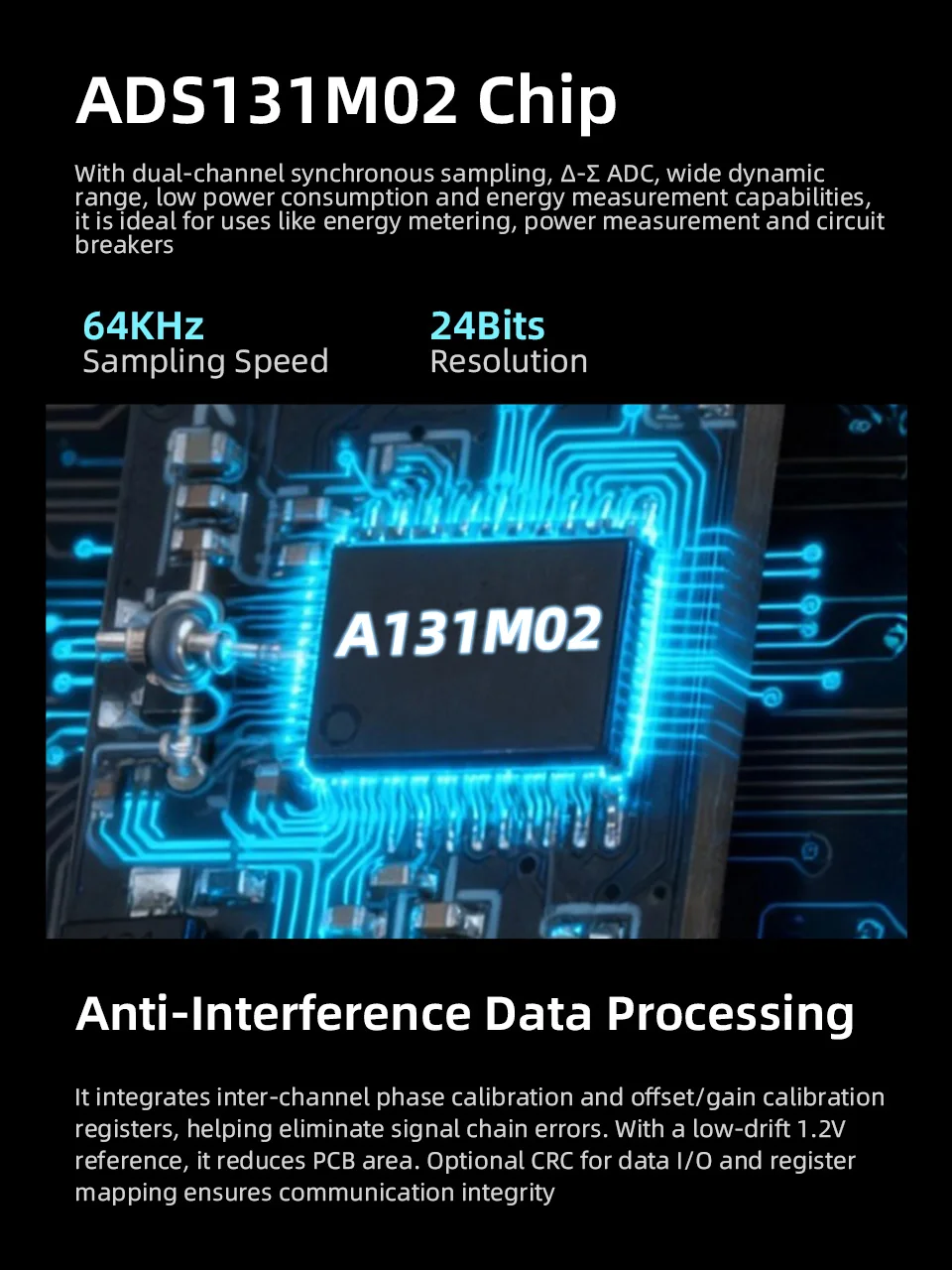

• ADS131M02 Chip: Sampling at 64 kHz to detect minute pressure changes, outperforming HX711-based sensors.

2. On-Chip Signal Amplification

• 128× Gain: Enhances sensitivity and signal-to-noise ratio for reliable bed triggering.

3. Advanced Noise Reduction

• Low-Drift Reference & Kalman Filtering: Slashes measurement error by over 90 %, delivering ultra-stable readings.

4. Plug-and-Play Threshold Adjustment

• USB Interface: Allows real-time threshold tuning on a PC—no coding or firmware tweaks required.

5. Broad Firmware Compatibility

• Modular Integration: Works seamlessly with Klipper, Marlin, RRF, and other popular firmwares for custom pressure-based leveling workflows.

We provide a 1.5 meter cable for the ALPS module to connect directly to the motherboard Uart interface.

ALPS refers to this URL: https://mellow.klipper.cn/en/docs/ProductDoc/ExtensionBoard/fly-apls/?persistLocale=true

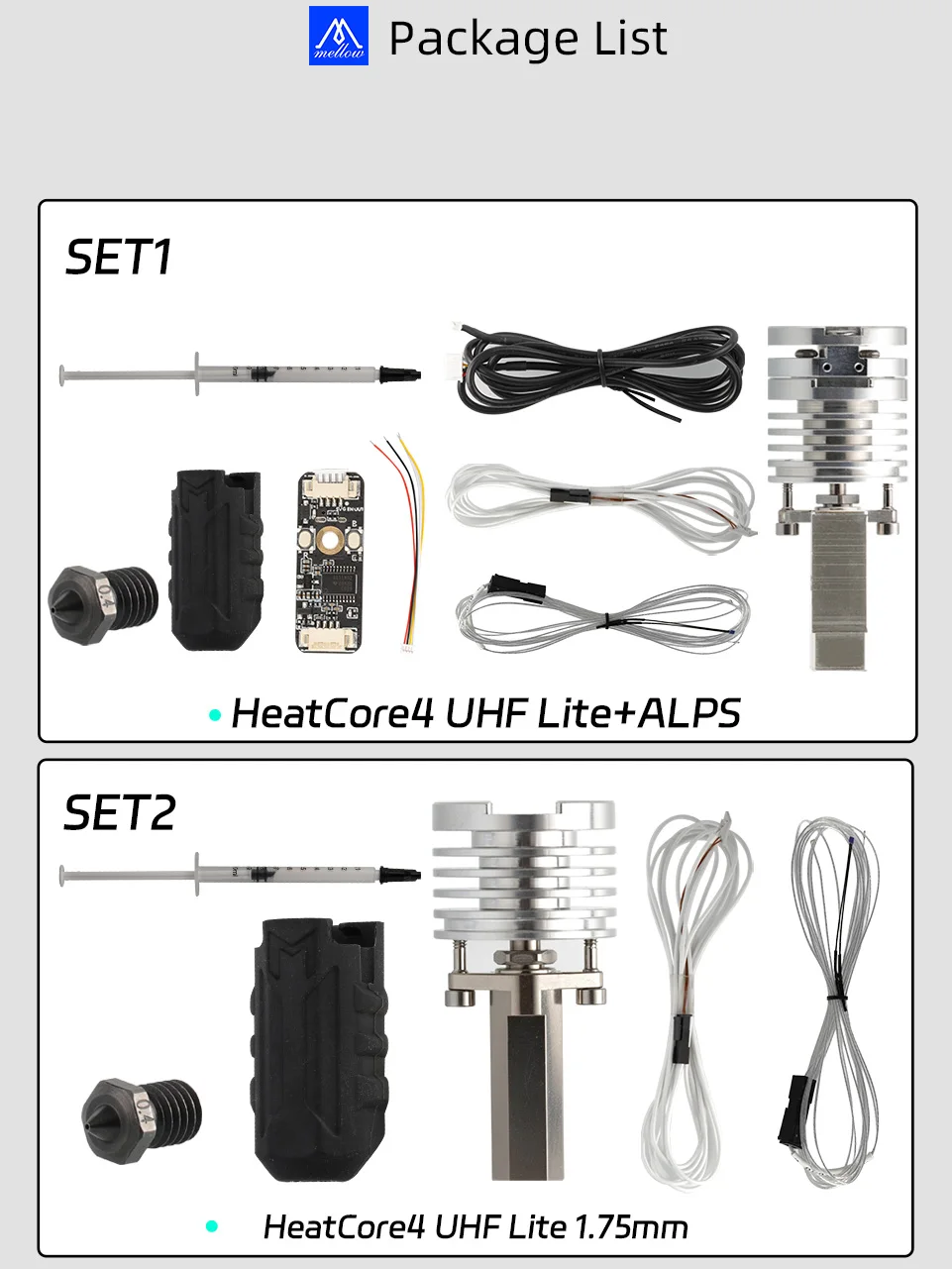

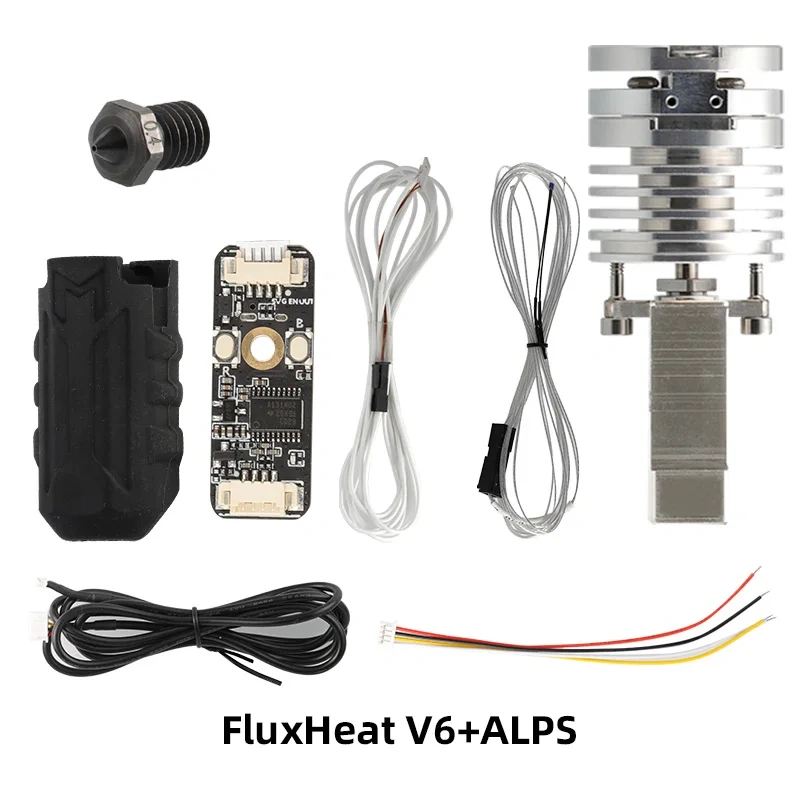

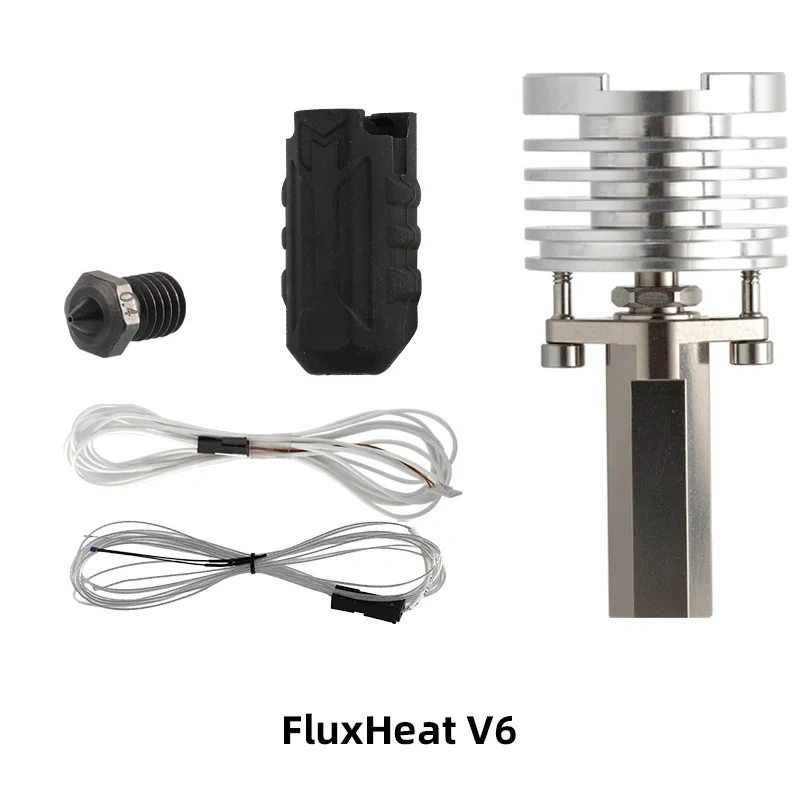

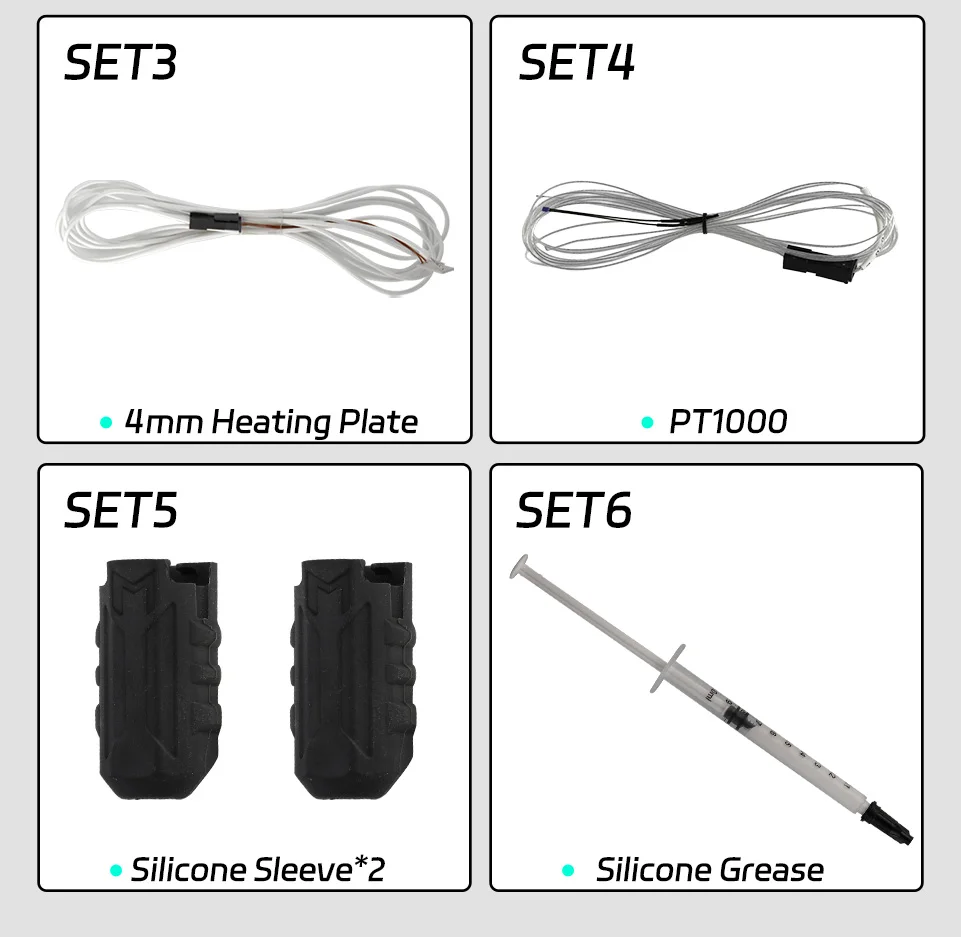

Package:

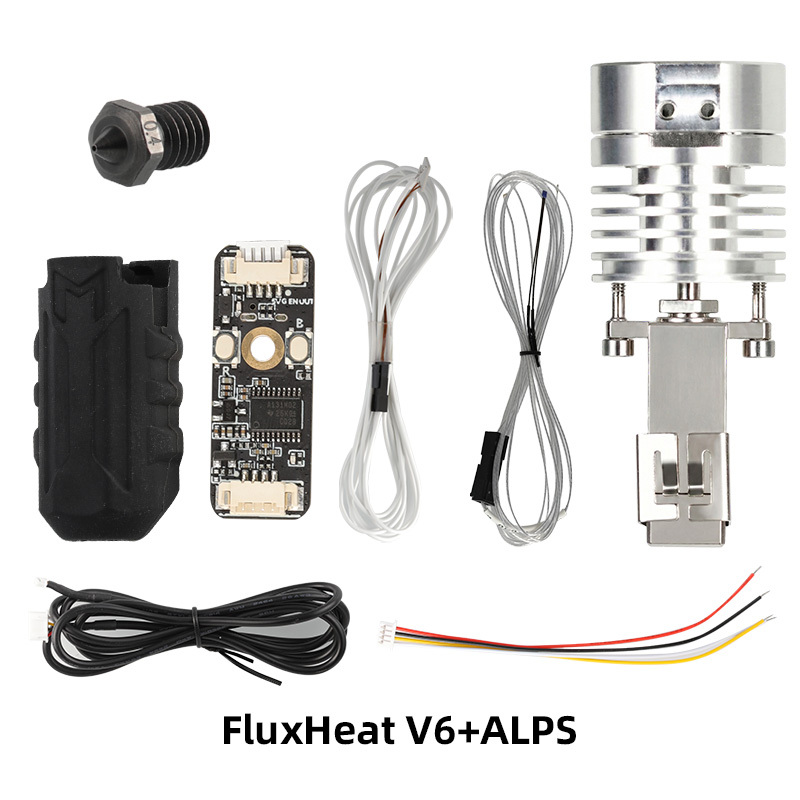

Set1

Set2

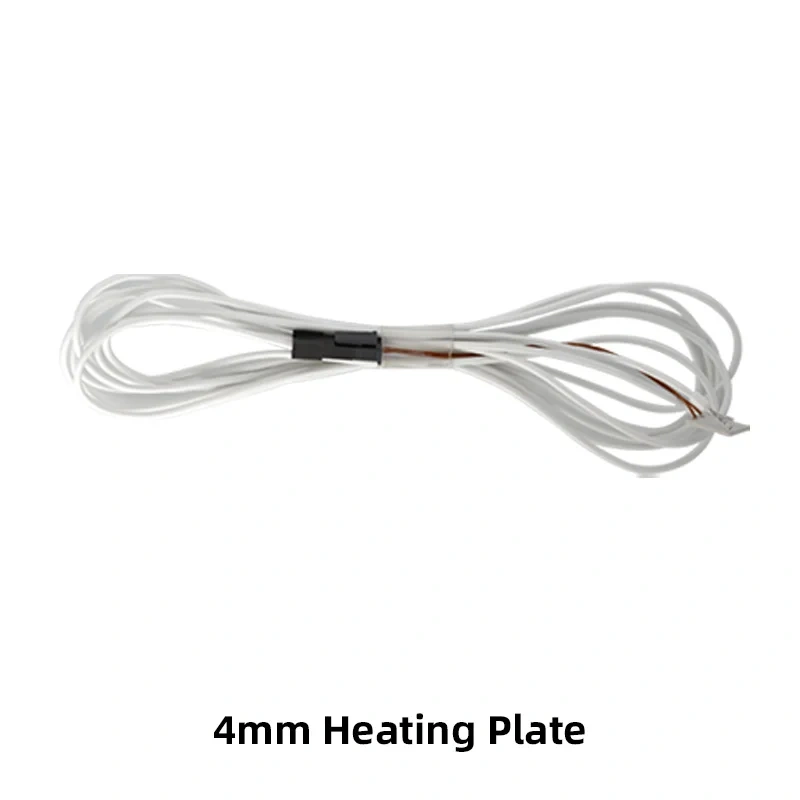

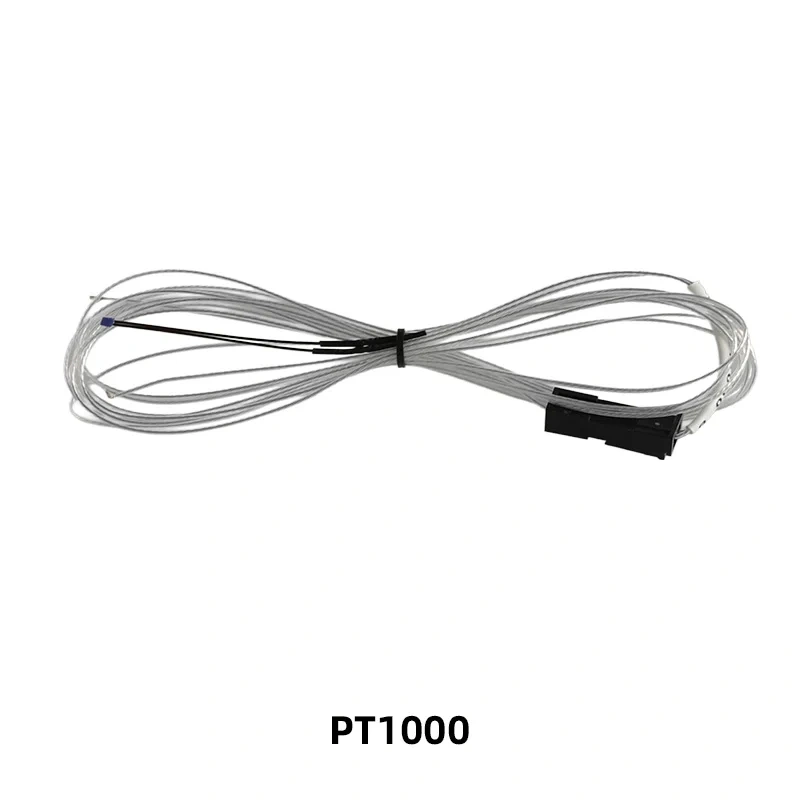

NN PT1000 Temperature Sensor*1

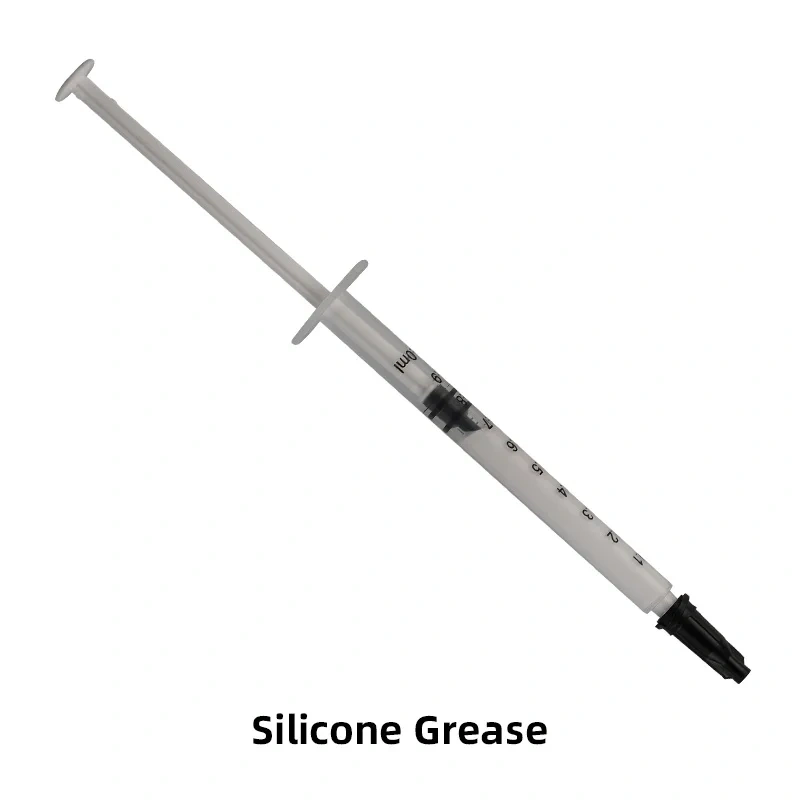

High performance thermal grease*1

Set3

96w High performance Heater*1

Set4

NN PT1000 Temperature Sensor*1
