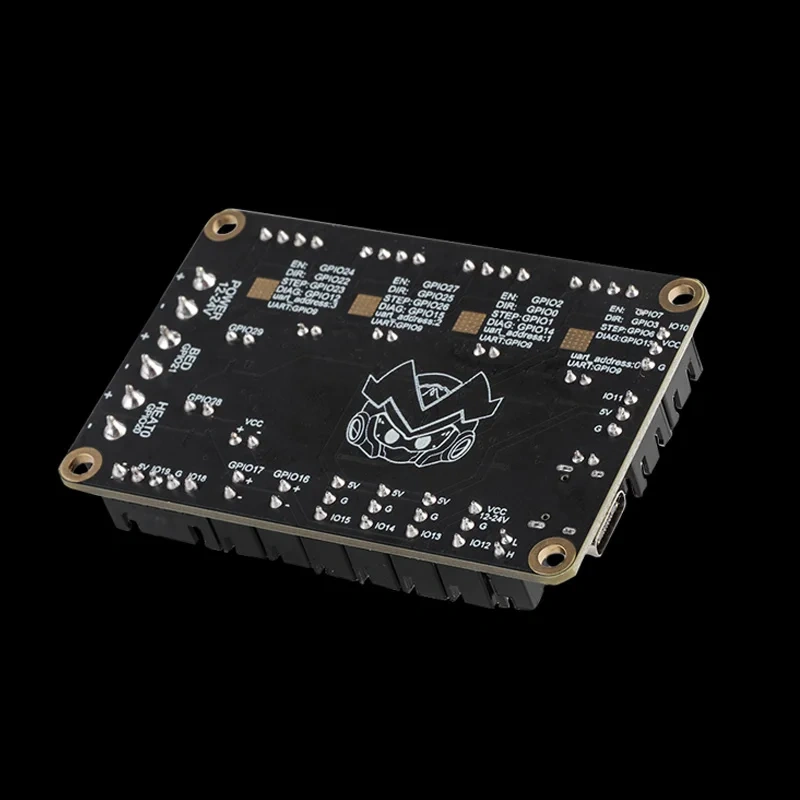

Mellow Fly Micro 4 V1.0 Board HV 4 Axis 32Bit Raspberry Pi RP2040 For Uart TMC2209 3D Printer, Klipper Canbus Voron V0.1 Ender3

SKU: 20MICRO4

Please note before placing your order:

All our prices are exclusive of taxes; you are responsible for declaring and paying any applicable tax.
If you require UPS, FedEx, TNT, or DHL shipping, please contact us in advance so we can discuss the freight arrangements.

For technical inquiries, please email: service@3dmellow.com
For sales inquiries, please email: sale@3dmellow.com

0.0

0 Sold

$24.85

Received successfully

Coupon Code

Description

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you a better overall user experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

1Description

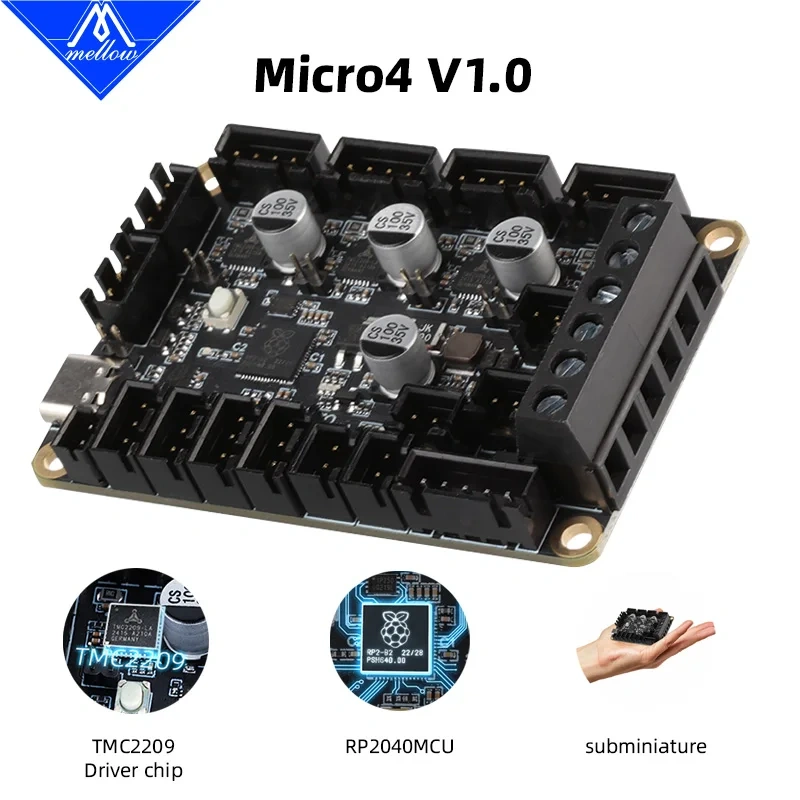

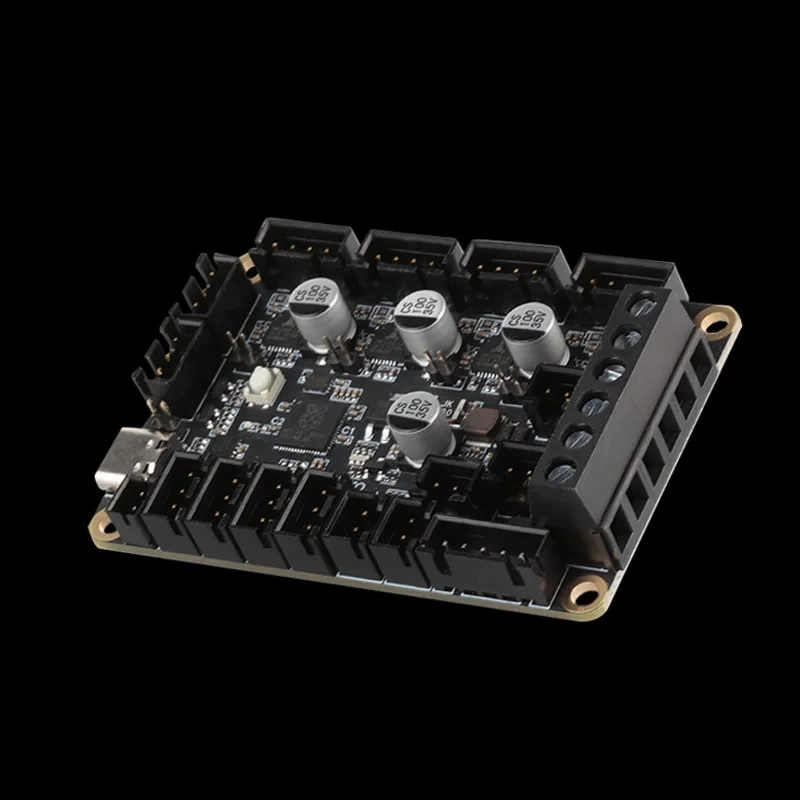

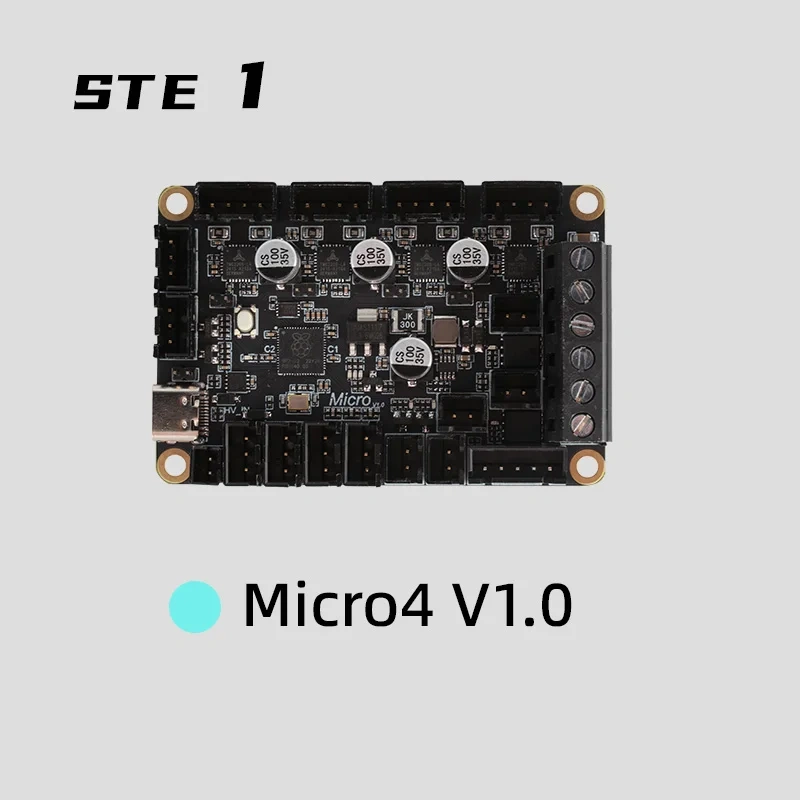

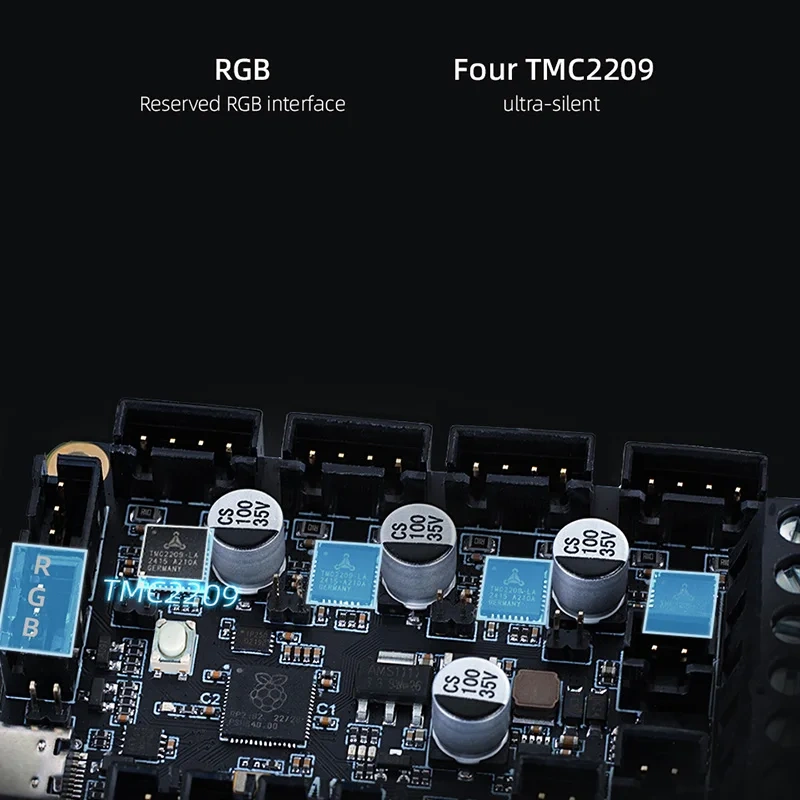

The Fly Micro4 is a compact 3D printer motherboard equipped with four 2209 drivers supporting sensorless homing. It includes heating and temperature measurement for both the print head and heated bed. It can use BLTouch and metal proximity switches for automatic bed leveling. With a CAN interface, it can connect to CAN tool boards. The four endstop connections fulfill the basic requirements for a 3D printer, making it suitable for DIY projects or converting existing machines.

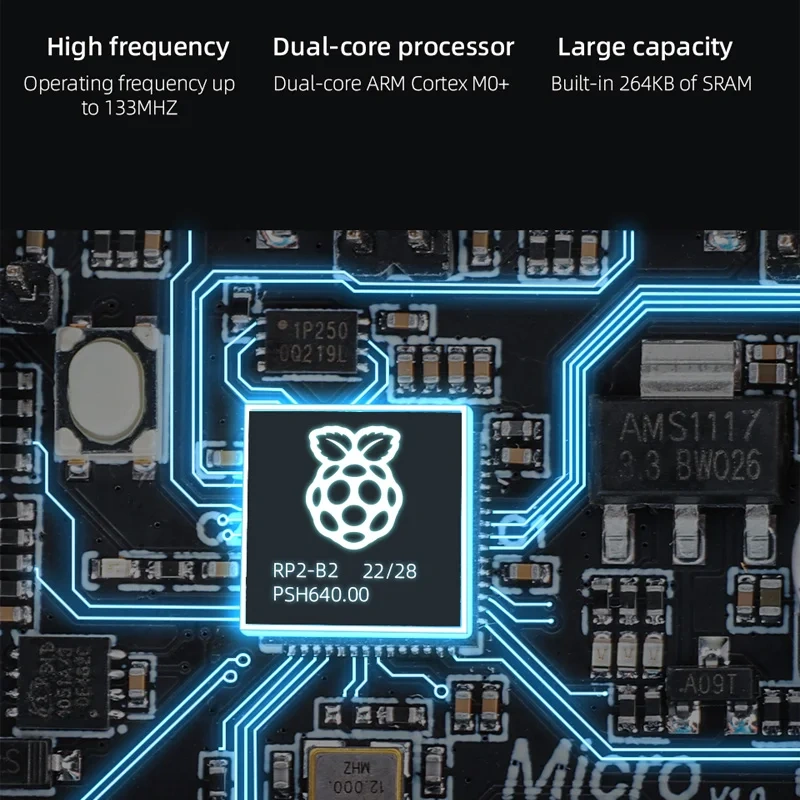

MCU: Raspberry Pi RP2040, Dual Core ARM Cortex-M0+ @ 133MHz

Firmware: Klipper

Supports 12-24V DC power input, providing more stable power and eliminating the need for a step-down module.

Driver operating modes: UART, STEP/DIR

Expansion interfaces: BLTouch (Servos, Probe), Proximity Switch X1

Fans: Two controllable 2-wire fans, One always-on fan

Temperature sensors: 2 NTC 100K channels

Heating interfaces: 2 controllable interfaces supporting 10A

Klipper firmware refer to this URL

mellow.klipper.cn

Web generation machine configuration, do not need to know programming

https://teamgloomy.github.io/Configurator
