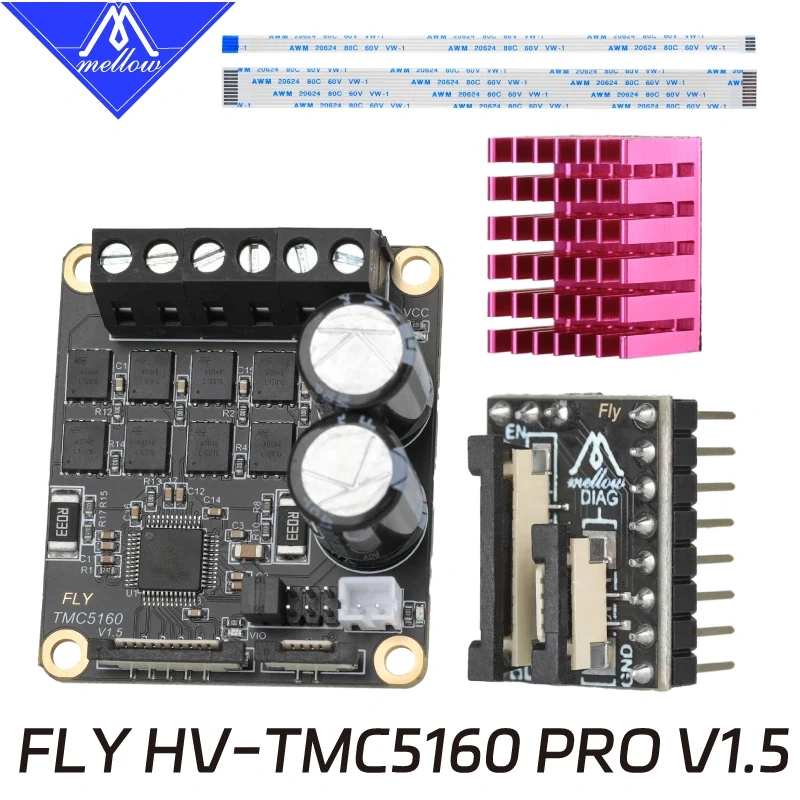

1Description

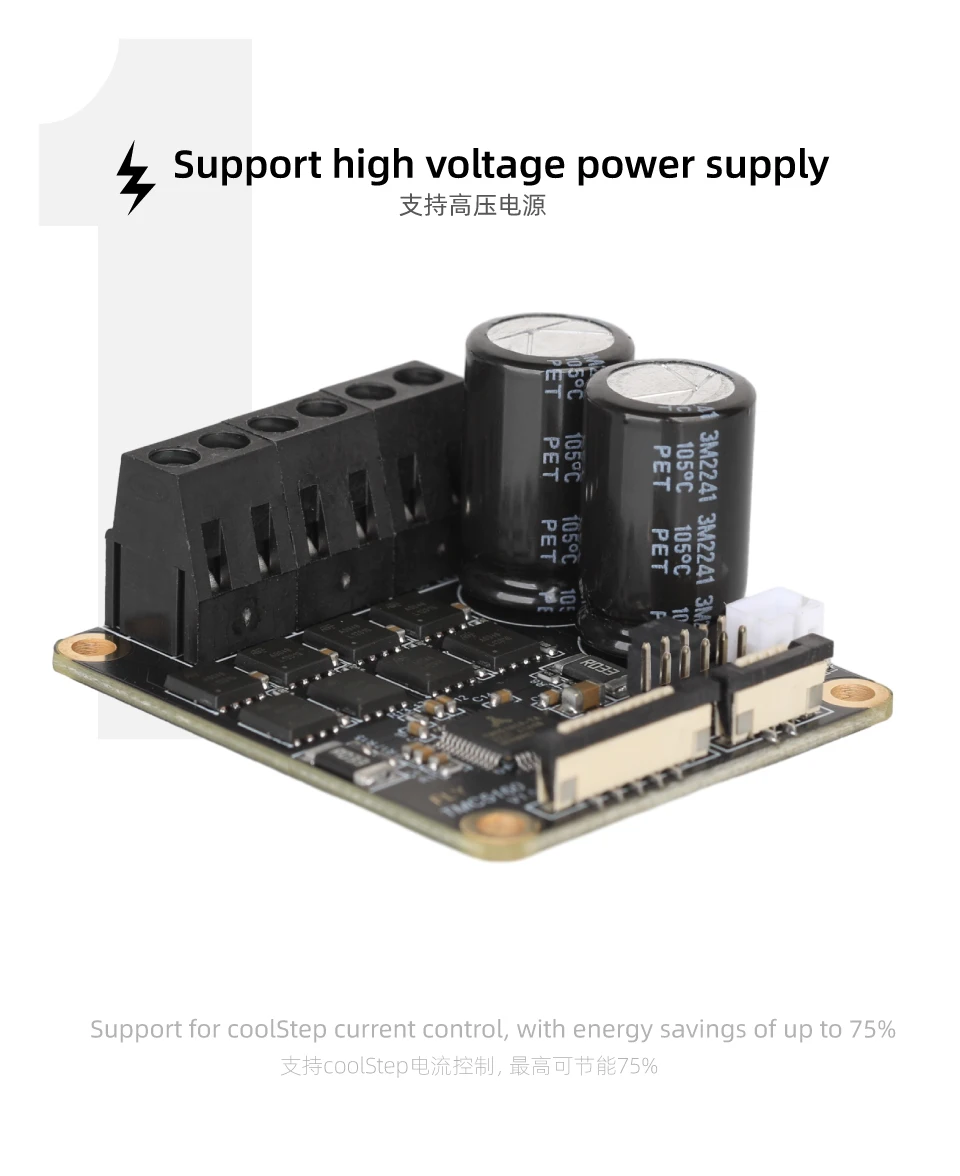

The HV-TMC5160 Pro V1.2 driver is made according to customer requirements. In order to meet customer requirements, we have designed a high voltage to support 48V voltage, but high voltage represents a greater risk. We do not recommend customers with no technical experience to use 48V voltage.And 24V has satisfied most customers.

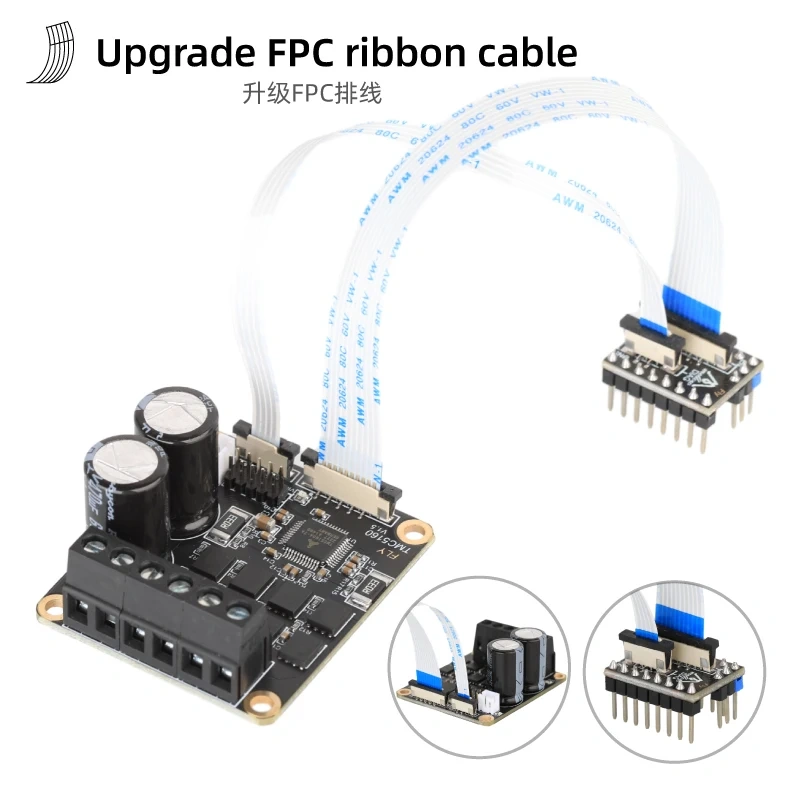

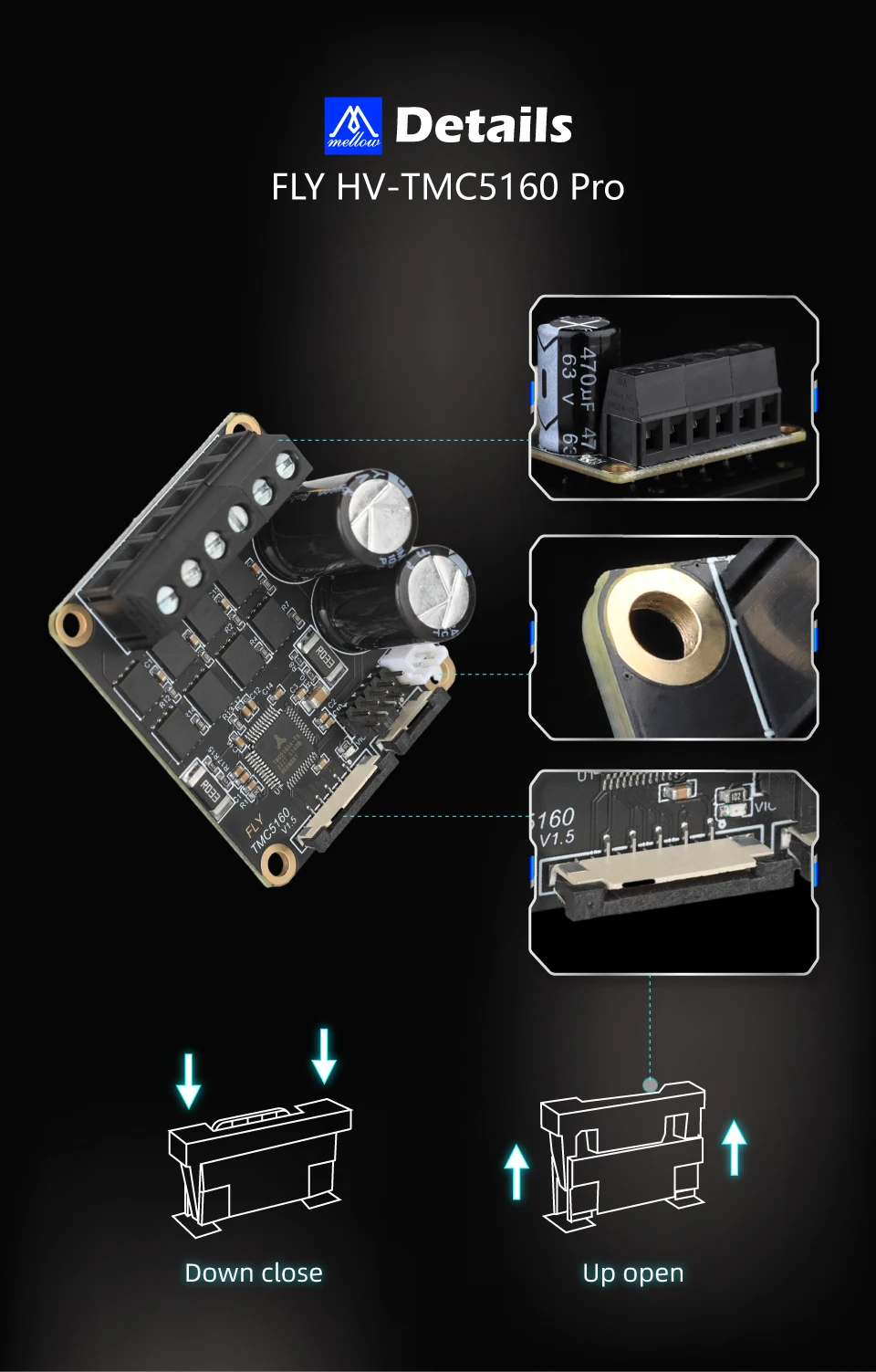

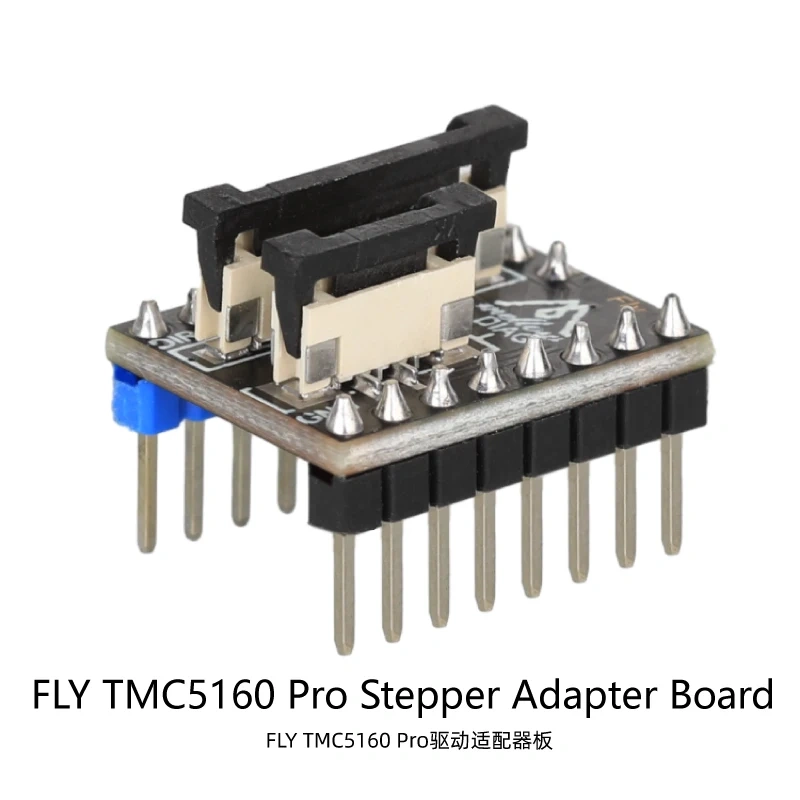

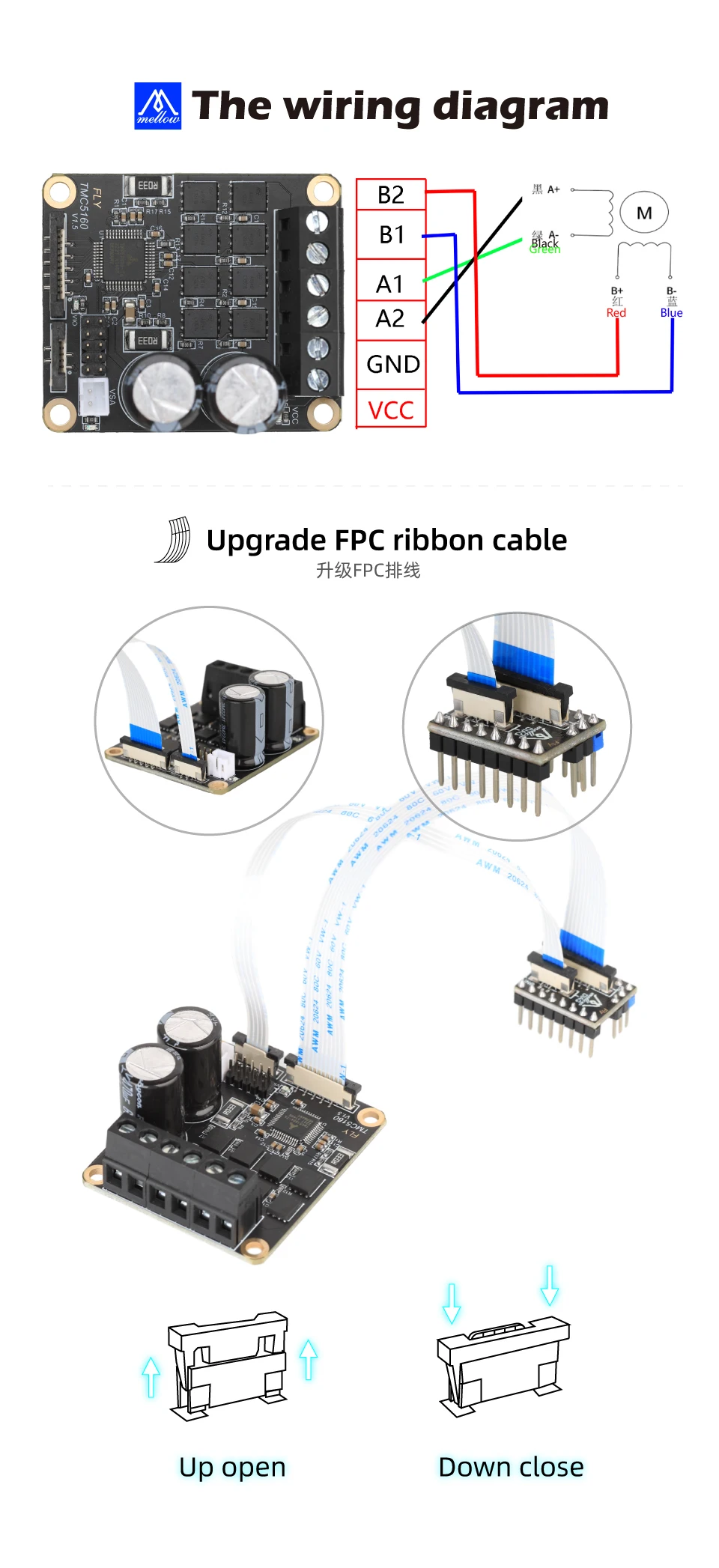

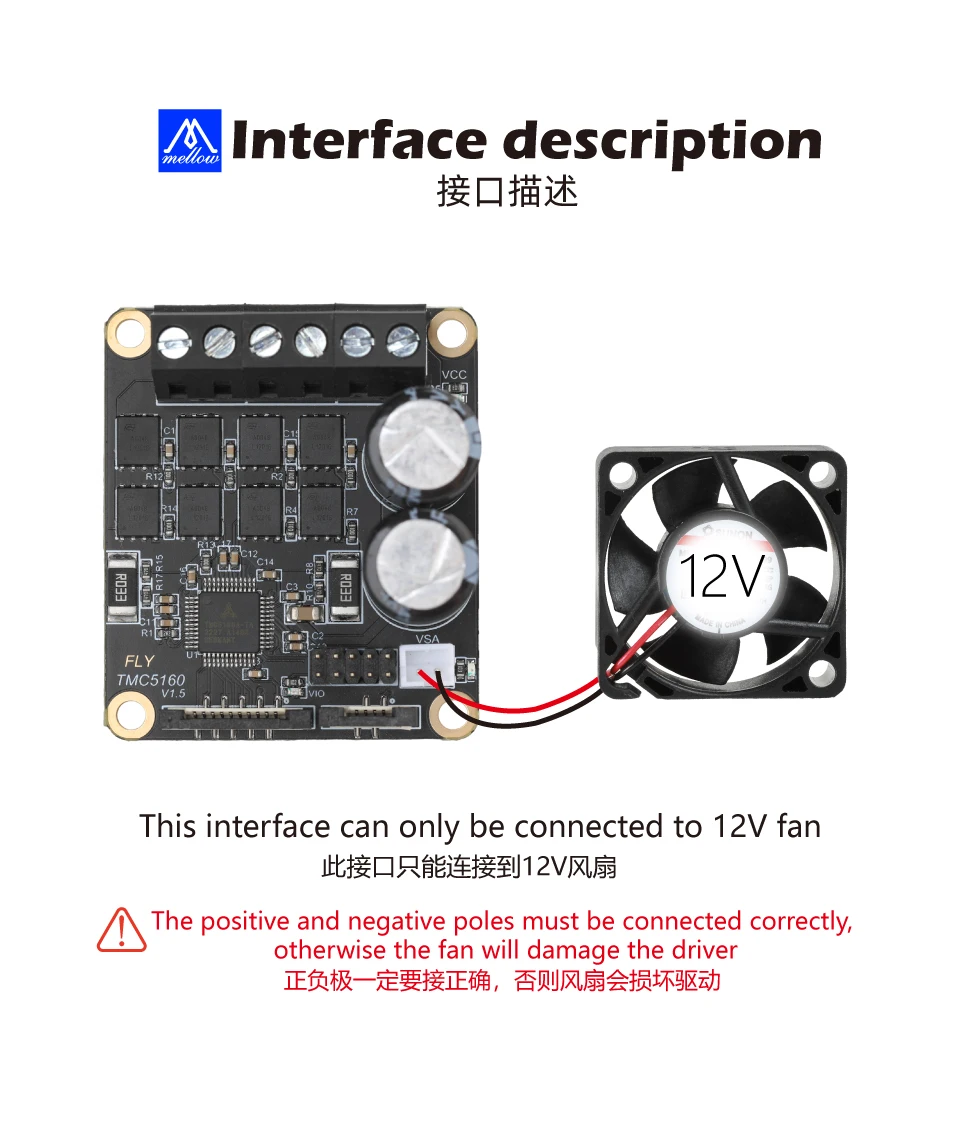

Add a separate VSA power supply port, VSA power supply uses 12V power supply by default, add a 470uf capacitor.The matching small module adds a 12V power supply chip to supply 12V to the vsa of the 5160 chip.Of course, a larger voltage means that a larger motor can be used, which is of great help to the moving speed of the 3D printer. Please select the operating voltage with safety as the first criterion.

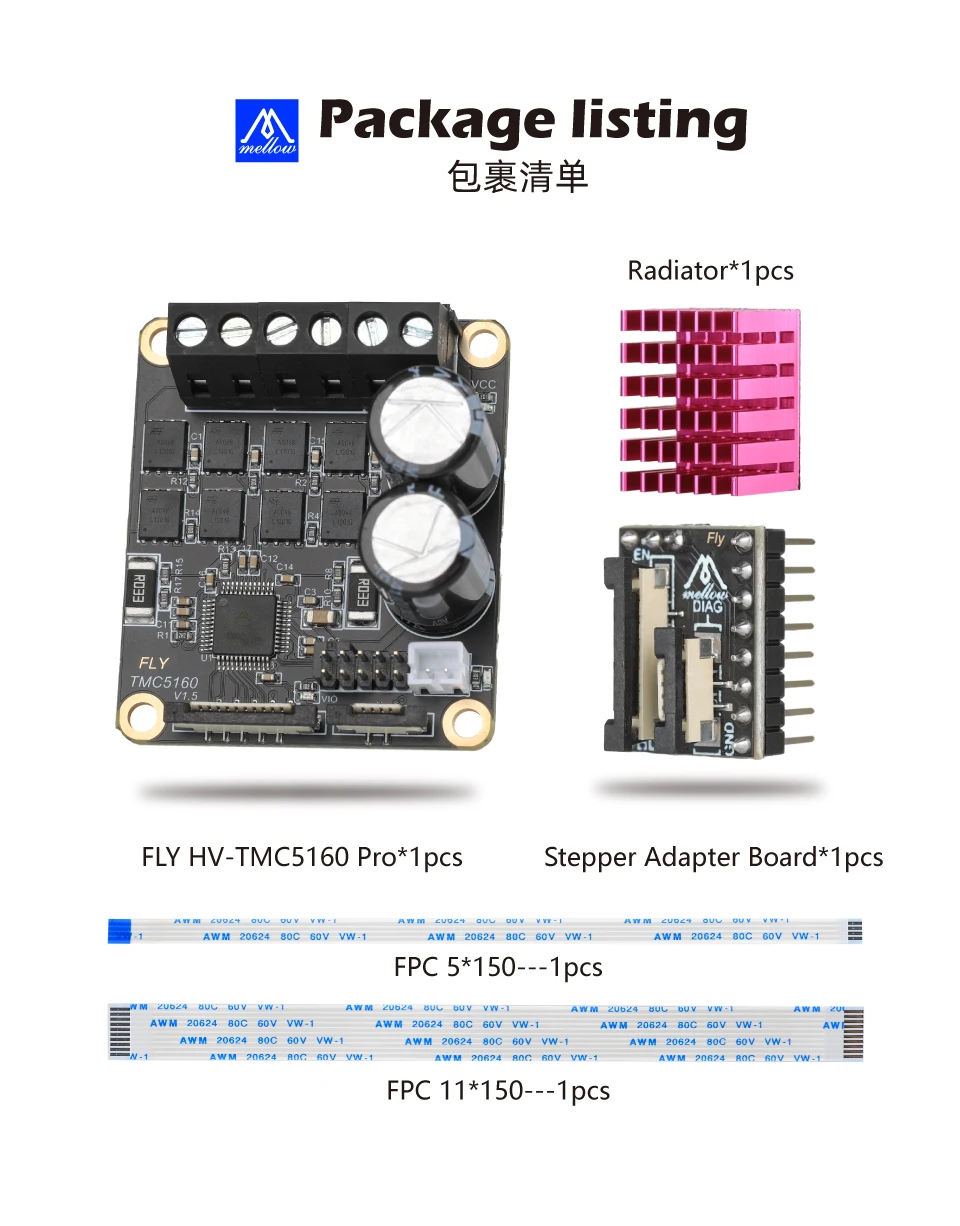

Product parameters

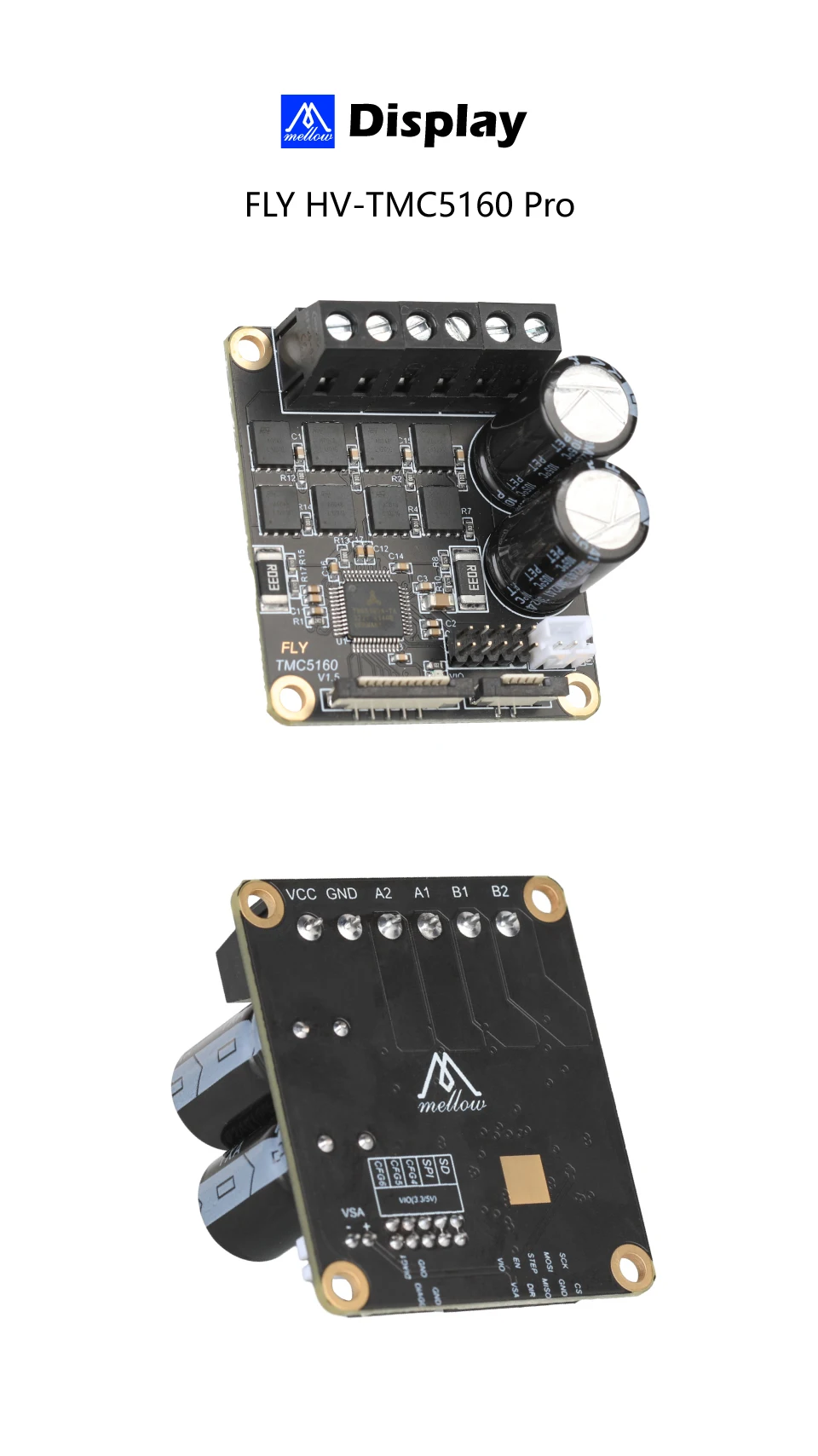

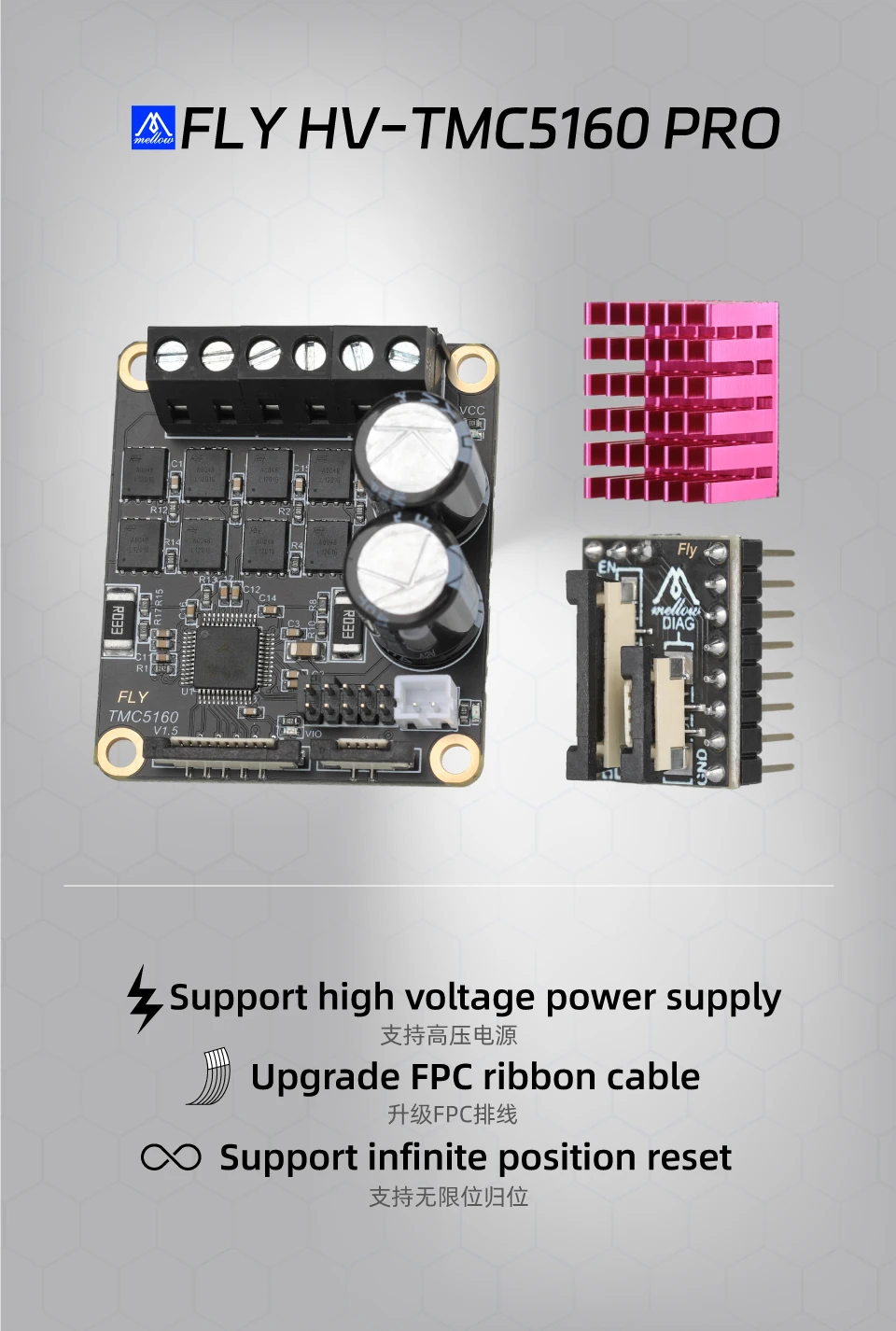

Product name: FLY HV-TMC5160 PRO V1.2
Features: External high voltage TMC5160 drive
Input voltage: 24-48V
Maximum current: 6
Apply to:Marlin/RRF/Klipper firmware
Product material: PCB copper 2oz thick, gold plated

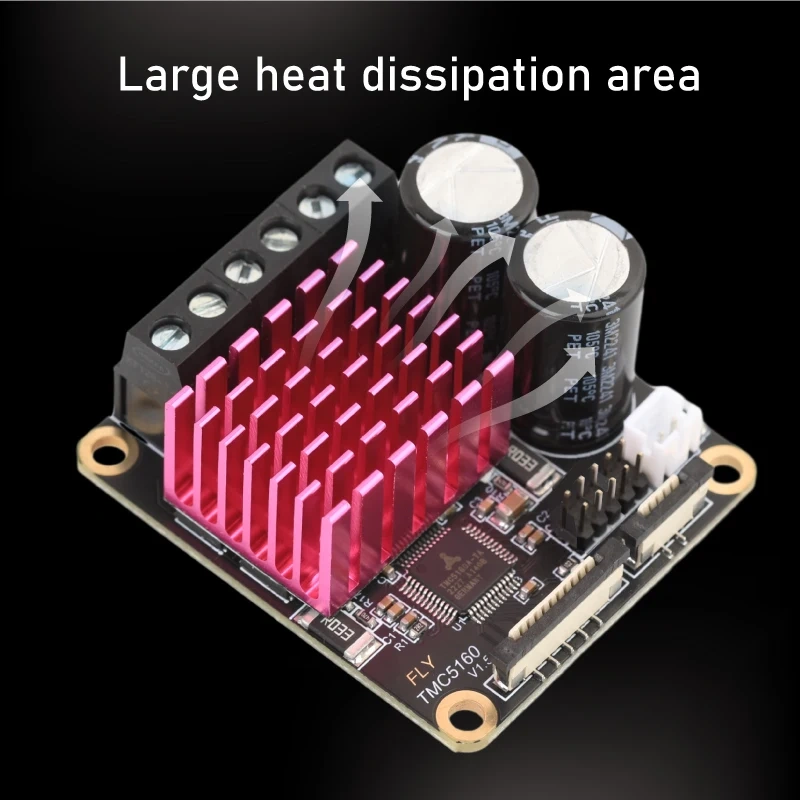

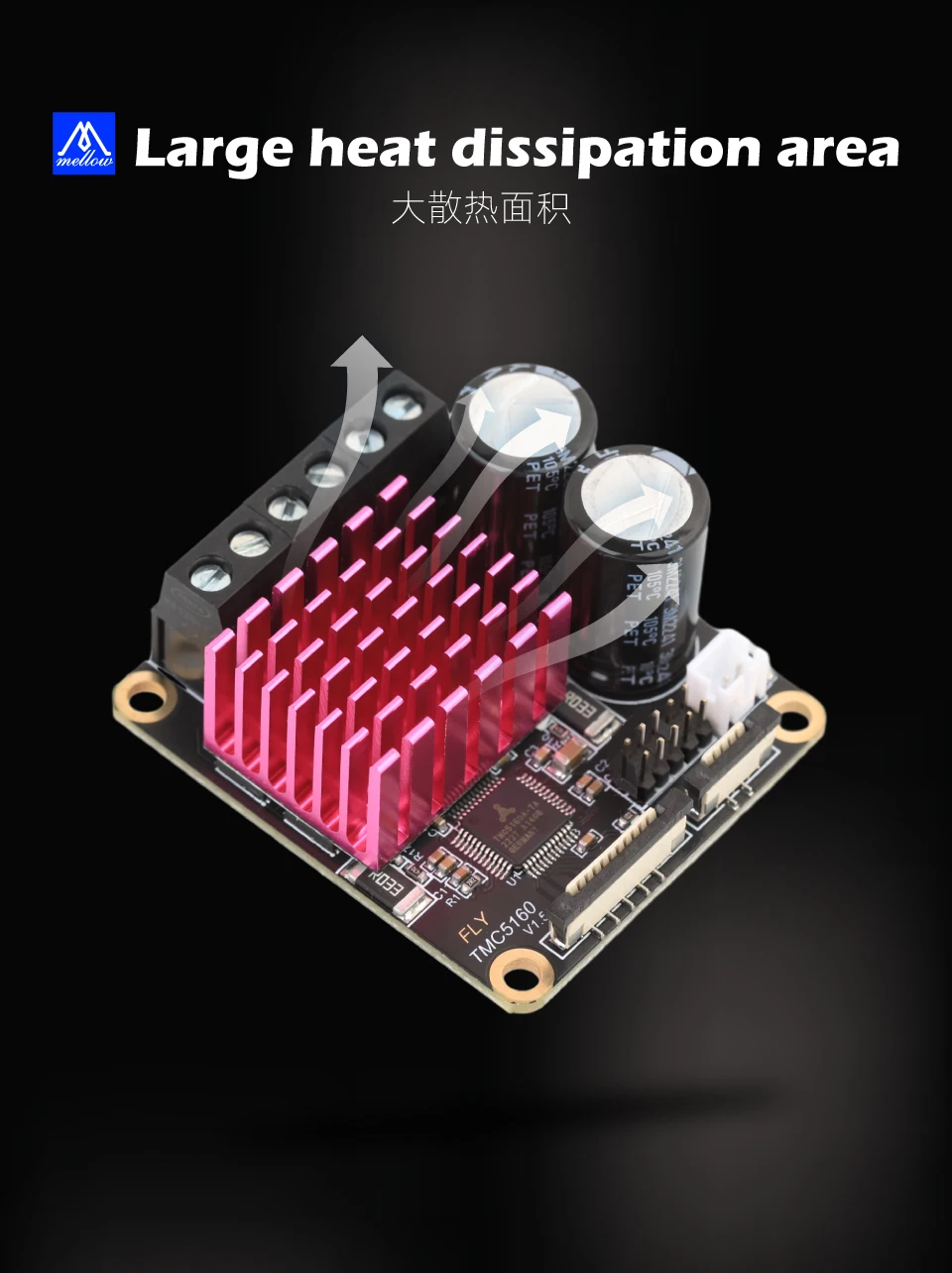

Advantages

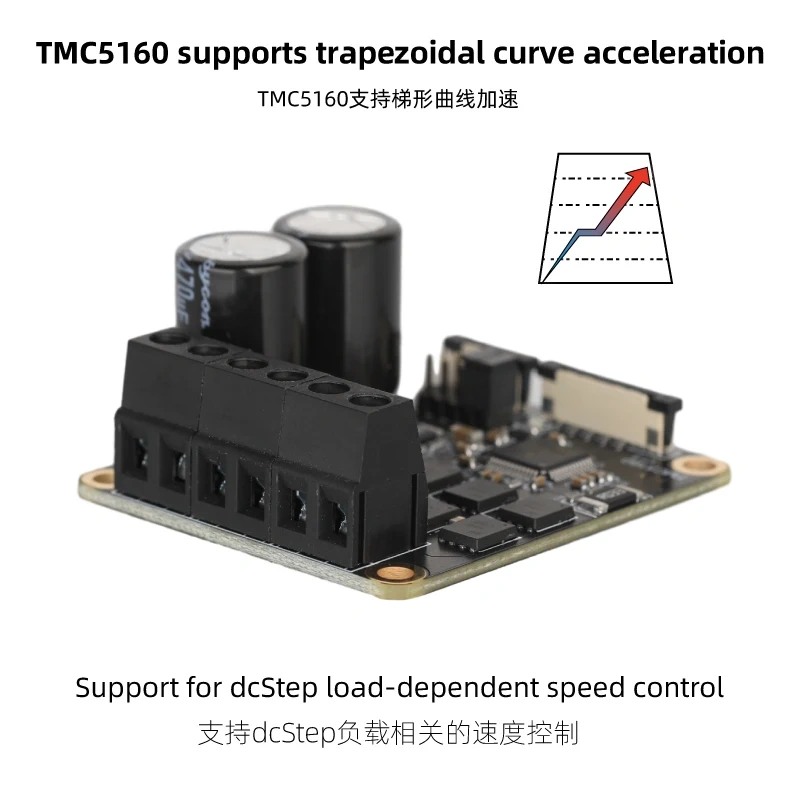

TMC5160 supports trapezoidal curve accelerationo
The TMC5160 benefits from a high-precision chopperalgorithm, No noise in operation, low common-shock
1 Step/direction interface with microstep interpolation microPlyer
2 The highest resolution is 256 subdivisions

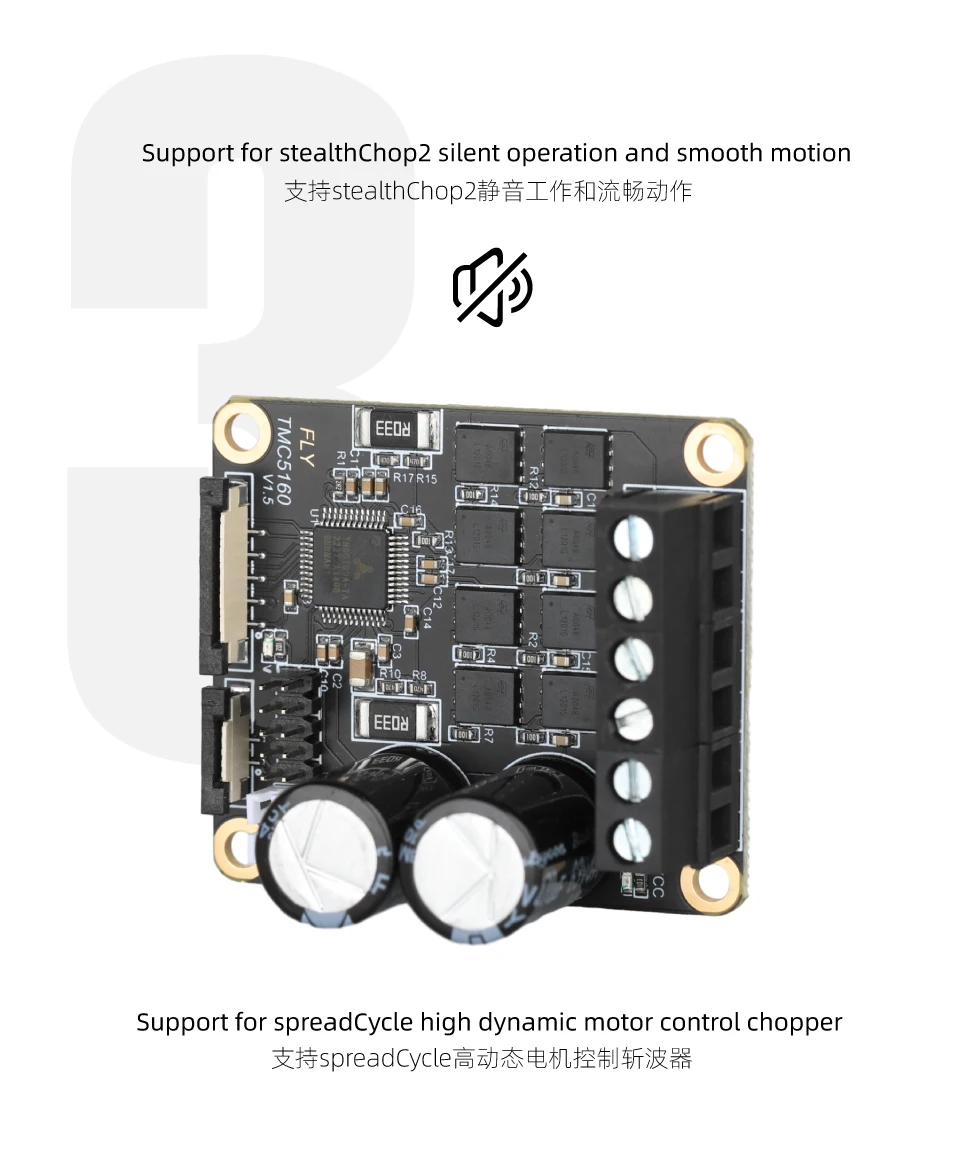

3 Support stealthChop2 silent work and smooth motion
4 Supports resonance suppression for mid-range resonance
5 Support spreadCycle high dynamic motor control chopper
6 Support dcStep load related speed control
7 Supports stallGuard2 high-precision sensorless motor load detection

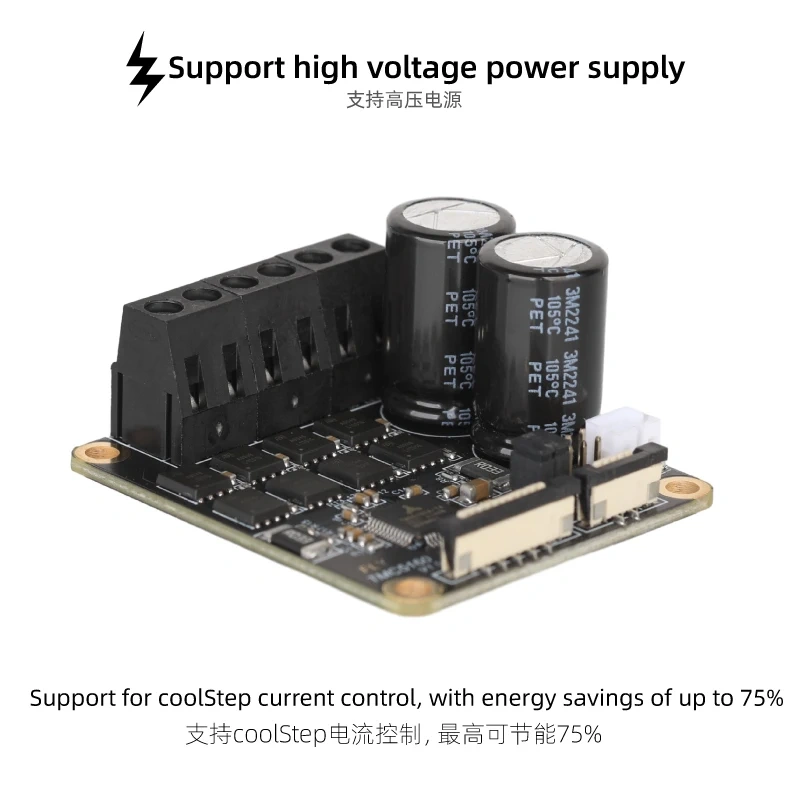

8 Support coolStep current control, which can achieve up to 75% energy saving
