1Description
The HV-TMC5160 Plus V1.0 driver meets the demand for 60V high voltage, but high voltage comes with greater risks. It is not recommended for customers without technical experience to use 60V. In fact, 24V is sufficient for most customers.

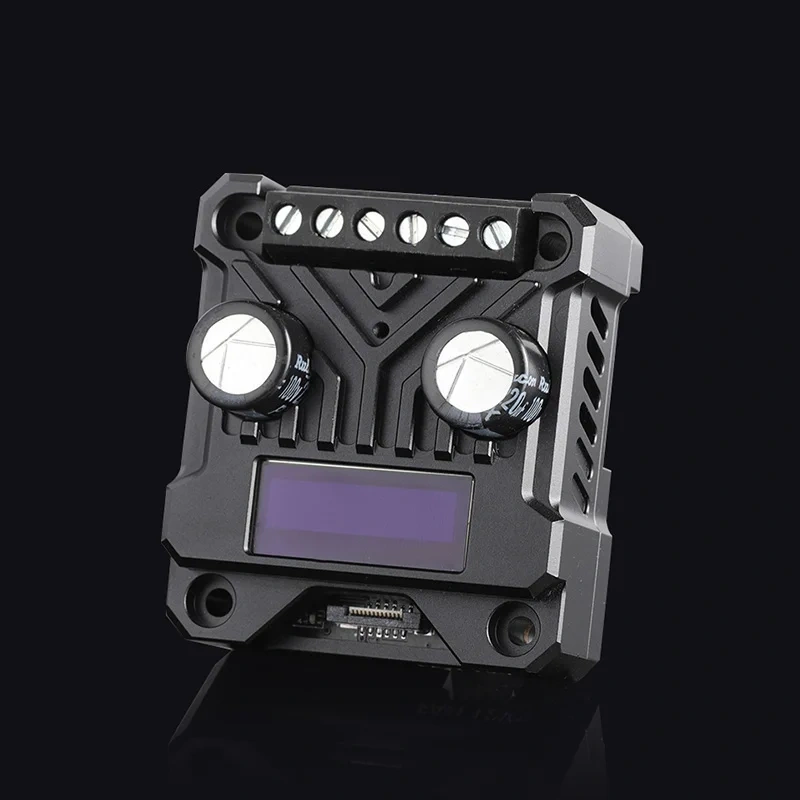

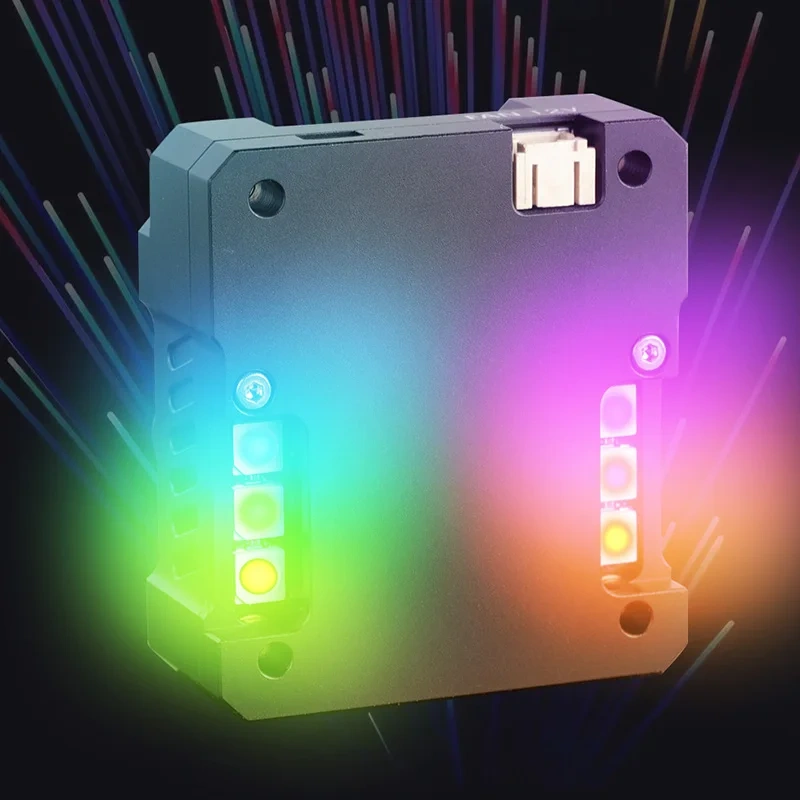

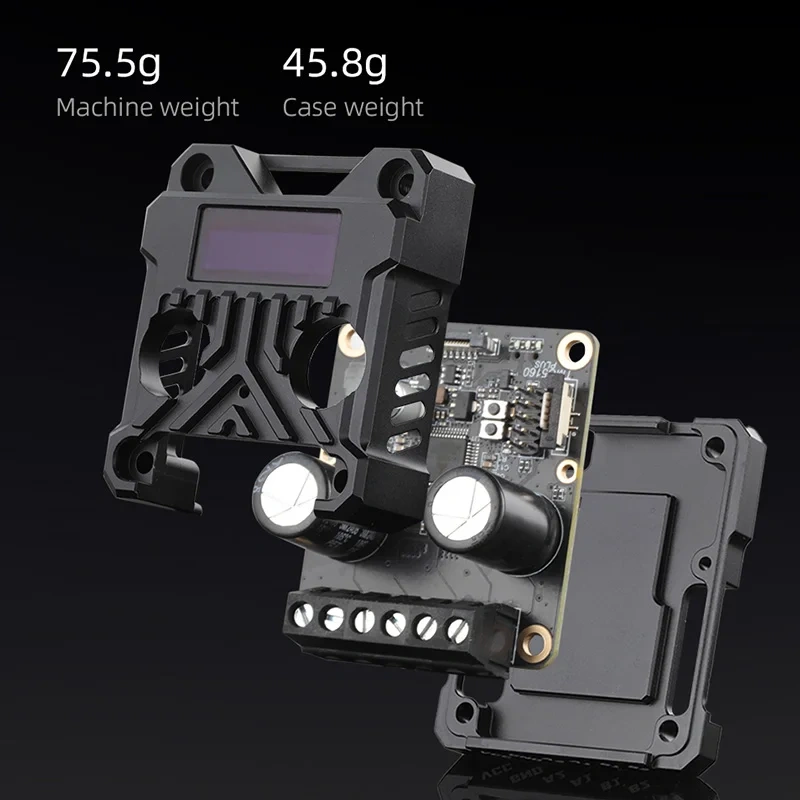

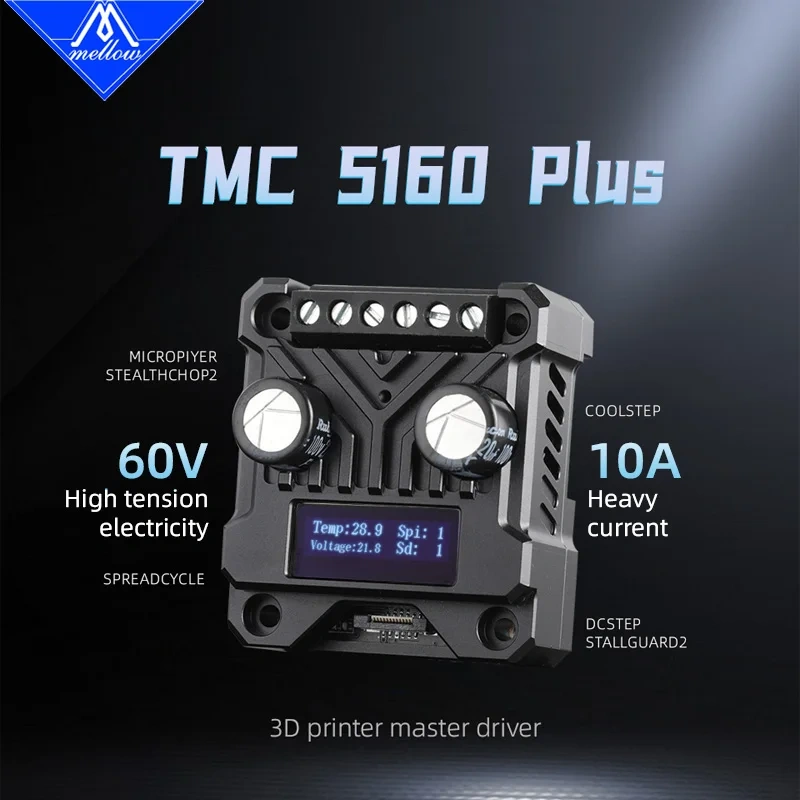

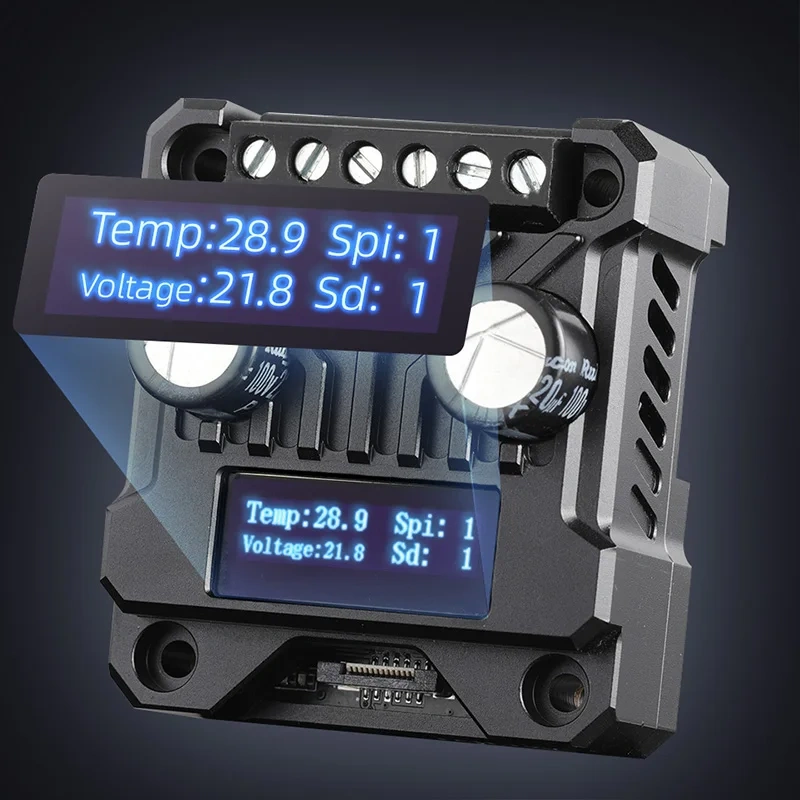

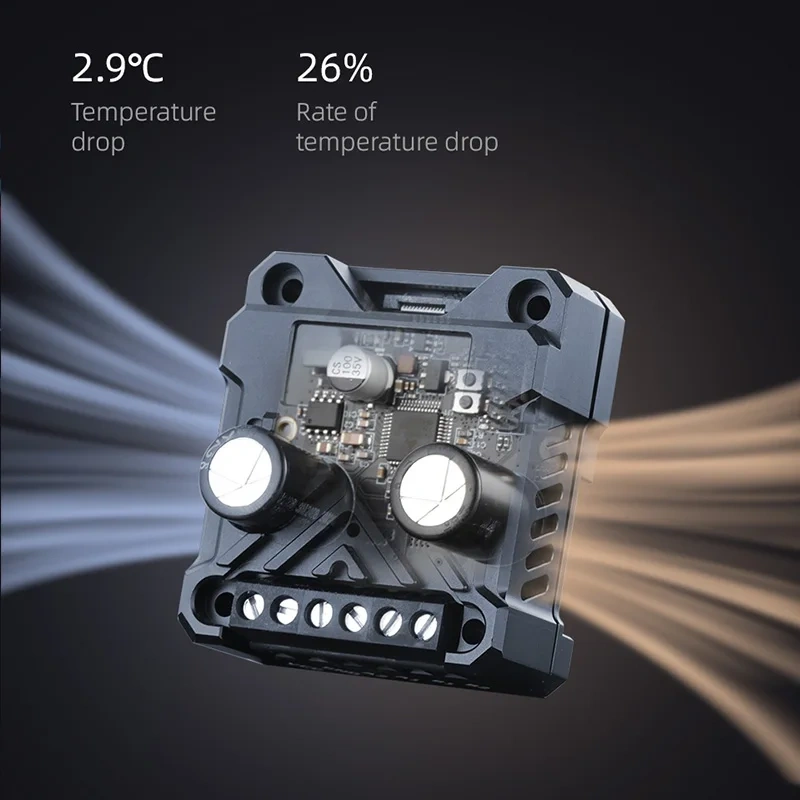

Following the chip design requirements, we provide 12V power supply for the TMC5160 chip's VSA. Additionally, the driver supports limit switches to utilize the TMC5160's unlimited limit function and includes a 12V power port for a cooling fan. The latest design armored heatsink ensures adequate cooling while offering a sleek appearance. The driver also features an LCD screen to display driver temperature and connection mode, and controllable LED lights on the back for more DIY design options.
It is important to note that higher voltage allows the use of larger motors, significantly benefiting the movement speed of 3D printers.
However, please select a working voltage with safety as the primary consideration.
Product parameters
Product name: FLY HV-TMC5160 Plus V1.0
Features: External high voltage TMC5160 drive
Input voltage: 12-60V
Maximum current: 10
Apply to:Marlin/RRF/Klipper firmware
Product material: PCB copper 2oz thick, gold plated
Advantages
TMC5160 supports trapezoidal curve accelerationo
The TMC5160 benefits from a high-precision chopperalgorithm, No noise in operation, low common-shock
1 Step/direction interface with microstep interpolation microPlyer
2 The highest resolution is 256 subdivisions
3 Support stealthChop2 silent work and smooth motion
4 Supports resonance suppression for mid-range resonance
5 Support spreadCycle high dynamic motor control chopper
6 Support dcStep load related speed control
7 Supports stallGuard2 high-precision sensorless motor load detection
8 Support coolStep current control, which can achieve up to 75% energy saving
