1Description

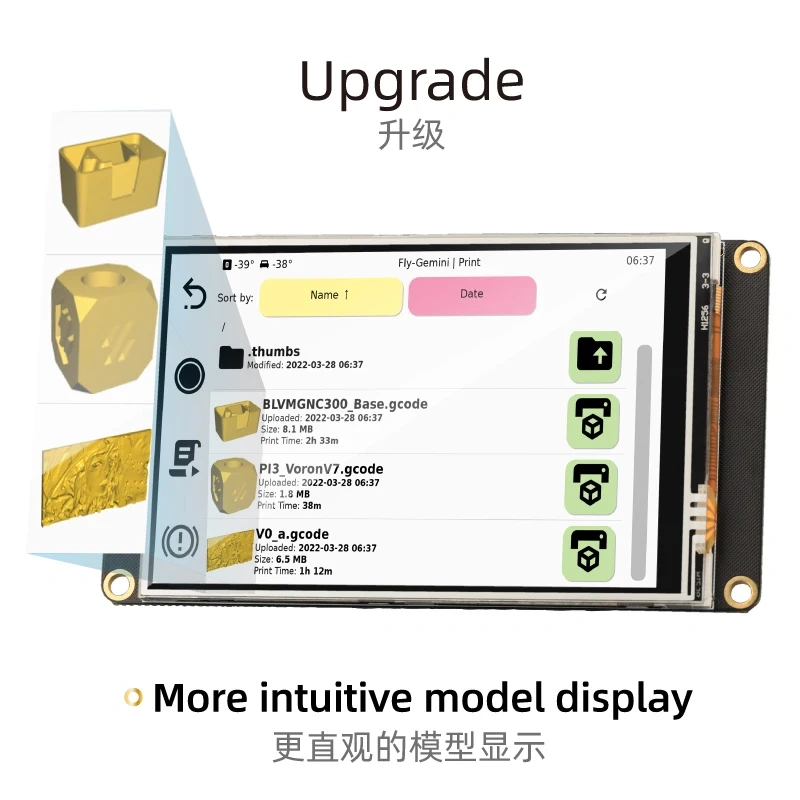

This screen is designed to meet the needs of customers who require a small-sized touch color screen. Although the screen is relatively small, it is sufficient for use. Compared to the 12864 screen, it can display more information. After your slicing software generates thumbnails, you can directly view model thumbnails on the screen, which is very convenient. The experience of using resistive touch screens is not as good, so we have upgraded to capacitive screens for a better user experience, especially when customers use small screens.

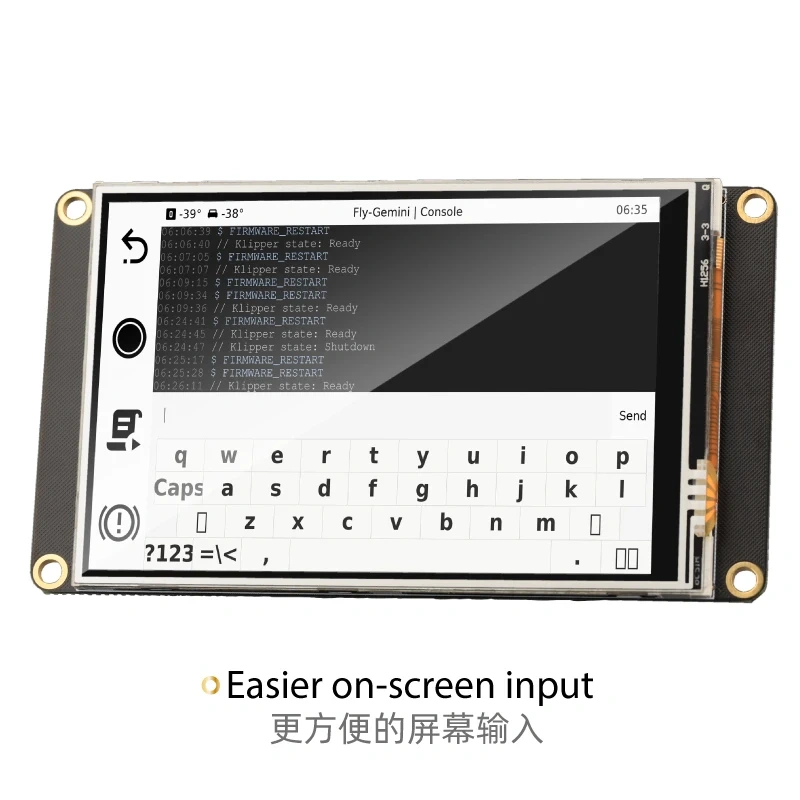

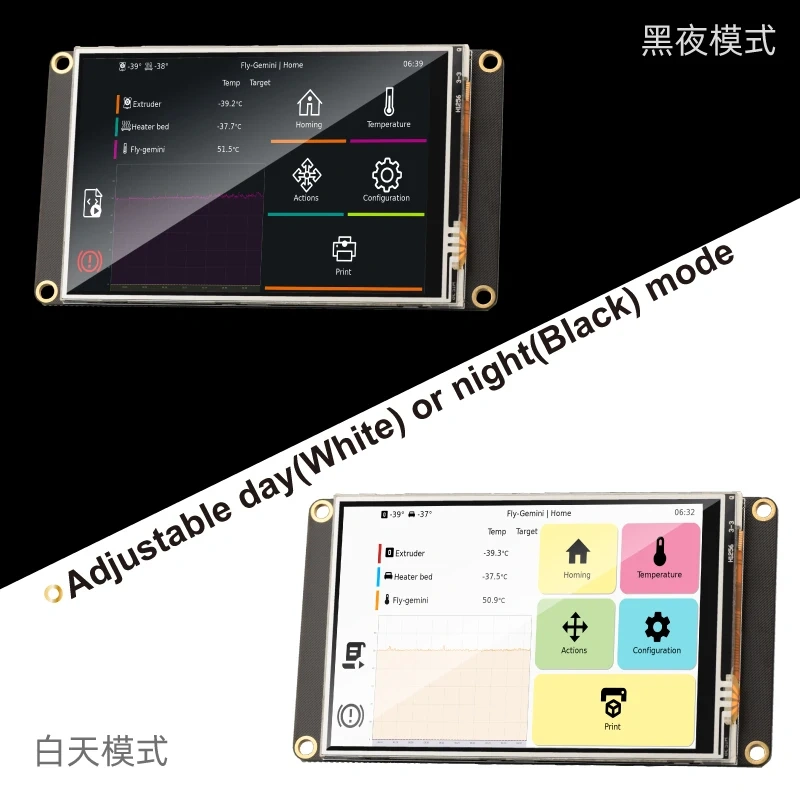

The screen display interface is sourced from https://github.com/jordanruthe/KlipperScreen. Using our Fly-Gemini motherboard, you can directly connect Fly TFT resistive touch screens. However, when using Fly TFT screens with versions 1.0 and 1.1, Canbus is not used. It is the perfect choice to use with our Fly-Gemini motherboard.
The FLY Gemini motherboard flly-pi-lite2、fly-π ?Unable to use capacitive screen
Please pay attention! If you have any questions, please contact customer service first
When do you need the G2T adapter board?
-

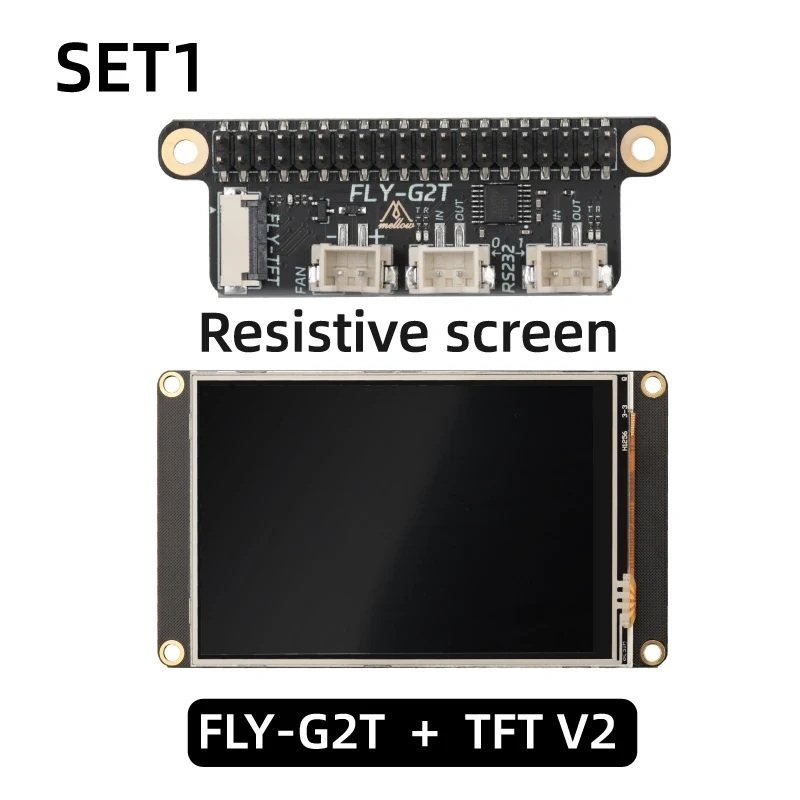

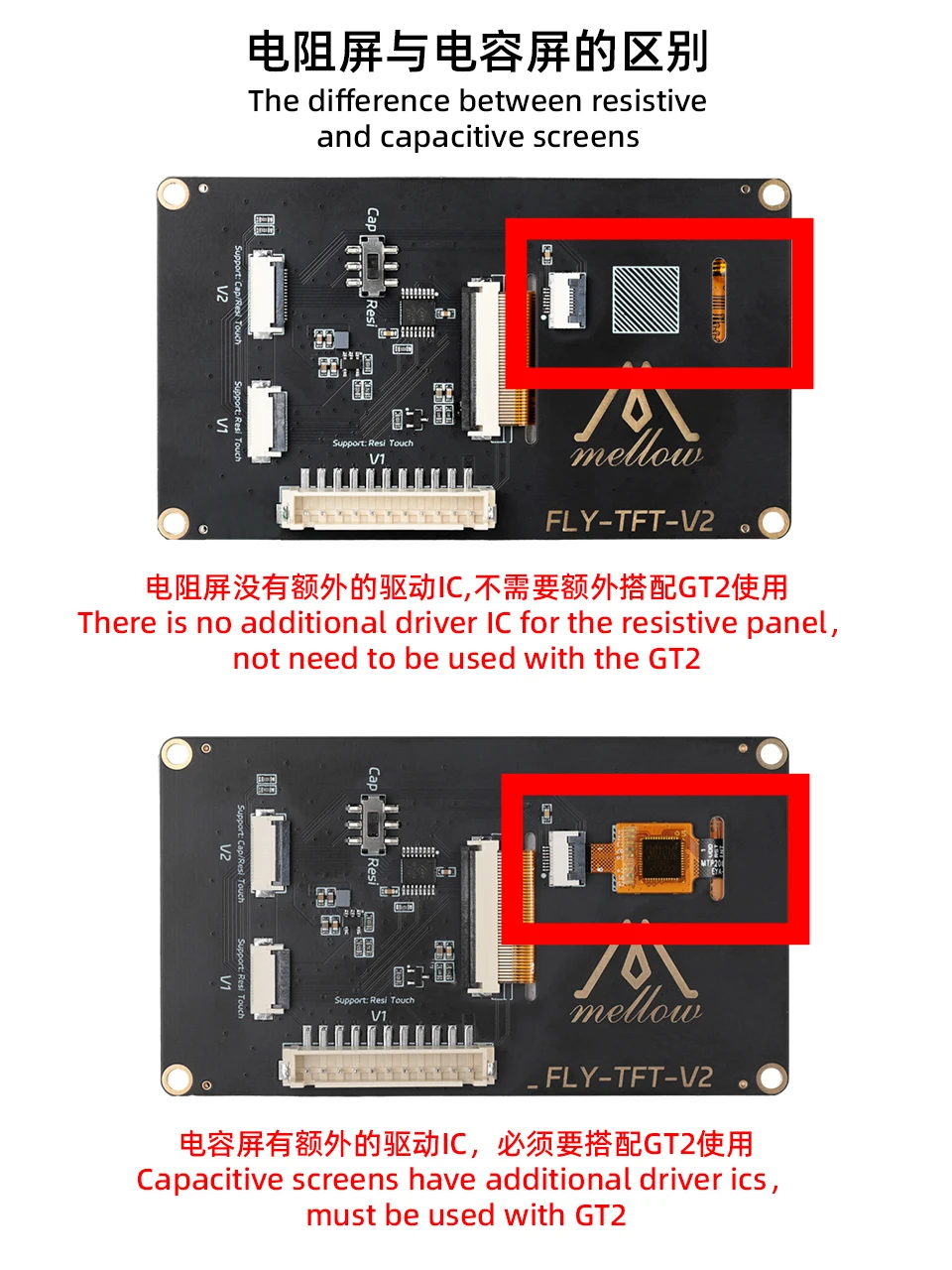

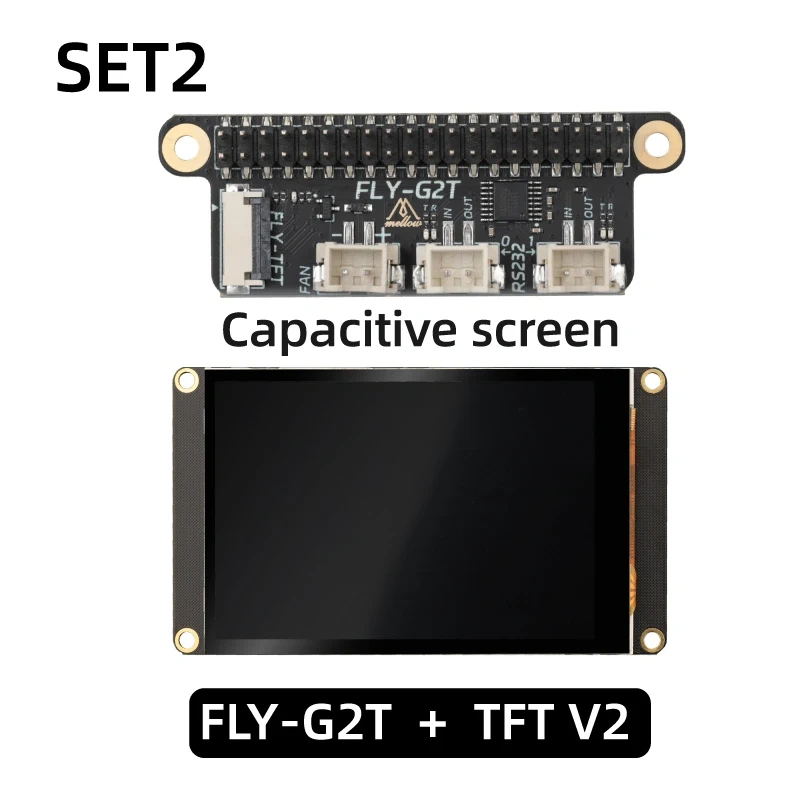

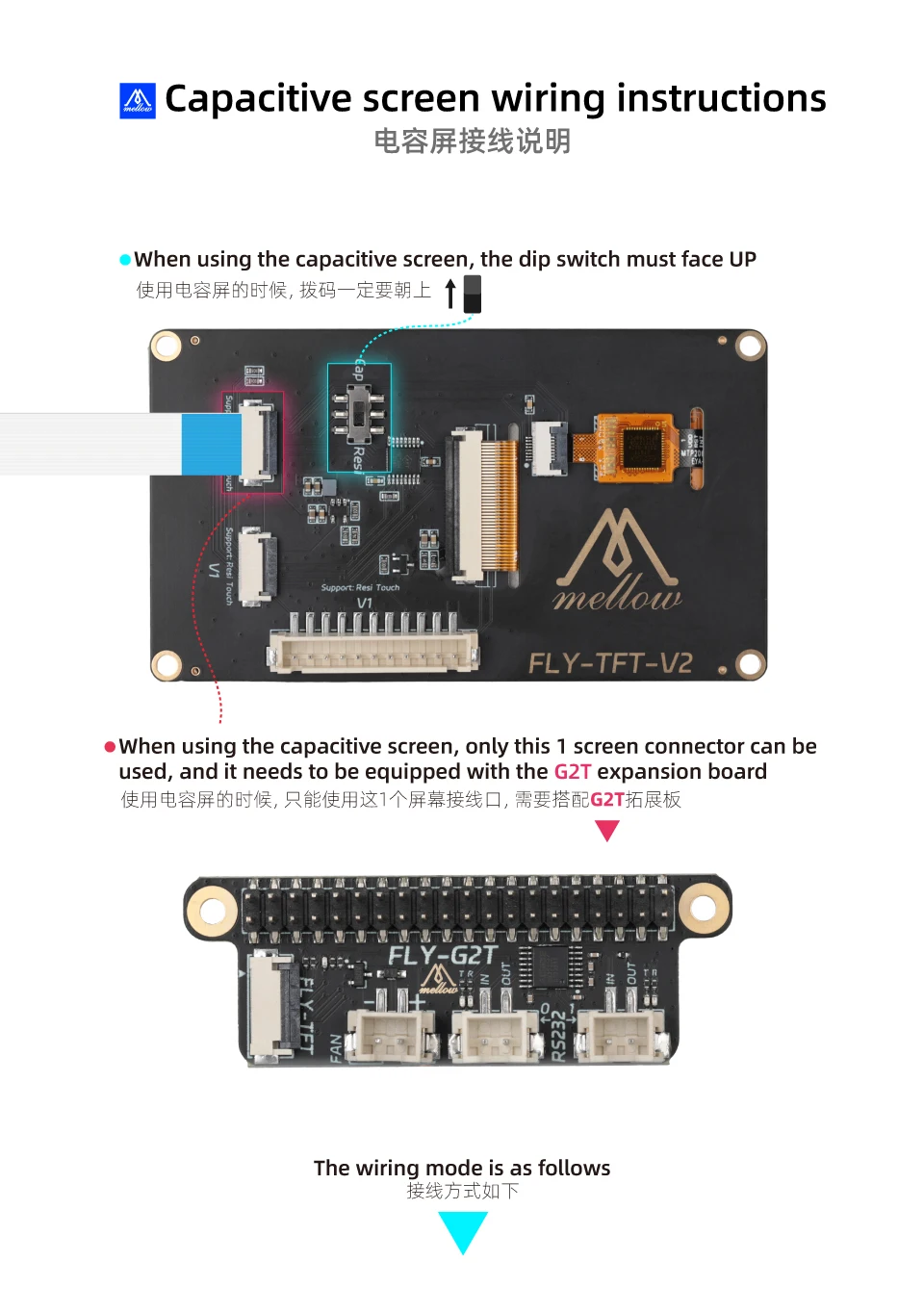

When using the TFT35 capacitive touch screen with Fly PI V2/C8/Raspberry Pi, you need to connect the G2T adapter board.
-
When using the TFT35 resistive touch screen with Raspberry Pi, you need to connect the G2T adapter board.

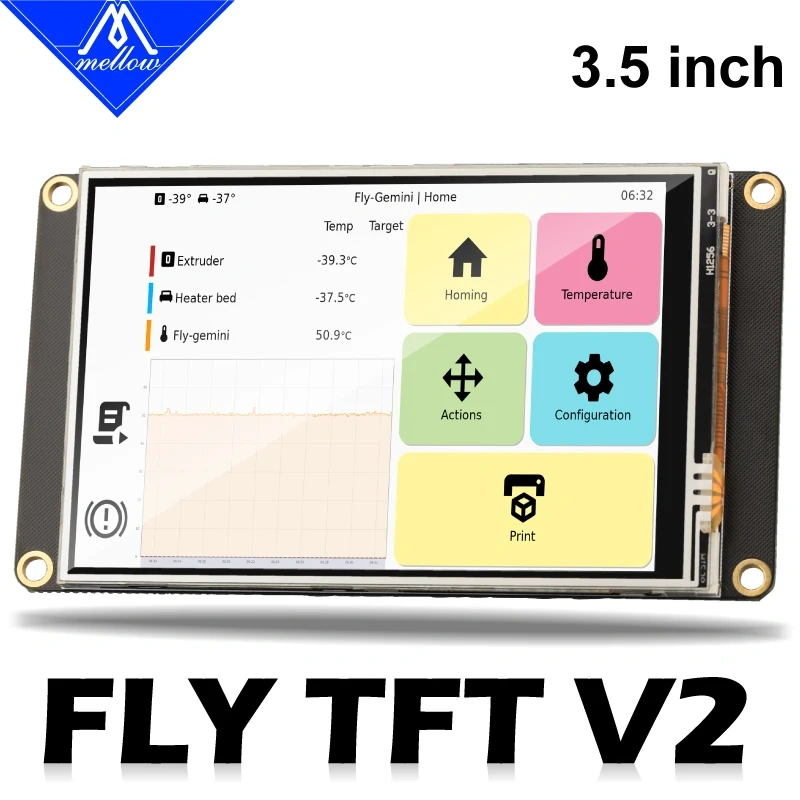

Model Number : FLY TFT V2 Screen
Appearance Size: 98*56MM
Power Input:?DC5v
Supper: Klipper
Screen size: 3.5

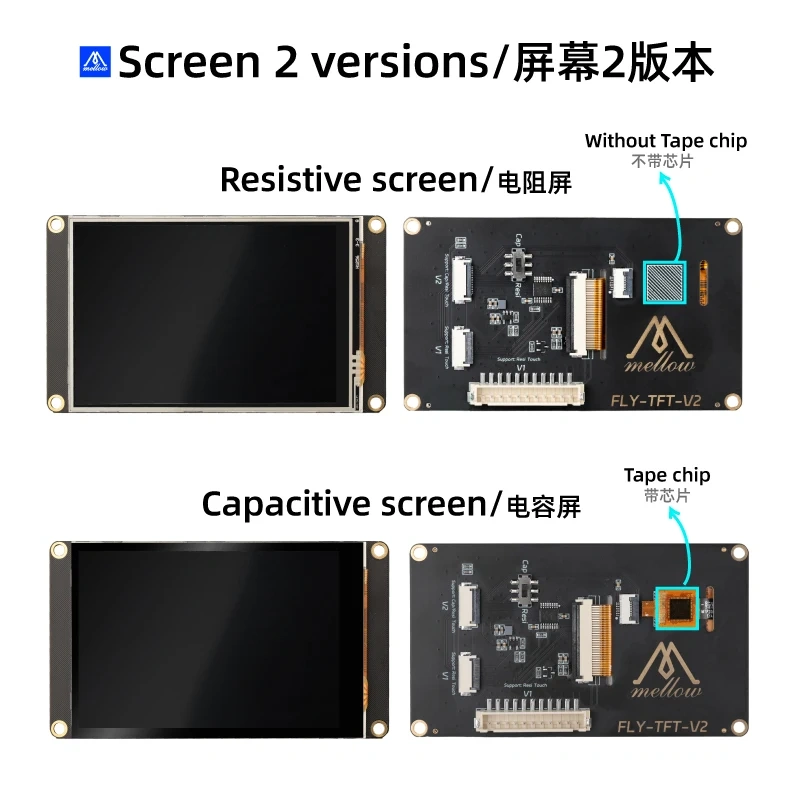

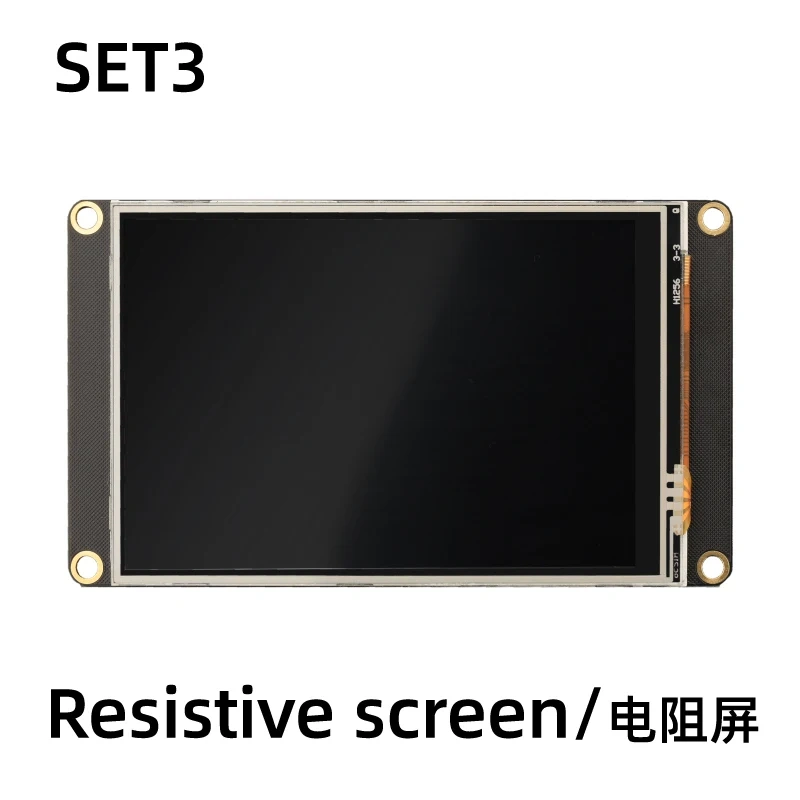

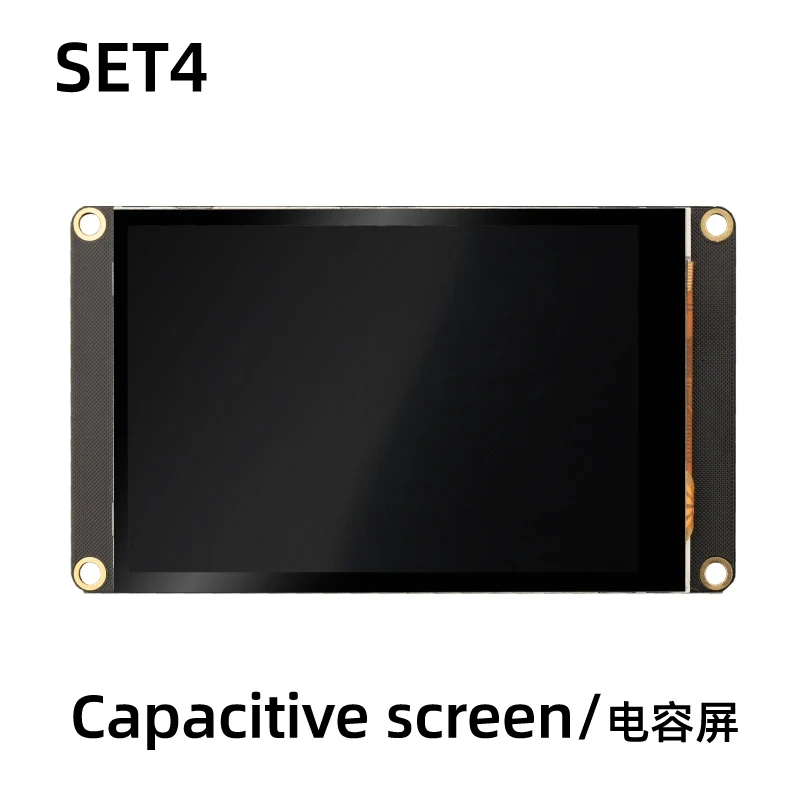

Screen Type: Resistive/Capacitive Touch Color Screen
Refresh Rate: 50fps
Line Length: 30CM

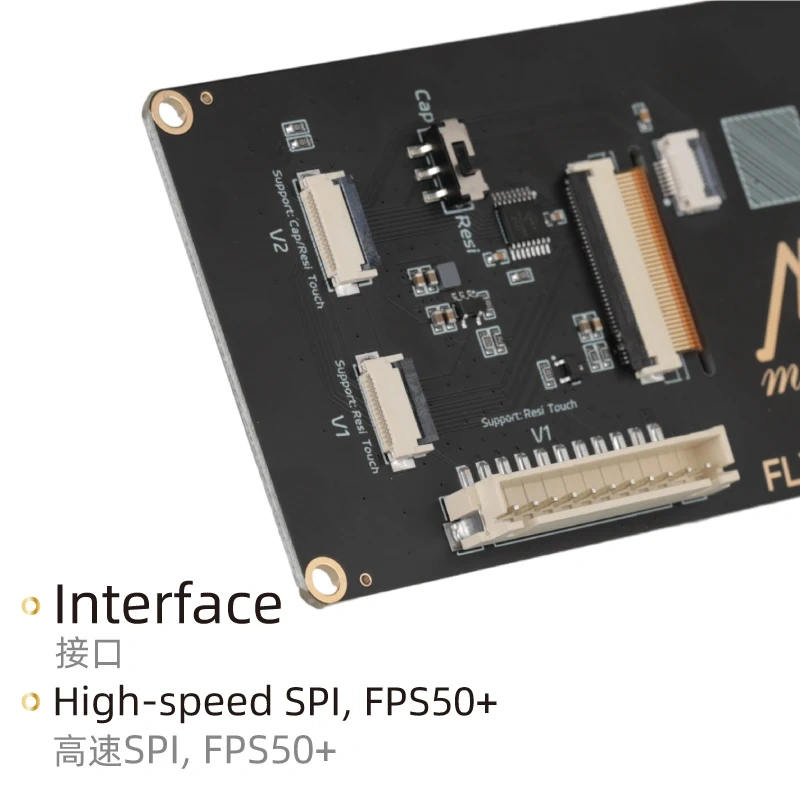

Connection Type: Spi
If you have any questions, you can enter our server to communicate https://discord.gg/7J26EsFURQ
