High Flow Mellow HeatCore 4 UHF Lite ALPS Smart Leveling Hotend Upgrade & Replacement Parts Kit for Voron BLV Vzbot Hevort 3D Printers

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines.NF Extruders, NF Hotends and FLY Mother boards and Electronics. We hope our products will bring you a better overall user experience. lf you have any ideas products, use, sales), please contact us. We look forward to hearing from you.

1Description

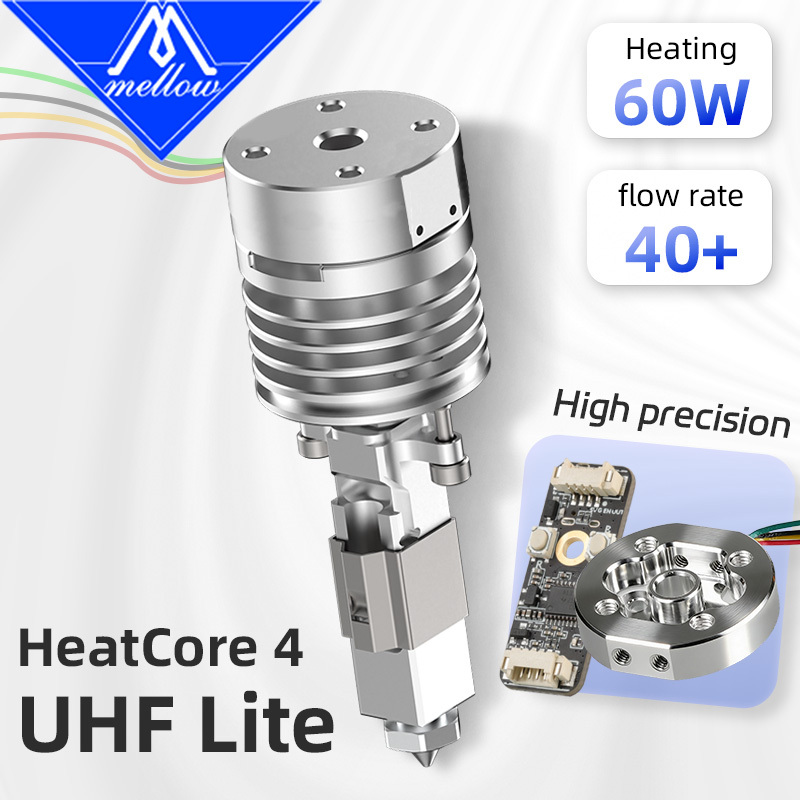

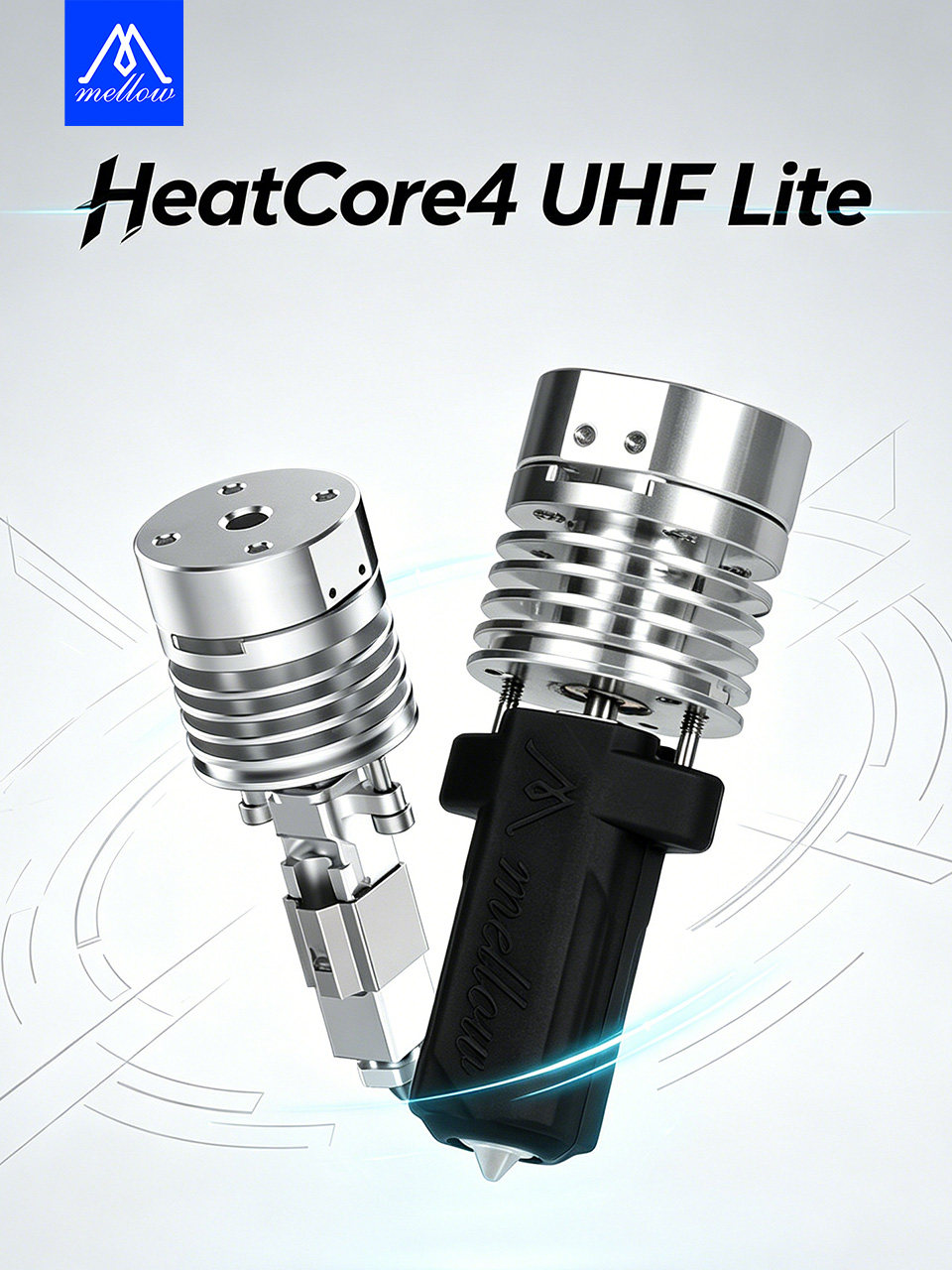

Mellow HeatCore 4 UHF ALPS Hotend is a compact, high-performance, high flow, high-speed front-end solution for Voron series 3D printers. It supports stable extrusion at speeds exceeding 40mm ³/s and high-temperature printing at 400 ℃. We are equipped with a complete upgrade kit and replacement parts here, with multiple optional kits to meet your needs for complete machine upgrades, partial replacements, and daily maintenance and repair.

Key Features of HeatCore 4 UHF Lite Hotend

1. Ultra-Compact Design

• 4 mm High-Performance Heater Cartridge: Minimizes heater block volume for reduced thermal mass and faster response.

• Lightweight Construction: Lowers overall printhead weight, improving printer dynamics and speed.

2. High-Power Heating System

• 60 W Heater: Achieves target temperatures in seconds, dramatically cutting preheat times.

• 400 °C Maximum: Supports high-temperature materials with a Pt1000 temperature sensor for precise control.

3. Optimized Heat Break Material

• TC4 titanium Heatbreak reduces heat conduction to the heat sink and is more wear-resistant than stainless steel, providing stable printing.

4. Titanium-Reinforced Structure

• Innovative Screw-Support Framework: Distributes mechanical stress across the hotend, enhancing reliability during long prints.

5. V6 Nozzle Compatibility

• Standard Copper Nozzle Included: Easily swap in hardened steel, tungsten carbide, or silicon carbide nozzles to suit abrasive or high-temperature filaments.

6. Exceptional Flow Performance

• > 40 mm³/s Throughput: Guarantees stable feeding at high print speeds, maximizing productivity.

Highlights of the ALPS Pressure-Based Leveling Module

• Nozzle Calibration Probe

1. 24-Bit High-Precision ADC

• ADS131M02 Chip: Sampling at 64 kHz to detect minute pressure changes, outperforming HX711-based sensors.

2. On-Chip Signal Amplification

• 128× Gain: Enhances sensitivity and signal-to-noise ratio for reliable bed triggering.

3. Advanced Noise Reduction

• Low-Drift Reference & Kalman Filtering: Slashes measurement error by over 90 %, delivering ultra-stable readings.

4. Plug-and-Play Threshold Adjustment

• USB Interface: Allows real-time threshold tuning on a PC—no coding or firmware tweaks required.

5. Broad Firmware Compatibility

• Modular Integration: Works seamlessly with Klipper, Marlin, RRF, and other popular firmwares for custom pressure-based leveling workflows.

We provide a 1.5 meter cable for the ALPS module to connect directly to the motherboard Uart interface.

ALPS refers to this URL: https://mellow.klipper.cn/en/docs/ProductDoc/ExtensionBoard/fly-apls/?persistLocale=true

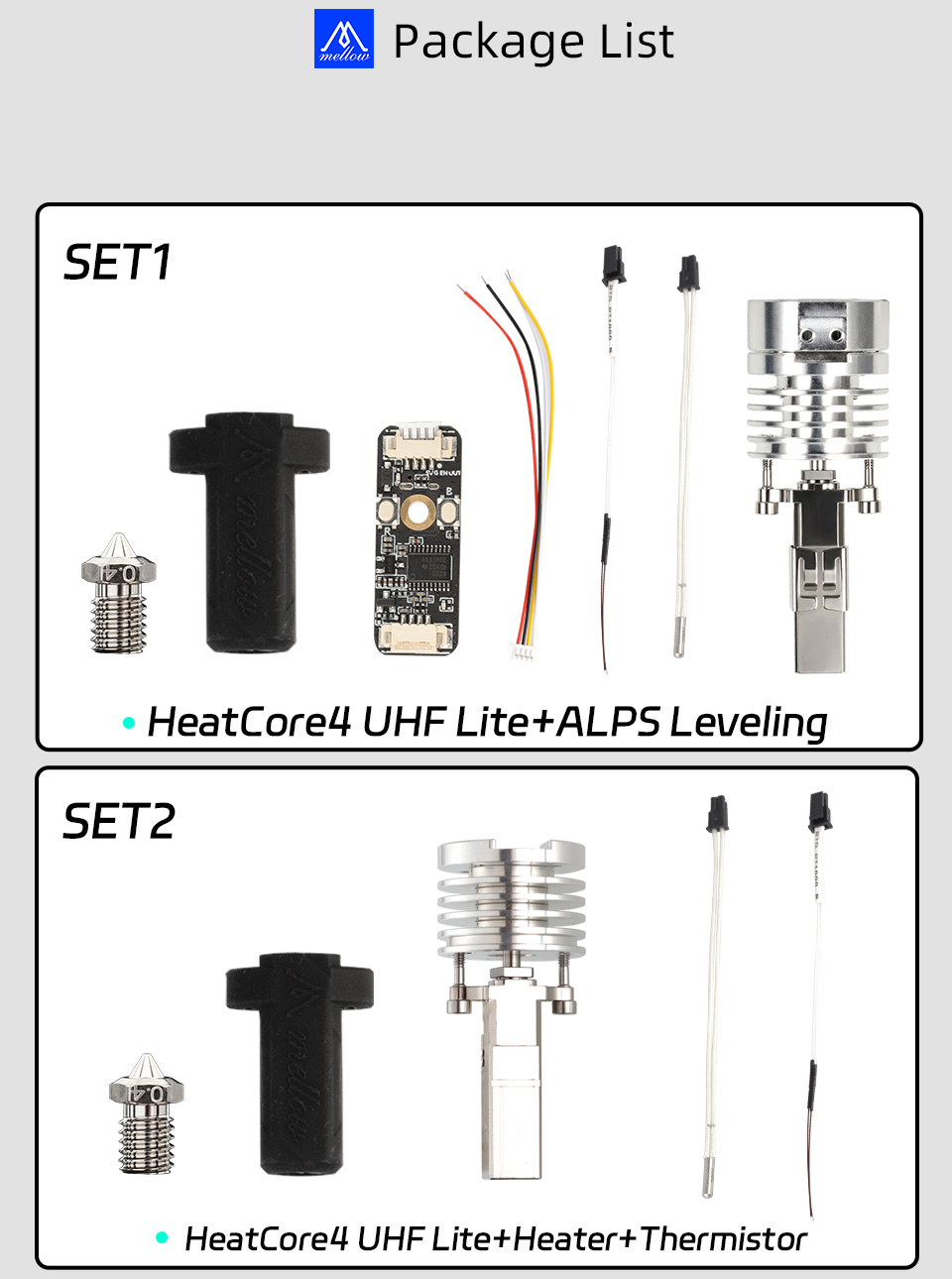

Package:

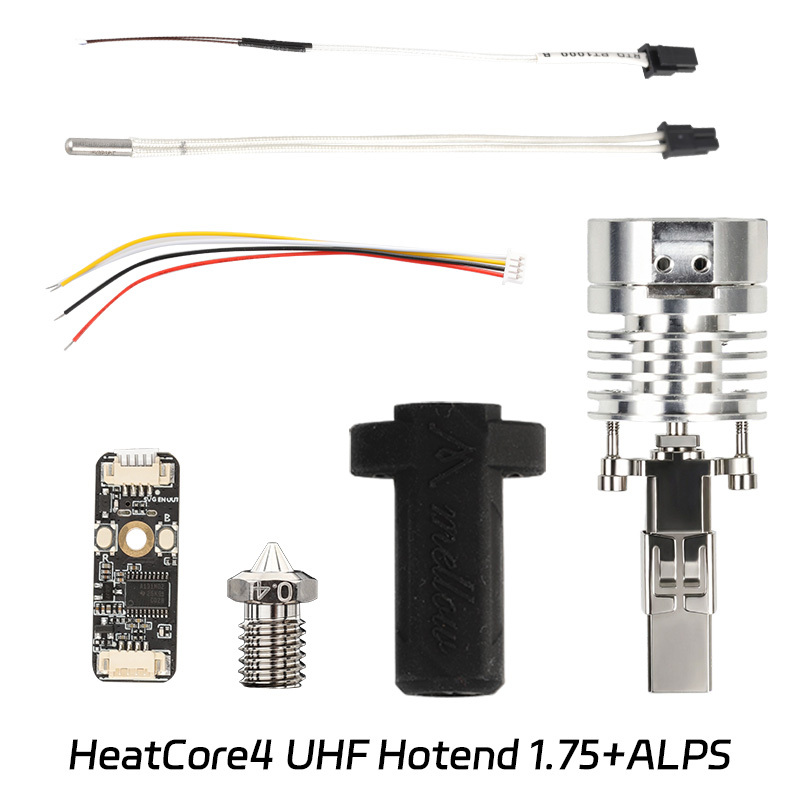

Set1

HeatCore 4 UHF Lite ALPS Hotend*1

4MM High performance Heater*1

NONO PT1000 Temperature Sensor*1

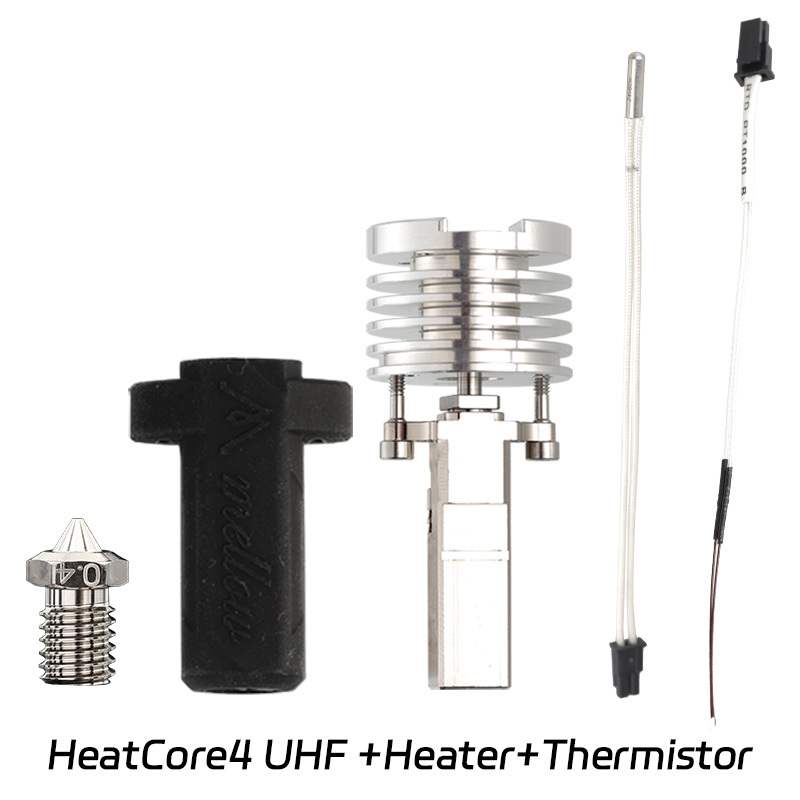

Set2

HeatCore 4 UHF Lite Hotend*1(Does not include ALPS leveling module)
4MM High performance Heater*1

NN PT1000 Temperature Sensor*1

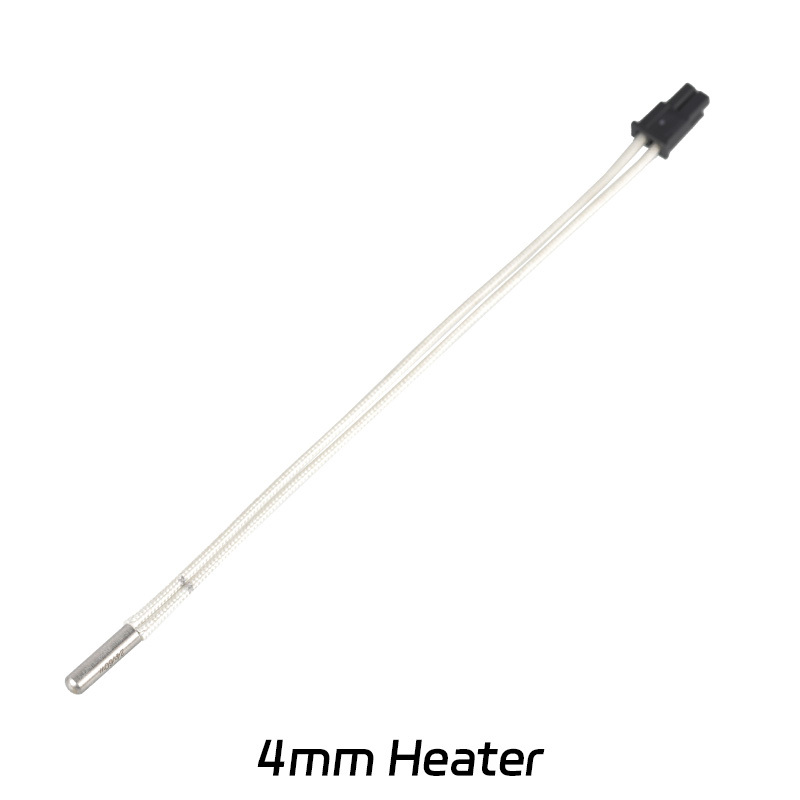

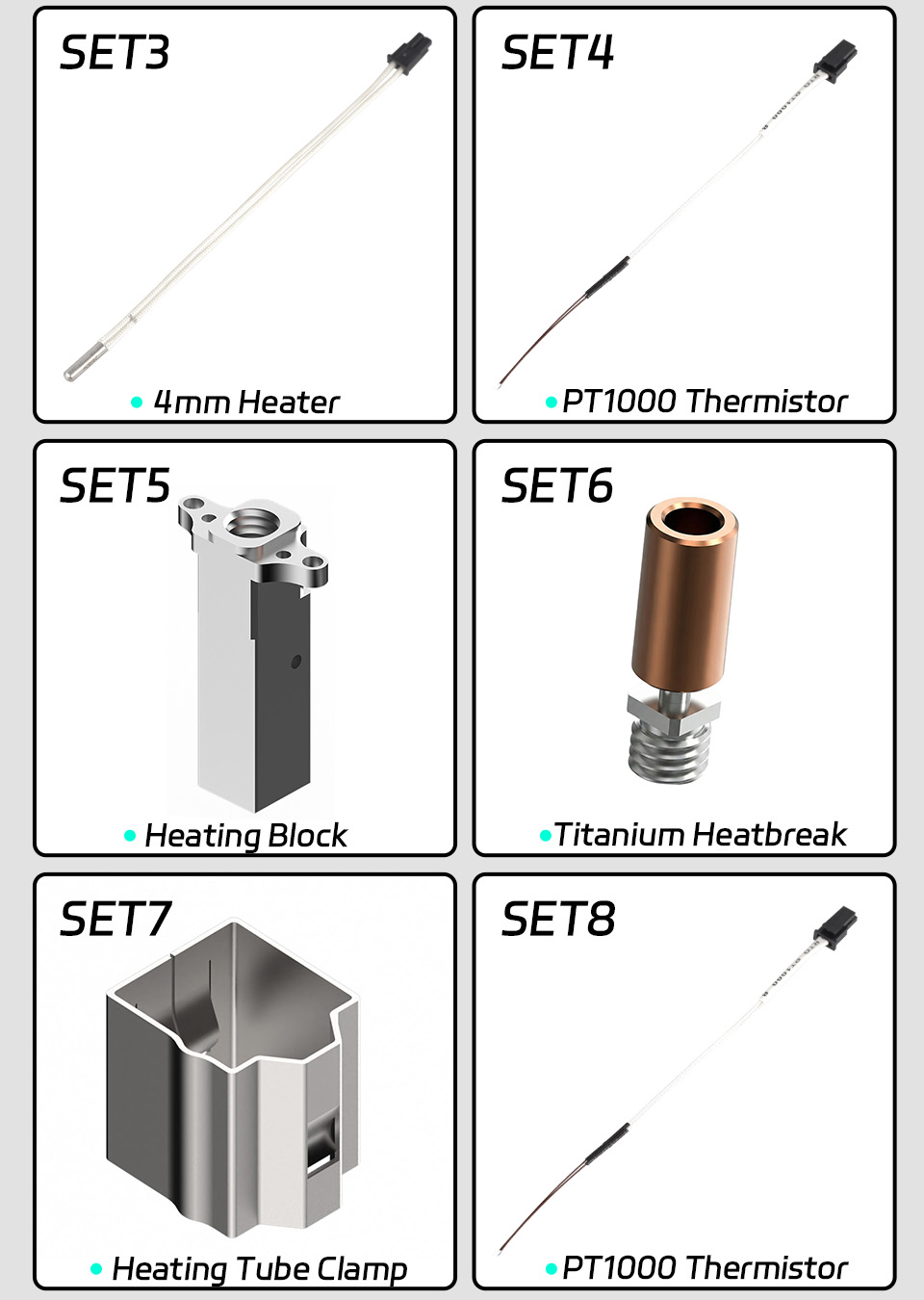

Set3

HP 4MM Heater*1

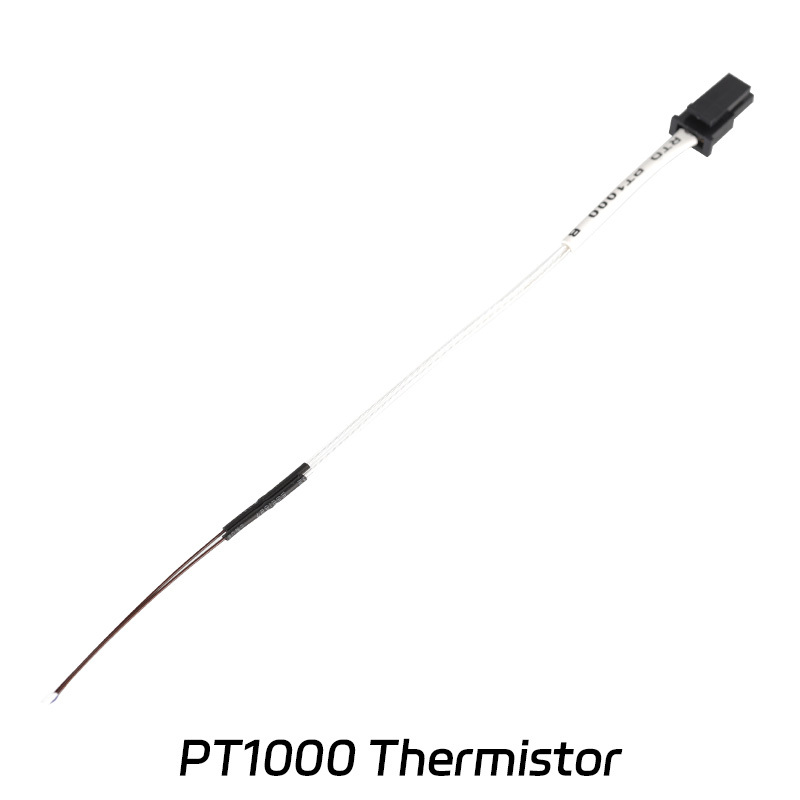

Set4

NN PT1000 Temperature Sensor*1

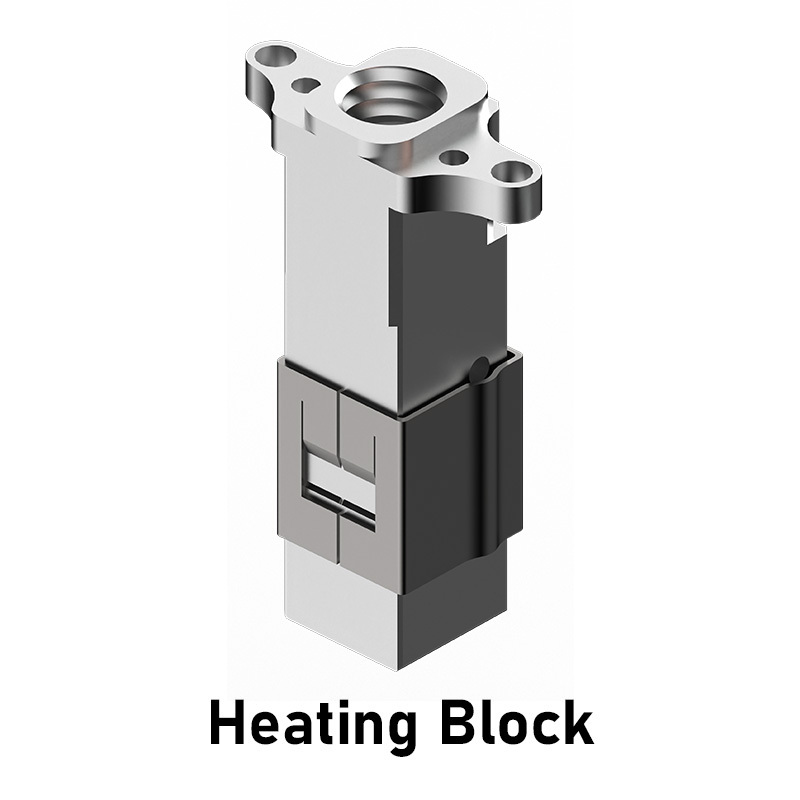

Set5

Heating Block*1

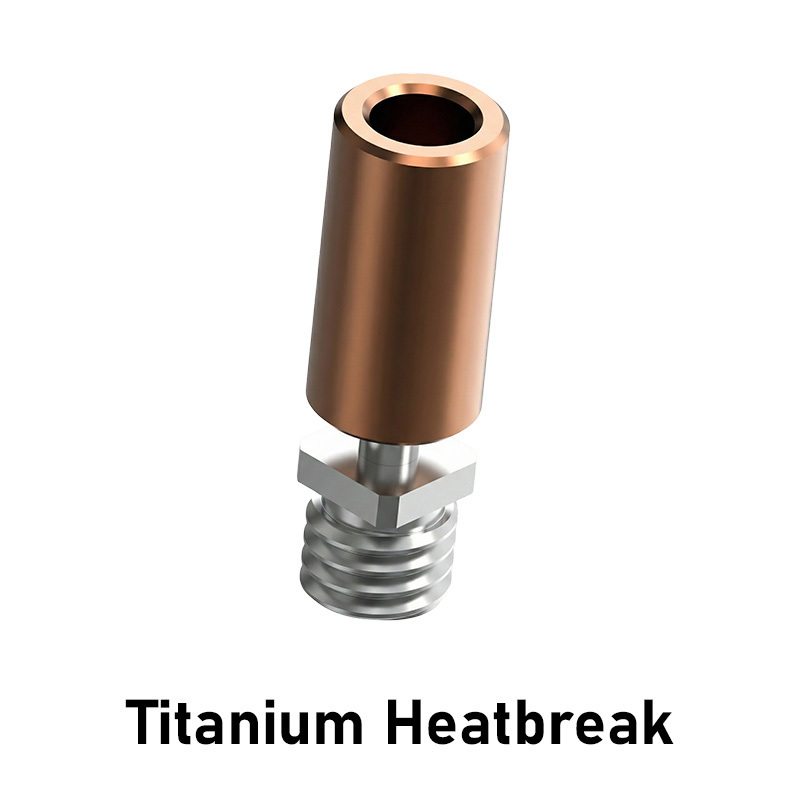

Set6

Titanium Heatbreak*1

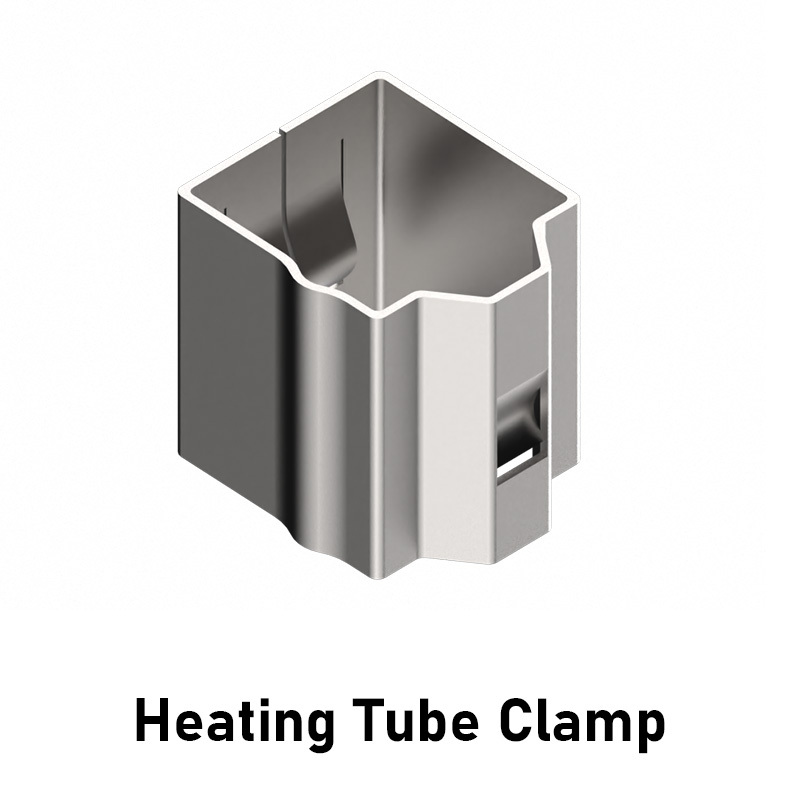

Set7

Heating Tube Clamp*1

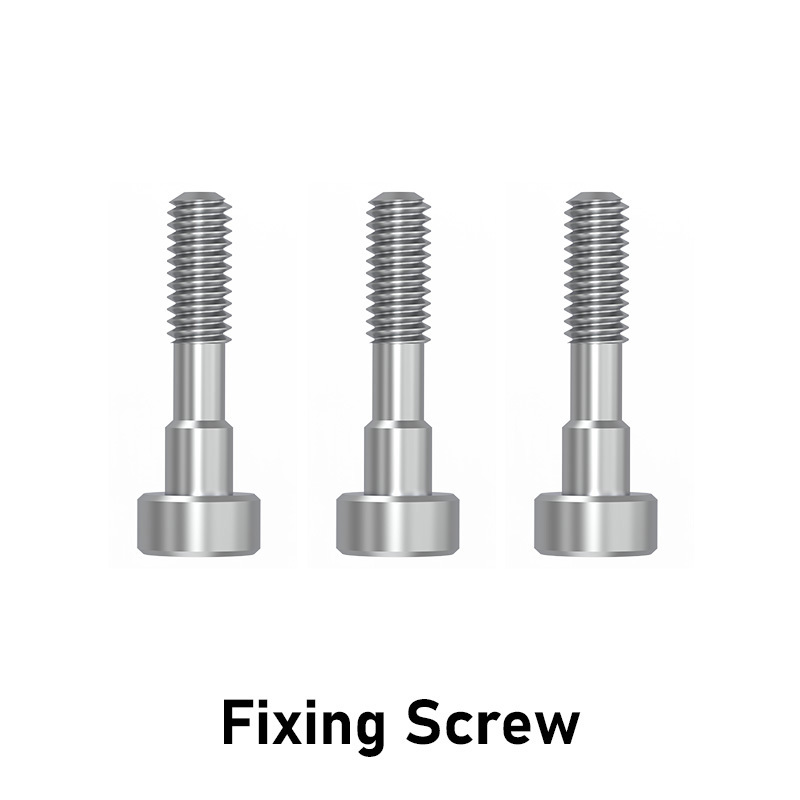

Set8

Fixing Screw*3
